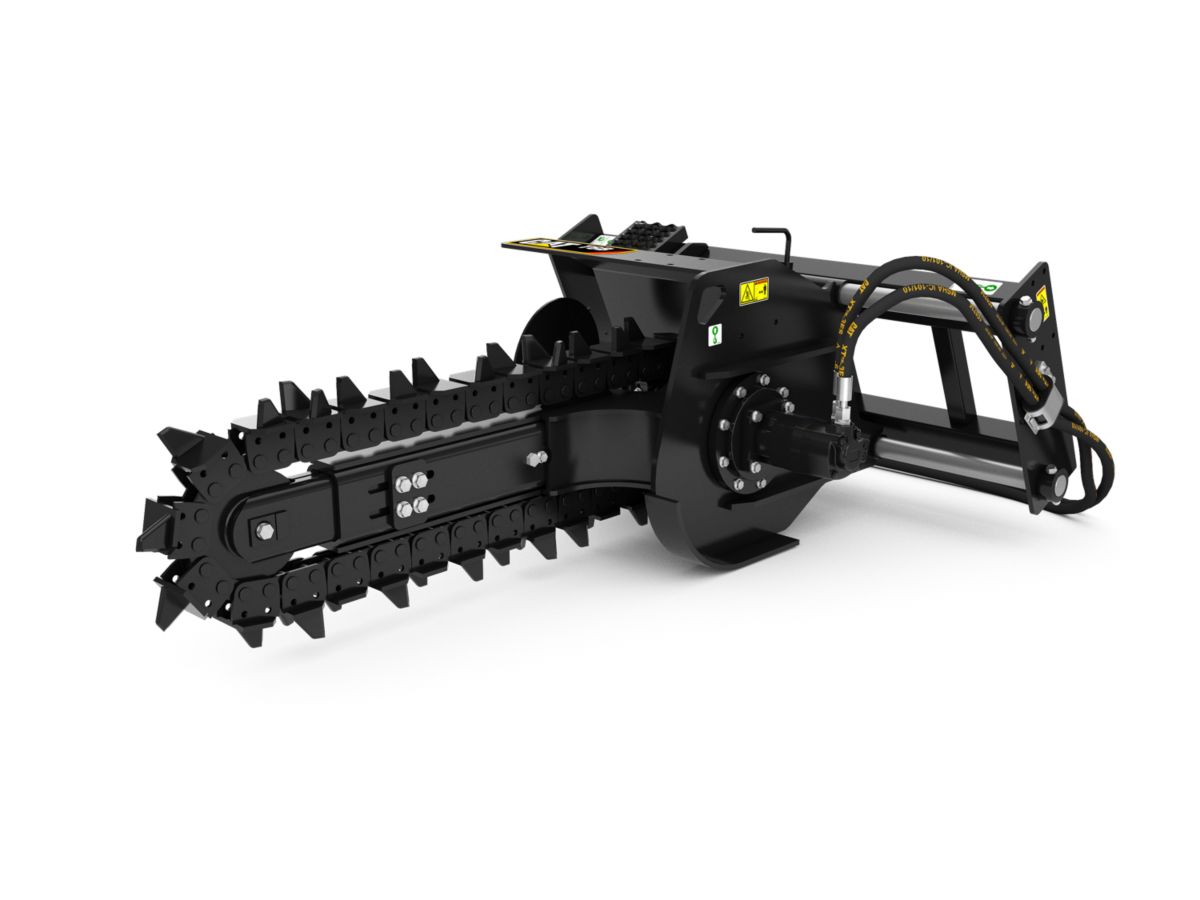

Enquire about "T6B Manual Trencher with terminator teeth" Now
Designed for cutting narrow, straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe.
Direct Drive System
Direct drive system features a variable speed, bi-directional, gerotor style motor that delivers optimal chain speed, chain pull and torque for maximum trenching performance in a broad range of soil types.
Durable Anti-Back Flex Chain
Durable, double standard anti-back flex chain eliminates chain backlash and ensures teeth are positioned at the most efficient angle for smooth cutting and longer tooth life.
Hard-faced, Tungsten Carbide Steel Cupped Teeth
Hard-faced, tungsten carbide steel cupped teeth deliver long life in many soil conditions. Teeth are spaced for optimum digging performance in most soil types.
Hydraulic or Manual Side Shift
Hydraulic or manual side shift provides close trenching flexibility near structures or obstructions. Hydraulic side shift, standard on the T315 (optional on T109 and T112) is controlled from operator’s compartment using the standard flow auxiliary hydraulic circuit selector control.
Optional Chain Types and Cutting Widths
Optional chain types and cutting widths are available for specific soil, digging requirements and trench widths. These chain types include Standard, Combo, Terminator, and Rockfrost.
Large Diameter Bolt-On Spoil Auger
Large diameter bolt-on spoil auger improves loose soil removal from trenching area and allows for quick, easy removal and servicing.
Optional Bolt-On Crumber Bar
Optional bolt-on crumber bar with shoe improves soil removal to provide cleaner trench. Shoes available in size range to accommodate trench width.
|Standard Boom Length||914 mm (36 in)|
|Cutting Width||152 mm (6 in)|
|Required Hydraulics||Standard Flow|
|Overall Width||1426 mm (56.1 in)|
|Overall Length||2348 mm (92.4 in)|
|Weight||459 kg (1011.9 lb)|
|Overall Height||786 mm (30.9 in)|
|Optimal Hydraulic Flow||42-86 L/min (11-23 gpm)|
|Optimal Hydraulic Pressure||145-235 bar (2100-3400 psi)|
|Drive Shaft Speed at Maximum Flow||203 rpm|
|Side Shift Travel||419 mm (16.5 in)|
|Maximum Auger Clearance||534 mm (21 in)|
|Spoil Auger Diameter||457 mm (18 in)|
|Optional Cutting Widths||203, 254, 305 mm (8, 10, 12 in)|
