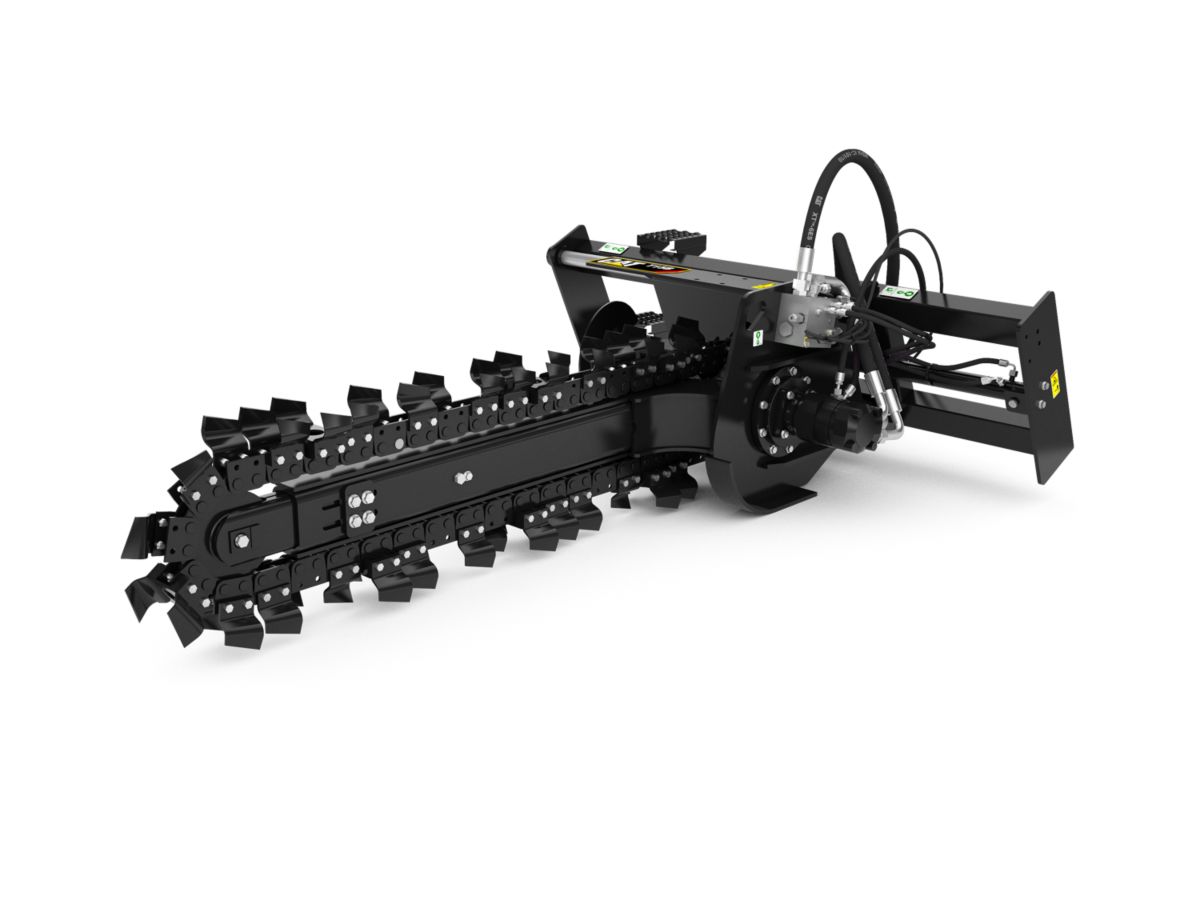

Designed for cutting narrow, straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe.
Direct Drive System
Direct drive system features a variable speed, bi-directional, gerotor style motor that delivers optimal chain speed, chain pull and torque for maximum trenching performance in a broad range of soil types.
Durable Anti-Back Flex Chain
Durable, double standard anti-back flex chain eliminates chain backlash and ensures teeth are positioned at the most efficient angle for smooth cutting and longer tooth life.
Hard-faced, Tungsten Carbide Steel Cupped Teeth
Hard-faced, tungsten carbide steel cupped teeth deliver long life in many soil conditions. Teeth are spaced for optimum digging performance in most soil types.
Hydraulic or Manual Sideshift
Hydraulic or manual sideshift provides close trenching flexibility near structures or obstructions. Hydraulic sideshift, standard on the T15B (optional on T6B and T9B) is controlled from operator’s compartment using the standard flow auxiliary hydraulic circuit selector control.
Large Diameter Bolt-on Spoil Auger
Large diameter bolt-on spoil auger improves loose soil removal from trenching area and allows for quick, easy removal and servicing.
Optional Chain Types and Cutting Widths
Optional chain types and cutting widths are available for specific soil, digging requirements and trench widths. These chain types include Standard, Combo, Terminator, and Rockfrost.
Optional Bolt-on Crumber Bar
Optional bolt-on crumber bar with shoe improves soil removal to provide cleaner trench. Shoes available in size range to accommodate trench width.
|Standard Boom Length||1524 mm (60 in)|
|Cutting Width||203 mm (8 in)|
|Chain Pull at Maximum Pressure||2424 kg (5344 lb)|
|Chain Speed at Maximum Flow||158 m/min (519 ft/min)|
|Drive Shaft Speed at Maximum Flow||207 @ 129 L/min (34gpm)|
|Drive Shaft Torque||2905 N·m (2144 lb/ft)|
|Maximum Auger Clearance||534 mm (21 in)|
|Motor Displacement||629 cmu00b3 (39 inu00b3)|
|Optimal Hydraulic Pressure||207-310 bar (3300-4500 psi)|
|Optional Cutting Widths||152,254,305 mm (6,10,12 in)|
|Overall Height||786 mm (31 in)|
|Overall Length||3010 mm (118.5 in)|
|Overall Width||1901 mm (75 in)|
|Required Hydraulic Flow||95-152 L/min (25-40 gpm)|
|Required Hydraulics||High Flow XPS|
|Sideshift Travel||559 mm (22 in)|
|Spoil Auger Diameter||457 mm (18 in)|
|Weight||583.8 kg (1287 lb)|
