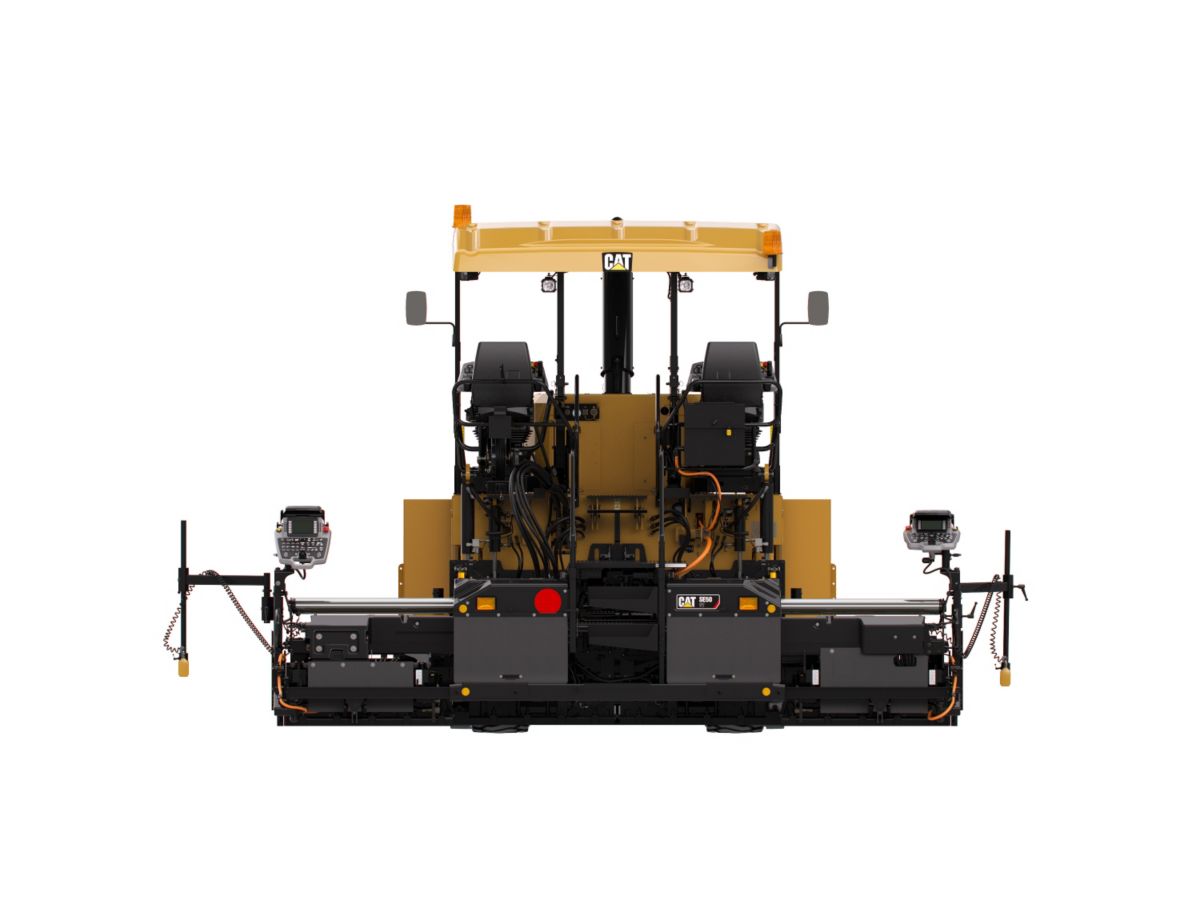

SE50 VT Tamper Bar Screed

  • Overview
  • Optional Services
  • View product Download
CALCULATE FINANCE

Application Versatility

  • Common applications include urban and rural roads, streets, airports, highways, and interstates
  • The standard paving range of 2.55 m
     - 5 m (8′ 4″
     - 16′ 4″) provides excellent performance when changing paving widths for both urban and highway paving applications
  • Simple, bolt-on extensions offer a maximum paving width of 8 m (26′ 3″)

Simple Operation

  • Operating displays can be tailored to specific language requirements with multiple options available
  • Exclusive 2-speed, proportional extender control provides smooth adjustment when transitioning paving widths
  • Screed operating consoles are equipped with ratio adjustment for the augers and conveyors, providing the ability to modify material flow
  • Optional power controls for extension height enables operators to quickly manage mat quality
  • Trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to enhance paving quality and extend screed plate life

Smooth Material Flow

  • Enhanced tamper-bar and deflector plate profiles provide smooth flow to the screed plates
  • Screed plate depths of 324 mm (12.75″) on both the main and extenders provide stability and good mat textures
  • The heated end gate option helps prevent material from sticking for better edge profiles and joint matching capability

Pave Start Assistant

  • Pave Start Assistant saves set-up profiles for repeatable use on future job sites, simply activate the profile for quick, single person setup
  • Set-up preferences include: tamper speed, tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender height (power option), screed assist, and screed locking features
  • Setup features are located in the left screed display and can also be viewed through right screed display and tractor displays

Quick Heat, Even Distribution

  • Tractor integrated generator delivers fast, 15-minute screed plate heating for quick starts
  • Electric heating system with zone monitoring helps ensure even heat distribution and smooth asphalt textures while also allowing heating to continue in the event of a temperature sensor failure

Pendent Control Option

  • Manual overrides and pause function capability for each auger and each conveyor are available to match changes in material flow requirements
  • Optional power height functions assist with profile
  • Automatic Grade Control activation provides flexibility when working on the outer edge of the screed

Grade Control Option

  • Factory-integrated leveling system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
  • User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
  • Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sonic sensor, and cross-coupling feature that maintains slope requirements more consistently when changing elevation

Service Repair Kits

  • Paver and screed service and repair kits include the parts necessary to complete specific repairs
  • Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
  • Repair kits are identified by a single part number to make ordering easy
  • Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

Standard Equipment

  • Power Controls
    • Crown
    • Service repair kits
    • Horn_warning
    • Endgate_manual
  • Material Delivery
    • Thickness screws

Optional Equipment

  • Operating Environment
    • Pave Start Assistant
    • Pendent control
    • Umbrella
    • Visor_LCD display
  • Technology
    • Cat Grade Control
  • Safety
    • Lights_roading
  • Material Delivery
    • Drop arm spacer
    • End gate_power
    • Extension Packages
    • Folding Endgate
    • Heated Endgate
    • Cutoff Shoe
    • Shoe_edge
    • Shoe_safety edge
    • Shoe_wide
