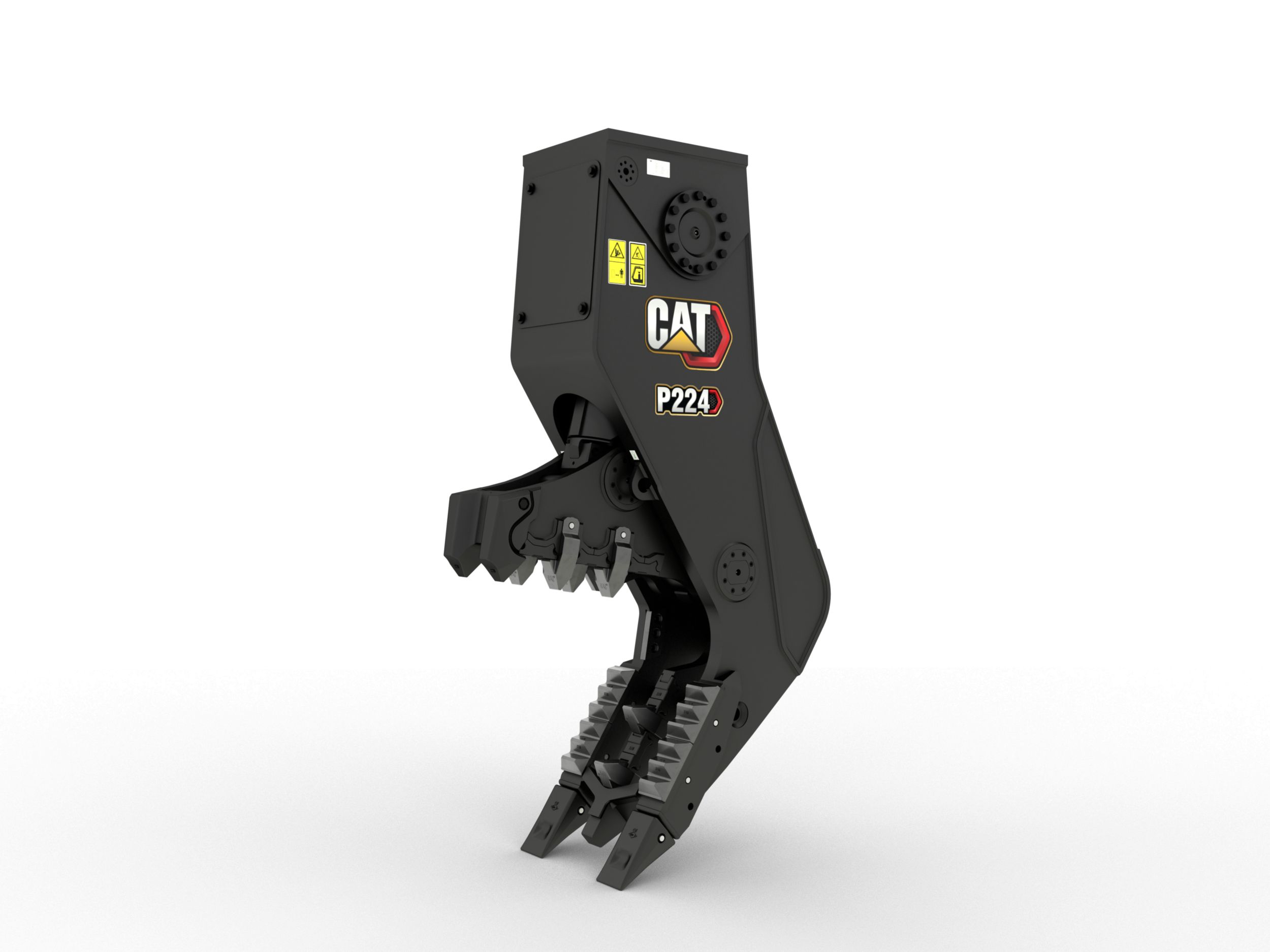

P224 Pulverizer

CALCULATE FINANCE
Performance
Cycle Time - Open 1.9 s (1.9 s)
Cycle Time - Close 1.3 s (1.3 s)
Cutting Force - Blade Center 3640 kN (409 Sh Ton)
Crushing Force - Cutter Tip 1990 kN (224 Sh Ton)
Crushing Force - Tooth Tip 1145 kN (129 Sh Ton)
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure 35000 kPa (5076 lb/inu00b2)
Jaw Circuit - Max. Oil Flow 280 l/min (74 gal/min)
Dimensions - Jaw
Jaw Depth 845 mm (33.3 in)
Cutter Length 200 mm (7.9 in)
Jaw Opening - Maximum 1175 mm (46.3 in)
Jaw Width - Fixed 660 mm (26 in)
Jaw Width - Moving 380 mm (15 in)
Dimensions - Housing + Jaw
Length 2725 mm (107.3 in)
Height 1585 mm (62.4 in)
Dimensions - Housing + Jaw
Width 660 mm (26 in)
Weight
Weight - Housing, Jaw and Bracket 2700 kg (5952 lb)
Recommended Carrier Weight
Excavator Minimum 24000
Excavator Maximum 35000
Jaw Width - Fixed 500 mm (19.7 in)
Closing Force - Tip 174 t (171 Sh Ton)
Length 2615 mm (103 in)
Jaw Opening 1018 mm (40.1 in)
Width 624 mm (24.6 in)
Closing Force - Rebar Cutter 331 t (326 Sh Ton)
Weight 2480 kg (5467 lb)
Capacity - Concrete Thickness 750 mm (29.5 in)
Jaw Depth 899 mm (35.4 in)
