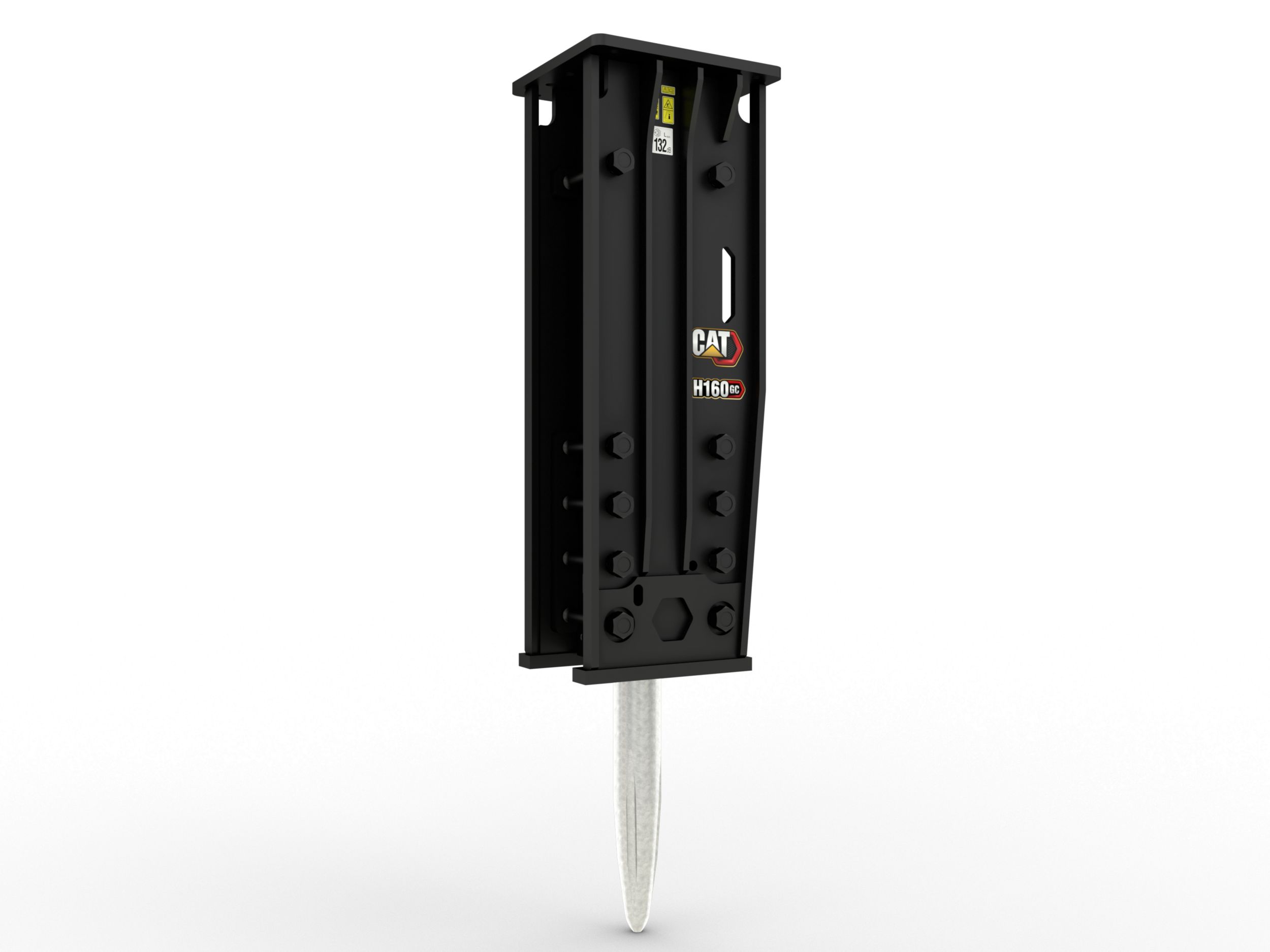

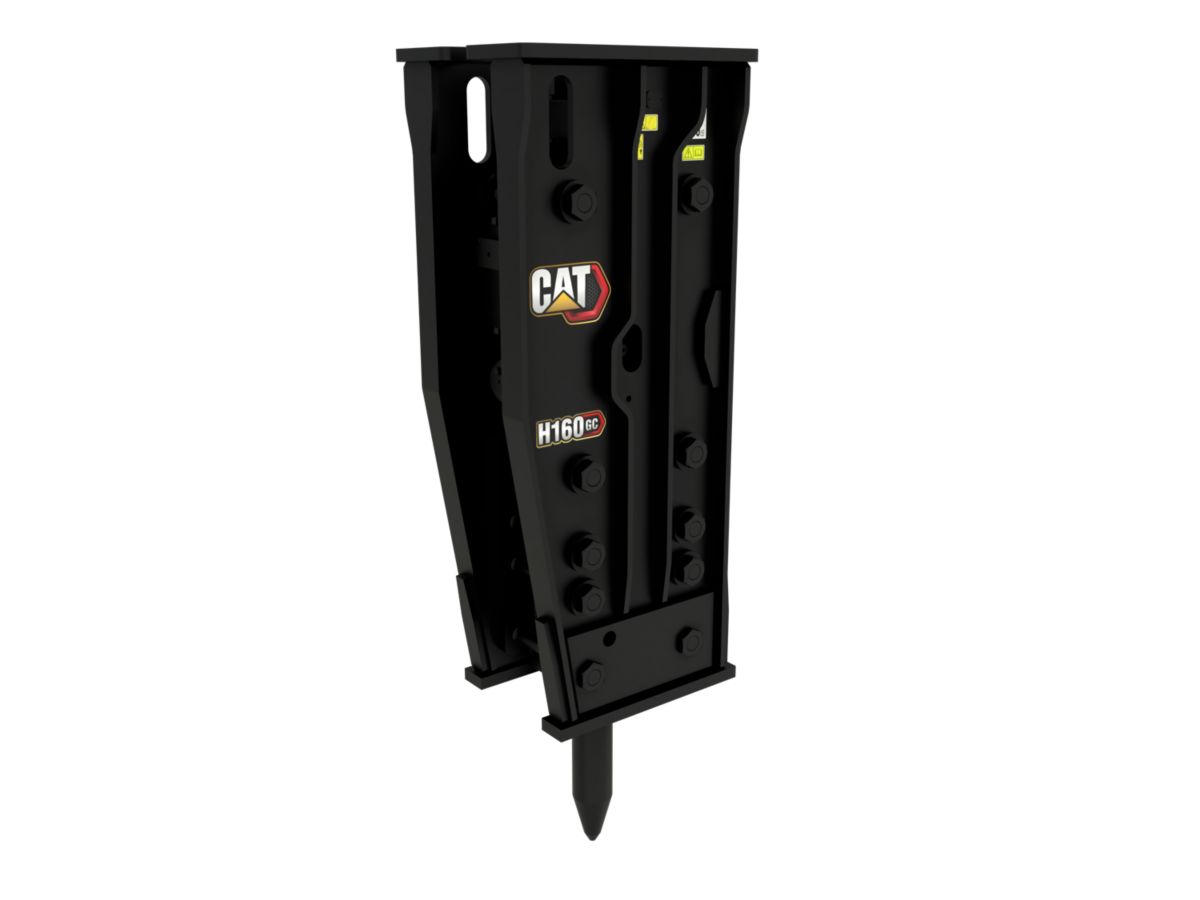

H160 GC Hammer

Reliable and Durable Design

  • Cat� Hammers use up to 25 percent less fuel and are up to 27 percent more efficient.
  • Enjoy fast service times and lower owning and operating costs with the simplified design.
  • Choose between top and side mount options to match your application.
  • Achieve consistent power and production over time with the gas fired design.
  • Cat Hammers are designed to work with our machines, as a total solution, and provide seamless hydraulic connectivity for maximum performance.
  • Easy to Maintain

  • Achieve up to 18 percent lower maintenance costs with Cat� Hammers.
  • Easy and quick access to maintenance areas ensures the hammer always operates at its peak.
  • Spend more time working and less time servicing.
  • Greasing can be performed quickly from one standing-height grease point.

  • Service the lower bushing in the field using simple hand tools.
  • Verify the gas charge of the hammer without removing it from your machine.
  • tough applications.

  • All breakers are tested in accordance with ISO Quality Control System before delivery.
  • Easy to Operate

  • Operator feel, and control is improved with an interlocking quad wear system which guides and supports the front head.
  • Select between high blow frequency and maximum power to get the performance you need to suit your application.
  • Easily adjust the piston stroke between piston frequency and more impact power positions to match application requirements.
  • You Are Supported

  • Go where the job takes you. The Cat Dealer Network is there to help when you need it.
  • Rely on Caterpillar for complete system support. Receive parts, service, and technical assistance for your machine, hammer, and hydraulics from a single source.
  • Product Specifications
    Impact Energy Class 10170 J (7500 ft-lb)
    Blows per Minute 200 to 450
    Maximum Operating Weight 3074 kg (6762.8 lb)
    Minimum Operating Weight 6724 kg (3050 lb)
    Maximum Carrier Weight 45 t (99200 lb)
    Minimum Carrier Weight 33 t (72700 lb)
    Tool Shaft Diameter 118 mm (4.6 in)
    Maximum Operating Pressure 18000 kPa (2610 psi)
    Minimum Operating Pressure 16000 kPa (2320 psi)
    Rated Flow - Maximum 260 l/min (68 gal/min)
    Rated Flow - Minimum 190 l/min (50 gal/min)
