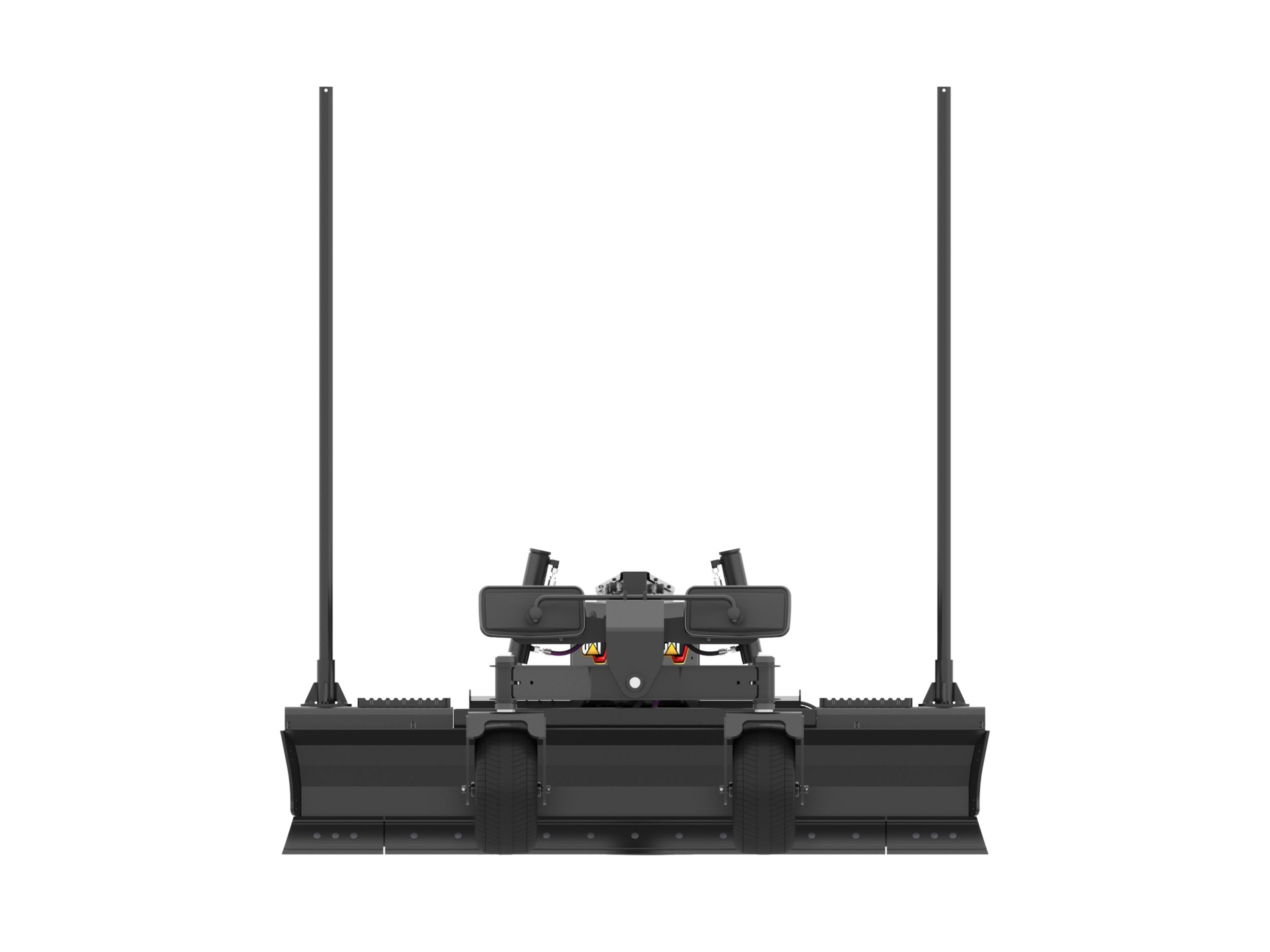

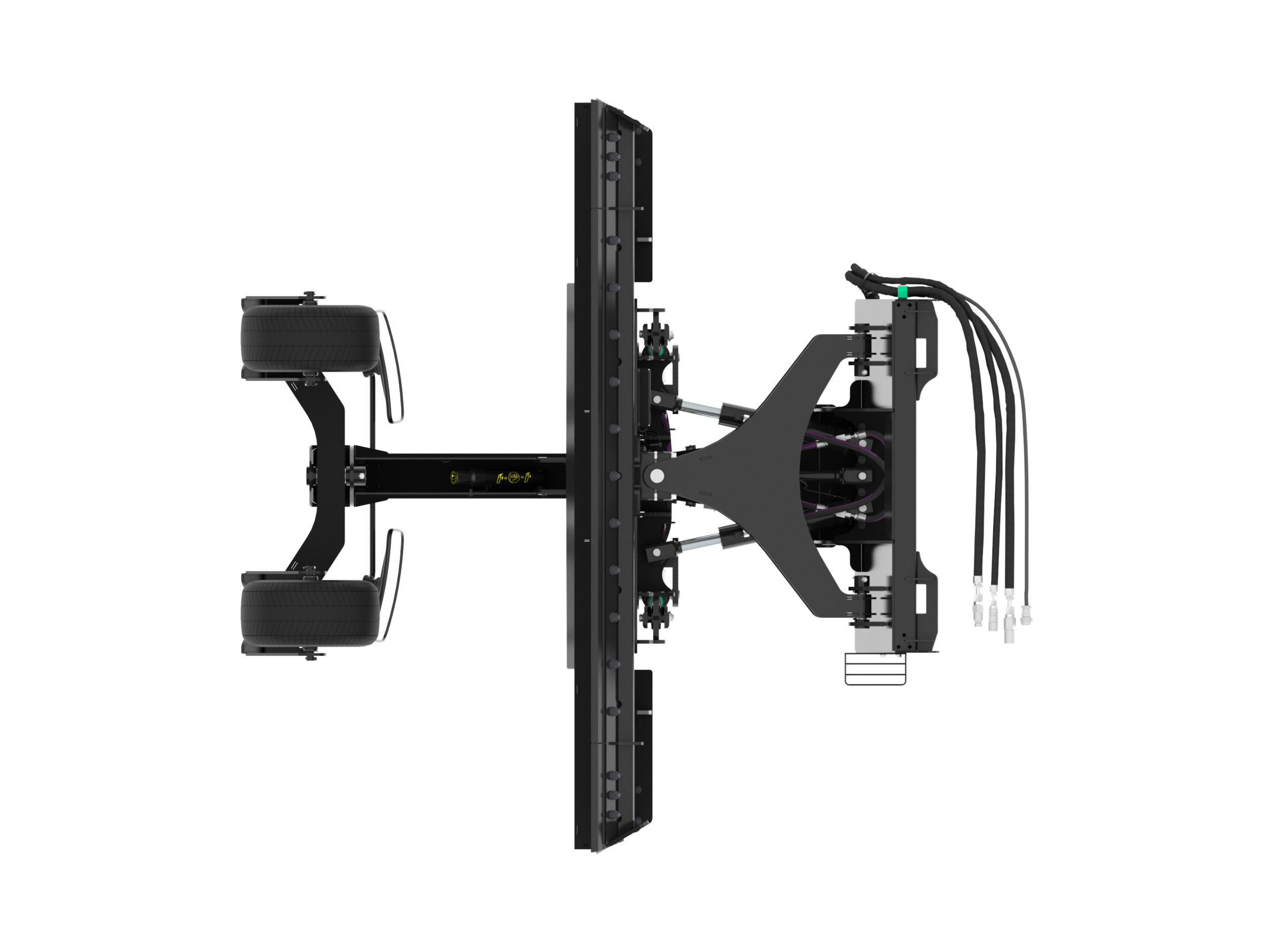

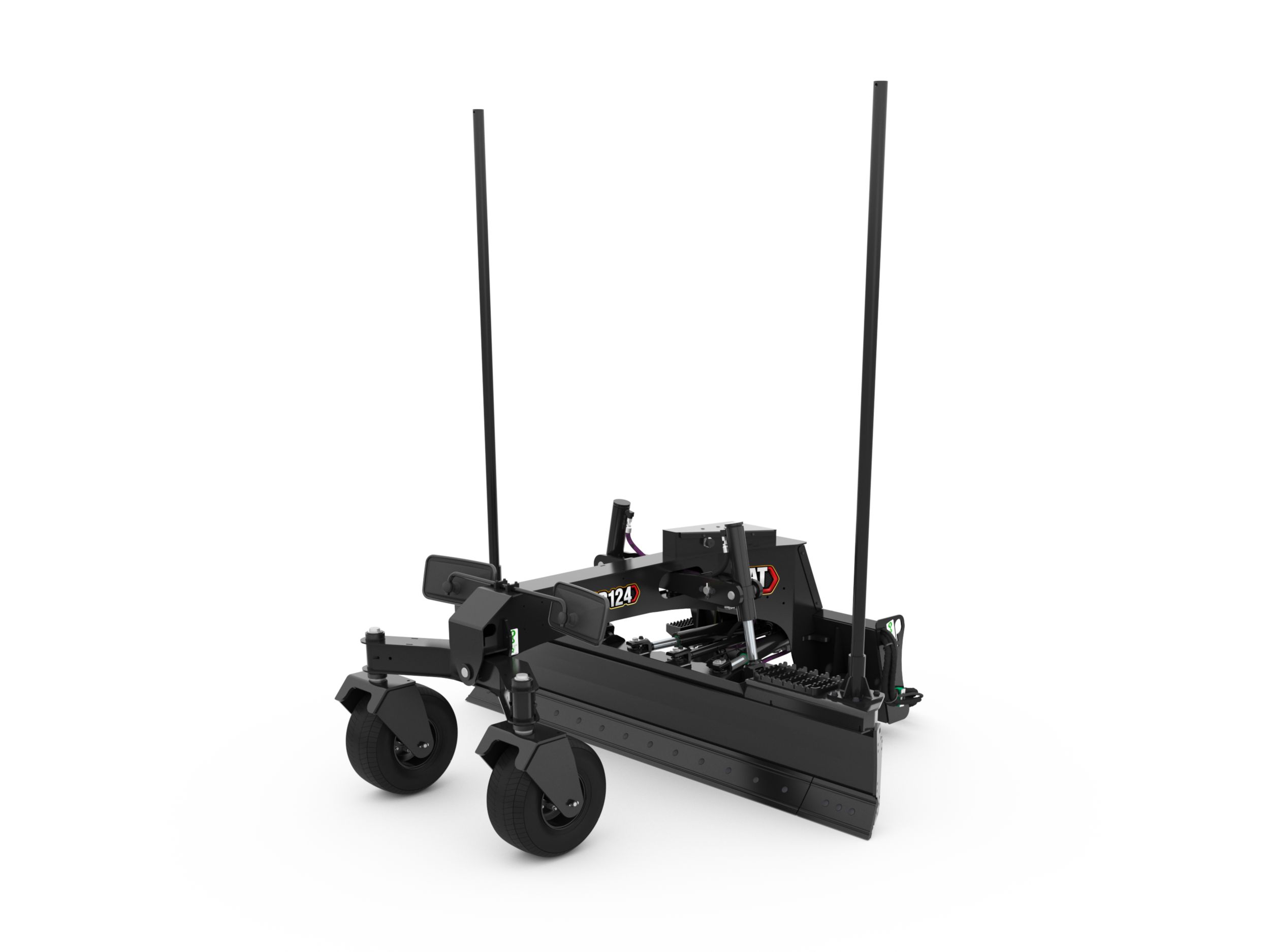

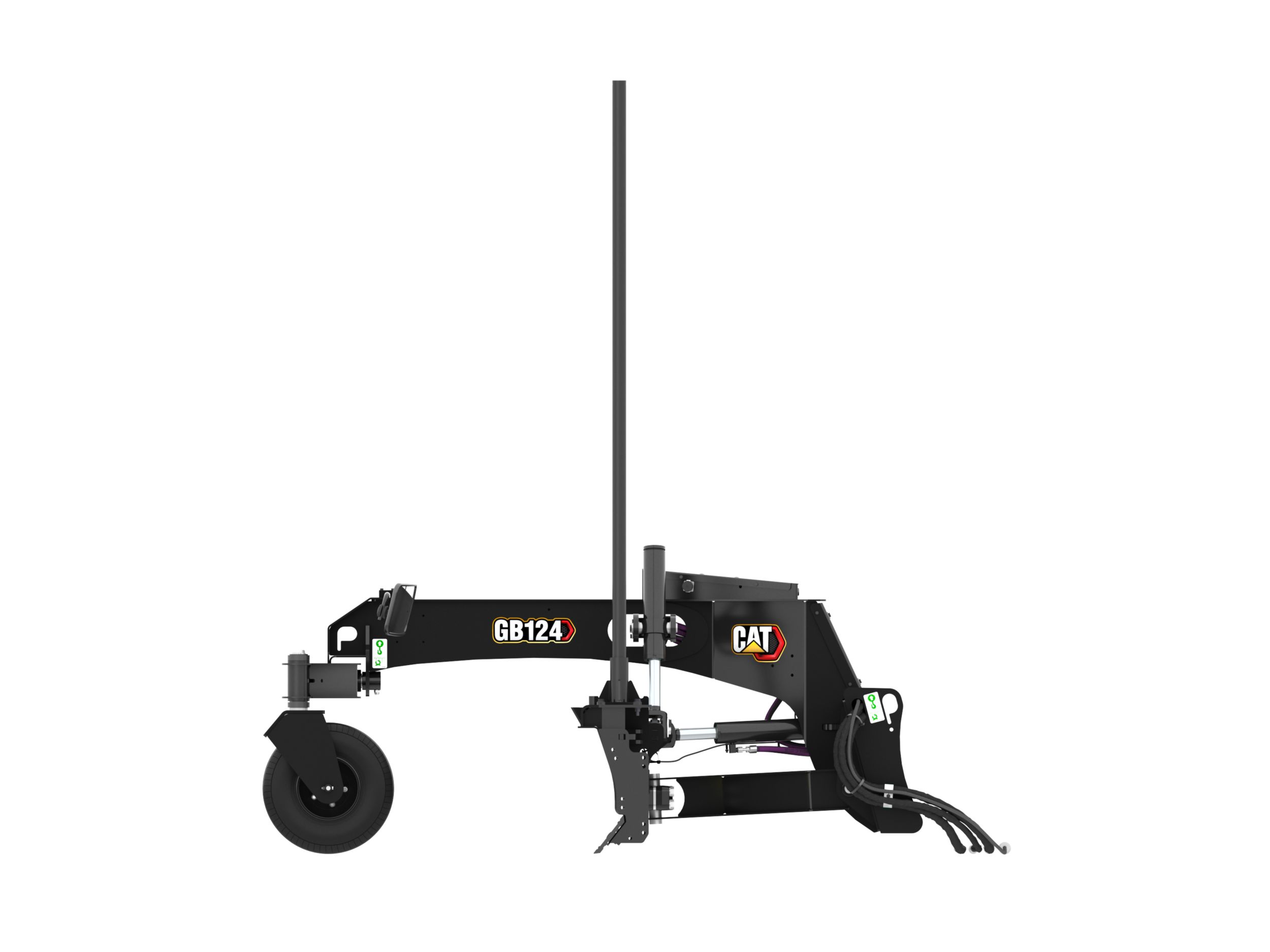

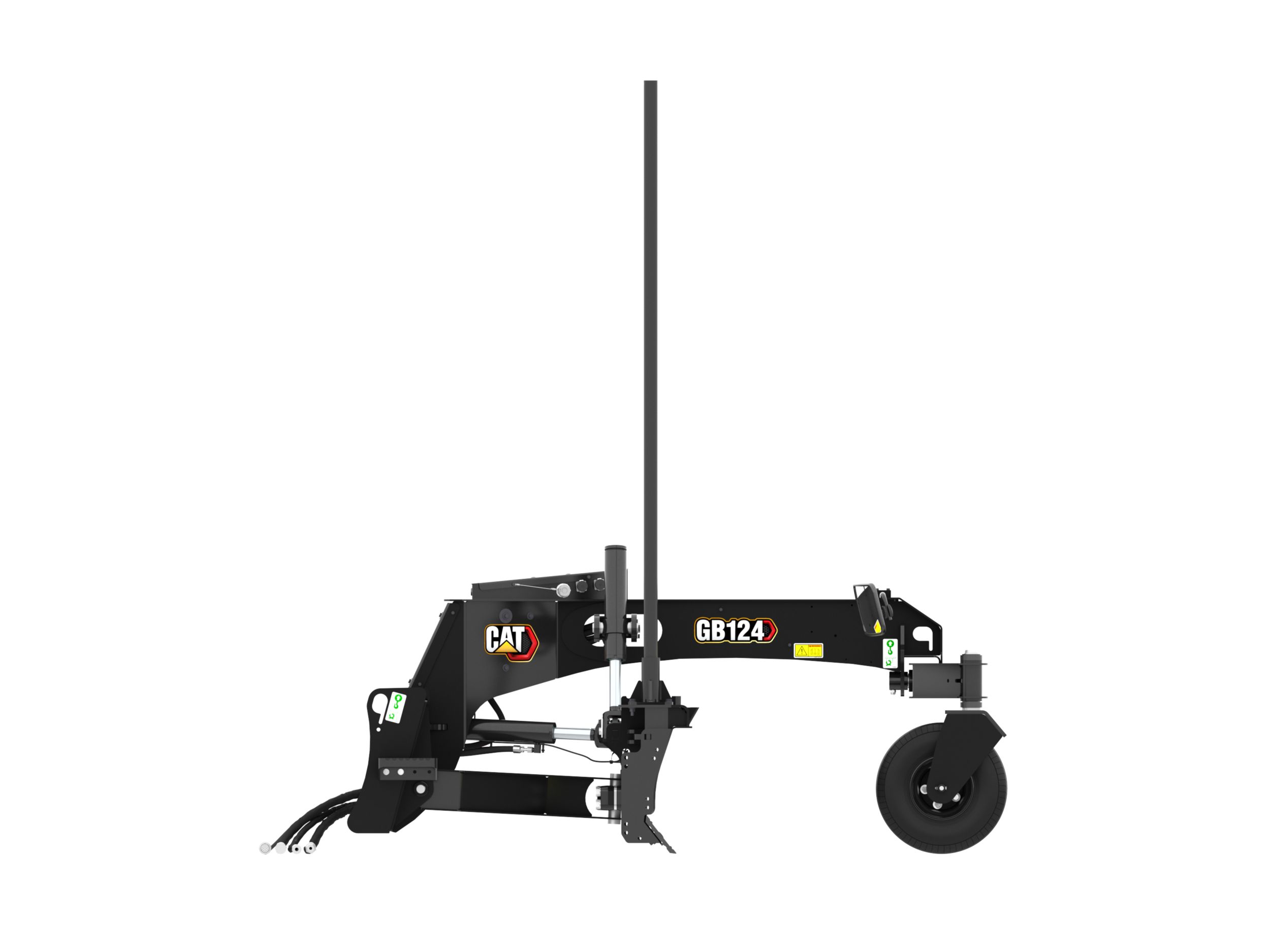

360°Exterior View

GB124 Grader Blade

  • Overview
CALCULATE FINANCE

Application

Cat® SMART Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base. There is an assist feature of the blade that takes the unit beyond SMART. The SMART grader blade brings cross slope to SSL/CTL platforms.

Attachment Control Mode

Attachment Control Mode (manual) turns the D3 and SMART Grader into a machine that is controlled more intuitively for the job at hand. The left joystick maintains control of the machine drive functions. The right joysticks now operate the attachment.

Angle Indication in Machine Display

The dedicated screen of the SMART Dozer provides the operator with feedback on the orientation of the attachment. The operator will see attachment blade slope as well as angle of the blade.

Cross Slope Control

With cross slope enabled, the operator selects the desired cross slope of the blade by placing the blade to the desired position. Then the attachment maintains that desired slope during operation, even when the machine slope changes.

External Reference Ready

Grader Blade attachment is external reference ready. Cat Grade (GPS and UTS), EW GO!, Total Station.

Curved Moldboard

Curved moldboard allows for material to roll and fold, improving capacity and performance. Flowing material will easily find low spots and improve grading and leveling performance.

Wear Indicating Cutting Edges

Wear indicating cutting edges feature 20% more wear material on the ground engaging section of the edge and also indicate when it is time to flip (center section only) or replace the edge.

Dual Parabolic Mirrors

Dual parabolic mirrors provide full visibility to the front cutting edge allowing the operator to see how much the blade is loading and see out to the corners of the blade.

Centrally Located Electronics

Technology components are centrally located and simply route to their respective harnesses back to this location on the tool. Then, a single harness routes to the control module in the cab or on the tool.

Protected Hydraulic Valve and ECM

The hydraulic valve and ECM (Electronic Control Module) are enclosed and mounted within the frame of the tool, protected from damage.

Independent Front Axle with Dual Wheels

Dual front wheels are mounted on an independent axle and on casters to provide stability in both directions of travel. These wheels are air filled and will provide balance for the blade in both automatic and manual operation.

Optional Side Wings

Optional side wings allow the operator to make the blade wider and carry material similar to box blades.

Mast Mounting Points

Standard fixed masts provide great performance for single or dual laser technology configurations as well as supporting 3D technology. Bolt pattern fits Accugrade™ Std. GNSS masts.

Serrated Steps

Serrated bolt-on step provides safe ingress and egress from machine cab. Additional weld-on serrated steps on the blade ensure safe receiver adjustment, install, or removal.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.+E2:E16

Product Specifications
Overall Width 2449 mm (96.4 in)
Blade Width 2438 mm (96 in)
Width - Fully Angled 2143 mm (84.4 in)
Optimal Hydraulic Flow 50-86 L/min (13-23 gpm)
Optimal Hydraulic Pressure 180-230 bar (2600-3340 psi)
Required Hydraulics Standard Flow
Overall Length 2246 mm (88.4 in)
Overall Height with Masts 2652 mm (104.4 mm)
Overall Height 1046 mm (41.2 in)
Weight 934 kg (2059.1 lb)
Tilt Angle Range +/- 15 degrees
Maximum Blade Angle - Right/Leftu00a0of Center 30 degrees
Blade Height 431 mm (17 in)
Ground Clearance 152 mm (6 in)
Maximum Cutting Depth 102 mm (4 in)
Interface Type Skid Steer Coupler
