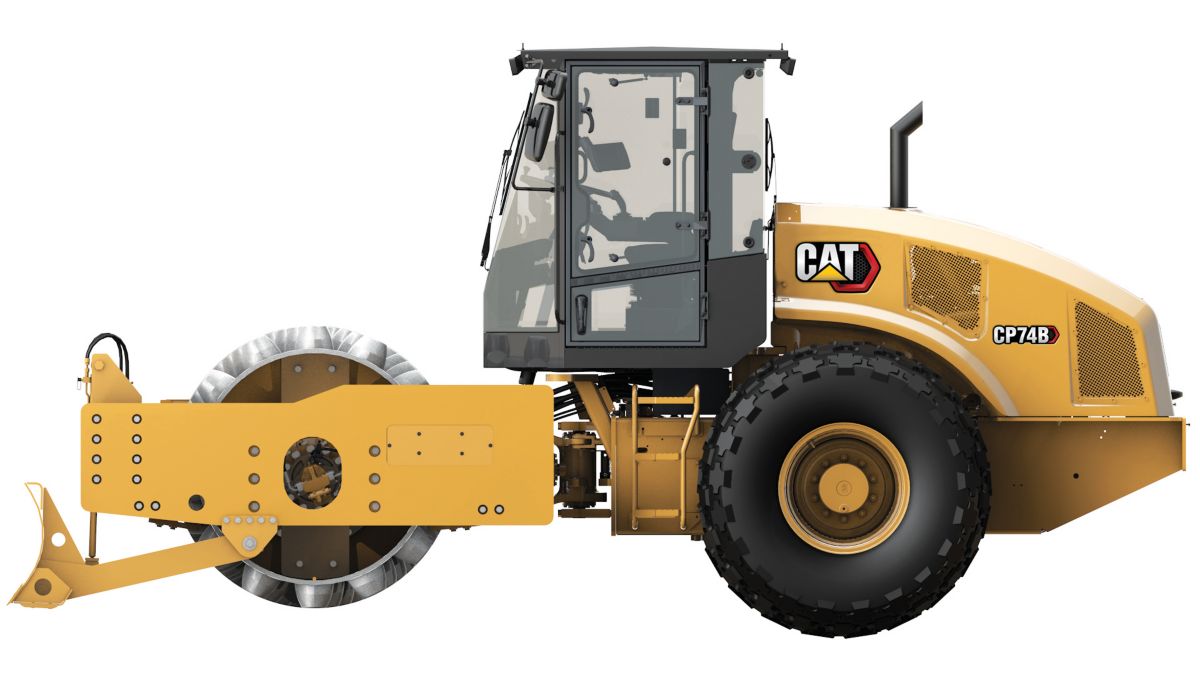

CP74B Vibratory Soil Compactor
Enhanced Vibratory System
Reliable Power Train
Comfortable Operator’s Environment
Cat Compaction Control Option
Easy to Service
| Weights | |
|---|---|
| Operating Weight - With Cab | 16355 kg (36048 lb) |
| Weight - Drum with Cab | 10725 kg (23633 lb) |
| Operating Specifications | |
|---|---|
| Compaction Width | 2134 mm (84 in) |
| Ground Clearance | 445 mm (17.5 in) |
| Travel Speed - Maximum | 11.4 km/h (7 mile/h) |
| Turning Radius - Inside Drum Edge | 3.68 m (12.07 ft) |
| Engine | |
|---|---|
| Gross Power | 129 kW (173 HP) |
| Engine Model | Cat C7.1 |
| Dimensions | |
|---|---|
| Overall Width | 2.33 m (7.64 ft) |
| Optional Blade Height | 688 mm (27.1 in) |
| Overall Width - With Blade Option | 2.5 m (8.25 ft) |
| Drum Diameter - Over Pads | 1549 mm (61 in) |
| Overall Length - With Blade Option | 6.55 m (21.5 ft) |
| Overall Length | 6.05 m (19.9 ft) |
| Drum Diameter | 1549 mm (60.9 in) |
| Wheel Base | 2.9 m (9.5 ft) |
| Drum Width | 2134 mm (84 in) |
| Height - With ROPS/FOPS or Cab | 3.11 m (10.2 ft) |
| Vibratory System | |
|---|---|
| Vibratory Frequency - Standard | 28 Hz (1680 VPM) |
| Nominal Amplitude - High | 2.1 mm (0.083 in) |
| Variable Frequency Option Range | 23.3 - 28 Hz (1400-1680 vpm) |
| Vibratory Frequency - Standard | 28 |
| Centrifugal Force - Minimum | 166 kN (37300 lb) |
| Centrifugal Force - Maximum | 332 kN (74600 lb) |
| Nominal Amplitude - Low | 0.98 mm (0.039 in) |
| Tires | |
|---|---|
| Tires | 23.1 x 26 |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 332 l (88 gal (US)) |
| Weights | |
|---|---|
| Weight - Drum with ROPS/FOPS | 10730 kg (23656 lb) |
| Weight at Drum with Steel Sun Canopy | 10540 kg (23237 lb) |
| Operating Weight - With Steel Sun Canopy | 15925 kg (35109 lb) |
| Engine | |
|---|---|
| Net Power - ISO 9249 | 108.5 kW (145.5 HP) |
| Weights | |
|---|---|
| Operating Weight - With Open Platform | 15830 kg (34889 lb) |
| Operating Weight - With ROPS/FOPS | 16420 kg (36200 lb) |
| Engine | |
|---|---|
| Bore | 105 mm (4.1 in) |
| Stroke | 135 mm (5.3 in) |
| Weights | |
|---|---|
| Weight at Drum with Open Platform | 10500 kg (23149 lb) |
| Engine | |
|---|---|
| Net Power - SAE J1349 | 107.2 kW (143.8 HP) |
| Weights | |
|---|---|
| Operating Weight - With ROPS/FOPS Canopy | 16100 kg (35494 lb) |
| Weight - Drum with ROPS/FOPS Canopy | 10595 kg (23358 lb) |
Standard Equipment
- NOTE:
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Open Platform with Handrails/Guardrails, Floor Mat
- Vinyl Adjustable Pivoting Seat with Integrated Console and LCD Display
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
- VIBRATORY SYSTEM
- Smooth Drum
- Dual Amplitude, Single Frequency
- Dual Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Front Adjustable Steel Scraper
- Powertrain
- Cat C7.1 Diesel Engine
- Air Cleaner, Dual Element
- Three-Speed Throttle Switch, Eco-mode and Automatic Speed Control
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
- ELECTRICAL
- 24 volt Electrical System
- 100 ampere Alternator
- 750 Cold-cranking Amps Battery Capacity
- OTHER
- Product LinkTM
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- SOSSM� Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
Optional Equipment
- NOTE:
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Steel Sun Canopy
- ROPS/FOPS Canopy
- ROPS/FOPS Cab with Climate Control
- Internal Rear View Mirror
- External Rear View Mirrors
- Sun Visor
- Cab Internal Roll-down Sun Screen
- VIBRATORY SYSTEM
- Padfoot Shell Kit (oval or square pads available)
- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
- Dual Adjustable Polyurethane Scrapers
- Powertrain
- Transmission Guard
- CAT COMPACTION CONTROL TECHNOLOGY
- Measure – Machine Drive Power (MDP)
- Map – SBAS GNSS Mapping
- Connect – Machine to Machine Communication
- OTHER
- Upgraded Halogen Light Package
- Rotating Beacon
- Fuel Fill Access Door
