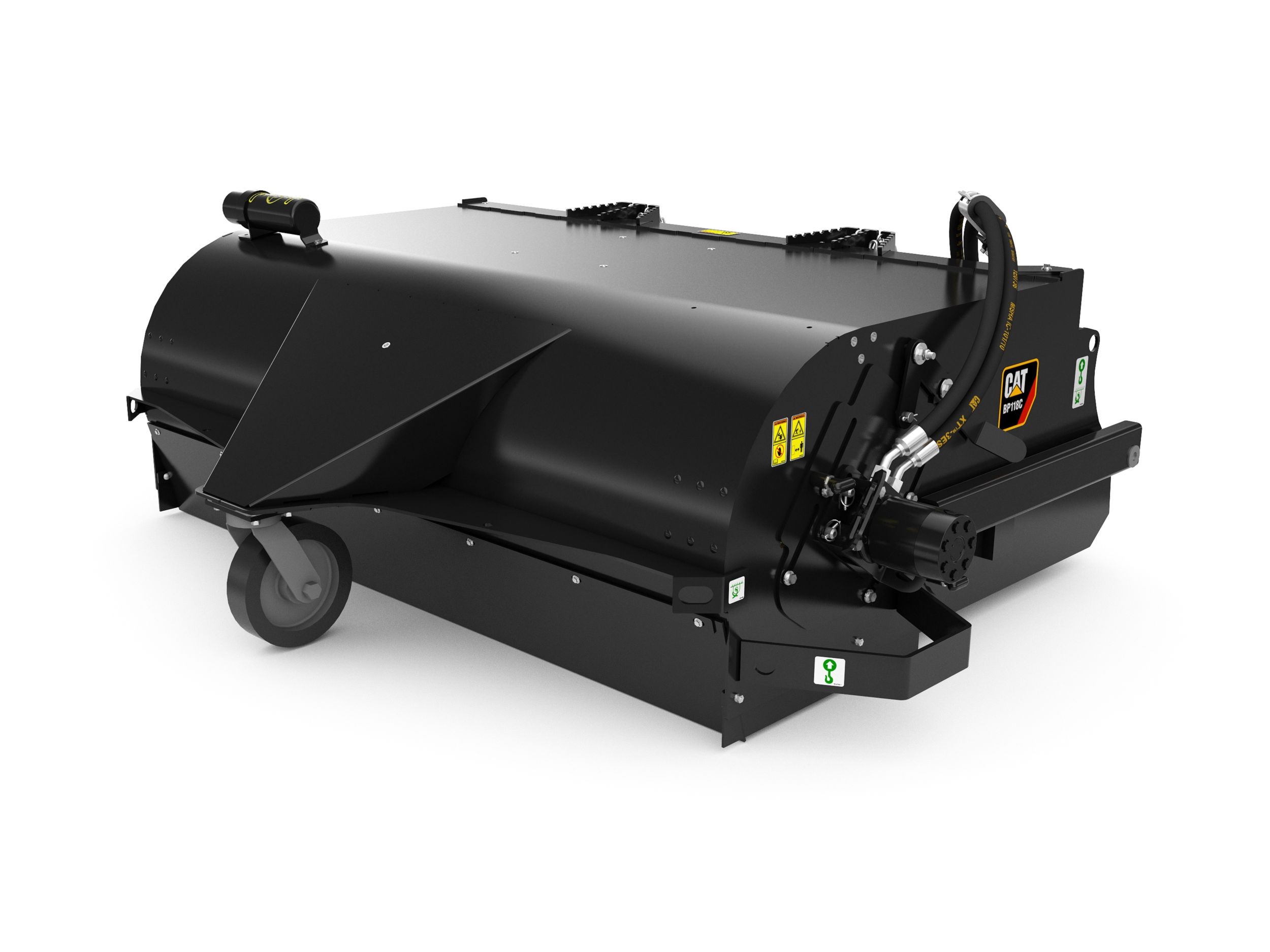

BP118C Pickup Broom
Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.
Large Hopper Capacity
Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening permits fast, efficient dumping.
Adjustable volumizer allows more material retention in hopper, giving operator more sweeps before stopping to empty material.
Heavy-duty low profile pneumatic guide wheel supports the hood during sweeping.
Optional Gutter Brush
Optional all-steel wire gutter brush mounted on the left or right side of the broom assists in removing material from gutters and pavement edges.
Optional Dust Control
An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.
Broom Material Options
Standard broom material is made of replaceable polypropylene and steel wire sections. Optional replacement brushes include all polypropylene and all steel wire.
Interior deflectors, rear bucket seal, and side brush stripping direct dirt and dust into the bucket, reducing spillage and air-borne contaminants.
Dual Chain and Loader Arm Bracket System
Dual chain and loader arm bracket system holds broom housing horizontally when emptying the hopper.
Bristle Height Adjustment
Bristle height adjustments have been simplified with the use of handle and a tool-less locking feature.
Motor serviceability is enhanced with a handle shaped motor bracket, core connection is close to broom wall and single retention pins allow for quick brush change and less downtime.
Replaceable Bolt-On Cutting Edges
Replaceable bolt-on cutting edges increase wear life of hopper bucket.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
|Overall Width||2295 mm (90.4 in)|
|Sweeping Width||1829 mm (72 in)|
|Brush Diameter||660 mm (26 in)|
|Required Hydraulics||Standard Flow|
|Height||872 mm (34.3 in)|
|Length||1837 mm (72.3 in)|
|Weight||570 kg (1256.6 lb)|
|Required Hydraulic Flow||42-86 L/min (11-23 gpm)|
|Optimal Hydraulic Pressure||145-235 bar (2100-3400 psi)|
|Motor Displacement||405 cmu00b3/rev (24.7 inu00b3/rev)|
|Brush Speed at Maximum Flow||199 rpm|
|Hopper Capacity||0.49 mu00b3 (0.6 ydu00b3)|
|Gutter Brush Weight||41 kg (90.4 lb)|
|Drive Method||Direct Drive|
