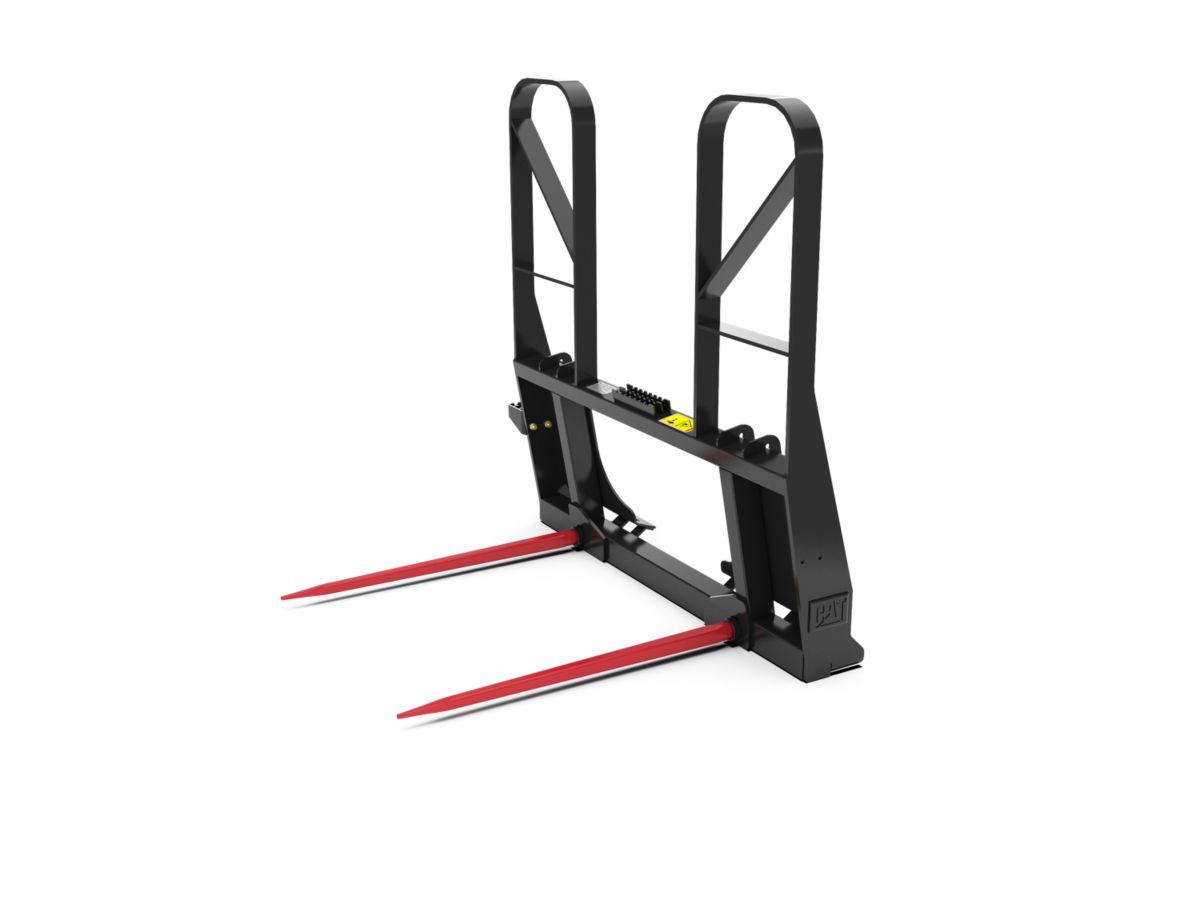

990 mm (39 in) Dual Tine Bale Spear
Application
Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.
Two Length Options
Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.
Heavy Duty High Back Structure
Dual tine Bale Spear models are equipped with a durable heavy duty back rest that allows excellent visibility, and easy ingress and egress from the machine cab.
Conical Tapered Tines
A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.
| Product Specifications | |
|---|---|
| Overall Width | 1407 mm (55.4 in) |
| Overall Height | 1315 mm (51.8 in) |
| Capacity | 1364 kg (3007.1 lb) |
| Usable Tine Length | 890 mm (35 in) |
| Overall Depth | 1100 mm (43.3 in) |
| Weight | 118 kg (260.1 lb) |
| Tine Spacing | 720 mm (28.3 in) |
