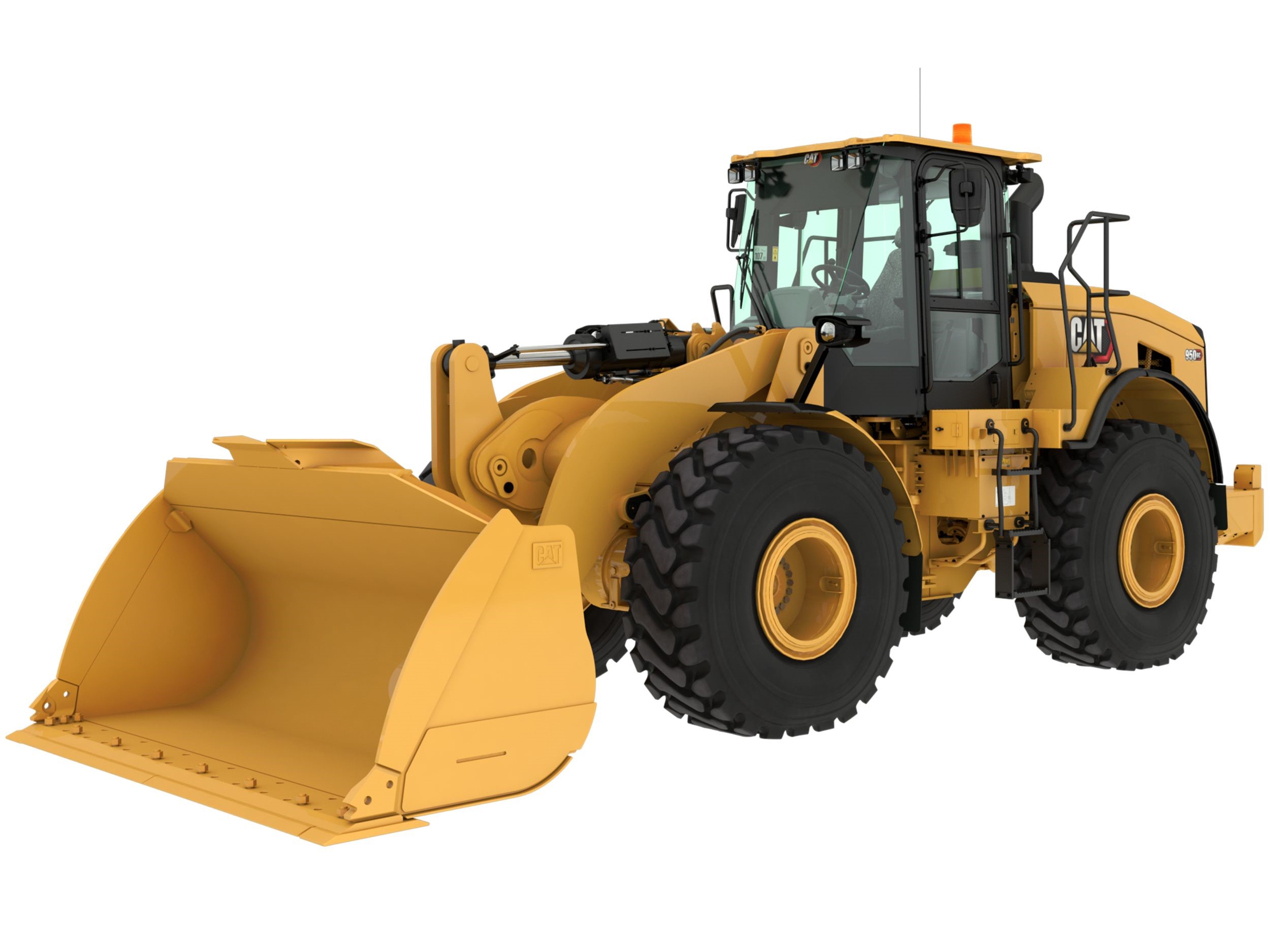

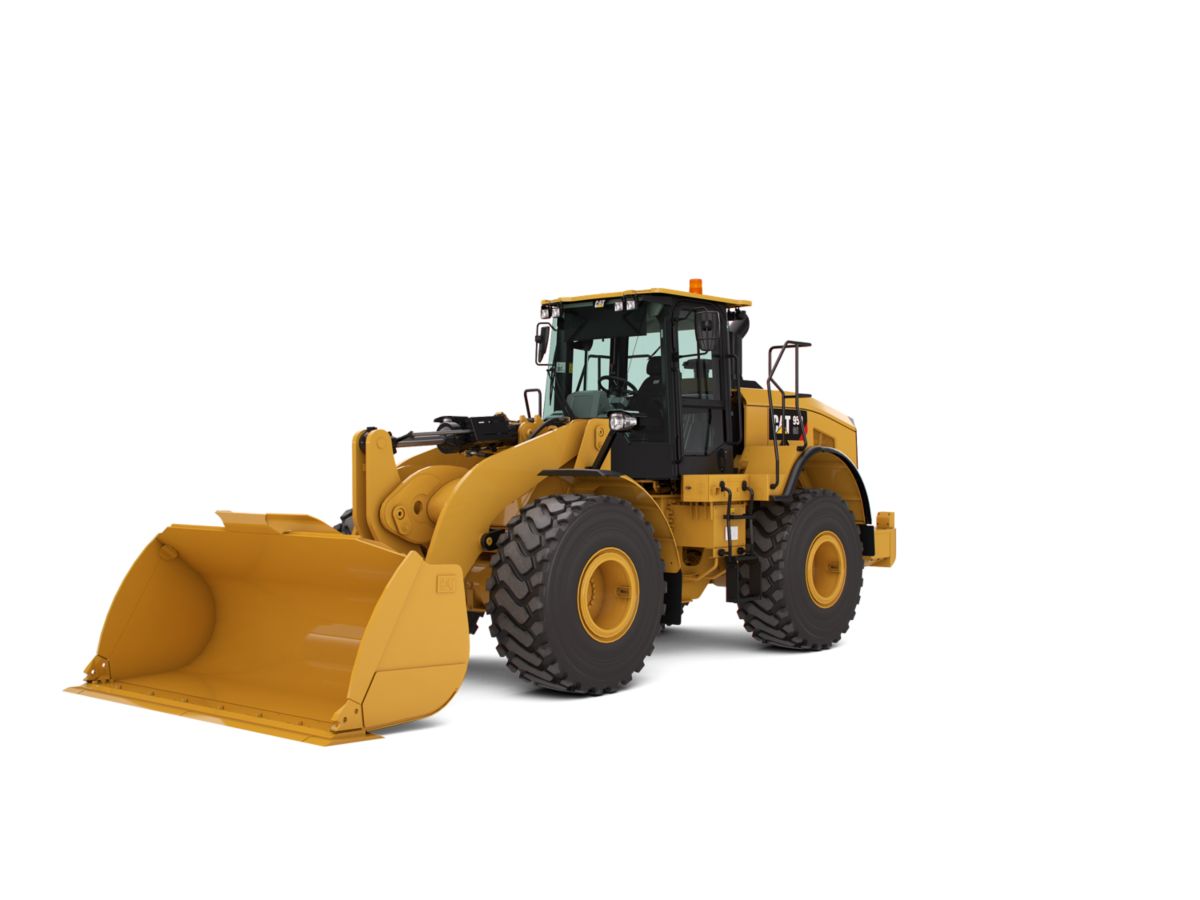

950 GC Wheel Loader

  • Overview
  • Finance With CavPower
  • Optional Services
  • View product Download
CALCULATE FINANCE

RELIABILITY YOU CAN COUNT ON

  • Cat® C7.1 engine offers high power density with a combination of proven electronic, fuel, and air systems.
  • Engine emissions are equivalent to U.S. EPA Tier 3.
  • Thorough component choice, design, and in-machine validation processes result in excellent reliability and uptime.

ACHIEVE GREATER PRODUCTIVITY

  • The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. Combined with best-in-class standard dump clearan ce, this results in low fuel consumption and exceptional production capabilities.
  • Cat designed, electronically controlled, automatic powershiftcountershaft transmission features shift protection and is equipped with a split flow oil system for efficiency, durability, and smoother gear changes.
  • Optional Fusion™ quick-coupler control features a selectable kickout to adjust for efficient bucket and fork applications.

DO MORE WITH LESS FUEL

  • Engine Idle Management System (EIMS) and Auto Engine Idle Shutdown (EIS) maximize fuel efficiency by reducing engine rpm after a specified amount of idle time.
  • Electronically controlled, hydraulically driven variable speed fan adjusts to meet the varying cooling requirements of the machine. This results in a reduced average fan speed, lowering fuel consumption, noise levels, and radiator plugging.
  • Load sensing hydraulics produce flow and pressure for theimplement system upon demand and only in amounts necessary to perform the needed work functions. This state-of-the-art system results in low fuel consumption.

DESIGNED FOR OPERATORS

  • The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient all day operation.
  • Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
  • The adjustable steering column includes the F-N-R shifter and turn signal control lever.
  • Unmatched viewing area with a wide, flat, and distortion-free front windshield.
  • The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
  • The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
  • Air conditioning system is standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.

SAFELY HOME EVERY DAY

  • Ladders are standard on both sides of the machine to easily access the platforms.
  • Platforms are equipped with guard
     - and handrails for safe access to the cab.
  • The main cab door opens to the front and provides wide access to the operator environment.
  • Front and back wipers ensure that a clear view is maintained.
  • External rearview mirrors with integrated spot mirrors arestandard.
  • A rear vision camera is standard to clearly monitor movement behind the machine.
  • Hinged wheel guards, easy removal/re-install.
  • Optional windshield and power train guards.

SAVE ON SERVICE AND MAINTENANCE

  • Grouped service points and sight gauges allow for easy daily maintenance.
  • Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
  • Electrical and hydraulic service centers, along with additional key serviceability features, help make servicing and in-field component exchange quick, easy, and efficient.
  • A rear swing-up grill gives easy cleaning access to thecooling cores.
  • Hinged wheel guards are easy to remove/re-install, providing wide access to all maintenance points and to the engine compartment.
  • Optional power train bottom guard protects the machine against damage to reduce downtime.
  • Optional integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility. One-button control, including fault flash function.
  • Caterpillar design and manufacturing techniques assureoutstanding service life.

CAT PRODUCTION MEASURMENT KIT

  • This optional kit is simple to install compared to other 3rd party payload systems*.
  • On-the-go weighing** for precise load targets with provenaccuracy, flexible installation, and easy calibration and setup.
  • Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
  • Increases productivity, weighing while lifting with no interruptions in loading cycle.
  • High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
  • Improve efficiency with less rework; save time, labor, fuel,and costs.

    * Not available in all markets
    ** Not legal for trade

Engine
Net Power - ISO 9249 151 kW (202 HP)
Engine Model Cat C7.1
Bore 105 mm (4.1 in)
Stroke 135 mm (5.3 in)
Displacement 7.01 l (427.8 inu00b3)
Maximum Gross Torque - 1,400 rpm 1020 N·m (752 ft-lb)
Rated Net Power - 2,200 rpm - ISO 9249 151 kW (202 HP)
Rated Gross Power - 2,200 rpm - ISO 14396 168 kW (225 HP)
Maximum Gross Power - 2,000 rpm - ISO 14396 171 kW (229 HP)
Maximum Net Torque - 1,300 rpm 931 N·m (687 ft-lb)
Weights
Operating Weight 18676 kg (41174 lb)
Buckets
Bucket Capacities 2.5 mu00b3 to 4.4 mu00b3 (3.3 ydu00b3 to 5.75 ydu00b3)
Operating Specifications
Breakout Force 147 kN (33047 lb)
Note (1) **Compliance to ISO (2007) 14397-1 Sections 1 thru 5.
Static Tipping Load - Full 40u00b0 Turn - Rigid Tires** 11197 kg (24685 lb)
Static Tipping Load - Full 40u00b0 Turn - ISO 14397-1* 10503 kg (23155 lb)
Note (2) *Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Transmission
Forward - 1 7 km/h (4.4 mile/h)
Forward - 2 12.5 km/h (7.8 mile/h)
Forward - 3 22 km/h (13.7 mile/h)
Forward - 4 34 km/h (21.1 mile/h)
Reverse - 1 7 km/h (4.4 mile/h)
Reverse - 2 12.5 km/h (7.8 mile/h)
Reverse - 3 22 km/h (13.7 mile/h)
Hydraulic System
Steering System - Pump Type Piston
Hydraulic Cycle Time - Dump, at Maximum Raise 1.2 s (1.2 s)
Hydraulic Cycle Time - Total Cycle Time 10.1 s (10.1 s)
Hydraulic Cycle Time - Lower, Empty, Float Down 2.8 s (2.8 s)
Hydraulic Cycle Time - Raise from Carry Position 6.1 s (6.1 s)
Implement System - Optional 3rd Function Maximum Flow 280 l/min (74 gal/min)
Implement System - Maximum Pump Output at 2,200 rpm 248 l/min (65.5 gal/min)
Implement System Pump Type Piston
Implement System - Maximum Operating Pressure @ 50 u00b1 1.5 L/min (13.2 + 0.4 gal/min) 27900 kPa (4047 psi)
Implement System - Optional 3rd Function Maximum Pressure @ 70 L/min 20680 kPa (2999 psi)
Brakes
Brakes Brakes meet ISO 3450
Tires
Choices Choices include: 23.5-25 16PR, L3 (Triangle); 23.5R25 ??, L3 (Triangle); 23.5R25 ?, L3 (Bridgestone)
Cab
ROPS/FOPS ROPS/FOPS meet ISO 3471 and ISO 3449 Level II standards
Service Refill Capacities
Differential - Final Drives - Front 40 l (10.6 gal (US))
Crankcase 20 l (5.3 gal (US))
Fuel Tank Size 290 l (76.6 gal (US))
Differential - Final Drives - Rear 38 l (10 gal (US))
Transmission 45 l (11.9 gal (US))
Hydraulic Tank 120 l (31.7 gal (US))
Cooling System 48 l (12.7 gal (US))
Dimensions
B-Pin Height 4188 mm (13.7 ft)
B-Pin Height - Carry 655 mm (2.2 ft)
Lift Arm Clearance 3649 mm (12 ft)
Centerline of Rear Axle to Edge of Counterweight 2001 mm (6.6 ft)
Height - Top of ROPS 3458 mm (11.4 ft)
Height - Top of Exhaust Pipe 3596 mm (11.8 ft)
Height - Top of Hood 2568 mm (8.4 ft)
Ground Clearance 460 mm (1.5 ft)
Wheel Base 3300 mm (10.8 ft)
Centerline of Rear Axle to Hitch 1650 mm (5.4 ft)
Rack Back - Maximum Lift 60 u00b0 (60 u00b0)
Dump Angle at Maximum Lift 52 u00b0 (52 u00b0)
Rack Back - Carry 45 u00b0 (45 u00b0)
Rack Back - Ground 40 u00b0 (40 u00b0)
Height - Center Line of Axle 750 mm (2.5 ft)
Turning Radius
Turning Radius - Inside of Tires 3419 mm (11.2 ft)
Turning Radius - Outside Edge of Counterweight 6190 mm (20.3 ft)
Turning Radius - Outside of Tires 6164 mm (20.2 ft)
Width - Over Tires 2745 mm (9 ft)

Standard Equipment

  • POWER TRAIN
    • Engine – Cat C7.1 Stage IIIA/Tier 3
    • Torque converter
    • Transmission, automatic, power shift (4F/3R), kick-down function, overspeed protection
    • Brakes, full hydraulic enclosed wet-disc
    • EIMS (Engine Idle Management System)
    • Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
    • Filter, fuel primary/secondary/tertiary
    • Fuel/water separator
    • Filters, engine air, primary/secondary
    • Fuel priming pump (manual)
    • Muffler, sound suppressed
    • Radiator, unit core (9.5 fpi) with ATAAC
    • Starting aid, glow plugs
    • Switch, transmission neutralizer lockout
  • HYDRAULICS
    • Load sensing implement system pilot operated
    • Dedicated load sensing steering pump
    • Dedicated brake and fan gear pump
  • ELECTRICAL
    • Alarm, back-up/main disconnect switch
    • Alternator (115-amp, brush type)
    • Batteries, maintenance free (2×900 CCA)
    • Ignition key; start/stop switch
    • Lighting system, halogen (6 total): – Four (4) halogen work lights – Two (2) halogen roading lights
    • Starting and charging system (24-volt)
    • Starter, electric (heavy duty)
  • OPERATOR ENVIRONMENT
    • Air conditioning with 10 vents and filter unit located outside of cab
    • Bucket/work tool function lockout
    • Cab, pressurized and sound suppressed
    • Hydroformed (ROPS/FOPS) structure
    • 12V power port (10A)
    • Coat hook
    • Pilot hydraulic controls, lift and tilt function; two (2) single axis levers or joystick
    • Heater and defroster
    • Horn
    • Cup holders and personal tray on right console
    • Storage tray behind seat
    • Mirrors, rearview internal and external
    • Seat, Cat Comfort (cloth) mechanical suspension, auto-retractable seat belt
    • Steering column, adjustable angle
    • Wipers/washers (front and rear)
    • Window, sliding (left and right side)
    • Computerized monitoring system
  • OTHER STANDARD EQUIPMENT
    • Lift and return-to-dig kick outs (Electro‑Magnetic), mechanical adjustment
    • Doors, service access (locking)
    • Fenders (front and rear) steel
    • Grill, airborne debris
    • Hitch, drawbar with pin
    • Hood, non-metallic on steel structure
    • Counterweight, 1800 kg
    • Linkage, Z-bar, fabricated crosstube/tilt lever
    • S·O·S oil sampling valves
    • Product Link Ready
