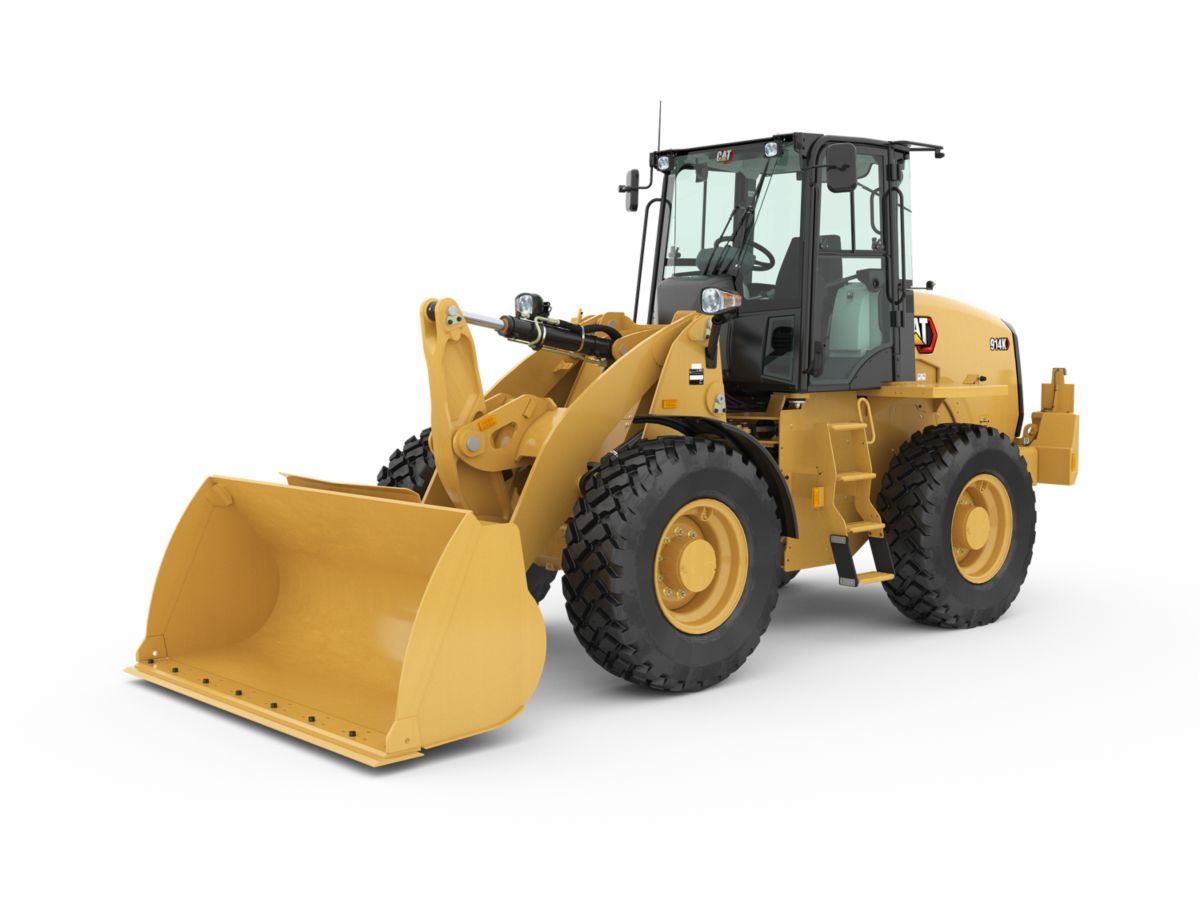

914K Compact Wheel Loader
High Performance
With its high full turn tipping loads and breakout forces, the K Series delivers a powerful solution for all customer applications.
Ease of Operation
State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application.
Parallel Lift Loader Linkage
The Cat® Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.
Engine | |
---|---|
Maximum Gross Power | 75 kW (100 HP) |
Weights | |
---|---|
Operating Weight | 8568 kg (18884 lb) |
Buckets | |
---|---|
Bucket Capacities | 1.6-3.5 m3 (2.1-4.6 yd3) |
Cab | |
---|---|
ROPS | ISO 3471:2008 |
FOPS | ISO 3449:2005 Level II |
Service Refill Capacities | |
---|---|
Cooling System | 21.5 l (5.7 gal (US)) |
Fuel Tank | 154 l (40.7 gal (US)) |
Steering | |
---|---|
Maximum Working Pressure - Steering Pump | 22500 kPa (3263 psi) |
Engine | |
---|---|
Maximum Gross Power - ISO 14396 | 75 kW (100 HP) |
Loader Hydraulic System | |
---|---|
Relief Pressure - Tilt Cylinder | 34000 kPa (4931 psi) |
Tires | |
---|---|
Other Choices Include | 17.5-25 12 PR (L-2), 1PC Rim; 17.5-25 12 PR (L-3), 1PC Rim; 17.5R-25, radial (L-3), 1 or 3PC Rim |
Loader Hydraulic System | |
---|---|
Maximum Flow - Implement Pump - 3rd* Function, Maximum Flow, Standard | 90 l/min (24 gal/min) |
Engine | |
---|---|
Maximum Gross Power - SAE J1995 | 76 kW (102 HP) |
Rated Net Power - ISO 9249 | 74 kW (99 HP) |
Stroke | 127 mm (5 in) |
Maximum Gross Torque - ISO 14396 | 410 N·m (302 lb/ft) |
Loader Hydraulic System | |
---|---|
Relief Pressure - Tilt Cylinder - 3rd* Function Maximum Working Pressure | 21000 kPa (3046 psi) |
Service Refill Capacities | |
---|---|
Hydraulic Tank | 55 l (14.5 gal (US)) |
Axles | |
---|---|
Front | Fixed; Locking differential (standard) |
Loader Hydraulic System | |
---|---|
Hydraulic Cycle Time - Maximum Engine Speed - Raise, Ground Level to Maximum Lift | 5.2 s (5.2 s) |
Service Refill Capacities | |
---|---|
Engine Crankcase | 9 l (2.4 gal (US)) |
Axles - Front Center Differential | 7.5 l (2 gal (US)) |
Engine | |
---|---|
Rated Net Power - SAE J1349 | 73 kW (98 HP) |
Tires | |
---|---|
Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
Steering | |
---|---|
Number of Steering Wheel Turns - Lock to Lock | 3.75 turns |
Engine | |
---|---|
Rated Net Power - Rated Engine Speed | 2200 r/min (2200 r/min) |
Transmission | |
---|---|
Forward and Reverse - Low Range, Speed Range 1* | 10 km/h (6.3 mile/h) |
Tires | |
---|---|
Note (2) | In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities. |
Axles | |
---|---|
Rear | Oscillating u00b111 degrees; Locking differential (standard) |
Buckets | |
---|---|
General Purpose | 1.6-1.9 m3 (2.1-2.5 yd3) |
Tires | |
---|---|
Standard Size | 17.5-25 16 PR (L-3) |
Steering | |
---|---|
Steering Articulation Angle - Each Direction | 40 u00b0 (40 u00b0) |
Engine | |
---|---|
Rated Net Power - ISO 9249 (DIN) | 74 kW (101 HP) |
Cab | |
---|---|
Note (1) | Cab and Rollover Protective Structures (ROPS) are standard. |
Loader Hydraulic System | |
---|---|
Maximum Working Pressure - Implement Pump | 28000 kPa (4061 psi) |
Buckets | |
---|---|
Note | Various capacities not available in all regions. |
Engine | |
---|---|
Maximum Gross Power - Maximum Engine Speed | 2350 r/min (2350 r/min) |
Cab | |
---|---|
Note (4) | *The measurements were conducted with the cab doors and windows closed. |
Note (3) | The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 103 dB(A). |
Loader Hydraulic System | |
---|---|
Hydraulic Cycle Time - Maximum Engine Speed - Dump, at Maximum Reach | 1.4 s (1.4 s) |
Engine | |
---|---|
Note | Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. |
Steering | |
---|---|
Maximum Flow - Steering Pump | 82 l/min (22 gal/min) |
Cab | |
---|---|
Note (2) | The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A). |
Service Refill Capacities | |
---|---|
Axles - Rear Center Differential | 7.5 l (2 gal (US)) |
Engine | |
---|---|
Maximum Gross Torque - SAE J1995 | 415 N·m (306 lb/ft) |
Service Refill Capacities | |
---|---|
Transmission | 3.4 l (0.9 gal (US)) |
Engine | |
---|---|
Engine Model | Cat C4.4 |
Loader Hydraulic System | |
---|---|
Maximum Flow - Implement Pump | 148 l/min (39 gal/min) |
Engine | |
---|---|
Bore | 105 mm (4.13 in) |
Loader Hydraulic System | |
---|---|
Hydraulic Cycle Time - Maximum Engine Speed - Float Down, Maximum Lift to Ground Level | 3.7 s (3.7 s) |
Transmission | |
---|---|
Forward and Reverse - Low Range, Speed Range 2* | 20 km/h (12.5 mile/h) |
Service Refill Capacities | |
---|---|
Hydraulic System - Including Tank | 98 l (25.9 gal (US)) |
Engine | |
---|---|
Displacement | 4.4 l (268 inu00b3) |
Tires | |
---|---|
Note (1) | Tire options may vary by region. Contact your Cat dealer for details. |
Engine | |
---|---|
Maximum Gross Power - ISO 14396 (DIN) | 75 kW (102 HP) |
Loader Hydraulic System | |
---|---|
Hydraulic Cycle Time - Maximum Engine Speed - Rack Back | 2.2 s (2.2 s) |
Hydraulic Cycle Time - Maximum Engine Speed - Total Cycle Time | 12.5 s (12.5 s) |
Engine | |
---|---|
Emissions | Engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA. |
Steering | |
---|---|
Steering Cycle Times - Lock to Lock - At 2,350 rpm | 2.8 s (2.8 s) |
Transmission | |
---|---|
Note | *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1. |
Standard Equipment
- POWER TRAIN
- Cat C4.4 mechanical engine
- Electric fuel pump with four micron filtration
- S·O·SSM port, transmission oil
- Hydrostatic transmission, 20 km/h (12.5 mph)
- Lubed for life universal joints
- Forward – Neutral – Reverse on joystick
- 100% locking differentials, while moving
- Brakes, service
– Enclosed, wet-disc full hydraulic - Brakes, parking (also secondary brake)
- Radiator, serviceable core, single plane
- Air cleaner, radial seal, dual filters
- Air inlet heater starting aid
- Cooling fan, hydraulic
- Radiator expansion tank
- Tires, 17.5-25, 16PR (L-3)
- LOADER
- Parallel lift, Z-bar loader
- Ground access grease points
- HYDRAULICS
- Automatic lift kickouts
- Priority steering
- Hydraulics, two valve, one joystick
- Hydraulic diagnostic pressure taps
- S·O·S port, hydraulic oil
- Hydraulic oil cooler – single plane
- Hydraulically driven cooling fan
- Pump, variable displacement piston
- ELECTRICAL
- 80-ampere alternator
- One 850 CCA maintenance free battery
- Halogen flood lights (front and rear)
- Directional signals (front and rear)
- 12-volt direct electric starting
- Ignition key start/stop switch
- Switch, battery disconnect key
- Product Link™ ready wiring
- OPERATOR ENVIRONMENT
- ROPS/FOPS cab, pressurized and sound suppressed
- Hydraulic control lever lockout
- Gauges
– Engine coolant temperature
– Hydraulic oil temperature
– Fuel level
– Speedometer
– Digital hour meter - Operator warning system indicators:
– Brake charge pressure low
– Engine malfunction
– Park brake applied
– Electrical system voltage low
– Hydraulic oil filter bypass
– Action indicator - Interior light
- Door
- Seat
– Fabric only
– Adjustable height, backrest, armrest
– Seat belt, retractable 51 mm (2 in) - Heater/defroster
- Wiper/washer front (intermittent)
- Wiper/washer rear
- Tinted front glass, laminated
- Adjustable steering column
- Rearview mirrors, exterior (two)
- Ground level door release
- FLUIDS
- Extended life coolant antifreeze, protected to –36° C (–33° F)
- Cat Advanced HYDO™ 10
- CHASSIS
- Fenders, front
- Engine enclosure – lockable
- Recovery hitch
- Vandalism protection – locked service points
- Counterweight
- REGIONAL STANDARDS (as required)
- Alarm, back-up alarm
- License plate mount
- Serial number, engine block stamp
Optional Equipment
- OPTIONAL EQUIPMENT
- Integrated Toolcarrier (IT), standard coupler
- Lights, roading, dip
- Lights, cab, working (four)
- Feature package, load
– Return to Dig, Lift Kickout, Implement Modulation, Throttle Lock, Rimpull Control, Hystat aggressiveness - Feature package, road
– Ride Control, Implement Modulation, Throttle Lock, Rimpull Control, Hystat aggressiveness, Creeper Control - Feature package, load and road
– – Ride Control, Return to Dig, Lift Kickout, Implement Modulation, Throttle Lock, Rimpull Control, Hystat aggressiveness, Creeper Control - Seat belt, retractable 75 mm (3 in)
- Heater and air conditioner
- Security system, machine
- Year of manufacture plate
- Beacon, rotating
- Alarm, back-up
- Product Link
- License plate mount
- Tire Options
- Steering, secondary
- Seats (deluxe/premium/vinyl)
- 3rd function (auxiliary hydraulics)
- Battery, heavy duty
- Fenders, rear
- Rearview camera
- Radio
- Toolbox
- Rear blind
- Guards (lights, hitch, power train, driveshaft, crankcase)
- NOTE: Not all features are available in all regions. See your Cat dealer for more information.
