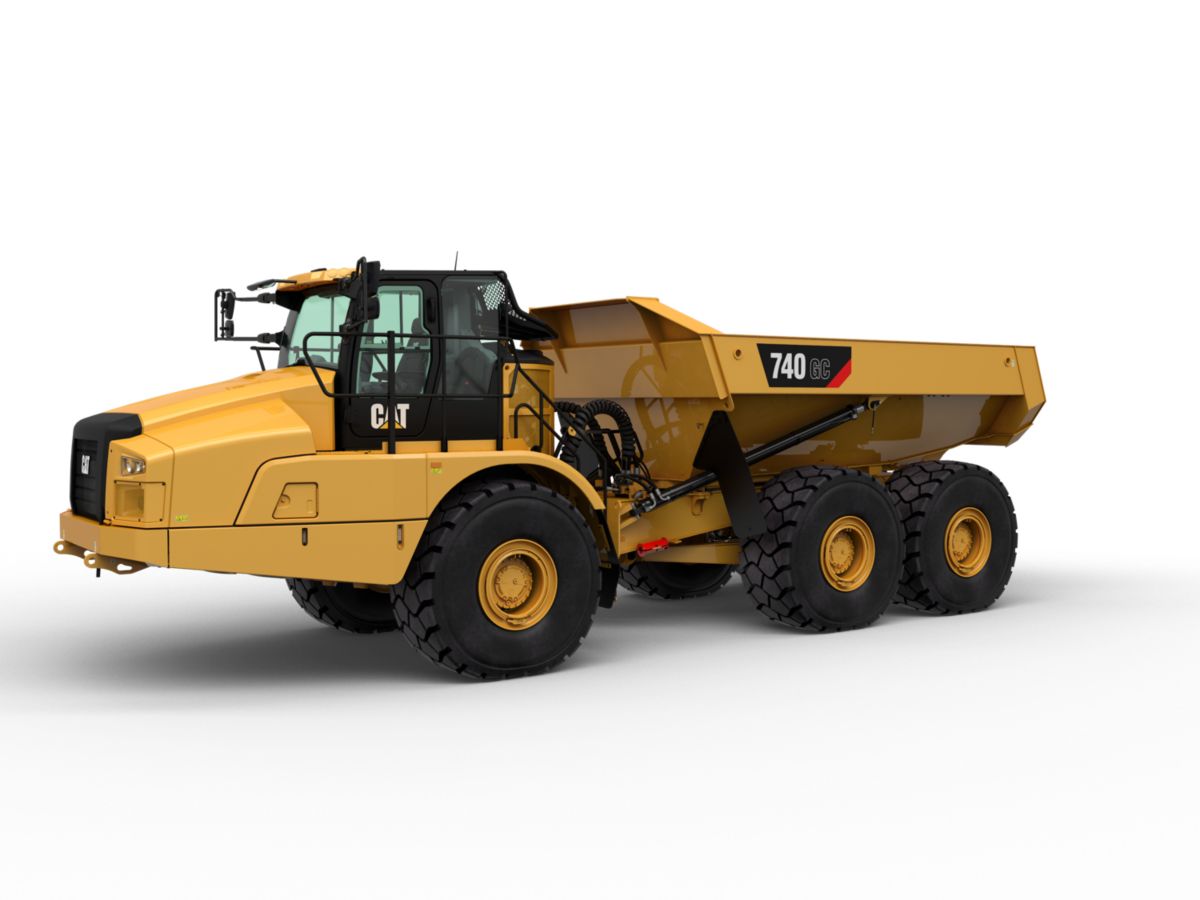

740 GC Articulated Truck
MAXIMIZE PERFORMANCE
AUTOMATIC CONTROLS
HEAVY DUTY CONSTRUCTION
OPERATOR COMFORT AND CONTROL
BUILT TO PERFORM
TECHNOLOGY THAT GETS WORK DONE
BECAUSE UPTIME COUNTS
MORE SUSTAINABLE FUTURE
BUILT-IN SAFETY FEATURES
Engine | |
---|---|
Engine Model | Cat® C15 |
Bore | 137 mm (5.4 in) |
Stroke | 171.5 mm (6.75 in) |
Displacement | 15.2 l (926 inu00b3) |
Emissions | The C15 engine emits either Tier 2/Stage II or Tier 3/Stage IIIA equivalent emissions. |
Net Power - SAE J1349 | 324 kW (434 HP) |
Net Power - ISO 14396 | 330 kW (443 HP) |
Gross Power - SAE J1995 | 335 kW (449 HP) |
Peak Engine Torque Gross (SAE J1995) | 2320 N·m (1711 ft·lbf) |
Peak Engine Torque Net (SAE J1349) | 2264 N·m (1670 ft·lbf) |
Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
No Engine De-rating Below | 3050 m (10000 ft) |
Engine Model - Either U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage IIIA equivalent | Cat C15 |
Note (2) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. |
Note (1) | The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard. |
Note (3) | Net power when the fan is at maximum speed is 324 kW (434 hp) per the SAE reference conditions. |
Weights | |
---|---|
Rated Payload | 36.3 t (40 ton (US)) |
Body Capacities | |
---|---|
Heaped (SAE 2:1) | 22.7 mu00b3 (29.7 ydu00b3) |
Struck | 17 mu00b3 (22.2 ydu00b3) |
Tailgate Heaped SAE 2:1 | 24.4 mu00b3 (31.9 ydu00b3) |
Tailgate Struck | 17.9 mu00b3 (23.4 ydu00b3) |
Transmission | |
---|---|
Forward - 1 | 6.4 km/h (4 mile/h) |
Forward - 2 | 8.5 km/h (5.3 mile/h) |
Forward - 3 | 11.5 km/h (7.3 mile/h) |
Forward - 4 | 14.8 km/h (9.2 mile/h) |
Forward - 5 | 19.7 km/h (12.2 mile/h) |
Forward - 6 | 24 km/h (14.9 mile/h) |
Reverse - 1 | 6.8 km/h (4.2 mile/h) |
Forward - 9 | 57.5 km/h (35.7 mile/h) |
Forward - 7 | 33.1 km/h (20.6 mile/h) |
Reverse - 2 | 15.7 km/h (9.8 mile/h) |
Forward - 8 | 39.8 km/h (24.7 mile/h) |
Sound Levels | |
---|---|
Interior Cab | 72 dB(A) (72 dB(A)) |
Operating Weights | |
---|---|
Rear Axle - Loaded | 23020 kg (50750 lb) |
Center Axle - Empty | 6709 kg (14791 lb) |
Center Axle - Rated Load | 16534 kg (36451 lb) |
Total - Loaded | 68257 kg (150480 lb) |
Front Axle - Loaded | 21994 kg (48488 lb) |
Front Axle - Rated Load | 3233 kg (7128 lb) |
Rear Axle - Rated Load | 16534 kg (36451 lb) |
Total - Empty | 31956 kg (70451 lb) |
Total - Rated Load | 36301 kg (80030 lb) |
Rear Axle - Empty | 6486 kg (14299 lb) |
Center Axle - Loaded | 23243 kg (51242 lb) |
Front Axle - Empty | 18761 kg (41361 lb) |
Service Refill Capacities | |
---|---|
Fuel Tank | 550 l (145.3 gal (US)) |
Cooling System | 90 l (23.7 gal (US)) |
Engine Crankcase | 52 l (13.7 gal (US)) |
Steering/Hoist Hydraulic System | 140 l (36.9 gal (US)) |
Brake Cooling Tank | 67 l (17.7 gal (US)) |
Final Drive - Each | 5 l (1.3 gal (US)) |
Transmission - OTG | 75 l (19.8 gal (US)) |
Axles - Each | 60 l (15.8 gal (US)) |
Body Hoist | |
---|---|
Raise Time | 12 s (12 s) |
Lower Time | 12 s (12 s) |
Steering | |
---|---|
Lock to Lock | 4.75 seconds @ 60 rpm |
Standards | |
---|---|
Brakes | ISO 3450 u2013 2011 |
Cab - FOPS | ISO 3449 Level II u2013 2005 |
Cab - ROPS | ISO 3471 u2013 2008 |
Steering | ISO 5010 u2013 2007 |
Body Plate | |
---|---|
Type | High strength Brinell HB450 wear resistant steel |
Turning Circle | |
---|---|
Turning Dimensions - Steer Angle - Left/Right | 45u00b0 |
Turning Dimensions - Aisle Width | 5595 mm (220 in) |
Turning Dimensions - Inside Radius | 3960 mm (156 in) |
Note | Dimensions are for machines equipped with 29.5 R25 tires. |
Turning Dimensions - Clearance Radius | 8395 mm (330 in) |
Turning Dimensions - SAE Turning Radius | 7698 mm (303 in) |
Body Plate Thickness | |
---|---|
Side Plates | 11 mm (0.43 in) |
Front Plate | 7 mm (0.28 in) |
Optimal Loader/Truck Pass Matching | |
---|---|
Note | An optimum system match gives you a major productivity advantage. The 740 GC is an excellent match for the Cat 374F and 352F Hydraulic Excavators; and Cat 972M, 966M, and 962M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Wheel Loader: 966M - Passes | 4u20135 |
Hydraulic Excavator: 352F - Passes | 5u20136 |
Wheel Loader: 972M - Passes | 3 |
Body Plate Thickness | |
---|---|
Base Plate | 13 mm (0.51 in) |
Sound Levels | |
---|---|
Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
Optimal Loader/Truck Pass Matching | |
---|---|
Wheel Loader: 962M - Passes | 5 |
Hydraulic Excavator: 374F - Passes | 3u20134 |
Sound Levels | |
---|---|
Note (1) | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Two seats both with seat belts, operator’s retractable
- Mirrors: extensive arrangement for improved visibility
- Touchscreen display incorporating the rearview camera video feed
- Tilt and telescopic steering wheel
- Heater and defroster with four-speed fan
- Windshield wiper and washer, two speed, intermittent (front)
- Air conditioning with R134A refrigerant
- Combined gear selection and hoist control lever
- Secondary steering – electro hydraulic
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Operation and Maintenance Manual (OMM)
– Primary steering failure (warning)
– Seat belt warning
– Secondary steering failure
– Machine Security System (MSS)
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Storage:
– Cup holder
– Flask receptacle (under the secondary seat)
– Under seat storage
– Door pocket
– Behind seat storage
– Coat hook - Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Transmission fault
– Traction control system
– Check engine lamp - Sun visor
- Adjustable air vents
- Windows (tinted) opening both sides
- Windshield wiper and washer, two speed (rear)
- Glass windows:
- CAT TECHNOLOGIES
- Cat Detect with Stability Assist
- Product Link: PL631E or PL641E dependent on location and licensing agreement
- ELECTRICAL AND LIGHTING
- Batteries (two) maintenance free
- Remote starting receptacle (cables not included)
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Horn
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- POWER TRAIN
- Auto shift nine-speed forward and two reverse transmission
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Cat C15 engine
- Retarder: engine compression brake
- Dual circuit oil immersed, enclosed brakes – all wheels
- Three axle, six-wheel drive
- Three axle, six-wheel drive
- SAFETY
- Reverse alarm
- Rearview camera
- ROPS/FOPS cab
- GUARDS
- Crankcase
- Axle
- Front dump body spill guard, integral part of fabricated body
- Radiator
- Rear window
- OTHER STANDARD EQUIPMENT
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Tires, six 29.5 R25
- Vandalism protection: lockable caps
- S·O·S sampling valves
- Sound suppression (only standard in Europe)
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPTIONAL EQUIPMENT
- Product Link Elite: PLE631E (satellite), PLE641E (cellular)
- Bare chassis (no body) long wheel base
- Roof mounted High Intensity Discharge (HID) work lights
- Cold weather coolant –51° C (–60° F)
- Bare chassis (no body) standard wheel base
- Four-point seat belt
- Cat Production Measurement payload monitoring system
- Window blinds
- Engine block heater
- Body liners
- Heated/cooled seat
- Exhaust heated body
- Ether start
- Sound suppression (only standard in Europe)
- Windshield wiper and washer, two speed (rear)
- Heated rearview motorized mirrors
- Auto lube installation for automatic greasing of bearings
- Bluetooth radio stereo system
- Infrared glass – high ambient cab
- Wheel chocks
- Flashing LED beacon
- Fuel additive – anti-waxing
- Cold weather start attachment
- Machine Security System (MSS)
- Fast fuel fill
- Scissor tailgate
