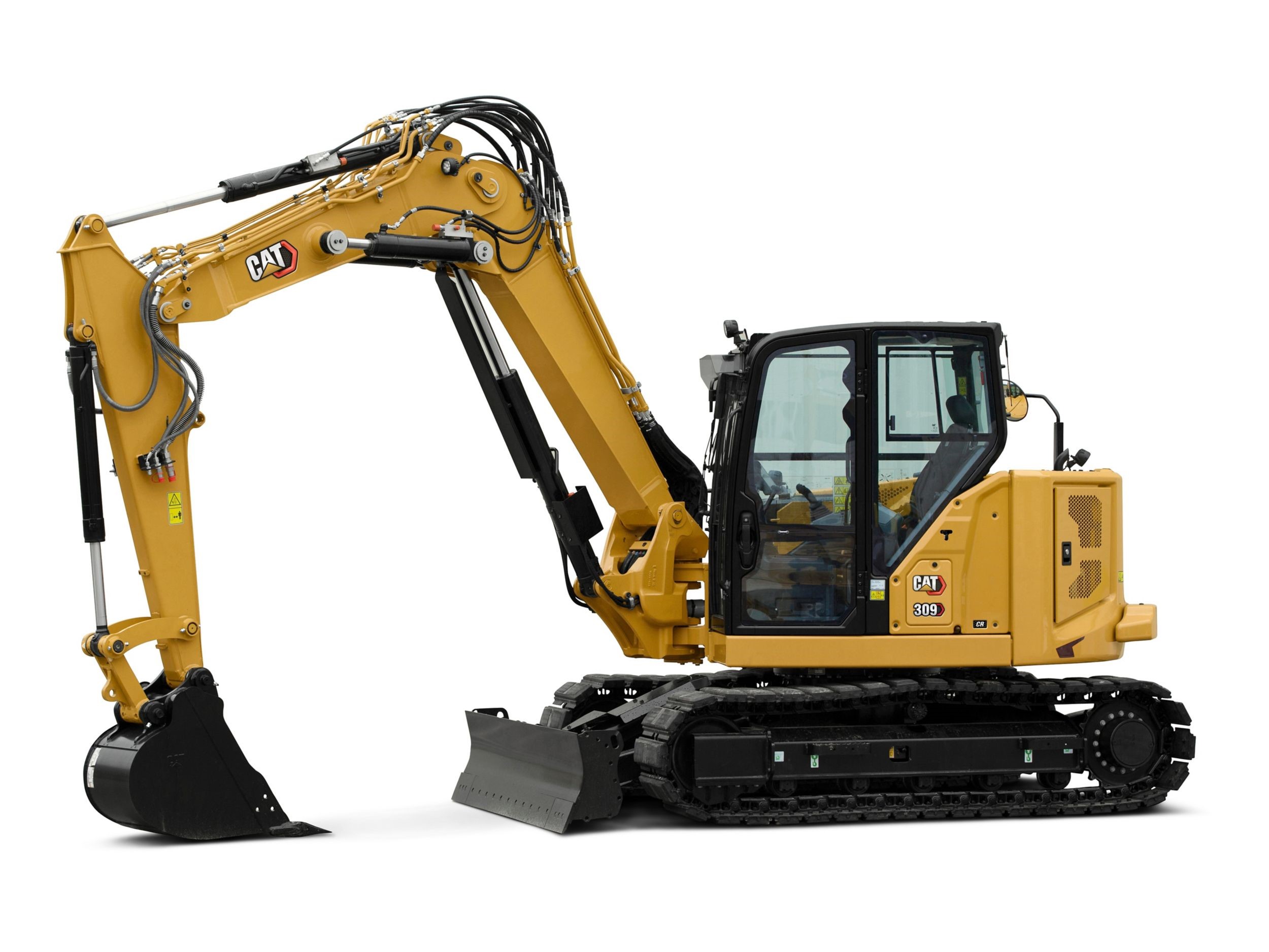

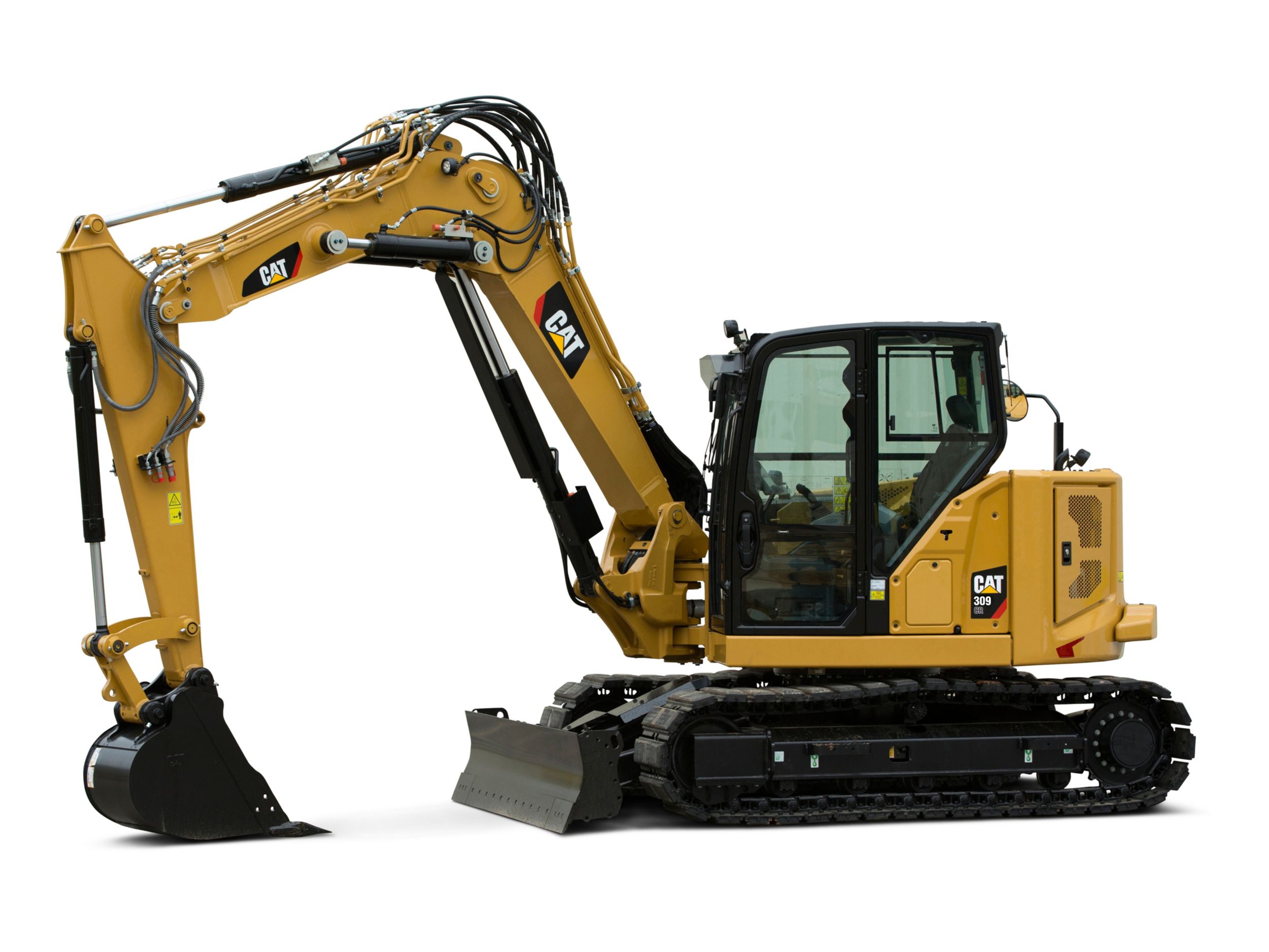

309 CR VAB Mini Hydraulic Excavator

  • Overview
  • Finance With CavPower
  • Optional Services
  • View product Download
CALCULATE FINANCE

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and dig-to-blade allows for easy clean up.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

Engine
Net Power 52.4 kW (70.3 HP)
Weights
Operating Weight 9403 kg (20731 lb)
Dimensions - VAB In
Dig Depth 3931 mm (154.8 in)
Engine
Engine Model Cat C3.3B
Blade
Height 431 mm (17 in)
Dimensions - VAB In
Cab Height 2514 mm (99 in)
Maximum Blade Depth 684 mm (26.9 in)
Hydraulic System
Operating Pressure - Travel 285 bar (4134 psi)
Dimensions - Long Stick
Boom Swing - Right 935 mm (37 in)
Boom Swing - Left 604 mm (24 in)
Dimensions - VAB Out
Ground Clearance 343 mm (13.5 in)
Hydraulic System
Auxiliary Circuit - Secondary - Flow 33 l/min (9 gal/min)
Dimensions - Standard Stick
Maximum Reach - Ground Level 6951 mm (273.6 in)
Hydraulic System
Auxiliary Circuit - Primary (High Flow) - Pressure 285 bar (4134 psi)
Weights
Note (1) *Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
Dimensions - Standard Stick
Swing Bearing - Height 729 mm (28.7 in)
Dimensions - VAB Out
Cab Height 2514 mm (99 in)
Boom in Reach 2995 mm (117.9 in)
Hydraulic System
Type Load Sensing Hydraulics with Variable Displacement Piston Pump
Travel System
Ground Pressure - Minimum Weight 38 kPa (6 psi)
Service Refill Capacities
Fuel Tank 147 l (39 gal (US))
Dimensions - VAB Out
Vertical Wall 3524 mm (138.7 in)
Swing Bearing Height 798 mm (31.4 in)
Hydraulic System
Digging Force - Stick - Standard 42.3 kN (9500 lb)
Engine
Rated Net Power - 2,200 rpm - EU Stage V - ISO 9249/EEC 80/1269 53.3 kW (71.5 HP)
Dimensions - Long Stick
Dig Depth 4650 mm (183.1 in)
Dimensions - VAB In
Maximum Blade Height 342 mm (13.5 in)
Stick Length 1823 mm (71.8 in)
Maximum Reach 6612 mm (260.3 in)
Hydraulic System
Auxiliary Circuit - Secondary - Pressure 285 bar (4134 psi)
Dimensions - VAB Out
Maximum Dump Clearance 6390 mm (251.6 in)
Dimensions - VAB In
Tail Swing without Counterweight 1450 mm (57.1 in)
Dimensions - Standard Stick
Stick Length 1823 mm (71.8 in)
Dimensions - VAB In
Vertical Wall 3394 mm (133.6 in)
Swing System
Machine Swing Speed 10.6 r/min (10.6 r/min)
Dimensions - Long Stick
Stick Length 2358 mm (92.8 in)
Dimensions - VAB In
Swing Bearing Height 798 mm (31.4 in)
Dimensions - Standard Stick
O/A Shipping Length 6578 mm (259 in)
Dimensions - VAB In
Track Belt/Shoe Width 450 mm (17.7 in)
Dimensions - Standard Stick
Maximum Blade Height 342 mm (13.5 in)
Service Refill Capacities
Hydraulic System 107 l (28 gal (US))
Hydraulic System
Digging Force - Stick - Long 35.7 kN (8023 lb)
Dimensions - Standard Stick
Boom In Reach 3058 mm (120.4 in)
Weights
Maximum Operating Weight with Cab* 9550 kg (21054 lb)
Service Refill Capacities
Engine Oil 11.2 l (3 gal (US))
Weight Increase from Minimum Configuration
Steel Tracks with Pads 330 kg (728 lb)
Weights
Maximum Operating Weight with Cab** 9403 kg (20731 lb)
Dimensions - VAB Out
Overall Undercarriage Length 3200 mm (126 in)
Dimensions - Standard Stick
Tail Swing with Counterweight 1645 mm (64.8 in)
Service Refill Capacities
Cooling System 10 l (2.6 gal (US))
Travel System
Travel Speed - High 4.9 km/h (3.1 mile/h)
Dimensions - Long Stick
Maximum Reach - Ground Level 7462 mm (293.8 in)
Dimensions - VAB In
Boom Swing Right 935 mm (37 in)
Engine
Gross Power - ISO 14396 55.4 kW (74.3 HP)
Dimensions - VAB In
Overall Track Width 2470 mm (97.2 in)
Hydraulic System
Digging Force - Bucket 62 kN (13943 lb)
Dimensions - Standard Stick
Vertical Wall 2998 mm (118 in)
Dimensions - Long Stick
Maximum Blade Height 342 mm (13.5 in)
Cab Height 2514 mm (99 in)
Hydraulic System
Pump Flow at 2,400 rpm 233 l/min (62 gal/min)
Dimensions - VAB Out
Maximum Reach at Ground Level 7732 mm (304.4 in)
Dimensions - Standard Stick
Maximum Blade Depth 684 mm (26.9 in)
Travel System
Maximum Traction Force - High Speed 28.9 kN (6497 lb)
Dimensions - Long Stick
Transport Height 2514 mm (99 in)
Boom In Reach 3215 mm (126.6 in)
Dimensions - VAB In
Overall Shipping Length 5771 mm (227.2 in)
Maximum Dump Clearance 3643 mm (143.4 in)
Boom in Reach 2853 mm (112.3 in)
Dimensions - Standard Stick
Ground Clearance 343 mm (13.5 in)
Dimensions - VAB Out
Tail Swing without Counterweight 1450 mm (57.1 in)
Dimensions - VAB In
Maximum Reach at Ground Level 6403 mm (252.1 in)
Specifications
Note The 309 CR specifications are based on a machine configured with a Long (L) Undercarriage. For specifications representing a 309 CR with a Standard Undercarriage, please refer to the 308 CR information.
Dimensions - VAB Out
Maximum Reach 7900 mm (311 in)
Dimensions - Standard Stick
Maximum Reach 7140 mm (281.1 in)
Certification - Cab
Top Guard ISO 10262:1998 (Level II)
Hydraulic System
Auxiliary Circuit - Primary (High Flow) - Flow 140 l/min (37 gal/min)
Dimensions - Standard Stick
Transport Height 2487 mm (97.9 in)
Cab Height 2514 mm (99 in)
Dimensions - Long Stick
O/A Track Width 2470 mm (97.2 in)
Dimensions - VAB Out
Track Belt/Shoe Width 450 mm (17.7 in)
Travel System
Travel Speed - Low 2.6 km/h (1.6 mile/h)
Dimensions - VAB Out
Overall Shipping Length 7158 mm (281.8 in)
Maximum Blade Depth 684 mm (26.9 in)
Dimensions - VAB In
Transport Height 2530 mm (99.6 in)
Dimensions - Standard Stick
Boom Swing - Left 604 mm (24 in)
O/A Track Width 2470 mm (97.2 in)
Engine
Displacement 3.33 l (203 inu00b3)
Dimensions - Long Stick
Ground Clearance 343 mm (13.5 in)
Dimensions - VAB Out
Maximum Dig Height 8171 mm (321.7 in)
Certification - Cab
Roll Over Protective Structure (ROPS) ISO 12117-2:2008
Travel System
Ground Pressure - Maximum Weight 40.8 kPa (6 psi)
Dimensions - Long Stick
Swing Bearing - Height 729 mm (28.7 in)
Tail Swing without Counterweight 1450 mm (57.1 in)
Dimensions - Standard Stick
Boom Swing - Right 935 mm (37 in)
Dimensions - Long Stick
Tail Swing with Counterweight 1645 mm (64.8 in)
Travel System
Maximum Traction Force - Low Speed 84.8 kN (19064 lb)
Dimensions - Standard Stick
Maximum Dig Height 6729 mm (264.9 in)
Tail Swing without Counterweight 1450 mm (57.1 in)
Dimensions - Long Stick
Maximum Reach 7637 mm (300.7 in)
Track Belt/Shoe Width 450 mm (17.7 in)
Dimensions - Standard Stick
Dig Depth 4115 mm (162 in)
Dimensions - VAB Out
Overall Track Width 2470 mm (97.2 in)
Dimensions - VAB In
Overall Undercarriage Length 3200 mm (126 in)
Dimensions - VAB Out
Tail Swing with Counterweight 1645 mm (64.8 in)
Dimensions - VAB In
Ground Clearance 343 mm (13.5 in)
Sound
Average Exterior Sound Pressure (ISO 6395:2008) 99 dB(A) (99 dB(A))
Operator Sound Pressure (ISO 6396:2008) 72 dB(A) (72 dB(A))
Weight Increase from Minimum Configuration
Long Stick 66 kg (146 lb)
Dimensions - VAB In
Tail Swing with Counterweight 1645 mm (64.8 in)
Dimensions - Long Stick
Vertical Wall 3411 mm (134.3 in)
Hydraulic System
Operating Pressure - Swing 250 bar (3626 psi)
Dimensions - Standard Stick
Maximum Dump Clearance 4753 mm (187.1 in)
Weight Increase from Minimum Configuration
Counterweight 250 kg (552 lb)
Service Refill Capacities
Hydraulic Tank 53 l (14 gal (US))
Engine
Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final - ISO 9249/EEC 80/1269 52.4 kW (70.3 HP)
Dimensions - VAB Out
Stick Length 1823 mm (71.8 in)
Engine
Stroke 120 mm (4.7 in)
Dimensions - Standard Stick
Track Belt/Shoe Width 450 mm (17.7 in)
Dimensions - VAB In
Maximum Dig Height 5494 mm (216.3 in)
Dimensions - Long Stick
O/A Undercarriage Length 3200 mm (126 in)
Blade
Width - Wide 2640 mm (103.9 in)
Weights
Minimum Operating Weight with Cab* 8756 kg (19304 lb)
Dimensions - VAB Out
Maximum Blade Height 342 mm (13.5 in)
Hydraulic System
Operating Pressure - Equipment 285 bar (4134 psi)
Dimensions - Long Stick
O/A Shipping Length 6662 mm (262.3 in)
Dimensions - Standard Stick
O/A Undercarriage Length 3200 mm (126 in)
Travel System
Gradeability - Maximum 30 degrees
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
Dimensions - VAB Out
Boom Swing Right 935 mm (37 in)
Sound
Note European Union Directive u201c2000/14/ECu201d
Dimensions - Long Stick
Maximum Dig Height 7032 mm (276.8 in)
Engine
Bore 94 mm (3.7 in)
Dimensions - VAB In
Boom Swing Left 604 mm (24 in)
Dimensions - VAB Out
Boom Swing Left 604 mm (24 in)
Blade
Width - Standard 2470 mm (97.2 in)
Weights
Note *Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, standard stick, blade and no bucket.
Dimensions - VAB Out
Transport Height 2452 mm (96.5 in)
Dimensions - Long Stick
Maximum Dump Clearance 5065 mm (199.4 in)
Dimensions - VAB Out
Dig Depth 3468 mm (136.5 in)
Dimensions - Long Stick
Maximum Blade Depth 684 mm (26.9 in)
Certification - Cab
Tip Over Protective Structure (TOPS) ISO 12117:1997
Weights
Note (2) **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.

Standard Equipment

  • ENGINE
    • Extended Life Coolant, –37° C (–35° F)
    • Ecology Drain
    • Cat C3.3B Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)
    • Automatic Two Speed Travel
    • Automatic Engine Shutdown
    • Radial Seal – Double Element Air Filter
    • Automatic Swing Brake
    • Automatic Engine Idle
    • Fuel Water Separator with Indicator
  • HYDRAULICS
    • Case Drain Line
    • Hydraulic Temperature Monitoring
    • Hydro Advanced Hydraulic Oil
    • Certified Accumulator
    • Power On Demand
    • Variable Displacement Piston Pump
    • Load Sensing/Flow Sharing Hydraulics
    • Smart Tech Electronic Pump
  • OPERATOR ENVIRONMENT
    • Rear Window Emergency Exit
    • Assisted Front Window Overhead Storage
    • 12V Power Socket
    • Travel Pedals and Hand Levers
    • Travel Cruise Control
    • LED Interior Light
    • Coat Hook
    • Cat Key with Passcode Option
    • Fabric, High Back, Suspension Seat
    • Stick Steer Mode
    • ROPS – ISO 12117-2:2008
    • Removable, Washable Floor Mat
    • Literature Holder
    • Color LCD Monitor
      – Fuel Level and Coolant Temperature Gauges
      – Maintenance and Machine Monitoring
      – Performance and Machine Adjustments
      – Numeric Security Code
      – Multiple Languages
      – Camera Ready
      – Hour Meter with Wake Up Switch
      – Jog Dial Control Interface
    • Mounting Bosses for Top and Front Guards
    • Sealed and Pressurized Cab
    • Radio – Bluetooth®, USB, Auxiliary, Microphone
    • Skylight
    • Integrated Lower Front Window
    • HVAC with Automatic Temperature Control
    • Retractable Seat Belt (75 mm/3 in)
    • TOPS – ISO 12117:1997
    • Top Guard – ISO 10262:1998 (Level II)
    • Cup Holder
    • Hydraulic Lockout Controls
    • Control Pattern Changer
    • Operator Sound Pressure 72 dB(A) ISO 6396:2008
    • Molded Footrests
    • Adjustable Wrist Rests
  • UNDERCARRIAGE
    • Tie Down Eyes on Track Frame
    • Dozer Blade
    • Dozer Float
    • Bolt-on, Reversible Wear Edge
    • Steel Tracks (450 mm/17.7 in wide)
    • Hydraulic Track Adjusters
    • Greased and Lubricated Track
  • BOOM, STICK AND LINKAGES
    • Variable Angle Boom
    • Standard Stick (1823 mm/71.8 in)
    • Front Shovel Capable (Pin-On/Manual Coupler/Hydraulic Coupler – not available in all regions)
    • Thumb Ready (not available in all regions)
    • Certified Lifting Eye (not available in all regions)
  • ELECTRICAL
    • 12 Volt Electrical System
    • 90 Ampere Alternator
    • 850 CCA Maintenance Free Battery
    • Circuit Breaker
    • Ignition Key Stop Switch
    • Signaling/Warning Horn
    • Product Link™ Elite Lite (regulations apply)

Optional Equipment

  • OPERATOR ENVIRONMENT
    • Air Suspension Heated Seat
    • Rain Visor
  • ELECTRICAL
    • Rearview Camera
    • Rotating Beacon
  • OTHER
    • Boom and Stick Hose Burst Check Valves
    • Bucket Linkage with Lift Eye
    • Track Guides
    • Attachments including Buckets, Augers and Hammers
    • Wide Steel Tracks (600 mm/23.6 in)
    • 2nd Auxiliary Hydraulic Lines
    • Wide Dozer Blade
    • Additional Counterweight
    • Water Jacket Heater
    • Refueling Pump
    • Cab Guarding
    • Travel Alarm (standard in some regions)

Enquiry Form

REQUEST A CALL BACK
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
