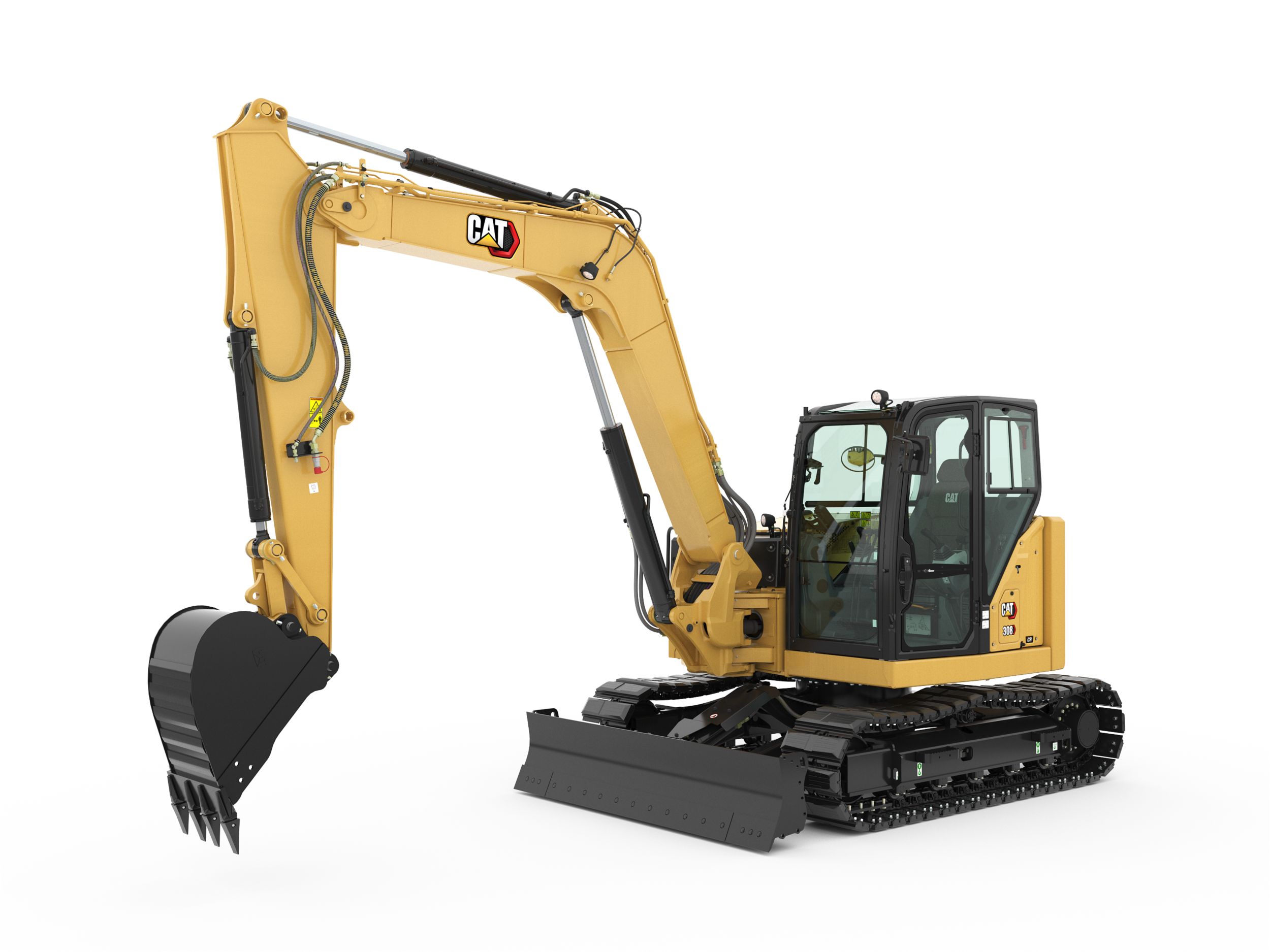

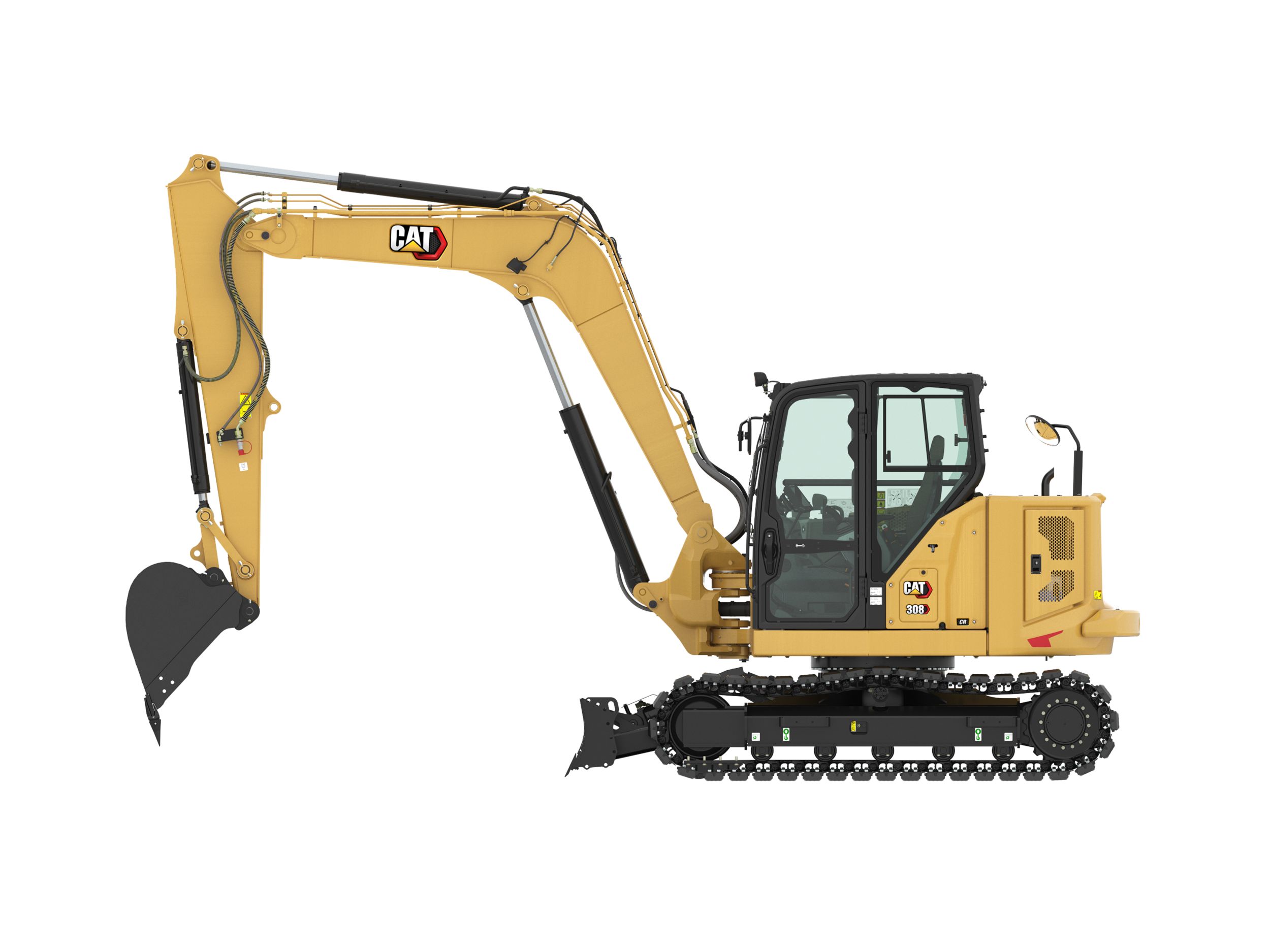

308 CR Mini Hydraulic Excavator

  • Overview
  • Finance With CavPower
  • Optional Services
  • View product Download
CALCULATE FINANCE

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and dig-to-blade allows for easy clean up.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

Engine
Engine Model Cat C3.3B
Net Power 52.4 kW (70.3 HP)
Weights
Operating Weight 9380 kg (20678 lb)
Blade
Height 431 mm (17 in)
Dimensions - Long Stick
Boom Swing - Left 604 mm (24 in)
Swing System
Machine Swing Speed 10.6 r/min (10.6 r/min)
Dimensions - Long Stick
Maximum Dig Height 7039 mm (277 in)
Hydraulic System
Digging Force - Bucket 62 kN (13946 lb)
Operating Pressure - Travel 285 bar (4134 psi)
Operating Pressure - Swing 250 bar (3626 psi)
Dimensions - Standard Stick
Cab Height 2541 mm (100 in)
Vertical Wall 2991 mm (118 in)
Service Refill Capacities
Fuel Tank 147 l (39 gal (US))
Dimensions - Standard Stick
Boom In Reach 3059 mm (120 in)
Engine
Stroke 120 mm (4.7 in)
Hydraulic System
Operating Pressure - Equipment 285 bar (4134 psi)
Dimensions - Standard Stick
Tail Swing with Counterweight 1645 mm (65 in)
Hydraulic System
Digging Force - Stick - Long 35.7 kN (8032 lb)
Dimensions - Long Stick
Maximum Blade Height 370 mm (15 in)
Dimensions - Standard Stick
Boom Swing - Right 935 mm (37 in)
Blade
Width - Standard 2300 mm (91 in)
Engine
Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final - ISO 9249/EEC 80/1269 52.4 kW (70.3 HP)
Dimensions - Long Stick
Track Belt/Shoe Width 450 mm (18 in)
Service Refill Capacities
Hydraulic System 110 l (29 gal (US))
Weights
Note (1) *Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
Hydraulic System
Type Load Sensing Hydraulics with Variable Displacement Piston Pump
Dimensions - Long Stick
Cab Height 2541 mm (100 in)
Travel System
Maximum Traction Force - High Speed 27.8 kN (6250 lb)
Dimensions - Standard Stick
Track Belt/Shoe Width 450 mm (18 in)
Dimensions - Long Stick
Tail Swing with Counterweight 1645 mm (65 in)
Dimensions - Standard Stick
Maximum Reach 7141 mm (281 in)
Dimensions - Long Stick
O/A Undercarriage Length 2880 mm (113 in)
Maximum Dump Clearance 5072 mm (200 in)
Dimensions - Standard Stick
Stick Length 1823 mm (72 in)
Engine
Bore 94 mm (3.7 in)
Dimensions - Long Stick
Transport Height 2522 mm (99 in)
Weight Increase from Minimum Configuration
Steel Tracks with Pads 341 kg (752 lb)
Hydraulic System
Auxiliary Circuit - Primary - Pressure 285 bar (4134 psi)
Auxiliary Circuit - Primary - Flow 131 l/min (35 gal/min)
Blade
Width - Wide 2450 mm (97 in)
Dimensions - Long Stick
Boom Swing - Right 935 mm (37 in)
Maximum Blade Depth 407 mm (16 in)
Dimensions - Standard Stick
Transport Height 2487 mm (98 in)
Weights
Note (2) **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
Dimensions - Long Stick
Dig Depth 4643 mm (183 in)
Dimensions - Standard Stick
Maximum Blade Height 370 mm (15 in)
Weights
Maximum Operating Weight with Cab** 9105 kg (20077 lb)
Dimensions - Standard Stick
Boom Swing - Left 604 mm (24 in)
Hydraulic System
Pump Flow at 2,400 rpm 167 l/min (44 gal/min)
Dimensions - Long Stick
Ground Clearance 350 mm (14 in)
Dimensions - Standard Stick
Maximum Blade Depth 407 mm (16 in)
Hydraulic System
Auxiliary Circuit - Secondary - Flow 33 l/min (9 gal/min)
Service Refill Capacities
Hydraulic Tank 53 l (14 gal (US))
Dimensions - Standard Stick
O/A Track Width 2300 mm (91 in)
Hydraulic System
Digging Force - Stick - Standard 42.3 kN (9509 lb)
Travel System
Ground Pressure - Maximum Weight 39.8 kPa (5.8 psi)
Dimensions - Long Stick
Stick Length 2358 mm (93 in)
Weight Increase from Minimum Configuration
Counterweight 250 kg (552 lb)
Dimensions - Long Stick
Maximum Reach 7637 mm (301 in)
Maximum Reach - Ground Level 7460 mm (294 in)
Dimensions - Standard Stick
Maximum Dig Height 6736 mm (265 in)
Travel System
Ground Pressure - Minimum Weight 36.9 kPa (5.4 psi)
Hydraulic System
Auxiliary Circuit - Secondary - Pressure 285 bar (4134 psi)
Dimensions - Standard Stick
Maximum Dump Clearance 4760 mm (187 in)
Travel System
Travel Speed - High 5.1 km/h (3.2 mile/h)
Dimensions - Standard Stick
Maximum Reach - Ground Level 6949 mm (274 in)
Engine
Displacement 3.33 l (203 inu00b3)
Certification - Cab
Top Guard ISO 10262:1998 (Level II)
Roll Over Protective Structure (ROPS) ISO 12117-2:2008
Dimensions - Standard Stick
Tail Swing without Counterweight 1450 mm (57 in)
Service Refill Capacities
Cooling System 10 l (2.6 gal (US))
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
Dimensions - Long Stick
O/A Shipping Length 6656 mm (262 in)
Dimensions - Standard Stick
O/A Undercarriage Length 2880 mm (113 in)
Dimensions - Long Stick
Boom In Reach 3215 mm (127 in)
Sound
Operator Sound Pressure (ISO 6396:2008) 72 dB(A) (72 dB(A))
Weight Increase from Minimum Configuration
Long Stick 66 kg (146 lb)
Dimensions - Long Stick
Swing Bearing - Height 756 mm (30 in)
Travel System
Travel Speed - Low 3.1 km/h (1.9 mile/h)
Dimensions - Long Stick
O/A Track Width 2300 mm (91 in)
Service Refill Capacities
Engine Oil 11.2 l (3 gal (US))
Sound
Note European Union Directive u201c2000/14/ECu201d
Engine
Rated Net Power - 2,200 rpm - EU Stage V - ISO 9249/EEC 80/1269 53.3 kW (71.5 HP)
Gross Power - ISO 14396 55.4 kW (74.3 HP)
Weights
Minimum Operating Weight with Cab* 8440 kg (18610 lb)
Travel System
Maximum Traction Force - Low Speed 67.5 kN (15175 lb)
Dimensions - Standard Stick
Swing Bearing - Height 756 mm (30 in)
Sound
Average Exterior Sound Pressure (ISO 6395:2008) 99 dB(A) (99 dB(A))
Dimensions - Long Stick
Tail Swing without Counterweight 1450 mm (57 in)
Travel System
Gradeability - Maximum 30 degrees
Swing System
Boom Swing - Right 50 degrees
Dimensions - Standard Stick
Ground Clearance 350 mm (14 in)
Dig Depth 4108 mm (162 in)
O/A Shipping Length 6571 mm (259 in)
Dimensions - Long Stick
Vertical Wall 3404 mm (134 in)
Certification - Cab
Tip Over Protective Structure (TOPS) ISO 12117:1997
Swing System
Boom Swing - Left 60 degrees

Standard Equipment

  • ENGINE
    • Cat C3.3B Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)
    • Automatic Two Speed Travel
    • Extended Life Coolant, –37° C (–35° F)
    • Radial Seal – Double Element Air Filter
    • Fuel Water Separator with Indicator
    • Ecology Drain
    • Automatic Swing Brake
    • Automatic Engine Shutdown
    • Automatic Engine Idle
  • HYDRAULICS
    • Load Sensing/Flow Sharing Hydraulics
    • Variable Displacement Piston Pump
    • HYDO Advanced Hydraulic Oil
    • Hydraulic Temperature Monitoring
    • Power On Demand
    • Certified Accumulator
    • Smart Tech Electronic Pump
  • OPERATOR ENVIRONMENT
    • 12V Power Socket
    • Rear Window Emergency Exit
    • Mounting Bosses for Top and Front Guards
    • Hydraulic Lockout Controls
    • Radio – Bluetooth®, USB, Auxiliary, Microphone
    • Assisted Front Window Overhead Storage
    • Travel Cruise Control
    • Fabric, High Back, Suspension Seat
    • Cup Holder
    • Control Pattern Changer
    • TOPS – ISO 12117:1997
    • Travel Pedals and Hand Levers
    • Literature Holder
    • Removable, Washable Floor Mat
    • Adjustable Wrist Rests
    • LED Interior Light
    • Retractable Seat Belt (75 mm/3 in)
    • ROPS – ISO 12117-2:2008
    • Color LCD Monitor
      – Fuel Level and Coolant Temperature Gauges
      – Maintenance and Machine Monitoring
      – Performance and Machine Adjustments
      – Numeric Security Code
      – Multiple Languages
      – Camera Ready
      – Hour Meter with Wake Up Switch
      – Jog Dial Control Interface
    • Skylight
    • Stick Steer Mode
    • Cat Key with Passcode Option
    • Coat Hook
    • Top Guard – ISO 10262:1998 (Level II)
    • Sealed and Pressurized Cab
    • HVAC with Automatic Temperature Control
    • Integrated Lower Front Window
    • Molded Footrests
    • Operator Sound Pressure 72 dB(A) ISO 6396:2008
  • UNDERCARRIAGE
    • Dozer Blade
    • Hydraulic Track Adjusters
    • Tie Down Eyes on Track Frame
    • Dozer Float
    • Greased and Lubricated Track
    • Bolt-on, Reversible Wear Edge
    • Rubber Tracks
  • BOOM, STICK AND LINKAGES
    • One Piece Boom (3400 mm/133.9 in)
    • Standard Stick (1820 mm/71.7 in)
    • Long Stick (2360 mm/92.9 in)
    • Front Shovel Capable (Pin-On/Manual Coupler/Hydraulic Coupler – not available in all regions)
    • Thumb Ready (not available in all regions)
    • Certified Lifting Eye (not available in all regions)
  • ELECTRICAL
    • 12 Volt Electrical System
    • 60 Ampere Alternator
    • 900 CCA Maintenance Free Battery
    • Circuit Breaker
    • Ignition Key Stop Switch
    • Signaling/Warning Horn
    • Product Link™ Elite Lite (regulations apply)
    • Travel Alarm

Optional Equipment

  • OPERATOR ENVIRONMENT
    • Rain Visor
    • Air Suspension Heated Seat
  • ELECTRICAL
    • Rearview Camera
    • Rotating Beacon
  • OTHER
    • 2nd Auxiliary Hydraulic Lines with Case Drain
    • Additional Counterweight
    • Boom and Stick Hose Burst Check Valves
    • Bucket Linkage with Lift Eye
    • Track Guides
    • Steel Tracks (450 mm/17.7 in wide)
    • Steel Track with Rubber Pads
    • Wide Steel Tracks (600 mm/23.6 in)
    • Attachments including Buckets, Augers and Hammers
    • Water Jacket Heater
    • Wide Dozer Blade
    • Refueling Pump
    • Variable Angle Boom (please see 308 CR VAB brochure for VAB specs and additional information)
    • Cab Guarding
