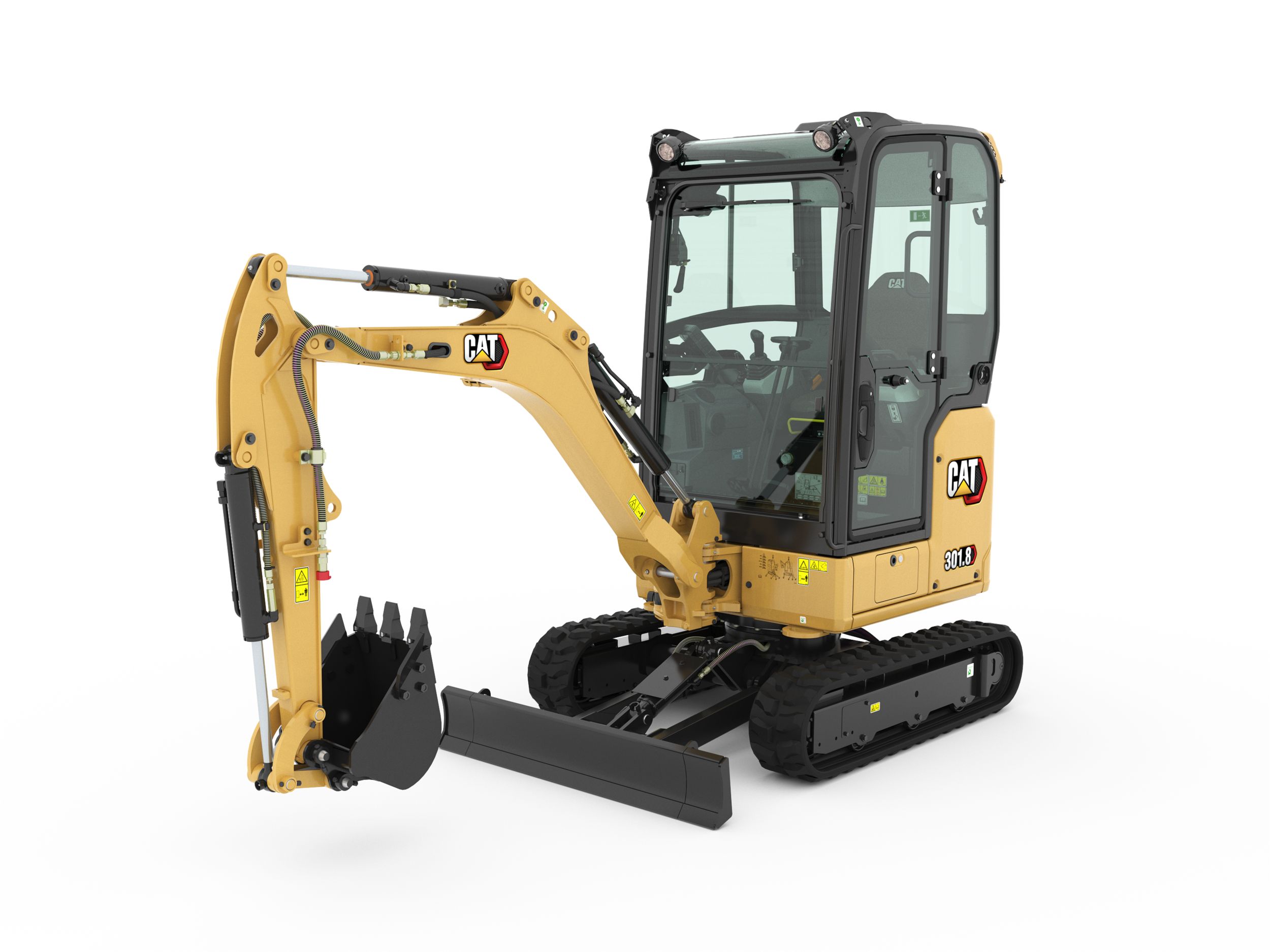

301.8 Mini Hydraulic Excavator
ALL DAY COMFORT

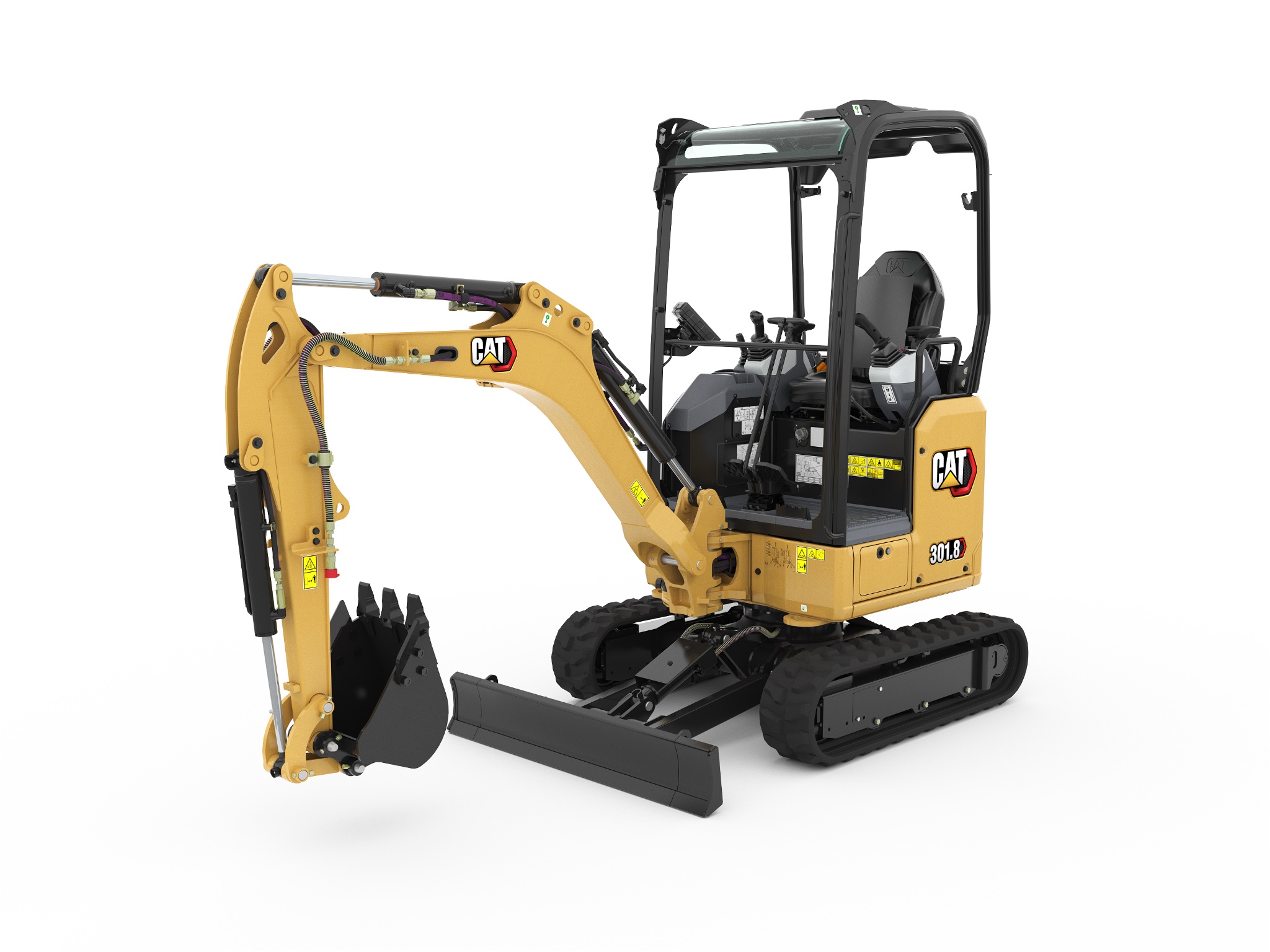

- Choose either a canopy or a sealed and pressurized cab equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.
EASY TO OPERATE
- Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
STICK STEER TRAVEL MODE
- Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
BIG PERFORMANCE IN A COMPACT DESIGN
- Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
SAFETY ON THE JOB SITE
- Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.
SIMPLE SERVICE FOR LESS DOWNTIME
- Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab lets you reach additional service areas when needed.
LOWER OPERATING COSTS
- Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.
SUSTAINABILITY
- The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
- The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)
| Engine | |
|---|---|
| Net Power | 15.7 kW (21 HP) |
| Weights | |
|---|---|
| Operating Weight | 2029 kg (4473 lb) |
| Dimensions - Long Stick | |
|---|---|
| Dig Depth | 2570 mm (101.2 in) |
| Engine | |
|---|---|
| Engine Model | C1.1 |
| Blade | |
|---|---|
| Height | 225 mm (8.9 in) |
| Travel System | |
|---|---|
| Travel Speed - Low | 2.9 km/h (1.8 mile/h) |
| Dimensions - Standard Stick | |
|---|---|
| Boom In Reach | 1420 mm (55.9 in) |
| Travel System | |
|---|---|
| Maximum Traction Force - High Speed | 11.9 kN (2675.2 lbf) |
| Hydraulic System | |
|---|---|
| Operating Pressure - Equipment | 245 bar (3553.4 psi) |
| Certification - Cab and Canopy | |
|---|---|
| Tip Over Protective Structure (TOPS) | ISO 12117:1997 |
| Weights | |
|---|---|
| Maximum Operating Weight with Cab** | 2029 kg (4473 lb) |
| Dimensions - Long Stick | |
|---|---|
| Stick Length | 1160 mm (45.7 in) |
| Hydraulic System | |
|---|---|
| Auxiliary Circuit - Secondary - Flow | 14 l/min (3.7 gal/min) |
| Travel System | |
|---|---|
| Travel Speed - High | 4.4 km/h (2.7 mile/h) |
| Certification - Cab and Canopy | |
|---|---|
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Dimensions - Standard Stick | |
|---|---|
| Maximum Reach - Ground Level | 3800 mm (149.6 in) |
| Maximum Blade Depth | 265 mm (10.4 in) |
| Hydraulic System | |
|---|---|
| Digging Force - Bucket | 19.6 kN (4406.3 lbf) |
| Travel System | |
|---|---|
| Ground Pressure - Maximum Weight | 29.6 kPa (4.3 psi) |
| Dimensions - Long Stick | |
|---|---|
| Vertical Wall | 1940 mm (76.4 in) |
| Service Refill Capacities | |
|---|---|
| Cooling System | 3.9 l (1 gal (US)) |
| Dimensions - Standard Stick | |
|---|---|
| Stick Length | 960 mm (37.8 in) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Reach - Ground Level | 3960 mm (155.9 in) |
| Dimensions - Standard Stick | |
|---|---|
| Vertical Wall | 1850 mm (72.8 in) |
| Boom Height - Shipping Position | 1070 mm (42.1 in) |
| Dimensions - Long Stick | |
|---|---|
| Track Width - Expanded | 1300 mm (51.18 in) |
| O/A Undercarriage Length | 1590 mm (62.6 in) |
| Weights | |
|---|---|
| Minimum Operating Weight with Canopy* | 1725 kg (3803 lb) |
| Engine | |
|---|---|
| Stroke | 81 mm (3.2 in) |
| Dimensions - Long Stick | |
|---|---|
| O/A Shipping Height | 2300 mm (90.6 in) |
| Dimensions - Standard Stick | |
|---|---|
| Track Width - Expanded | 1300 mm (51.18 in) |
| Overall Shipping Length* | 3720 mm (146.5 in) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Blade Height | 270 mm (10.6 in) |
| Sound | |
|---|---|
| Operator Sound Pressure (ISO 6396:2008) | 73 dB(A) (73 dB(A)) |
| Hydraulic System | |
|---|---|
| Operating Pressure - Travel | 245 bar (3553.4 psi) |
| Digging Force - Stick - Long | 9.8 kN (2203.1 lbf) |
| Dimensions - Standard Stick | |
|---|---|
| Maximum Blade Height | 270 mm (10.6 in) |
| Hydraulic System | |
|---|---|
| Auxiliary Circuit - Secondary - Pressure | 245 bar (3553.4 psi) |
| Dimensions - Long Stick | |
|---|---|
| Overall Shipping Length* | 3710 mm (146.1 in) |
| Dimensions - Standard Stick | |
|---|---|
| Boom Swing - Right | 50 u00b0 (50 u00b0) |
| Note | *Overall Shipping Length depends on blade position during shipment. |
| Hydraulic System | |
|---|---|
| Operating Pressure - Swing | 147 bar (2132.1 psi) |
| Auxiliary Circuit - Primary - Flow | 33 l/min (8.7 gal/min) |
| Service Refill Capacities | |
|---|---|
| Hydraulic Tank | 18 l (4.8 gal (US)) |
| Travel System | |
|---|---|
| Maximum Traction Force - Low Speed | 18.4 kN (4136.5 lbf) |
| Hydraulic System | |
|---|---|
| Pump Flow at 2,400 rpm | 66 l/min (17.4 gal/min) |
| Dimensions - Long Stick | |
|---|---|
| Tail Swing | 995 mm (39.2 in) |
| Blade | |
|---|---|
| Width* | 990 mm (39 in) |
| Engine | |
|---|---|
| Bore | 77 mm (3 in) |
| Hydraulic System | |
|---|---|
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Dimensions - Standard Stick | |
|---|---|
| Minimum Ground Clearance Below Undercarriage | 150 mm (5.9 in) |
| Service Refill Capacities | |
|---|---|
| Engine Oil | 4.4 l (1.2 gal (US)) |
| Dimensions - Long Stick | |
|---|---|
| Track Width - Retracted | 990 mm (39 in) |
| Hydraulic System | |
|---|---|
| Digging Force - Stick - Standard | 11.3 kN (2540.3 lbf) |
| Blade | |
|---|---|
| Note | *Expanded u2013 1300 mm (51 in) |
| Weight Increase from Minimum Configuration | |
|---|---|
| Steel Tracks | 50 kg (110 lb) |
| Dimensions - Standard Stick | |
|---|---|
| Maximum Reach | 3870 mm (152.4 in) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Blade Depth | 265 mm (10.4 in) |
| Engine | |
|---|---|
| Note (2) | Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
| Hydraulic System | |
|---|---|
| Auxiliary Circuit - Primary - Pressure | 245 bar (3553.4 psi) |
| Sound | |
|---|---|
| Average Exterior Sound Pressure (ISO 6395:2008) | 93 dB(A) (93 dB(A)) |
| Dimensions - Standard Stick | |
|---|---|
| Swing Bearing - Height | 442 mm (17.4 in) |
| Maximum Dig Height | 3550 mm (139.8 in) |
| Weights | |
|---|---|
| Maximum Operating Weight with Canopy** | 1905 kg (4211 lb) |
| Dimensions - Long Stick | |
|---|---|
| Boom In Reach | 1420 mm (55.9 in) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 26 l (6.9 gal (US)) |
| Dimensions - Standard Stick | |
|---|---|
| Track Belt/Shoe Width | 230 mm (9.1 in) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Dump Clearance | 2640 mm (103.9 in) |
| Service Refill Capacities | |
|---|---|
| Hydraulic System | 26 l (6.9 gal (US)) |
| Dimensions - Standard Stick | |
|---|---|
| Tail Swing | 995 mm (39.2 in) |
| Swing System | |
|---|---|
| Machine Swing Speed | 9.8 r/min (9.8 r/min) |
| Dimensions - Long Stick | |
|---|---|
| Boom Swing - Right | 50 u00b0 (50 u00b0) |
| Maximum Reach | 4030 mm (158.7 in) |
| Engine | |
|---|---|
| Displacement | 1.1 l (69 inu00b3) |
| Dimensions - Long Stick | |
|---|---|
| Boom Swing - Left | 65 u00b0 (65 u00b0) |
| Engine | |
|---|---|
| Note (1) | Engine power is tested per ISO 14396:2002. |
| Travel System | |
|---|---|
| Ground Pressure - Minimum Weight | 26.8 kPa (3.9 psi) |
| Dimensions - Standard Stick | |
|---|---|
| Boom Swing - Left | 65 u00b0 (65 u00b0) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Dig Height | 3620 mm (142.5 in) |
| Dimensions - Standard Stick | |
|---|---|
| Track Width - Retracted | 990 mm (39 in) |
| Dimensions - Long Stick | |
|---|---|
| Swing Bearing - Height | 442 mm (17.4 in) |
| Weights | |
|---|---|
| Minimum Operating Weight with Cab* | 1848 kg (4075 lb) |
| Dimensions - Long Stick | |
|---|---|
| Boom Height - Shipping Position | 1020 mm (40.2 in) |
| Minimum Ground Clearance Below Undercarriage | 150 mm (5.9 in) |
| Dimensions - Standard Stick | |
|---|---|
| O/A Undercarriage Length | 1590 mm (62.6 in) |
| Maximum Dump Clearance | 2560 mm (100.8 in) |
| Dimensions - Long Stick | |
|---|---|
| Note | *Overall Shipping Length depends on blade position during shipment. |
| Dimensions - Standard Stick | |
|---|---|
| O/A Shipping Height | 2300 mm (90.6 in) |
| Travel System | |
|---|---|
| Gradeability - Maximum | 30 degrees |
| Engine | |
|---|---|
| Note | Net power is tested per ISO 9249:2007 and 80/1269/EEC. |
| Weights | |
|---|---|
| Note (2) | **Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. |
| Dimensions - Standard Stick | |
|---|---|
| Dig Depth | 2370 mm (93.3 in) |
| Certification - Cab and Canopy | |
|---|---|
| Top Guard | ISO 10262:1998 (Level I) |
| Weights | |
|---|---|
| Note (1) | *Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank. |
| Dimensions - Long Stick | |
|---|---|
| Track Belt/Shoe Width | 230 mm (9.1 in) |
| Weight Increase from Minimum Configuration | |
|---|---|
| Long Stick | 8 kg (18 lb) |
| Sound | |
|---|---|
| Note | European Union Directive u201c2000/14/ECu201d |
| Weight Increase from Minimum Configuration | |
|---|---|
| Expandable Undercarriage | 123 kg (271 lb) |
| Weights | |
|---|---|
| Note (3) | ***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. |
| Engine | |
|---|---|
| Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC | 15.7 kW (21 HP) |
| Weights | |
|---|---|
| EU: CE Plate Weight with Cab*** | 2000 kg (4409 lb) |
| EU: CE Plate Weight with Canopy*** | 1880 kg (4145 lb) |
| Engine | |
|---|---|
| Gross Power - SAE J1995:2014 | 16.1 kW (21.6 HP) |
| Sustainability | |
|---|---|
| Recyclability | 95% |
Standard Equipment
- ENGINE
- Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
- Automatic Engine Idle
- Automatic Engine Shutdown
- Automatic Two Speed Travel
- Fuel Water Separator
- Power on Demand (not available in all regions)
- Variable Displacement Piston Pump
- Load Sensing/Flow Sharing Hydraulics
- HYDRAULICS
- Smart Tech Electronic Pump
- Accumulator
- Automatic Swing Brake
- Auxiliary Hydraulic Lines
- One and Two Way Auxiliary Flow
- Continuous Auxiliary Flow
- Auxiliary Line Quick Disconnects
- OPERATOR ENVIRONMENT
- Tilt-up Canopy or Tilt-Up Cab
- Top Guard ISO 10262:1998 Level I
- ROPS – ISO 12117-2:2008
- TOPS – ISO 12117:1997
- Machine 2-Point Lifting
- Stick Steer Mode
- Travel Cruise Control
- Control Pattern Changer (optional in some regions)
- Adjustable Wrist Rests
- Washable Floor Mat
- Travel Pedals and Hand Levers
- Machine Security
- Standard Key with Pass Code
- Vinyl Non-Suspension Seat
- Fabric Suspension Seat (Cab only)
- Hydraulic Lockout – All Controls
- Retractable High Visibility Seat Belt (75 mm/3 in)
- Coat Hook
- Cup Holder
- Storage Pocket
- Skylight
- Mounting Bosses for Front
- Signaling/Warning Horn
- Interior Light (Cab only)
- Boom Light, Halogen
- Utility Space for Mobile Phone
- Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch - Seat Belt Reminder System
- UNDERCARRIAGE
- Expandable Undercarriage
- Rubber Belt (250 mm/10 in wide)
- Dozer Blade
- Dozer Blade Float
- Hydraulic Track Adjusters
- Tie Downs on Track Frame
- BOOM, STICK AND LINKAGES
- One Piece Boom (1850 mm/73 in)
- Standard Stick (960 mm/37.8 in)
- Front Shovel Capable
- Front Shovel Capable – Pin-On
- Thumb Ready (not available in all regions)
- Certified Lifting Eye (optional in some regions)
- ELECTRICAL
- 12 Volt Battery
- Software (machine and monitor)
- Maintenance Free Battery
- Signaling/Warning Horn
- 12 Volt Power Socket
Optional Equipment
- OPERATOR ENVIRONMENT
- Cab with Air Conditioning
- Cab with Heater
- Control Pattern Changer (optional in some regions)
- No Travel Pedals and Hand Levers
- Push to Start with Key Fob/Pass Code
- Vinyl Suspension Seat (Canopy only)
- LED Front Lights
- LED Front and Rear Lights
- LED Boom Light
- Mirrors Left and Right
- Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
- UNDERCARRIAGE
- Steel Track (250 mm/10 in wide)
- BOOM, STICK AND LINKAGES
- Long Stick (1160 mm/45.7 in)
- Front Shovel Capable – Dual Lock Manual Coupler
- Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
- 2nd Auxiliary Hydraulic Lines
- Boom Lowering Check Valve
- Stick Lowering Check Valve
- Hydraulic Quick Coupler Lines (not available in all regions)
- ELECTRICAL
- Battery Disconnect
- Product Link PL243 (regulations apply)
- Product Link PLE643 (regulations apply)
- Travel Alarm (standard in some regions)
- GUARDING
- Polycarbonate Half Height Front Guard (Canopy only)
- Polycarbonate Front Guard (ISO 10262:1998 Level 1 and EN356 PSA)
- OTHER
- Bio Oil Capable
- Eco Drain
- Water Jacket Heater
