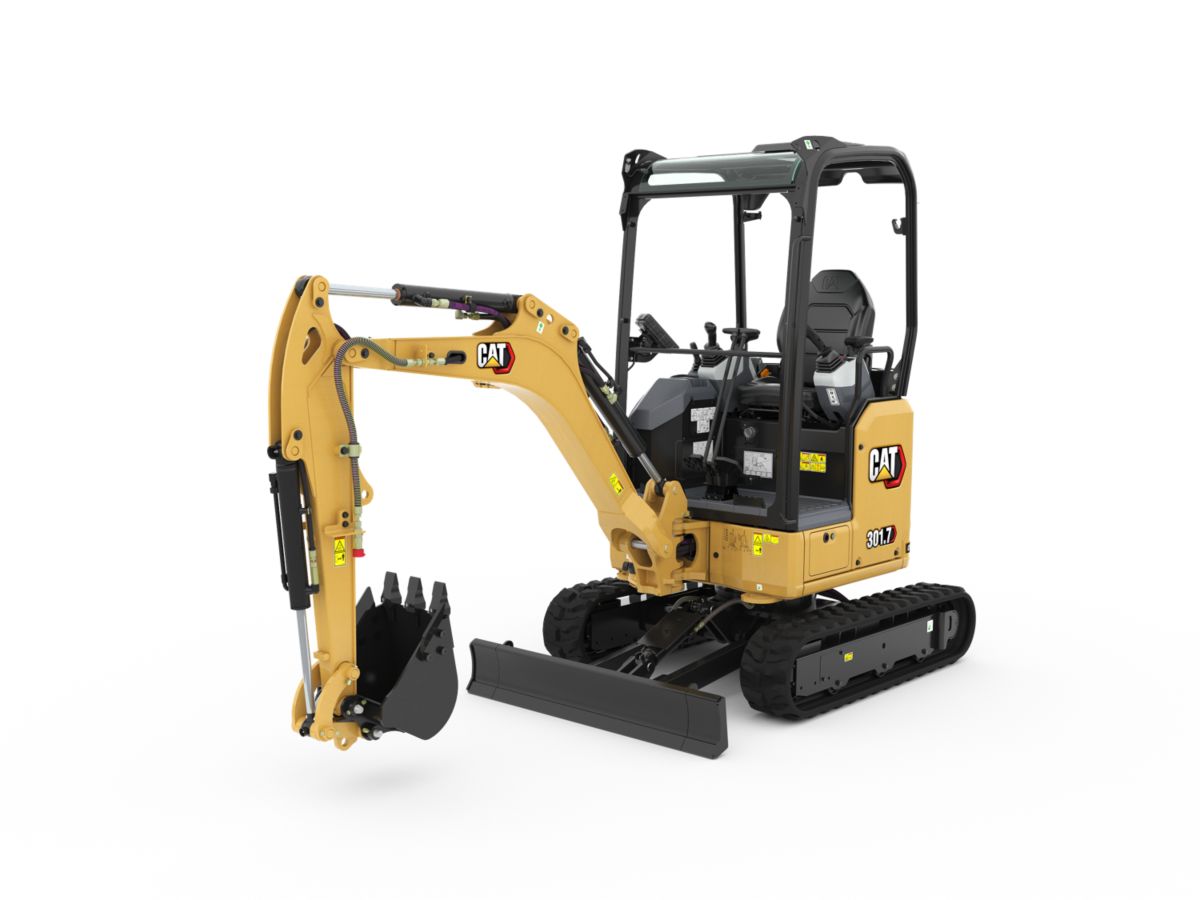

301.7 CR Mini Hydraulic Excavator
ALL DAY COMFORT
- Adjustable wrist rests and a suspension seat option help keep you working comfortably all day long.
EASY TO OPERATE
- Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
STICK STEER TRAVEL MODE
- Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
BIG PERFORMANCE IN A COMPACT DESIGN
- Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
SAFETY ON THE JOB SITE
- Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.
SIMPLE SERVICE FOR LESS DOWNTIME
- Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up canopy lets you reach additional service areas when needed.
LOWER OPERATING COSTS
- Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.
SUSTAINABILITY
- The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
- The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)
Engine | |
---|---|
Net Power | 15.7 kW (21 hp) |
Weights | |
---|---|
Operating Weight | 1915 kg (4222 lb) |
Dimensions - Long Stick | |
---|---|
Dig Depth | 2540 mm (100 in) |
Engine | |
---|---|
Engine Model | C1.1 |
Blade | |
---|---|
Height | 225 mm (8.9 in) |
Dimensions - Long Stick | |
---|---|
Tail Swing | 650 mm (25.6 in) |
Engine | |
---|---|
Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
Dimensions - Long Stick | |
---|---|
O/A Shipping Height | 2300 mm (90.6 in) |
Hydraulic System | |
---|---|
Operating Pressure - Equipment | 245 bar (3553.4 psi) |
Engine | |
---|---|
Bore | 77 mm (3 in) |
Dimensions - Long Stick | |
---|---|
Maximum Blade Height | 270 mm (10.6 in) |
Dimensions - Standard Stick | |
---|---|
Track Belt/Shoe Width | 230 mm (9.1 in) |
Dimensions - Long Stick | |
---|---|
Minimum Ground Clearance Below Undercarriage | 140 mm (5.5 in) |
Blade | |
---|---|
Note | *Expanded u2013 1300 mm (51 in) |
Weights | |
---|---|
Minimum Operating Weight with Canopy* | 1790 kg (3946 lb) |
Dimensions - Standard Stick | |
---|---|
Overall Shipping Length* | 3620 mm (142.5 in) |
Track Width - Expanded | 1300 mm (51.18 in) |
Hydraulic System | |
---|---|
Operating Pressure - Swing | 147 bar (2132.1 psi) |
Dimensions - Long Stick | |
---|---|
O/A Undercarriage Length | 1590 mm (62.6 in) |
Dimensions - Standard Stick | |
---|---|
O/A Undercarriage Length | 1590 mm (62.6 in) |
Dimensions - Long Stick | |
---|---|
Boom Height - Shipping Position | 1040 mm (40.9 in) |
Travel System | |
---|---|
Maximum Traction Force - High Speed | 11.9 kN (2675.2 lbf) |
Dimensions - Long Stick | |
---|---|
Maximum Dump Clearance | 2510 mm (98.8 in) |
Hydraulic System | |
---|---|
Digging Force - Stick - Standard | 9.5 kN (2135.7 lbf) |
Service Refill Capacities | |
---|---|
Engine Oil | 4.4 l (1.2 gal (US)) |
Weights | |
---|---|
Maximum Operating Weight with Canopy** | 1915 kg (4222 lb) |
Dimensions - Long Stick | |
---|---|
Track Belt/Shoe Width | 230 mm (9.1 in) |
Maximum Dig Height | 3490 mm (137.4 in) |
Travel System | |
---|---|
Travel Speed - High | 4.4 km/h (2.7 mile/h) |
Hydraulic System | |
---|---|
Pump Flow at 2,400 rpm | 66 l/min (17.4 gal/min) |
Dimensions - Long Stick | |
---|---|
Track Width - Expanded | 1300 mm (51.18 in) |
Dimensions - Standard Stick | |
---|---|
Maximum Reach - Ground Level | 3900 mm (153.5 in) |
Boom Height - Shipping Position | 1090 mm (42.9 in) |
Boom Swing - Left | 65 u00b0 (65 u00b0) |
Maximum Reach | 3970 mm (156.3 in) |
Dimensions - Long Stick | |
---|---|
Maximum Reach - Ground Level | 4060 mm (159.8 in) |
Swing Bearing - Height | 442 mm (17.4 in) |
Hydraulic System | |
---|---|
Auxiliary Circuit - Primary - Pressure | 245 bar (3553.4 psi) |
Service Refill Capacities | |
---|---|
Hydraulic Tank | 18 l (4.8 gal (US)) |
Dimensions - Long Stick | |
---|---|
Boom Swing - Left | 65 u00b0 (65 u00b0) |
Dimensions - Standard Stick | |
---|---|
Maximum Blade Depth | 265 mm (10.4 in) |
Dimensions - Long Stick | |
---|---|
Stick Length | 1160 mm (45.7 in) |
Dimensions - Standard Stick | |
---|---|
Dig Depth | 2350 mm (92.5 in) |
Maximum Dump Clearance | 2450 mm (96.5 in) |
Travel System | |
---|---|
Ground Pressure - Maximum Weight | 30 kPa (4.4 psi) |
Hydraulic System | |
---|---|
Digging Force - Bucket | 16.2 kN (3641.9 lbf) |
Sound | |
---|---|
Average Exterior Sound Pressure (ISO 6395:2008) | 93 dB(A) (93 dB(A)) |
Dimensions - Standard Stick | |
---|---|
Maximum Blade Height | 270 mm (10.6 in) |
Travel System | |
---|---|
Travel Speed - Low | 2.9 km/h (1.8 mile/h) |
Weight Increase from Minimum Configuration | |
---|---|
Steel Tracks | 50 kg (110 lb) |
Hydraulic System | |
---|---|
Auxiliary Circuit - Secondary - Pressure | 245 bar (3553.4 psi) |
Dimensions - Standard Stick | |
---|---|
Tail Swing | 650 mm (25.6 in) |
Weight Increase from Minimum Configuration | |
---|---|
Long Stick | 10 kg (22 lb) |
Dimensions - Standard Stick | |
---|---|
Boom In Reach | 1630 mm (64.2 in) |
Swing System | |
---|---|
Machine Swing Speed | 9.8 r/min (9.8 r/min) |
Dimensions - Long Stick | |
---|---|
Vertical Wall | 1890 mm (74.4 in) |
Engine | |
---|---|
Stroke | 81 mm (3.2 in) |
Certification - Canopy | |
---|---|
Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
Dimensions - Standard Stick | |
---|---|
Minimum Ground Clearance Below Undercarriage | 140 mm (5.5 in) |
Service Refill Capacities | |
---|---|
Fuel Tank | 22 l (5.8 gal (US)) |
Hydraulic System | |
---|---|
Operating Pressure - Travel | 245 bar (3553.4 psi) |
Dimensions - Standard Stick | |
---|---|
O/A Shipping Height | 2300 mm (90.6 in) |
Dimensions - Long Stick | |
---|---|
Track Width - Retracted | 990 mm (39 in) |
Hydraulic System | |
---|---|
Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
Dimensions - Long Stick | |
---|---|
Boom Swing - Right | 50 u00b0 (50 u00b0) |
Note | *Overall Shipping Length depends on blade position during shipment. |
Certification - Canopy | |
---|---|
Top Guard | ISO 10262:1998 (Level I) |
Dimensions - Long Stick | |
---|---|
Maximum Reach | 4130 mm (162.6 in) |
Boom In Reach | 1620 mm (63.8 in) |
Service Refill Capacities | |
---|---|
Cooling System | 3.9 l (1 gal (US)) |
Hydraulic System | |
---|---|
Auxiliary Circuit - Secondary - Flow | 14 l/min (3.7 gal/min) |
Travel System | |
---|---|
Maximum Traction Force - Low Speed | 18.4 kN (4136.5 lbf) |
Hydraulic System | |
---|---|
Auxiliary Circuit - Primary - Flow | 33 l/min (8.7 gal/min) |
Engine | |
---|---|
Displacement | 1.1 l (69 inu00b3) |
Note | Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. |
Dimensions - Standard Stick | |
---|---|
Swing Bearing - Height | 442 mm (17.4 in) |
Blade | |
---|---|
Width* | 990 mm (39 in) |
Dimensions - Long Stick | |
---|---|
Overall Shipping Length* | 3590 mm (141.3 in) |
Dimensions - Standard Stick | |
---|---|
Stick Length | 960 mm (37.8 in) |
Vertical Wall | 1800 mm (70.9 in) |
Travel System | |
---|---|
Gradeability - Maximum | 30 degrees |
Dimensions - Standard Stick | |
---|---|
Boom Swing - Right | 50 u00b0 (50 u00b0) |
Service Refill Capacities | |
---|---|
Hydraulic System | 26 l (6.9 gal (US)) |
Sound | |
---|---|
Note | European Union Directive u201c2000/14/ECu201d |
Engine | |
---|---|
Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
Weights | |
---|---|
Note (2) | **Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. |
Hydraulic System | |
---|---|
Digging Force - Stick - Long | 8.3 kN (1865.9 lbf) |
Dimensions - Standard Stick | |
---|---|
Track Width - Retracted | 990 mm (39 in) |
Maximum Dig Height | 3430 mm (135 in) |
Travel System | |
---|---|
Ground Pressure - Minimum Weight | 27.9 kPa (4 psi) |
Dimensions - Standard Stick | |
---|---|
Note | *Overall Shipping Length depends on blade position during shipment. |
Dimensions - Long Stick | |
---|---|
Maximum Blade Depth | 265 mm (10.4 in) |
Weights | |
---|---|
Note (1) | *Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank. |
Certification - Canopy | |
---|---|
Tip Over Protective Structure (TOPS) | ISO 12117:1997 |
Weight Increase from Minimum Configuration | |
---|---|
Expandable Undercarriage | Standard |
Heavy Counterweight | 67 kg (148 lb) |
Weights | |
---|---|
Note (3) | ***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. |
EU: CE Plate Weight*** | 1890 kg (4167 lb) |
Sustainability | |
---|---|
Recyclability | 95% |
Engine | |
---|---|
Engine Power | 16.1 kW (21.6 hp) |
Standard Equipment
- ENGINE
- Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
- Automatic Engine Idle
- Automatic Engine Shutdown
- Automatic Two Speed Travel
- Fuel Water Separator
- Power on Demand (not available in all regions)
- Variable Displacement Piston Pump
- Load Sensing/Flow Sharing Hydraulics
- HYDRAULICS
- Smart Tech Electronic Pump
- Accumulator
- Automatic Swing Brake
- Auxiliary Hydraulic Lines
- One and Two Way Auxiliary Flow
- Continuous Auxiliary Flow
- Auxiliary Line Quick Disconnects
- OPERATOR ENVIRONMENT
- Tilt-up Canopy
- Top Guard ISO 10262:1998 Level I
- ROPS – ISO 12117-2:2008
- TOPS – ISO 12117:1997
- Machine 2-Point Lifting
- Stick Steer Mode
- Travel Cruise Control
- Control Pattern Changer (optional in some regions)
- Adjustable Wrist Rests
- Washable Floor Mat
- Travel Pedals and Hand Levers
- Machine Security
- Machine Security – Standard Key with Pass Code
- Vinyl Non-Suspension Seat
- Hydraulic Lockout – All Controls
- Retractable High Visibility Seat Belt (75 mm/3 in)
- Coat Hook
- Cup Holder
- Storage Pocket
- Skylight
- Mounting Bosses for Front
- Signaling/Warning Horn
- Boom Light, Halogen
- Utility Space for Mobile Phone
- Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch
- UNDERCARRIAGE
- Expandable Undercarriage
- Rubber Belt (230 mm/9 in wide)
- Dozer Blade
- Dozer Blade Float
- Hydraulic Track Adjusters
- Tie Downs on Track Frame
- BOOM, STICK AND LINKAGES
- One Piece Boom (1780 mm/70 in)
- Standard Stick (960 mm/37.8 in)
- Front Shovel Capable
- Front Shovel Capable – Pin-On
- Thumb Ready (not available in all regions)
- Certified Lifting Eye (optional in some regions)
- ELECTRICAL
- 12 Volt Battery
- Software (machine and monitor)
- Maintenance Free Battery
- Signaling/Warning Horn
- 12 Volt Power Socket
Optional Equipment
- OPERATOR ENVIRONMENT
- Control Pattern Changer (optional in some regions)
- No Travel Pedals and Hand Levers
- Machine Security – Push to Start with Key Fob/Pass Code
- Vinyl Suspension Seat
- LED Front Lights
- LED Front and Rear Lights
- LED Boom Light
- Mirrors Left and Right
- Seat Belt Reminder System
- UNDERCARRIAGE
- Steel Track (230 mm/9 in wide)
- BOOM, STICK AND LINKAGES
- Long Stick (1160 mm/45.7 in)
- Front Shovel Capable – Dual Lock Manual Coupler
- Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
- 2nd Auxiliary Hydraulic Lines
- Boom Lowering Check Valve
- Stick Lowering Check Valve
- Hydraulic Quick Coupler Lines (not available in all regions)
- ELECTRICAL
- Battery Disconnect
- Product Link PL243 (regulations apply)
- Product Link PLE643 (regulations apply)
- Travel Alarm (standard in some regions)
- GUARDING
- Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 PSA)
- Polycarbonate Half Height Front Guard (Canopy only)
- OTHER
- Bio Oil Capable
- Eco Drain
- Water Jacket Heater
- Heavy Counterweight
