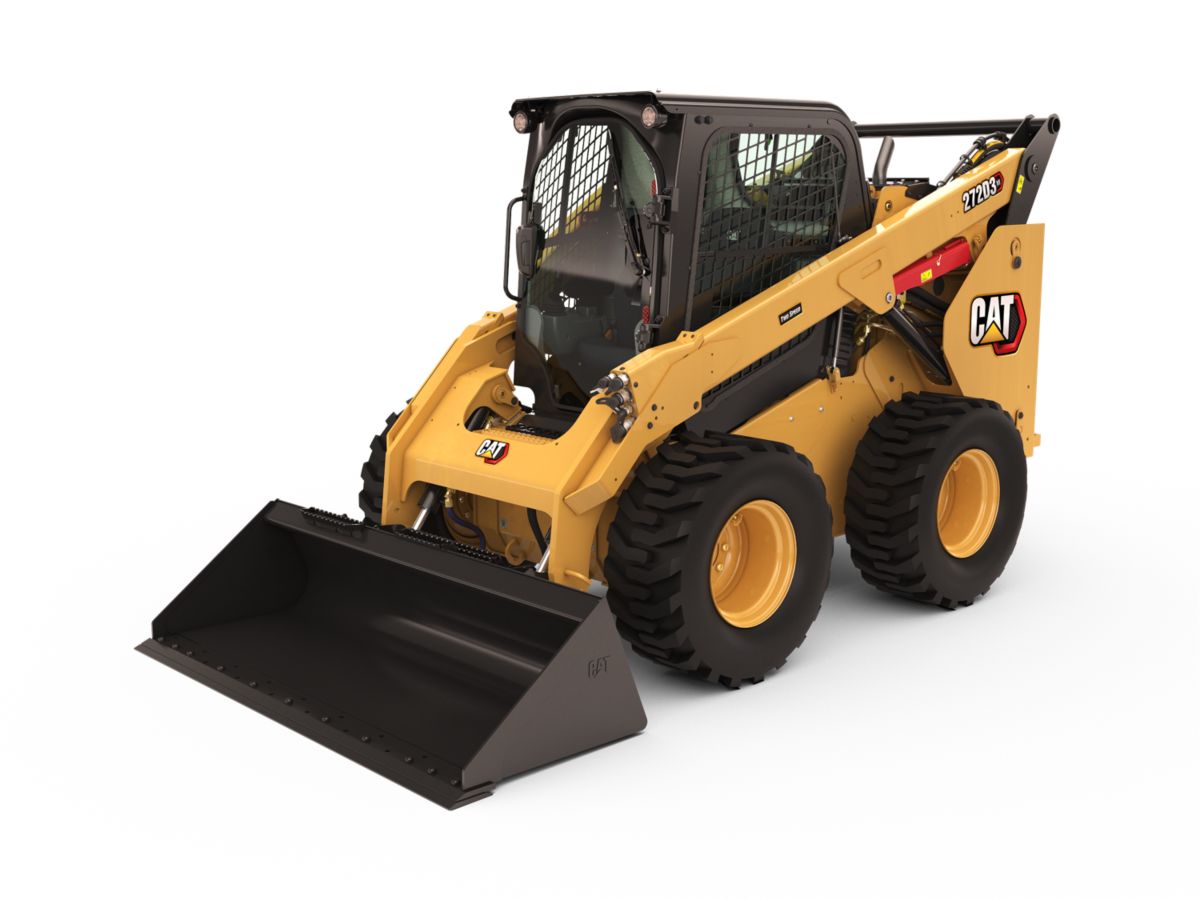

272D3 XE Skid Steer Loader

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

A Smooth Ride

A standard, Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. (Photo shown may vary from machine referenced.)

Industry Leading Hydraulic Power

The 272D3 XE hydraulic system provides high flow and high pressure that delivers industry leading hydraulic horsepower to efficiently run even the most power hungry work tools.

Sustainability

  • The Cat® C3.8 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 7% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
  • Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.

Engine
Gross Power - SAE J1995 82 kW (110 hp)
Operating Specifications
Rated Operating Capacity 1680 kg (3700 lb)
Weights
Operating Weight 4342 kg (9573 lb)
Dimensions
Wheel Base 1386 mm (54.6 in)
Height - Top of Cab 2133 mm (84 in)
Vehicle Width over Tires 1930 mm (76 in)
Ground Clearance 263 mm (10.4 in)
Departure Angle 28u00b0
Maximum Dump Angle 51u00b0
Bumper Overhang - Behind Rear Axle 1175 mm (46.2 in)
Turning Radius from Center - Machine Rear 1899 mm (74.7 in)
Length - Without Bucket 3226 mm (127 in)
Reach - Maximum Lift/Dump 736 mm (29 in)
Clearance at Maximum Lift and Dump 2474 mm (97.4 in)
Bucket Pin Height - Maximum Lift 3265 mm (128.6 in)
Bucket Pin Height - Carry Position 235 mm (9.3 in)
Turning Radius from Center - Coupler 1466 mm (57.7 in)
Bucket Pin Reach - Maximum Lift 344 mm (13.5 in)
Rack Back Angle - Maximum Height 84u00b0
Maximum Overall Height 4103 mm (161.5 in)
Length - With Bucket on Ground 3937 mm (155 in)
Maximum Reach - With Arms Parallel to Ground 1246 mm (49.1 in)
Turning Radius from Center - Bucket (racked) 2301 mm (90.6 in)
Hydraulic System
Standard Flow Mode - Loader Hydraulic Pressure 23000 kPa (3335 psi)
Standard Flow Mode - Hydraulic Power - Calculated 33 kW (44 hp)
Standard Flow Mode - Loader Hydraulic Flow 86 l/min (23 gal/min)
Note *When equipped with Cat 400 Series work tools.
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure 28000 kPa (4061 psi)
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow* 150 l/min (40 gal/min)
Hydraulic Flow - XE - Hydraulic Power (calculated) 70 kW (94 hp)
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
Power Train
Travel Speed - Forward or Reverse - One Speed 11.6 km/h (7.2 mile/h)
Travel Speed - Forward or Reverse - Two Speed 16.6 km/h (10.3 mile/h)
Service Refill Capacities
Cooling System 16 l (4.1 gal (US))
Engine Crankcase 13 l (3.5 gal (US))
Fuel Tank 120 l (31.7 gal (US))
Hydraulic System 55 l (14.5 gal (US))
Hydraulic Tank 39 l (10.3 gal (US))
Chain Box - Each Side 10.2 l (2.7 gal (US))
Air Conditioning System (if equipped)
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Engine
Net Power - SAE 1349 79 kW (106 hp)
Displacement 3.8 l (232 inu00b3)
Stroke 120 mm (4.7 in)
Bore 100 mm (3.9 in)
Net Flywheel Power 79 kW (106 hp)
Engine Model Cat C3.8 DIT (turbo)
Net Power - ISO 9249 80 kW (107 hp)
Peak Torque - 1,500 rpm - SAE J1995 374 N·m (276 ft·lbf)
Operating Specifications
Tipping Load 3365 kg (7400 lb)
Breakout Force - Tilt Cylinder 3339 kg (7362 lb)
Breakout Force - Lift Cylinder 2760 kg (6085 lb)
Noise Level
Note (2) **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Operating Specifications
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 u00d7 17.5 tires and manual quick coupler (unless otherwise noted).
Service Refill Capacities
Diesel Exhaust Fluid (DEF) Tank 19 l (5 gal (US))
Weights
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 u00d7 17.5 tires and manual quick coupler (unless otherwise noted).
Dimensions
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 u00d7 17.5 tires and manual quick coupler (unless otherwise noted).
Noise Level
Outside Cab*** 104 dB(A) (104 dB(A))
Inside Cab** 83 dB(A) (83 dB(A))
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Operating Specifications
Rated Operating Capacity with Optional Counterweight 1795 kg (3950 lb)
Noise Level
Note (3) ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Dimensions
Roll Back Angle 28u00b0

Standard Equipment

  • ELECTRICAL
    • 12 volt Electrical System
    • 100 ampere Alternator
    • Ignition Key Start/Stop Switch
    • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
    • Backup Alarm
    • Heavy Duty Battery, 1,000 CCA, with Battery Disconnect
  • OPERATOR ENVIRONMENT
    • Gauges: Fuel Level, DEF Level, Hour Meter
    • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
    • High Back Cloth Seat with Air Suspension, Heated with Recline and Lumbar Support and Fully Adjustable Seat Mounted Controls
    • Fold In Ergonomic Contoured Armrest
    • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
    • ROPS Cab, Enclosed, Tilt Up
    • FOPS, Level I
    • Top, Rear and Side Windows
    • Headliner, Deluxe
    • Floor Mat
    • Interior Rearview Mirror
    • 12 volt Electric Socket
    • Horn
    • Hand (Dial) and Foot Throttle, Electronic with Decel Feature
    • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD Screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Drive Response, and Creep Control
    • Storage Compartment with Netting
  • POWER TRAIN
    • Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
    • Air Cleaner, Dual Element, Radial Seal
    • S·O·SSM Sampling Valve, Hydraulic Oil
    • Filters, Cartridge-type, Hydraulic
    • Filters, Canister-type, Fuel and Water Separator
    • Radiator/Hydraulic Oil Cooler (side-by-side)
    • Spring Applied, Hydraulically Released Parking Brakes
    • Hydrostatic Transmission, Two Speed with Speed Sensitive Ride Control
    • Four Wheel Chain Drive, 14 × 17.5 Tires
  • OTHER
    • Engine Enclosure, Lockable
    • Extended Life Antifreeze, –37° C (–34° F)
    • Machine Tie Down Points (6)
    • Support, Lift Arm
    • Hydraulic Oil Level Sight Gauge
    • Radiator Coolant Level Sight Gauge
    • Radiator, Expansion Bottle
    • Cat ToughGuard™ Hose
    • Auxiliary, Hydraulics, Continuous Flow
    • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
    • Electrical Outlet, Beacon
    • Belly Pan Cleanout
    • Variable Speed Demand Fan
    • Product Link™ PL240, Cellular
  • MANDATORY EQUIPMENT
    • Quick Coupler, Mechanical or Powered
    • High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
    • PERFORMANCE PACKAGE:
      – Performance Package H3: XE Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    • COMFORT PACKAGE:
      – Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, Air Ride Seat (High Back and Heated) and Door (Glass or Polycarbonate)

Optional Equipment

  • OPTIONAL EQUIPMENT
    • Beacon, Rotating
    • Engine Block Heater – 120V
    • Oil, Hydraulic, Cold Operation
    • Paint, Custom
    • Variable Speed Demand Fan with Reversing Functionality
    • External Counterweights
    • Product Link PL641, Cellular
    • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
