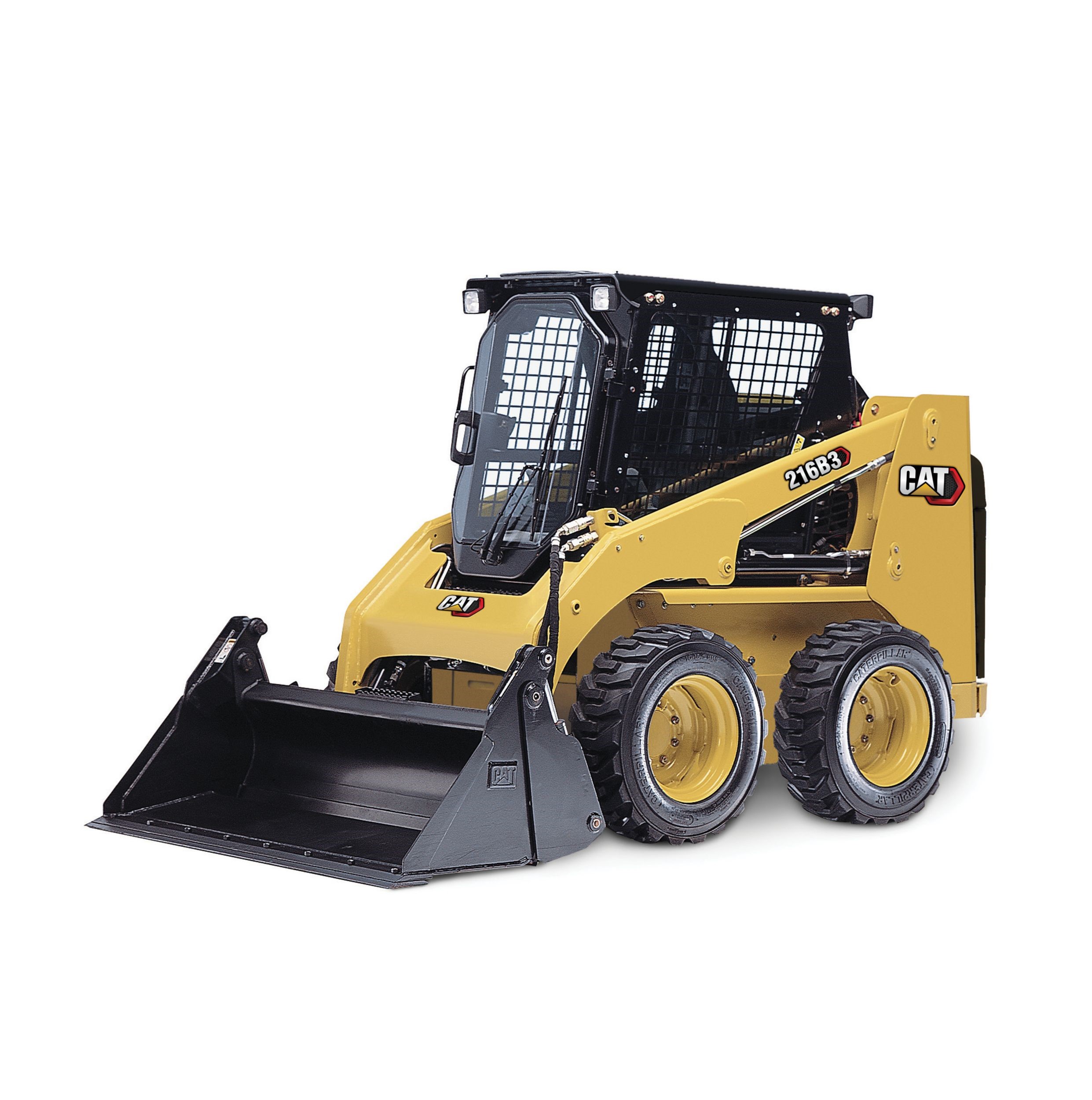

216B Series 3 Skid Steer Loader

  • Overview
  • Finance With CavPower
  • Optional Services
  • View product Download
CALCULATE FINANCE

High Performance Hydraulic System

Maximum power and reliability are built into the machine’s hydraulic system. In addition to providing power to the wheels, this system also provides the loader lift and tilt functions, powers the auxiliary circuit to drive work tools and drives the engine cooling fan. The hydraulic pumps are driven directly off the engine for maximum hydraulic performance and reliability
 - no belts are used. The hydraulic system also features:

  • Standard auxiliary hydraulics to power work tools that are available through quick connect hydraulic couplings rigidly mounted to the loader arm.
  • Cat ToughGuardhoses for increased reliability and durability.

All Day Comfort

Comfort and ease of operation have been designed into every aspect of the operator station. The wide, spacious interior and uncluttered floor provide a comfortable work environment with excellent head, shoulder and leg room to keep productivity high and fatigue low. The adjustable seat and low effort controls keep the operator comfortable throughout the work day.

The Right Tool for the Job

Get the most out of your machine with the comprehensive line of Cat Work Tools. Designed and built for optimum performance and durability, these tools deliver high productivity in a variety of applications to maximize the versatility and flexibility of the Cat Skid Steer Loader:

  • Augers
  • Backhoes
  • Blades (angle, dozer)
  • Buckets (general purpose, high capacity, dirt, utility, light material, multi purpose, industrial grapple, utility grapple)
  • Brooms (angle, pickup, utility)
  • Brushcutters
  • Cold Planers
  • Forks (pallet, industrial grapple, utility grapple, utility)
  • Hydraulic Hammers
  • Landscape Tillers
  • Landscape Rakes
  • Material Handling Arm
  • Power Box Rakes
  • Shear
  • Snow Blowers
  • Stump Grinders
  • Trenchers
  • Vibratory Compactors
  • Wheel Saws

Engine
Gross Power - SAE J1995 38 kW (51 HP)
Displacement 2.2 l (134 inu00b3)
Stroke 100 mm (3.9 in)
Bore 84 mm (3.3 in)
Engine Model Cat C2.2
Net Power - SAE 1349/ISO 9249 35 kW (47 HP)
Operating Specifications
Rated Operating Capacity 635 kg (1400 lb)
Weights
Operating Weight 2581 kg (5690 lb)
Operating Specifications
Tipping Load 1270 kg (2800 lb)
Breakout Force - Tilt Cylinder 1852 kg (4083 lb)
Weights
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Specifications
Rated Operating Capacity with Optional Counterweight 680 kg (1500 lb)
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Hydraulic System
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 23.2 kW (31.1 HP)
Hydraulic Flow - Standard - Loader Hydraulic Pressure 23000 kPa (3335 psi)
Hydraulic Flow - Standard - Loader Hydraulic Flow 61 l/min (16 gal/min)
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
Service Refill Capacities
Chain Box - Each Side 6 l (1.6 gal (US))
Cooling System 10 l (2.6 gal (US))
Engine Crankcase 10 l (2.6 gal (US))
Fuel Tank 58 l (15.4 gal (US))
Hydraulic System 55 l (14.5 gal (US))
Hydraulic Tank 35 l (9.2 gal (US))
Power Train
Travel Speed - Forward or Reverse 12.7 km/h (7.9 mile/h)
Dimensions
Wheel Base 986 mm (39 in)
Length - With Bucket on Ground 3233 mm (127 in)
Length - Without Bucket 2519 mm (99 in)
Height - Top of Cab 1950 mm (77 in)
Vehicle Width over Tires 1525 mm (60 in)
Ground Clearance 195 mm (8 in)
Departure Angle 26u00b0
Maximum Dump Angle 40u00b0
Bucket Pin Height - Maximum Lift 2854 mm (112 in)
Reach - Maximum Lift/Dump 505 mm (20 in)
Turn Radius from Center - Machine Rear 1502 mm (59 in)
Bucket Pin Height - Carry Position 200 mm (8 in)
Bumper Overhang - Behind Rear Axle 967 mm (38 in)
Turn Radius from Center - Bucket 1944 mm (77 in)
Turn Radius from Center - Coupler 1195 mm (47 in)
Maximum Reach with Arms Parallel to Ground 1291 mm (51 in)
Clearance at Maximum Lift and Dump 2169 mm (85.4 in)
Maximum Overall Height 3709 mm (146 in)
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Rack Back Angle - Maximum Height 81u00b0

Standard Equipment

  • ELECTRICAL
    • 12 volt Electrical System
    • 65 ampere Alternator
    • Automatic Glow Plug Activation
    • Ignition Key Start/Stop Switch
    • Lights: Gauge backlighting, two rear tail lights, two adjustable front and rear halogen lights, dome light.
  • OPERATOR ENVIRONMENT
    • Gauges: Fuel level, hour meter
    • Operator Warning System Indicators: Air filter restriction, alternator output, armrest raised/operator out of seat, engine coolant temperature, engine oil pressure, glow plug activation, hydraulic filter restriction, hydraulic oil temperature, parking brake engaged
    • Vinyl seat
    • Pull Down Ergonomic Contoured Armrest
    • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic system disables, hydrostatic transmission disables, parking brake engages
    • ROPS Cab, Open, Tilt Up
    • FOPS, Level I
    • Top and Rear Windows
    • Floor Mat
    • Interior Rear View Mirror
    • 12 volt Electric Socket
    • Horn
    • Backup Alarm
    • Hand and Foot Throttle
  • POWER TRAIN
    • Cat C2.2 Diesel Engine
    • Engine is Tier 4 Interim/Stage IIIA/Bharat Stage III Equivalent
    • Air Cleaner, Dual Element, Radial Seal
    • S·O·SSM Sampling Valve, Hydraulic Oil
    • Filters, Spin-on, Hydraulic
    • Filters, Bayonet-type, Fuel and Water Separator
    • Tilt Up Radiator/Hydraulic Oil Cooler
    • Spring Applied, Hydraulically Released Parking Brakes
    • Hydrostatic Transmission
    • Four Wheel Chain Drive
  • OTHER
    • Engine Enclosure, Lockable
    • Extended Life Antifreeze, –36° C (–33° F)
    • Machine Tie Down Points (4)
    • Support, Lift Arm
    • Hydraulic Oil Level Sight Gauge
    • Radiator Coolant Level Sight Gauge
    • Radiator, Expansion Bottle
    • Cat ToughGuard™ Hose
    • Auxiliary, Hydraulics, Continuous Flow
    • Heavy Duty, Flat Faced Quick Disconnects
    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
    • Electrical Outlet, Beacon
    • Belly Pan Cleanout
  • MANDATORY EQUIPMENT
    • Quick Coupler, Mechanical or Hydraulic
    • Seat Belt, 50 mm (2 in) or 75 mm (3 in)
    • Cooling Fan, Demand or Standard
    • Comfort Packages (must select one of the following):
      – Open ROPS (C0): Static Seat
      – Open ROPS (C1): Suspension Seat, Deluxe Headliner
      – Enclosed ROPS (C2): Features of C1 Package plus Heater, Cab Door, Side Windows, Cup Holder, Cab Debris Barrier
    • Control Packages (must select one of the following):
      – Control Package 1: On/Off Auxiliary Hydraulics Basic
      – Control Package 2: Proportional Auxiliary Hydraulics Deluxe
      – Control Package 3: Proportional Auxiliary Hydraulics Deluxe, Work Tool Harness

Optional Equipment

  • OPTIONAL EQUIPMENT
    • Variable Speed Demand Fan (not available in all regions)
    • Counterweight
    • Beacon, Rotating
    • Engine Block Heater, 120V or 240V
    • Heavy Duty Battery, 880 CCA
    • Oil, Hydraulic, Cold Operation
    • Door, Glass or Polycarbonate
    • Self-Leveling
    • Paint, Custom
