360°Exterior View

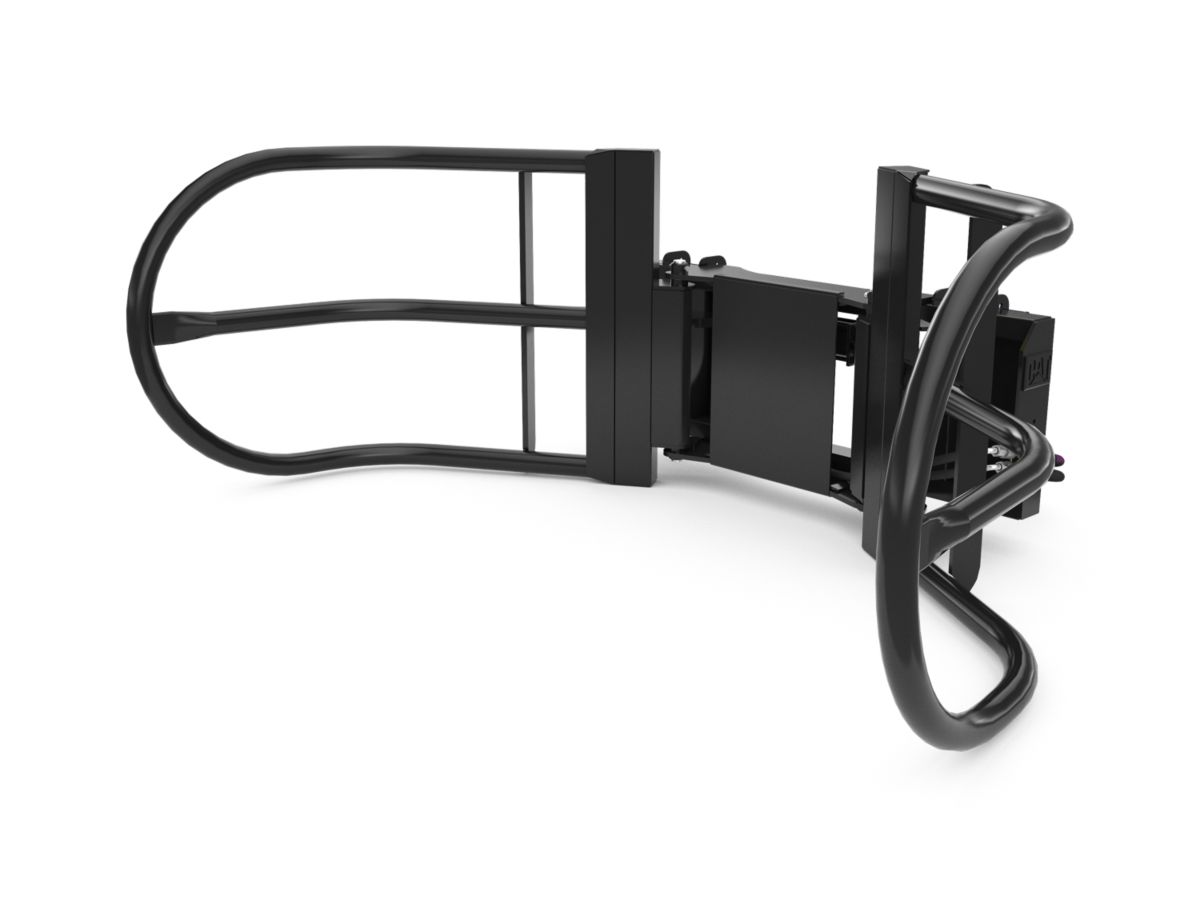

2133 mm (84 in) Bale Grab

CALCULATE FINANCE

Large Capacity Opening

Opening is wide enough to grasp 1803 mm (71 in) or 2133 mm (84 in) bales of hay.

Tubular Arms

Tubular constructed arms eliminate damage to wrapped bales.

Bolt-on Serrated Step

Bolt-on serrated step allows safe and ergonomic access to machine cab and is easily replaceable if damaged.

High Strength Rigid Frame

High strength steel frame ensures durability. Hardened pins and easily accessible grease points lead to extended life and productivity.

Product Specifications
Overall Width 1401 mm (55.2 in)
Overall Height 873 mm (34.4 in)
Maximum Opening Width 2133 mm (84 in)
Capacity 1091 kg (2400.2 lb)
Overall Depth 1631 mm (64.2 in)
Weight 263 kg (578.6 lb)
Working Pressure 21000 kPa (3000 psi)
Internal Width, Arms Closed 918 mm (36.1 in)
Required Hydraulics Standard Flow
