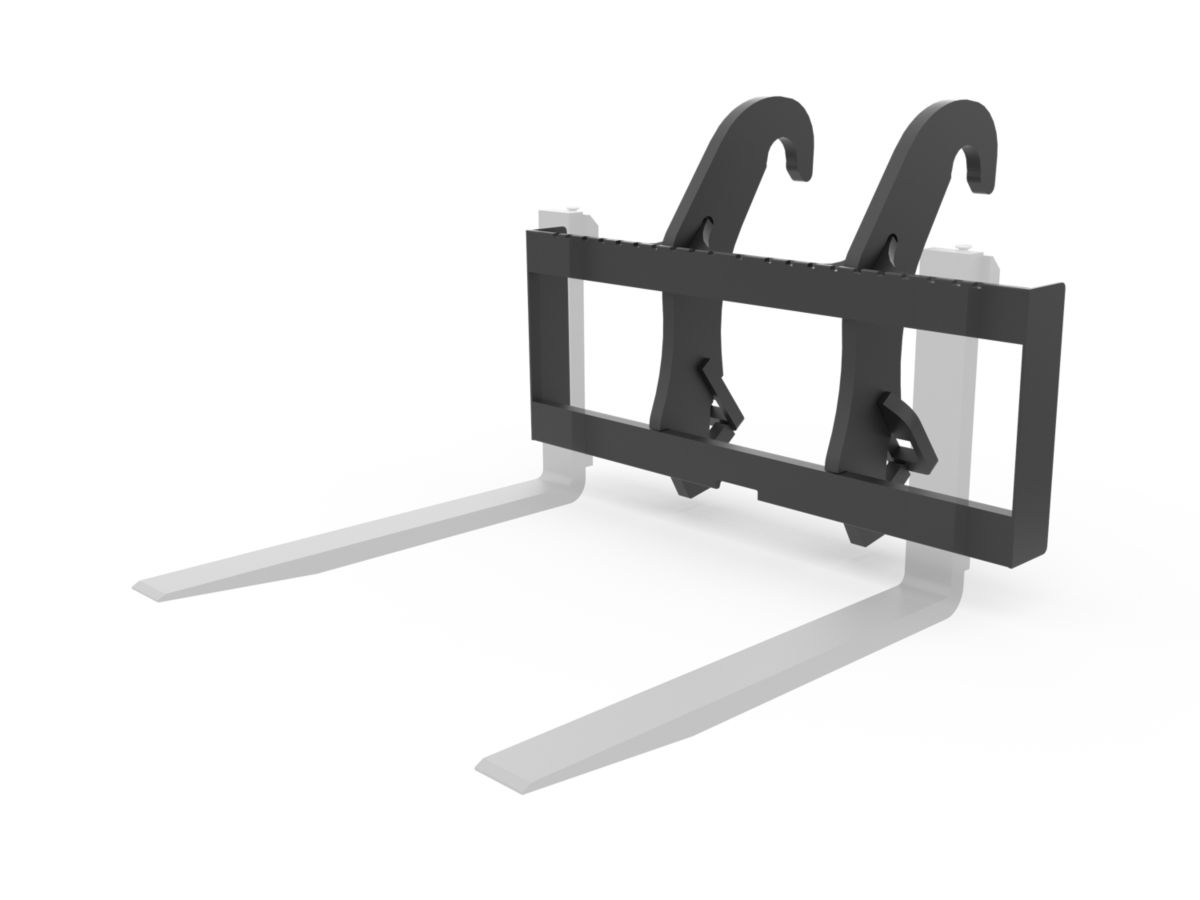

1566 mm (62 in) Pallet Fork Carriage

  • Overview


Used for a variety of material handling needs, such as moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites, and similar jobs.

Heavy Duty Backrest

Heavy-duty load backrest structure is functional, durable and easy to see through. It provides operator protection from shifting loads, while maintaining excellent visibility to the fork tips.

Notched Rail-type Carriage

Notched rail-type carriage design allows fork tines to be easily re-spaced or changed and locked into place.

One carriage for all carrying capacities

The fork carriage is designed to meet the load carrying capacity of the largest machine enabling one size to fit all models.

Product Specifications
Height 1118 mm (44 in)
Width 1566 mm (62 in)
Weight 340 kg (749.6 lb)
Length 620 mm (24.4 in)
Tine Spacing 180-1320 mm (7-52 in) centerline to centerline
Interface Type Fusion™ Coupler
