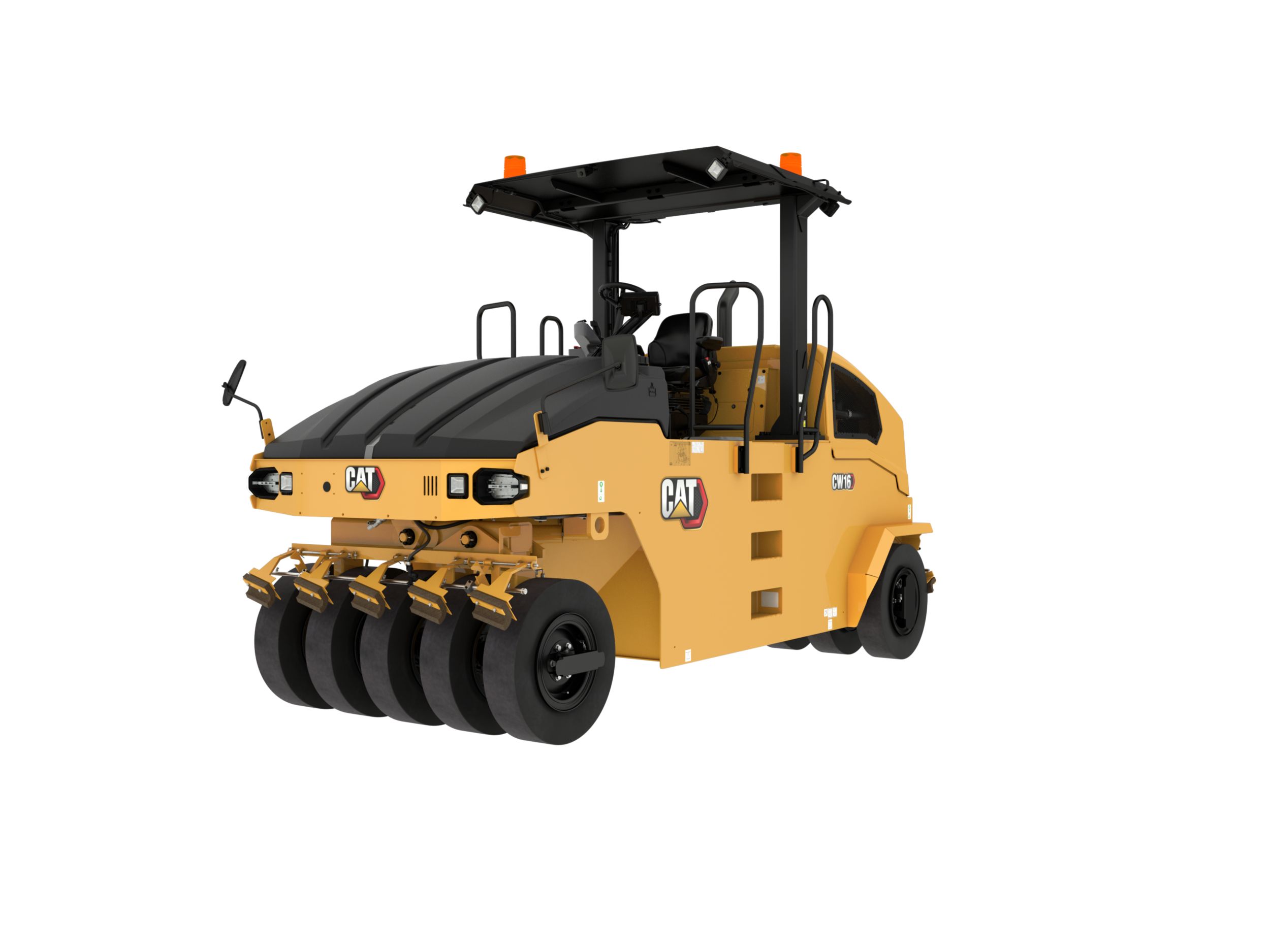

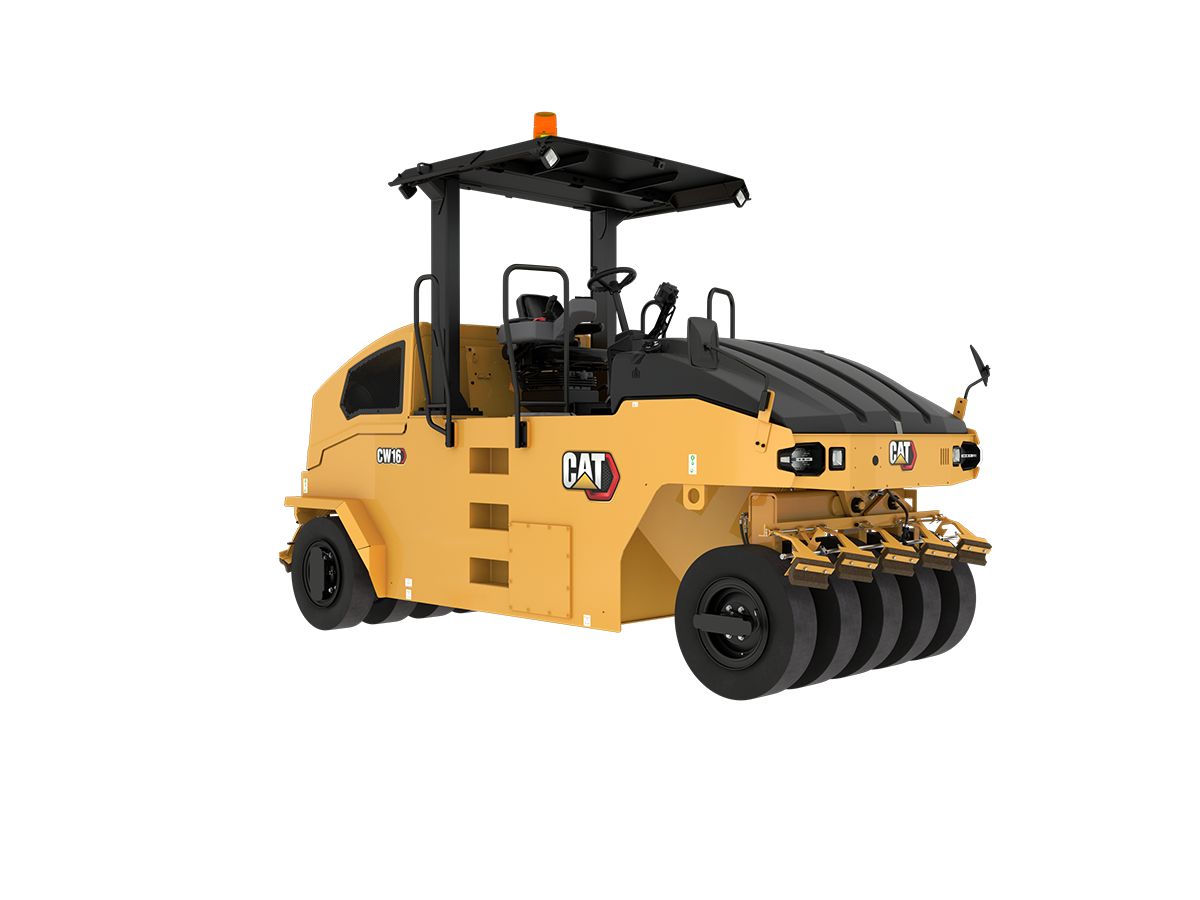

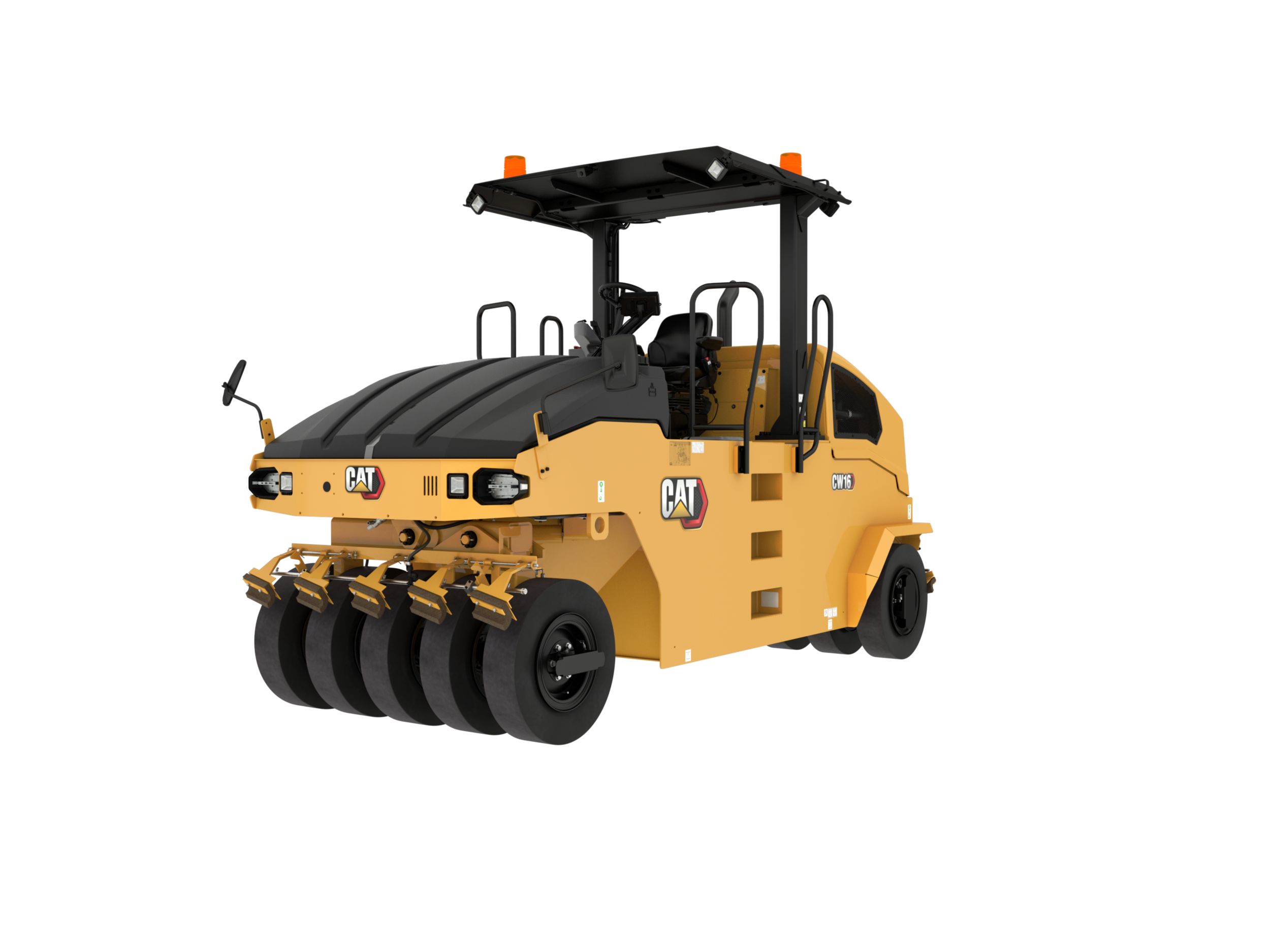

CW16 Pneumatic Roller

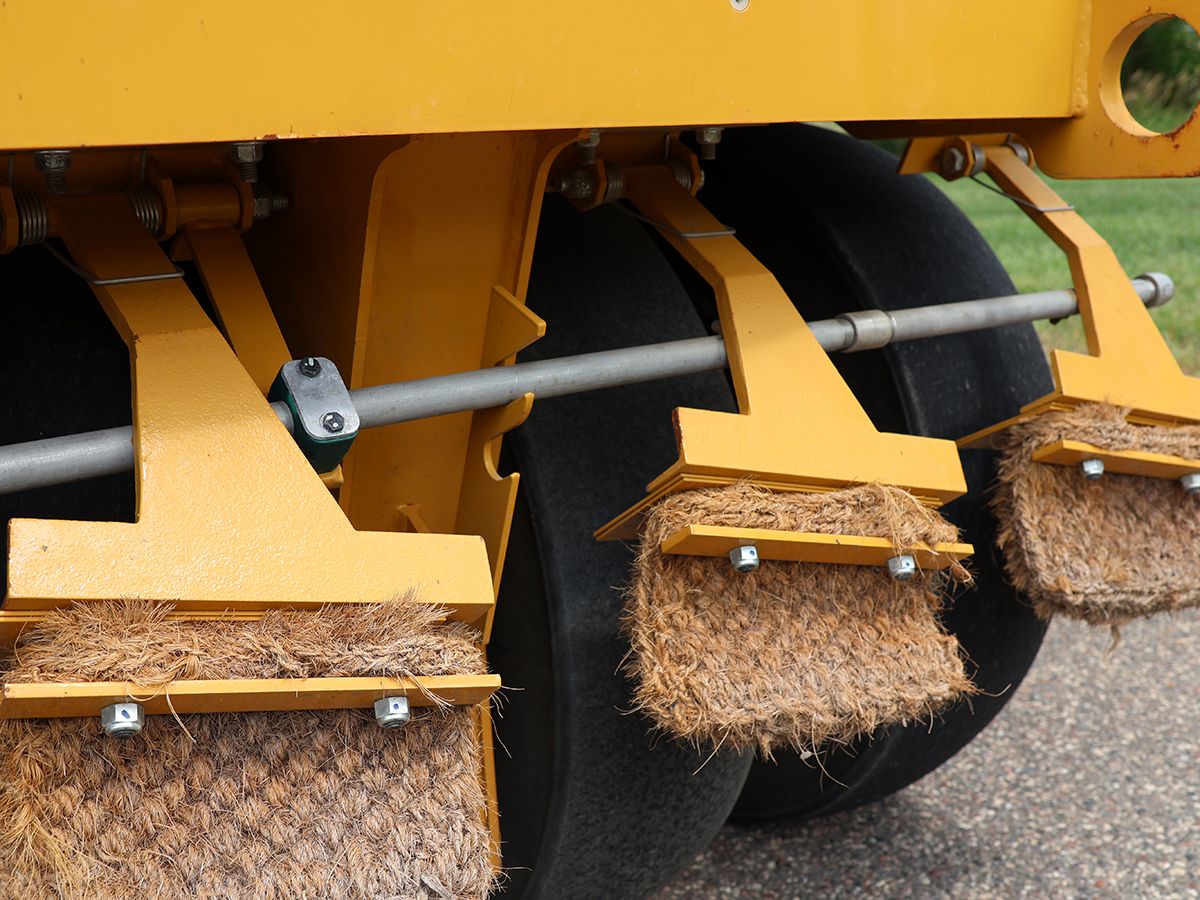

Versatile Compaction Performance

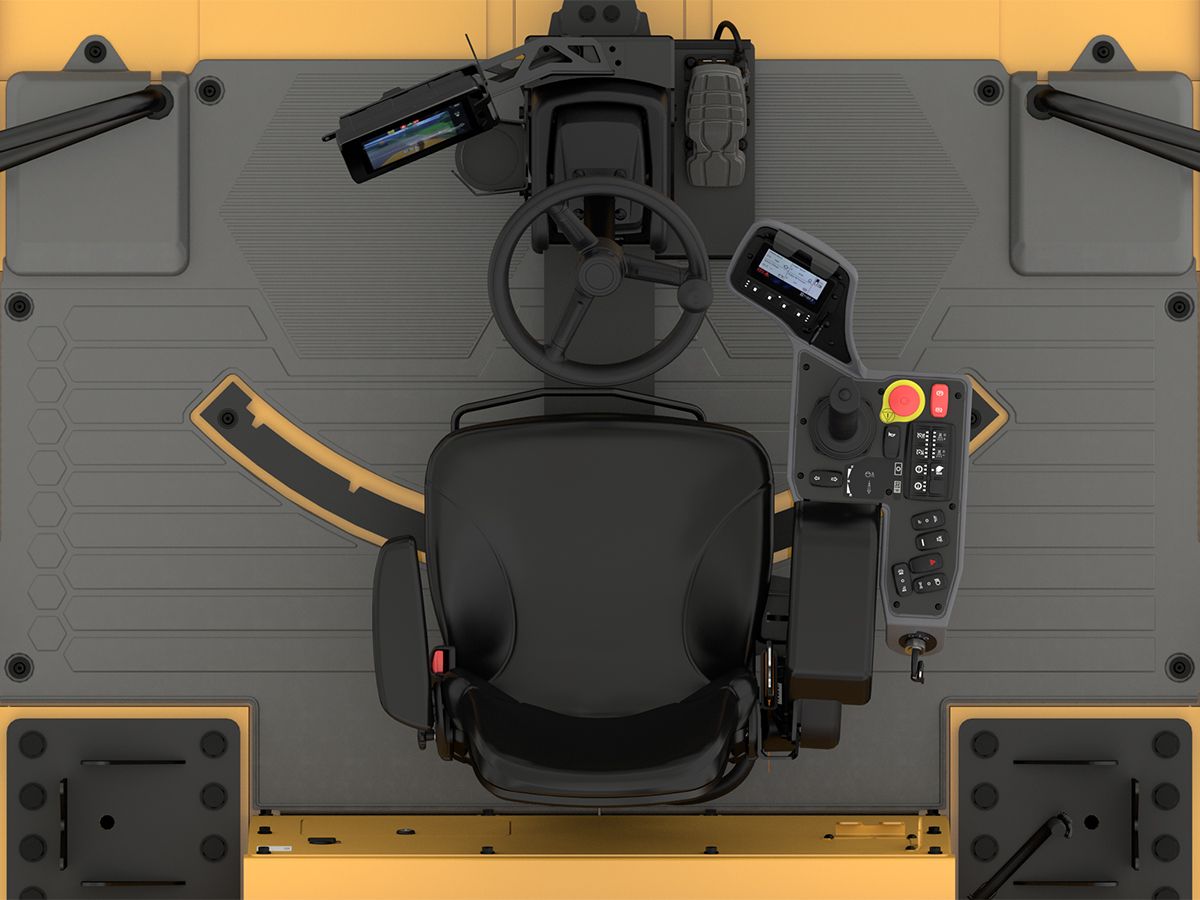

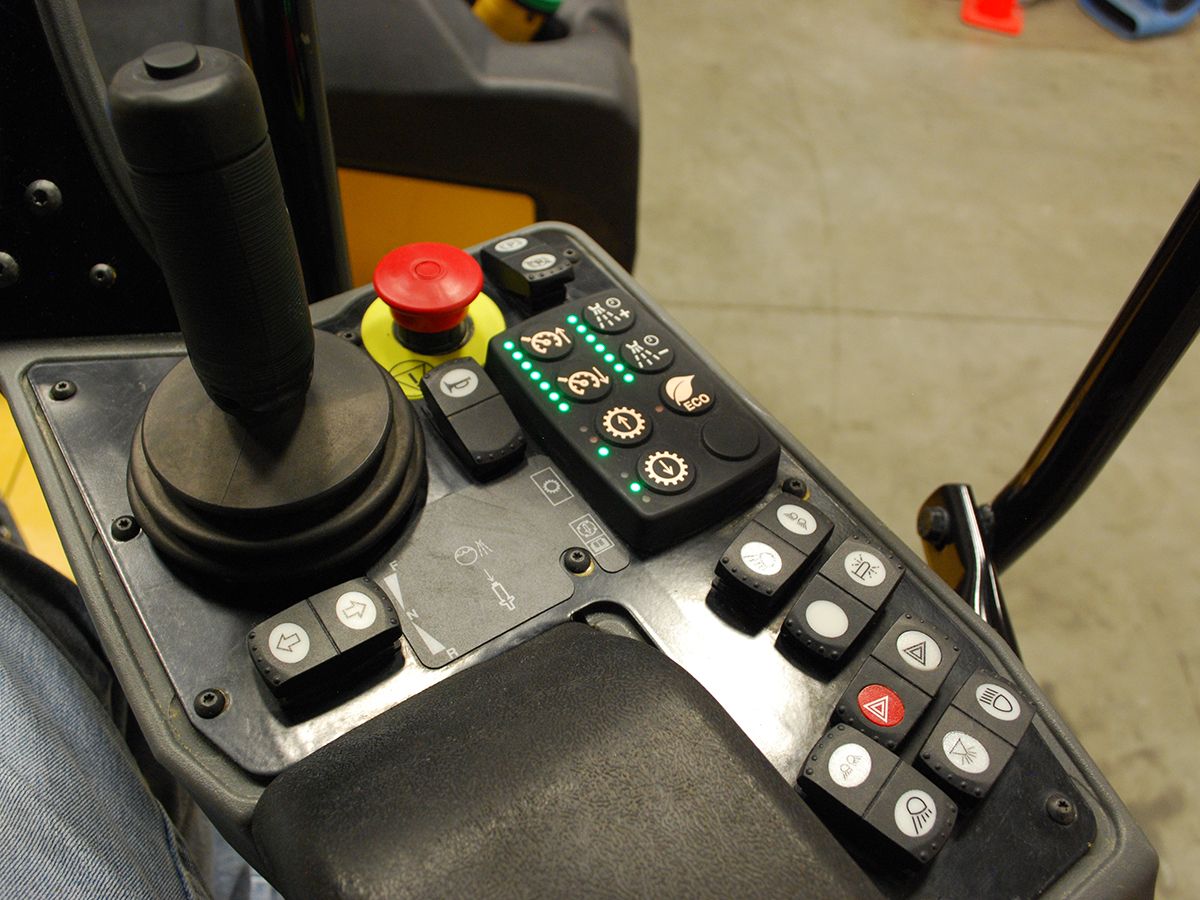

Exceptional Visibility and Comfort
Smooth Operating Powertrain
Simple Service
| Weights | |
|---|---|
| Operating Weight - 9 Wheel Base Machine | 5200 kg (11464 lb) |
| Operating Weight - 9 Wheel with Maximum Ballast (1) | 15000 kg (33069 lb) |
| Load per Wheel - 9 Wheel Base Machine | 580 kg (1280 lb) |
| Operating Weight - 9 Wheel with Maximum Ballast (2) | 1670 kg (3682 lb) |
| Operating Specifications | |
|---|---|
| Turning Radius - Outside | 6455 mm (255 in) |
| Travel Speed - Maximum | 19 km/h (12 mile/h) |
| Ground Clearance | 267 mm (10.5 in) |
| Inside Turn Radius - 9 Wheel | 3761 mm (148 in) |
| 9 Wheel Compaction Width - With Radial Tire | 1728 mm (68 in) |
| 9 Wheel Compaction Width - With Bias Tire | 1754 mm (69 in) |
| Engine | |
|---|---|
| Gross Power | 75 kW (100.5 HP) |
| Engine Model | C3.4B |
| Dimensions | |
|---|---|
| Height - ROPS | 3000 mm (9.8 ft) |
| Overall Length | 4290 mm (14.1 ft) |
| Height - Steering Wheel | 2320 mm (91 in) |
| Service Refill Capacities | |
|---|---|
| Water Spray Tank Capacity | 348 l (92 gal (US)) |
| Fuel Tank Capacity | 146 l (38 gal (US)) |
| Operating Specifications | |
|---|---|
| Compaction Width | 1728 mm (68 in) |
| Weights | |
|---|---|
| Operating Weight - Maximum Ballast | 5200 kg (11464 lb) |
