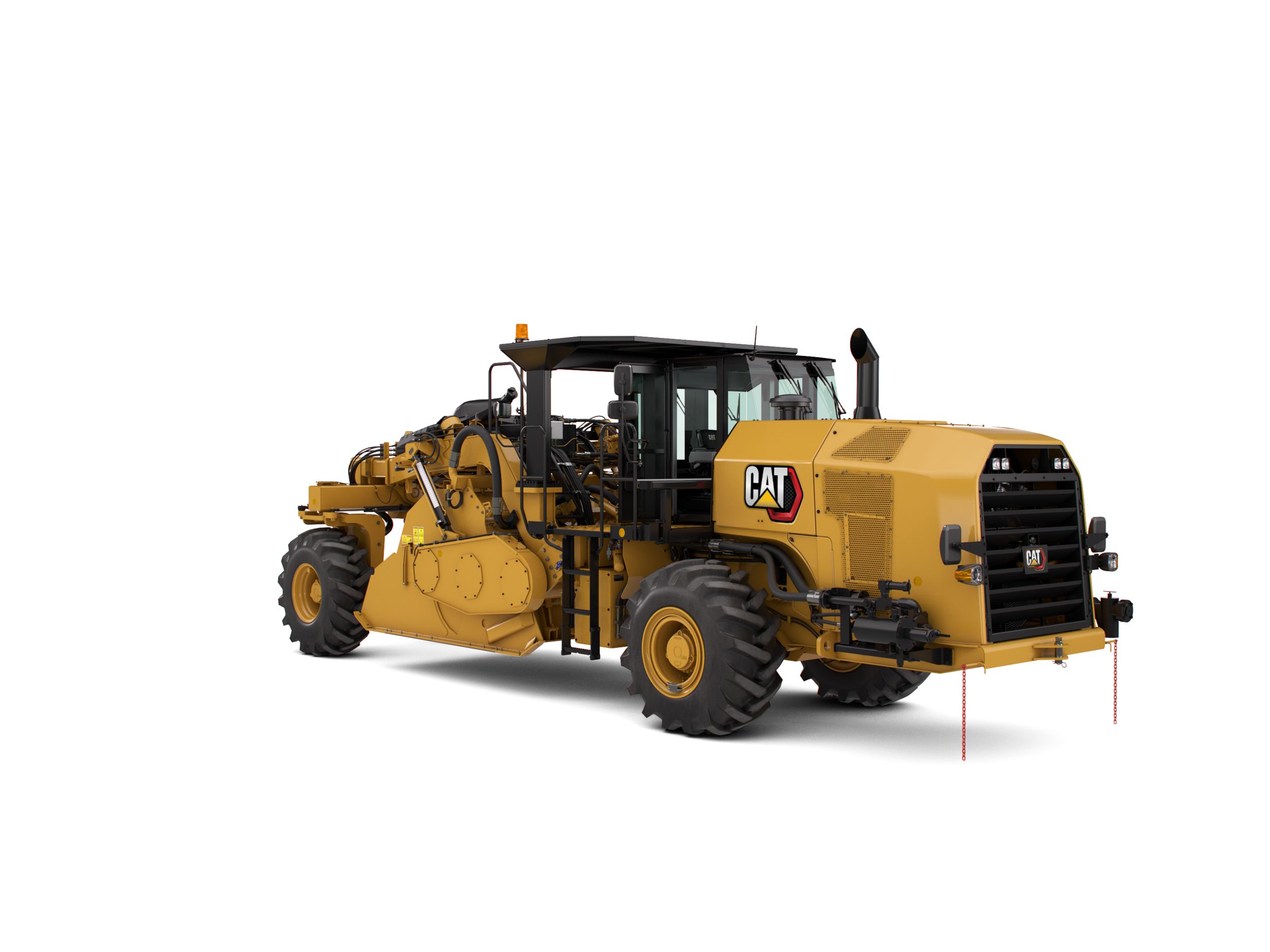

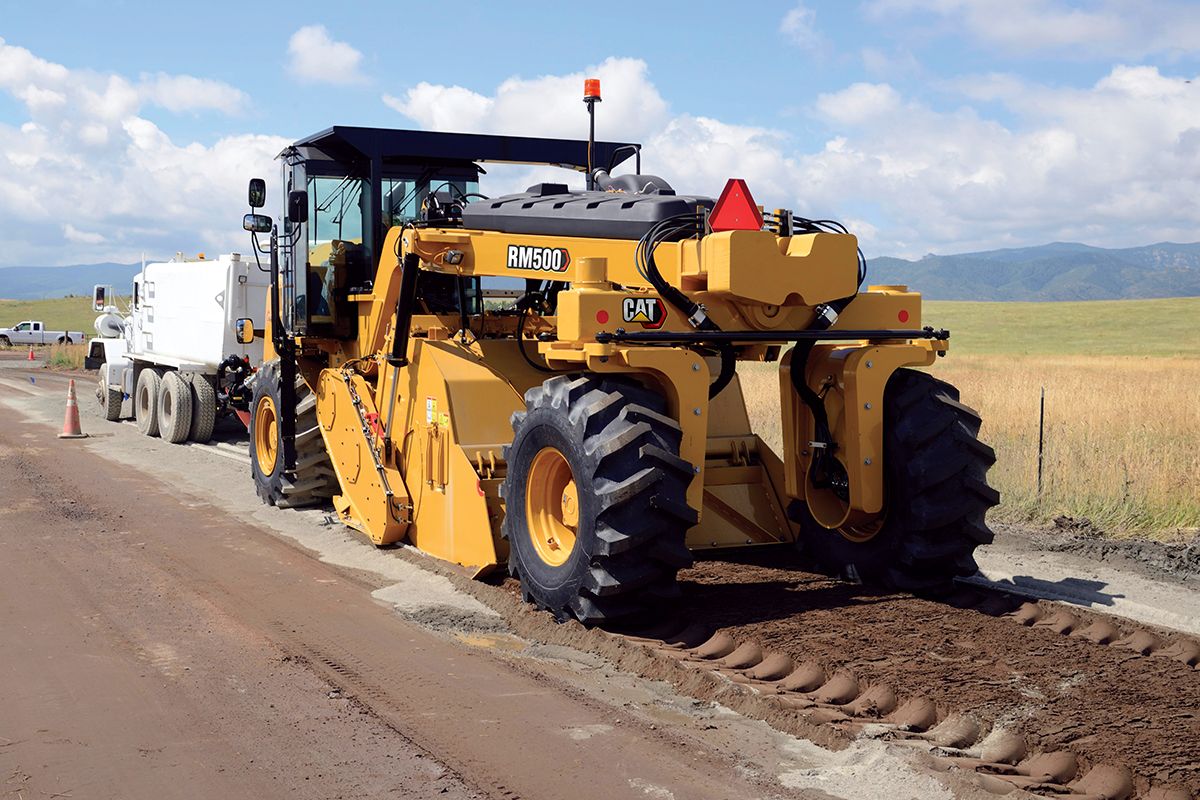

RM500 Road Reclaimer

CALCULATE FINANCE

C15 Engine with ACERT™ Technology

Operator’s Station

Operational Controls

Cab (Optional)

Electronic Control Modules

Dual Pump Propel System

All-Wheel Drive

Rotor Drive

Mixing Chamber

Hydraulic Front Door

Universal Rotors

Combination Rotor

Soil Rotor

Serviceability

Weights
Maximum Operating Weight 28145 kg (62060 lb)
Operating Specifications
Cutting/Mixing Width 2438 mm (96 in)
Maximum Travel Speed 9.2 km/h (5.7 mile/h)
Rotor Speed - First (at 2100 Engine rpm) 110 r/min (110 r/min)
Rotor Speed - Second (at 2100 Engine rpm) 152 r/min (152 r/min)
Maximum Cutting/Mixing Depth 508 mm (20 in)
Rotor Options Universal, Combination, Soil
Rotor Speed - Third (at 2100 Engine rpm) 205 r/min (205 r/min)
Operating Speed 3.2 km/h (2 mile/h)
Engine
Gross Power 403 kW (540 HP)
Engine Model C15 with ACERT
Dimensions
Ground Clearance 530 mm (20.8 in)
Maximum Height 3.48 m (11.33 ft)
Width 2.98 m (9.58 ft)
Length 9.68 m (31.67 ft)
Wheel Base 6.25 m (20.42 ft)
Service Refill Capacities
Fuel Tank Capacity 1056 l (279 gal (US))

Optional Equipment

  • Sliding Cab
  • Friction Torque Limiter
  • Umbrella
  • Mirror Package
  • Roll Over Protective Structure
  • Universal Rotor
  • Combination Rotor
  • Soil Rotor
  • Falling Object Protective Structure
  • Water Spray System
  • Roading Light Package
  • Counterweight Kit
  • Warning Beacon Light
