Enquire about "MB250 Mixing Bucket" Now

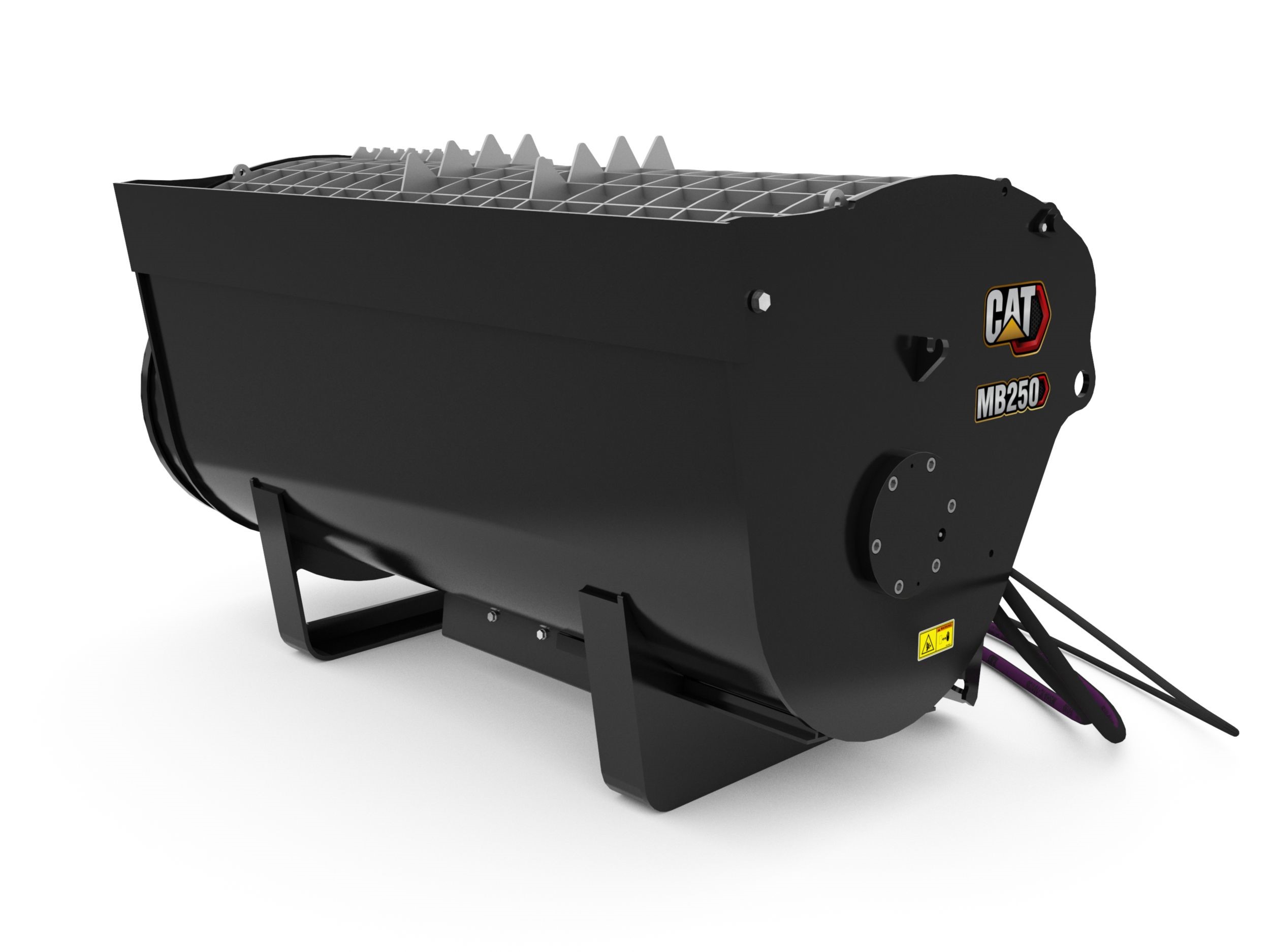

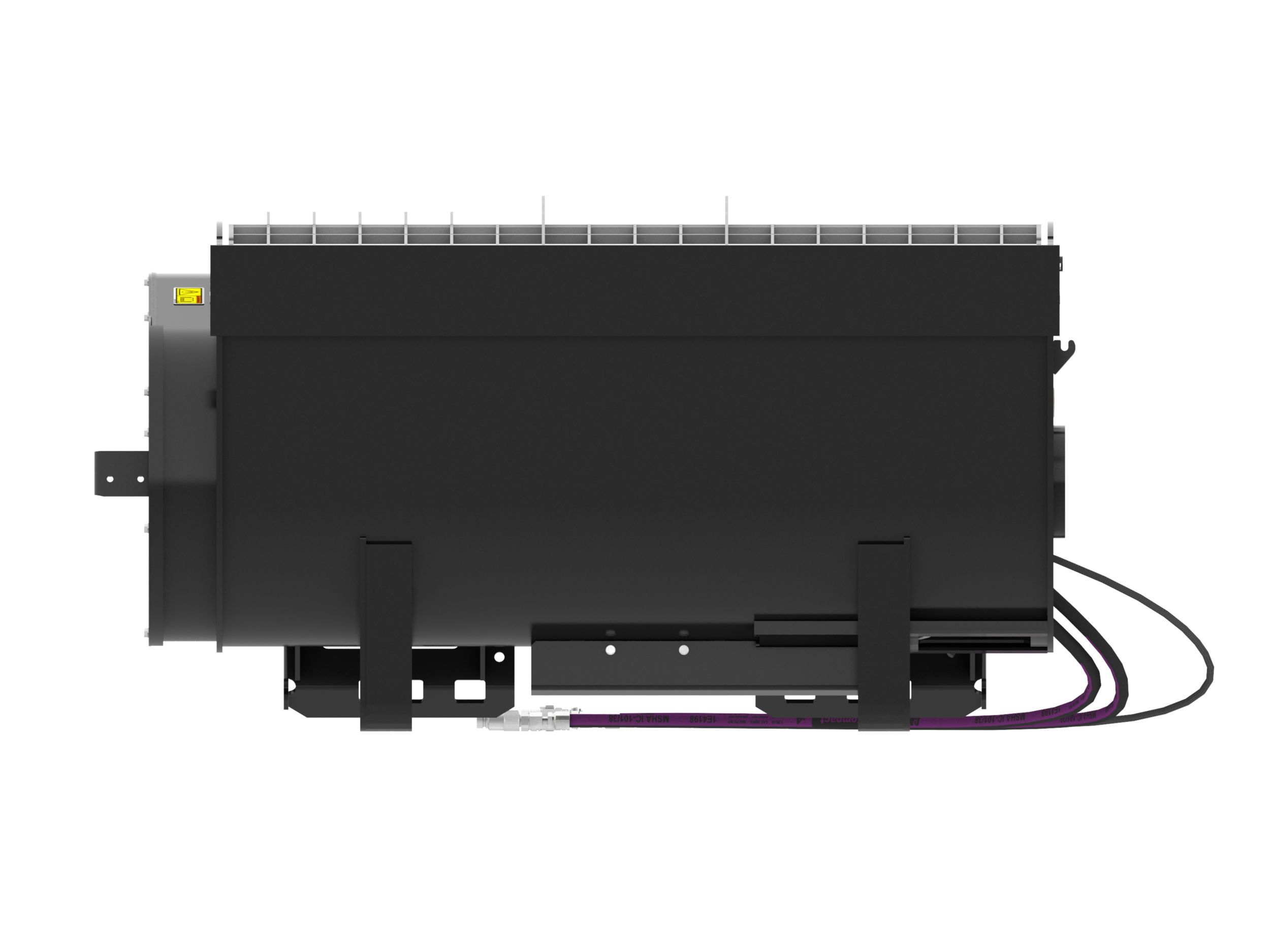

MB250 Mixing Bucket
Easy Material Addition
Cement bag breakers on top of mixing bucket grate allow for easy breaking and addition of bagged materials.
Bucket Cutting Edge
Cutting edge allows for bucket to be used to drive into piles of raw materials.
Reinforced Steel Bucket Cavity
Reinforced steel is used for bucket cavity ensuring long life and reduced wear.
Bolt-On Replaceable Auger Paddles
Replaceable, bolt-on auger paddles are hardened and reach throughout the bucket to combine all material.
Remotely Operated Chute Door
Hydraulically controlled chute door allows material to be dispensed all from the cab of the host machine.
Bolt-On Serrated Step
Serrated step allows safe and ergonomic access to machine cab that is easily replaceable if damaged.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and mantenance guides required for proper operation of the work tool.
Product Specifications | |
---|---|
Capacity | 0.25 mu00b3 (0.33 ydu00b3) |
Width | 1390 mm (54.7 in) |
Required Hydraulics | Standard Flow |
Auger Speed Range | 10-30 rpm |
Drive Method | Chain |
Height | 877 mm (34.5 in) |
Length | 814 mm (32 in) |
Optimal Hydraulic Flow | 60-70 lpm (16-18 gpm) |
Optimal Hydraulic Pressure | 140-200 bar (2031-2901 psi) |
Weight | 430 kg (948 lb) |
Auger Diameter | 508 mm (20 in) |
Number of Auger Paddles | 11 |
Interface Type | Skid Steer Coupler |
Overall Width | 1605 mm (63.2 in) |
