360°Exterior View

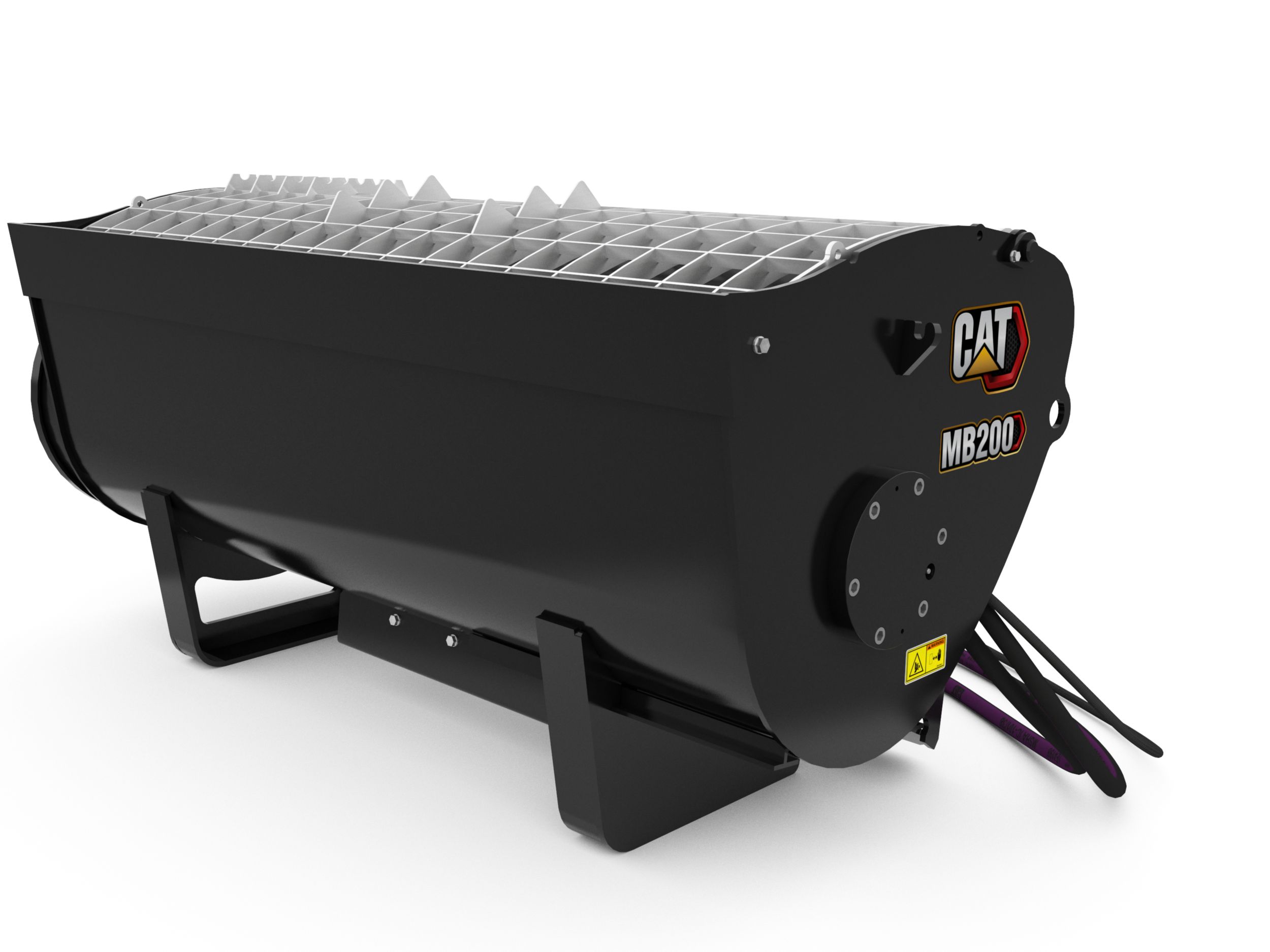

MB200 Mixing Bucket

CALCULATE FINANCE

Easy Material Addition

Cement bag breakers on top of mixing bucket grate allow for easy breaking and addition of bagged materials.

Bucket Cutting Edge

Cutting edge allows for bucket to be used to drive into piles of raw materials.

Reinforced Steel Bucket Cavity

Reinforced steel is used for bucket cavity ensuring long life and reduced wear.

Bolt-On Replaceable Auger Paddles

Replaceable, bolt-on auger paddles are hardened and reach throughout the bucket to combine all material.

Remotely Operated Chute Door

Hydraulically controlled chute door allows material to be dispensed all from the cab of the host machine.

Bolt-On Serrated Step

Serrated step allows safe and ergonomic access to machine cab that is easily replaceable if damaged.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and mantenance guides required for proper operation of the work tool.

Product Specifications
Capacity 0.2 mu00b3 (0.26 ydu00b3)
Width 1386 mm (54.6 in)
Required Hydraulics Standard Flow
Auger Speed Range 10-30 rpm
Drive Method Chain
Height 731 mm (28.8 in)
Length 694 mm (27.3 in)
Optimal Hydraulic Flow 60-70 lpm (16-18 gpm)
Optimal Hydraulic Pressure 140-200 bar (2031-2901 psi)
Weight 290 kg (639 lb)
Auger Diameter 406 mm (16 in)
Number of Auger Paddles 12
Interface Type Skid Steer Coupler
Overall Width 1602 mm (63.1 in)
