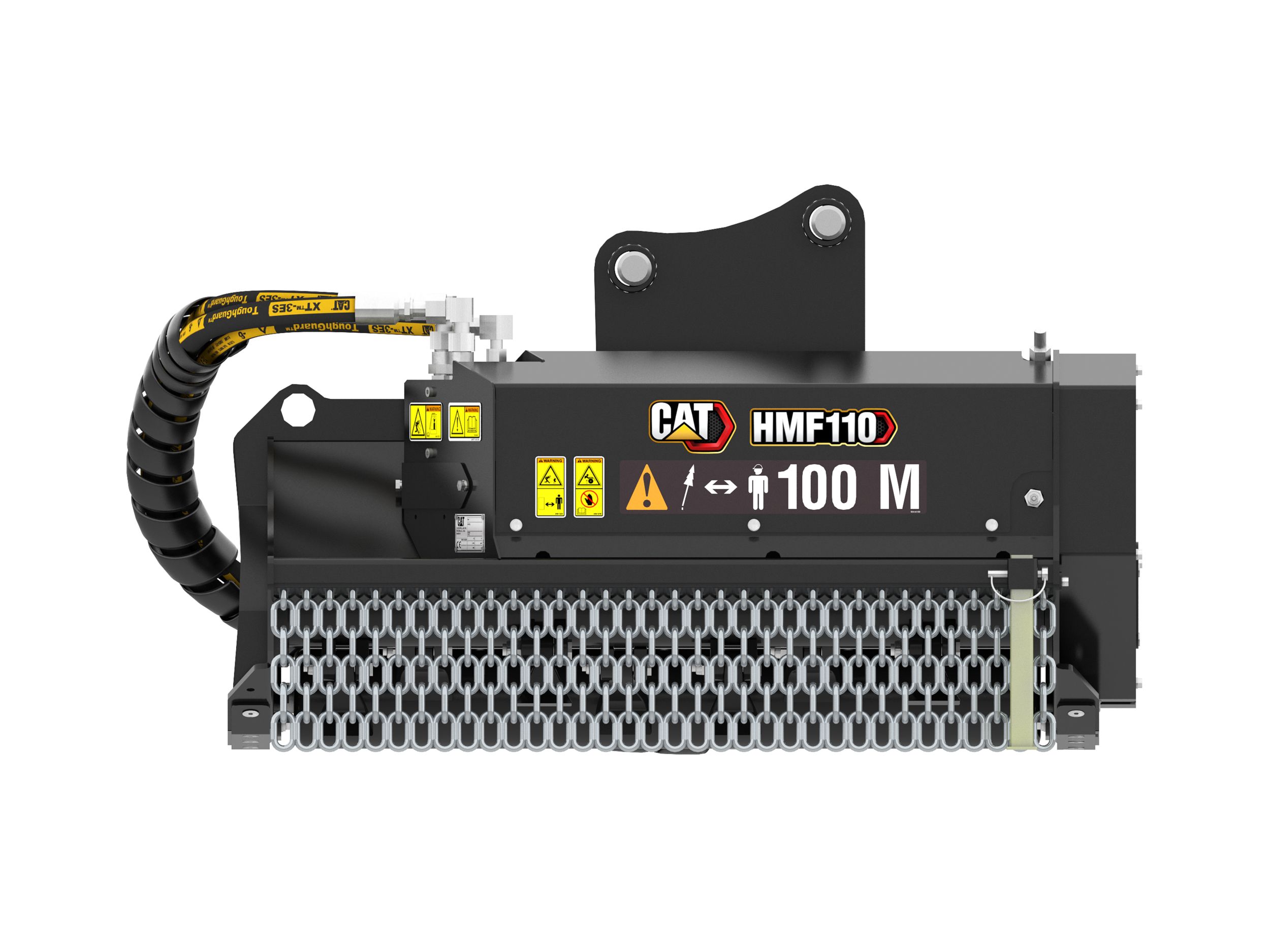

HMF110 Flail Mower
Application

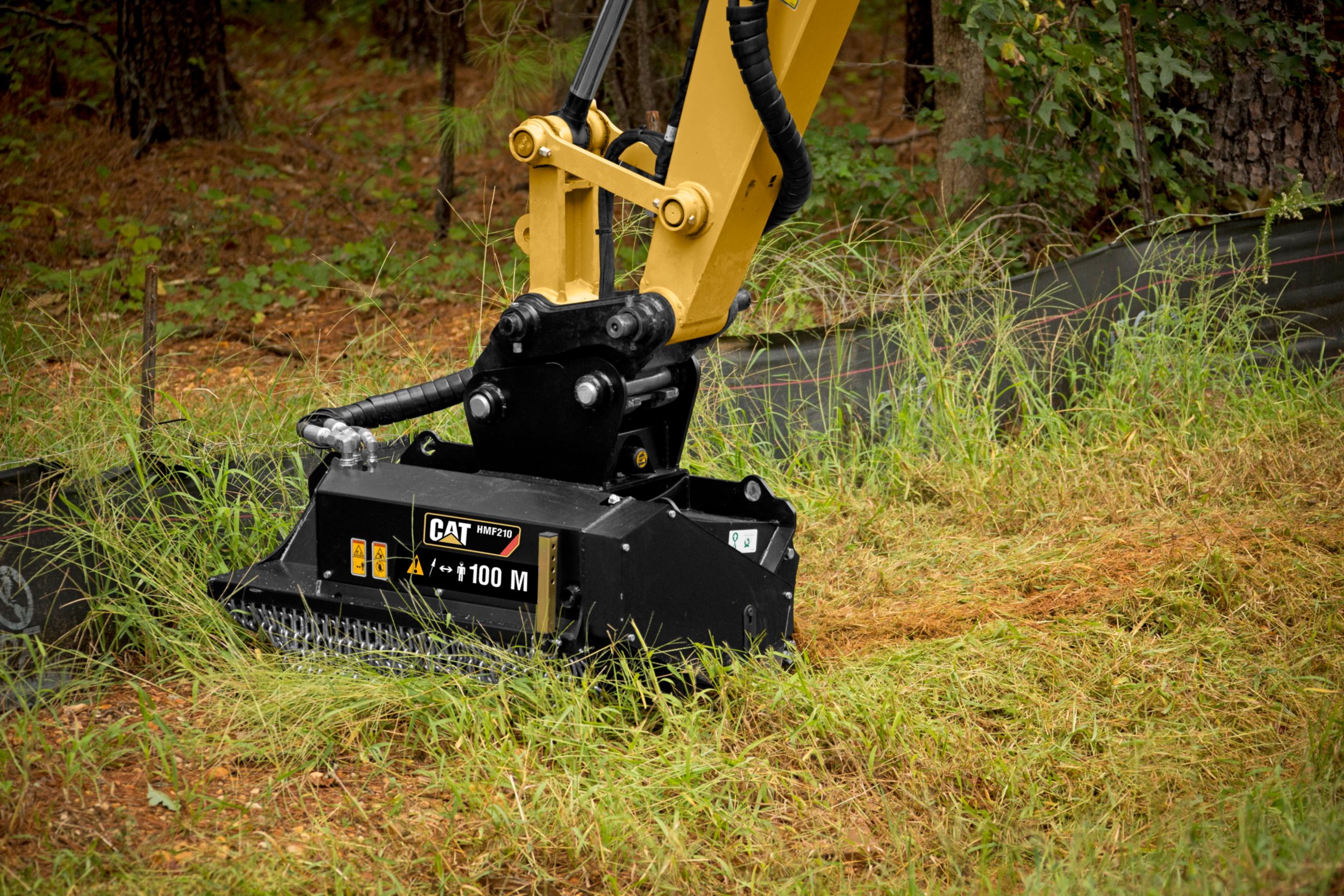

Flail Mowers are used for high performance cutting of vegetation, saplings and undergrowth from overgrown agricultural areas, retention ponds and forested terrain.
Piston Motor
Piston motor is used to improve operational efficiency of tool and flow is matched to ideal machine condition.
Balanced Drum
Mulching drum is weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.
Cat® XTC Hydraulic Hoses
Quick disconnect hydraulic lines allow for easy tool swapping. Case drain line improves motor life and protects internal motor components.
Integrated Rear Roller
Integrated real roller keeps swinging teeth out of the dirt as it rolls flat with the ground, preventing excess wear and extending tooth life.
Bolt-On Replaceable Skid Shoes
Bolt-On replaceable skid shoes are reinforced and built to last, yet easily replaceable as needed.
Integrated Stand
Integrated stand eases access for attachment and removal. Allows mower to sit flat for storage.
Front Chain Guard
Front chain guard limits material thrown from tool and helps protect swinging teeth and drum.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
Product Specifications | |
---|---|
Working Width | 1000 mm (39.4 in) |
Required Hydraulics | Standard Flow |
Overall Width | 1184 mm (46.6 in) |
Optimal Hydraulic Flow | 50-80 L/min (13-21 gpm) |
Maximum Cutting Diameter | 50-75 mm (2-3 in) |
Swinging Teeth per Drum | 16 |
Length | 842 mm (33.1 in) |
Overall Height | 741 mm (29.2 in) |
Weight | 377 kg (831.1 lb) |
Drive Method | V-Belt Drive |
Motor | Axial Piston |
Optimal Hydraulic Pressure | 150-250 bar (2175-3626 psi) |
Drum Speed | 2540-2620 RPM |
