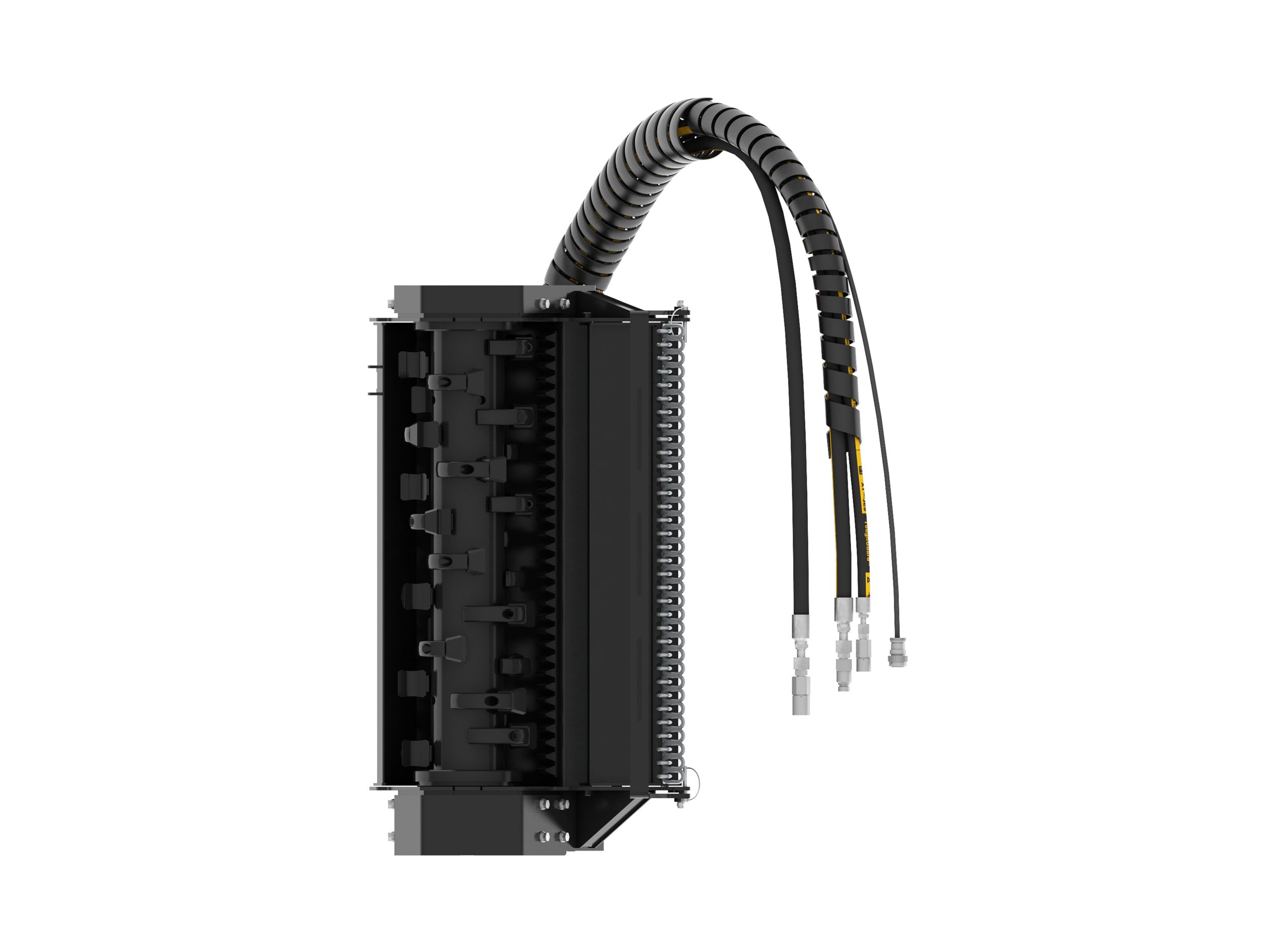

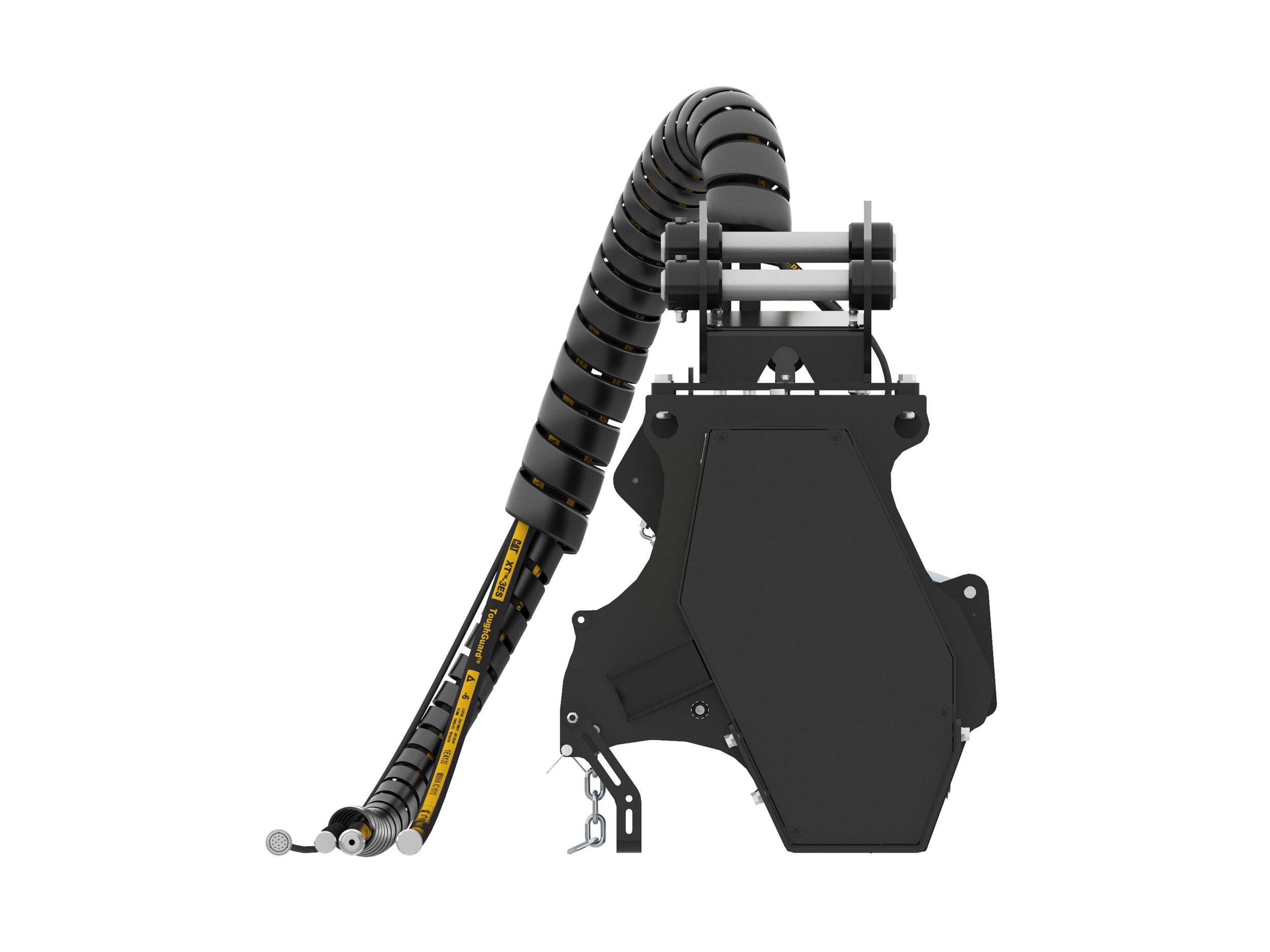

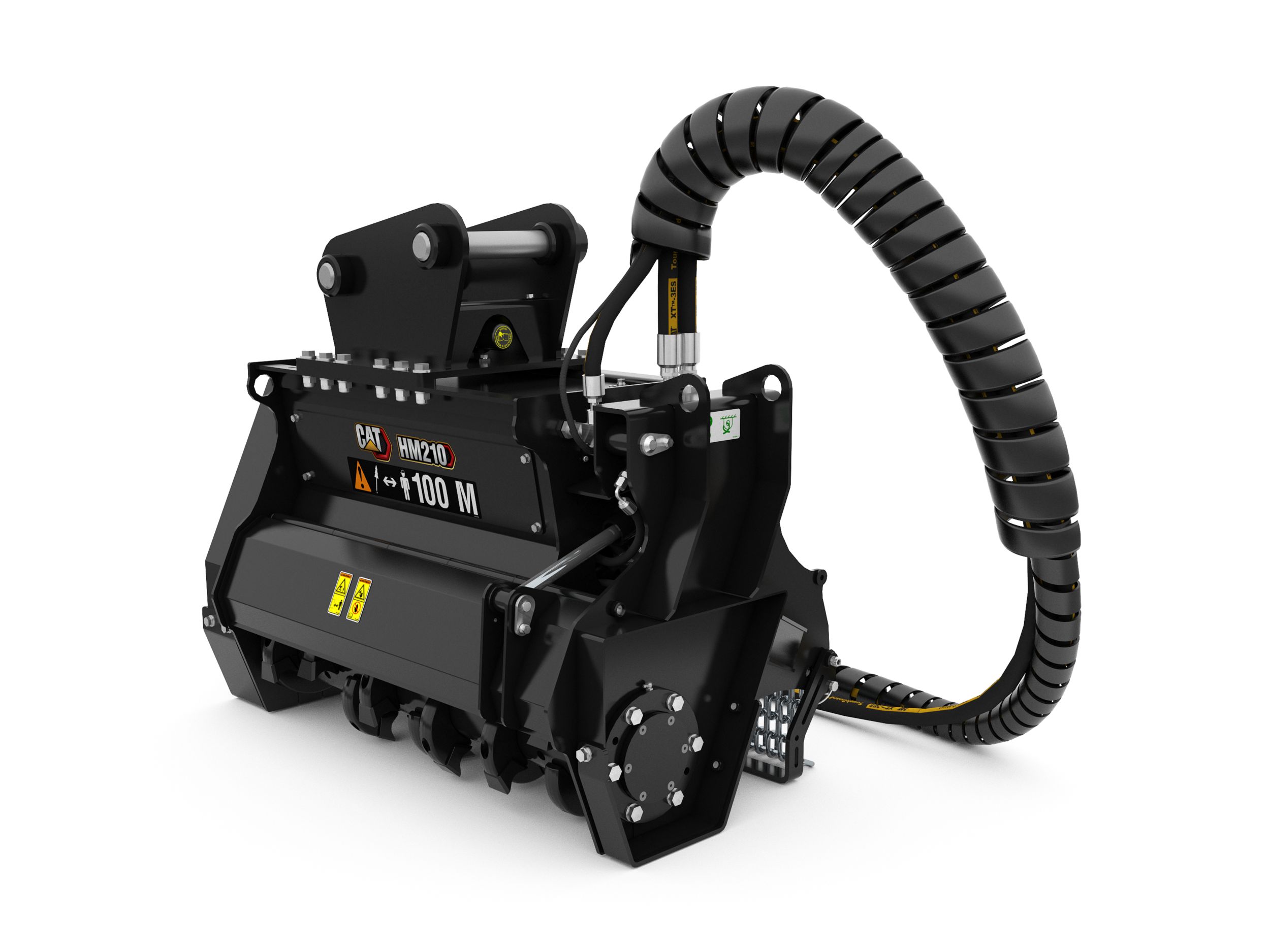

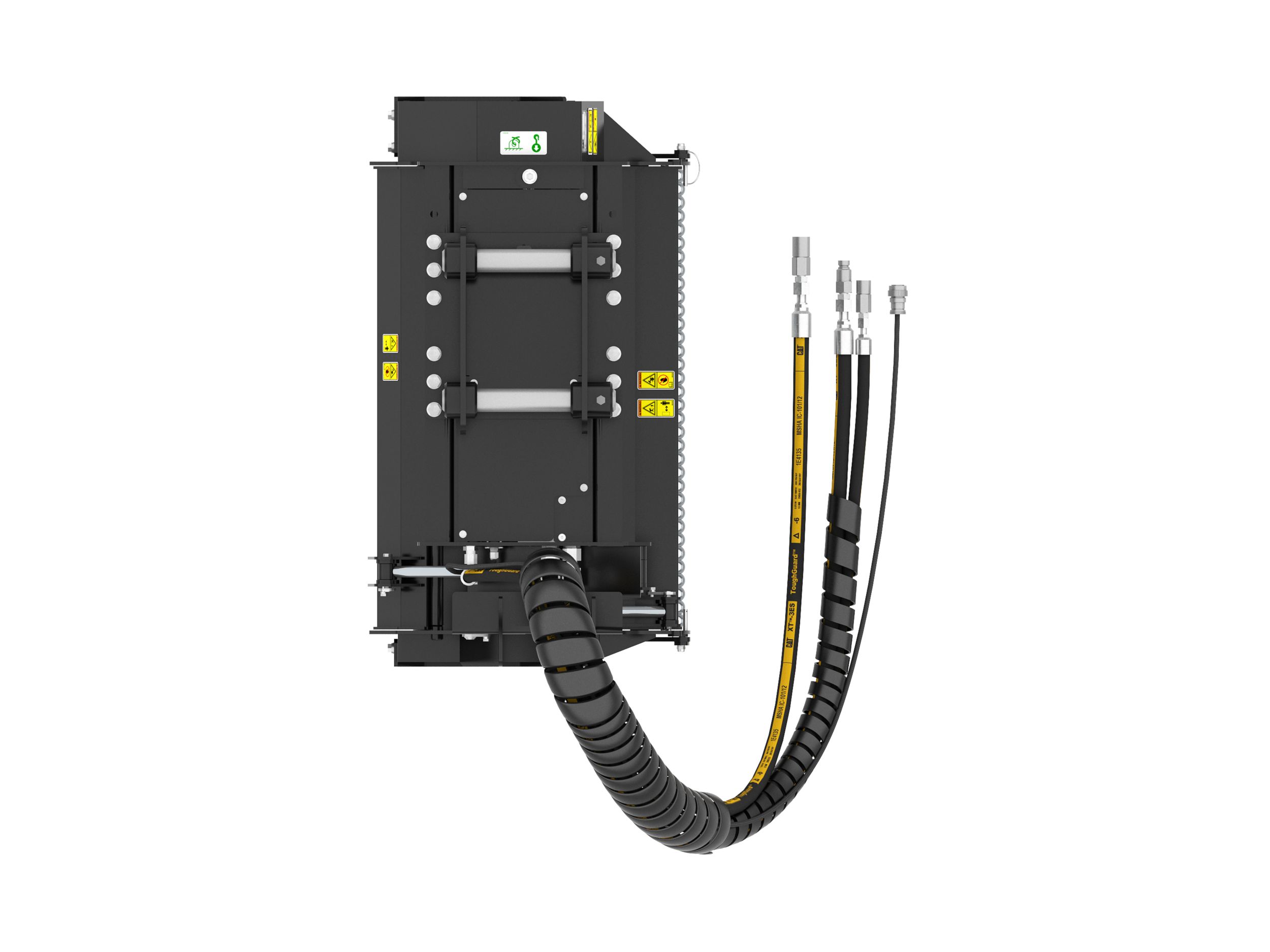

HM210 Mulcher

CALCULATE FINANCE

Application

Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.

Variable Displacement Piston Motor

When motor pressure approaches a stall condition, the motor displacement will change to provide high torque at low speed to power through material with reduced risk of stalling. The motor automatically switches the displacement back for high speed operation once the material is cleared.

Balanced Drum

Mulching drum weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.

Cat® XTC Hydraulic Hoses

Quick disconnect hydraulic lines allow for easy tool swapping. Case drain line improves motor life and protects internal motor components. Spiral wrapped hose protection helps protects the hydraulic lines during use.

Dual Hydraulic Doors

Standard dual hydraulic doors (front and back) allow for debris to be recirculated through drum longer for a finer finished product.

Integrated Stand

Integrated stand eases access for attachment and removal. Allows mulcher to sit flat for storage.

Rear Chain Guard

Rear chain guard limits the amount of debris thrown behind the machine.

Bolt-on Replaceable Skid Shoes

Bolt-on replaceable skid shoes are reinforced and built to last, yet easily replaceable as needed.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Product Specifications
Overall Width 1226 mm (48.3 in)
Working Width 1012 mm (39.8 in)
Length 714 mm (28.1 in)
Overall Height 1065 mm (41.9 in)
Weight 540 kg (1190.5 lb)
Drive Method V-Belt Drive
Motor Dual Speed Axial Piston
Required Hydraulics Standard Flow
Optimal Hydraulic Flow 70-130 L/min (18-34 gpm)
Optimal Hydraulic Pressure 150-250 bar (2175-3626 psi)
Drum Speed 2770-2890 RPM
Fixed Teeth per Drum 24
Maximum Cutting Diameter 120-200 mm (5-8 in)
