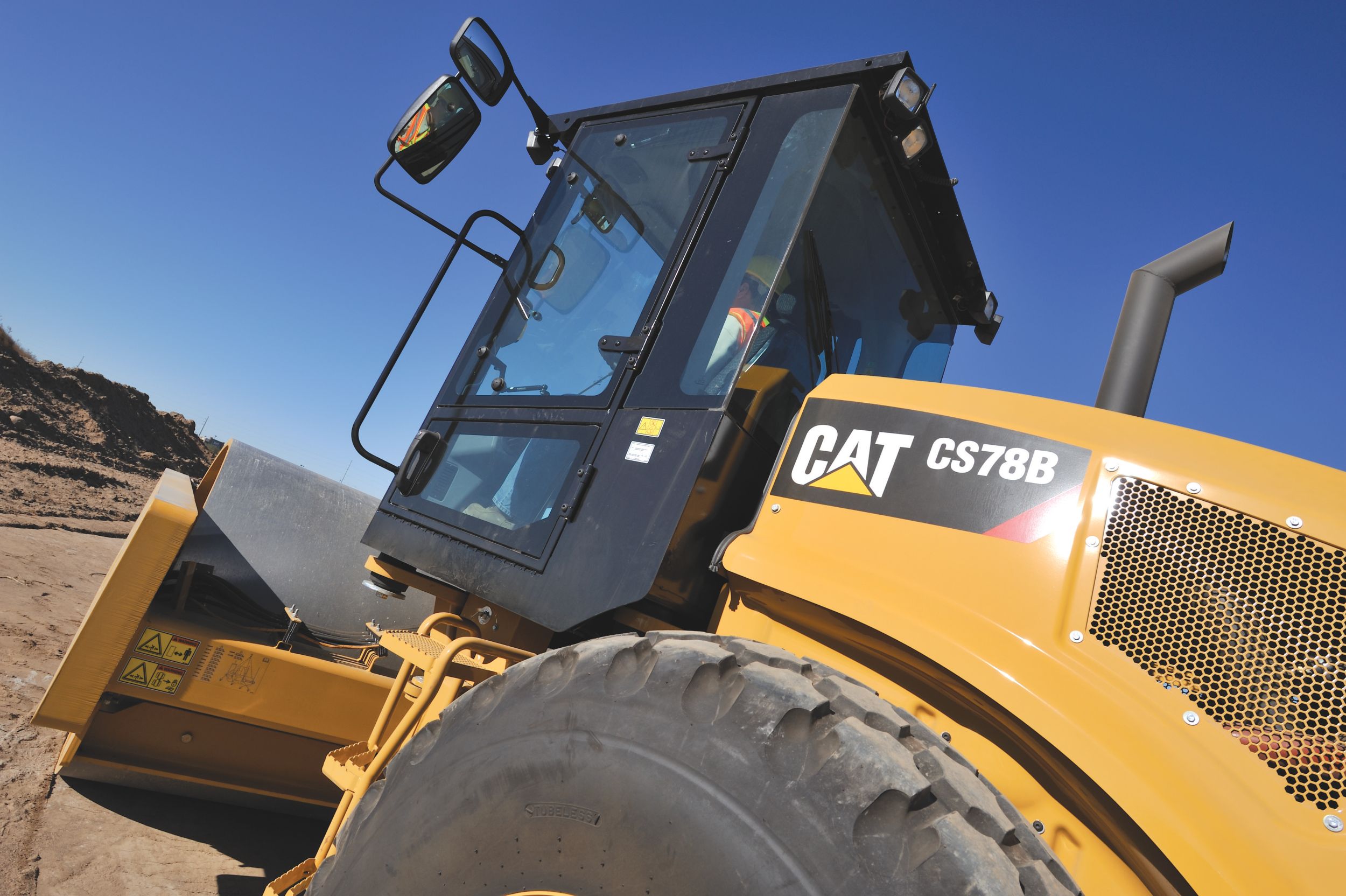

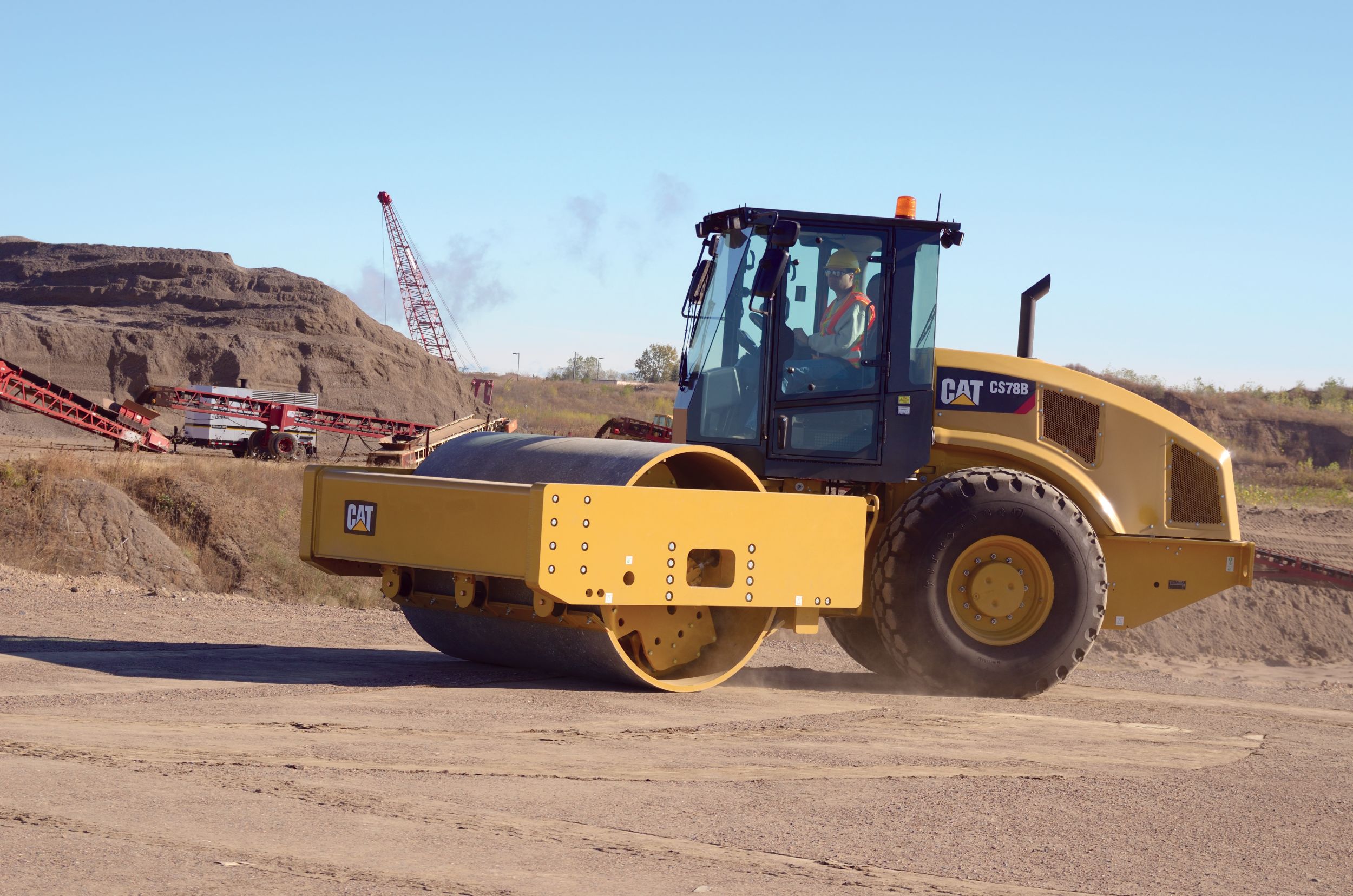

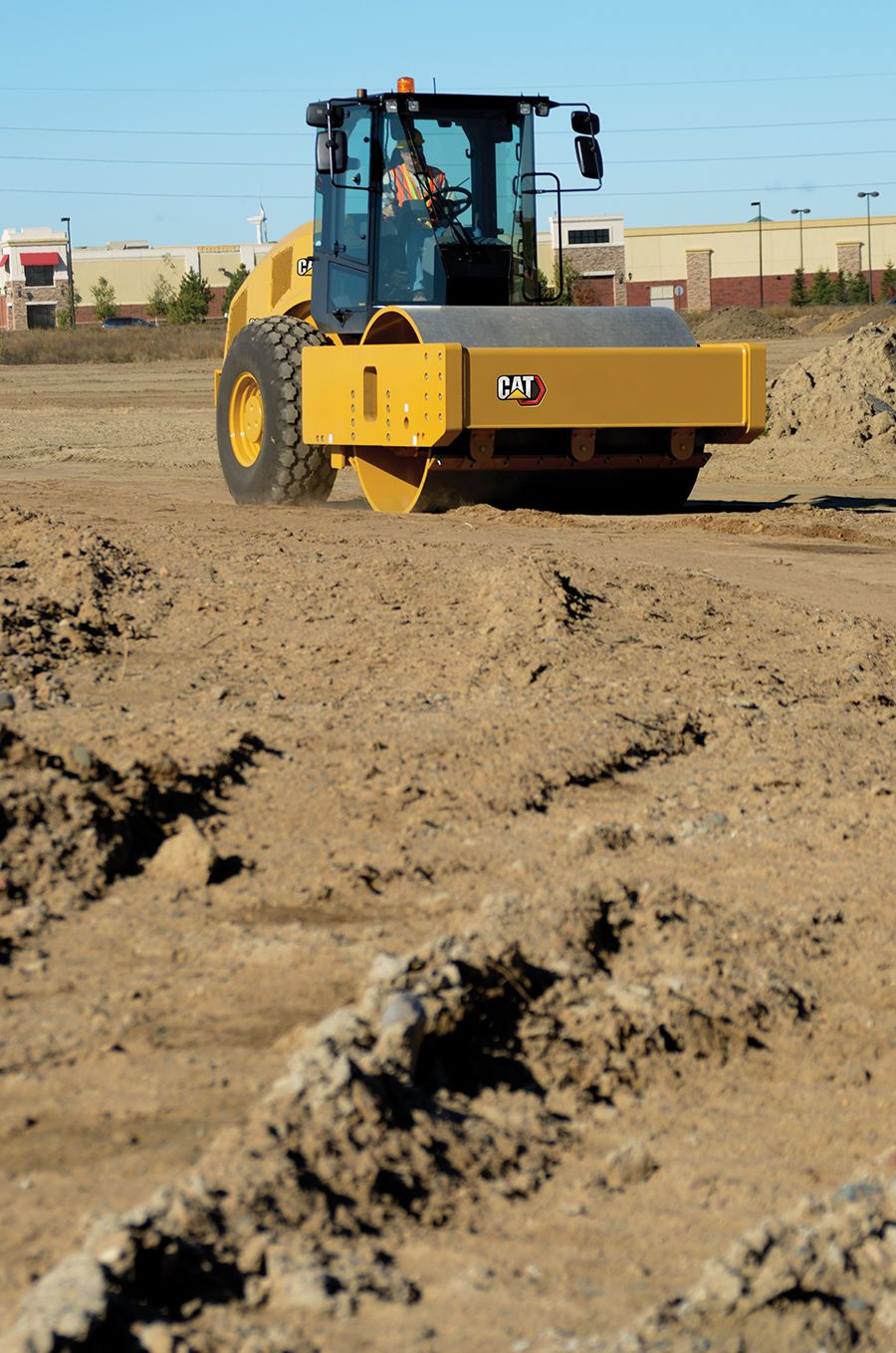

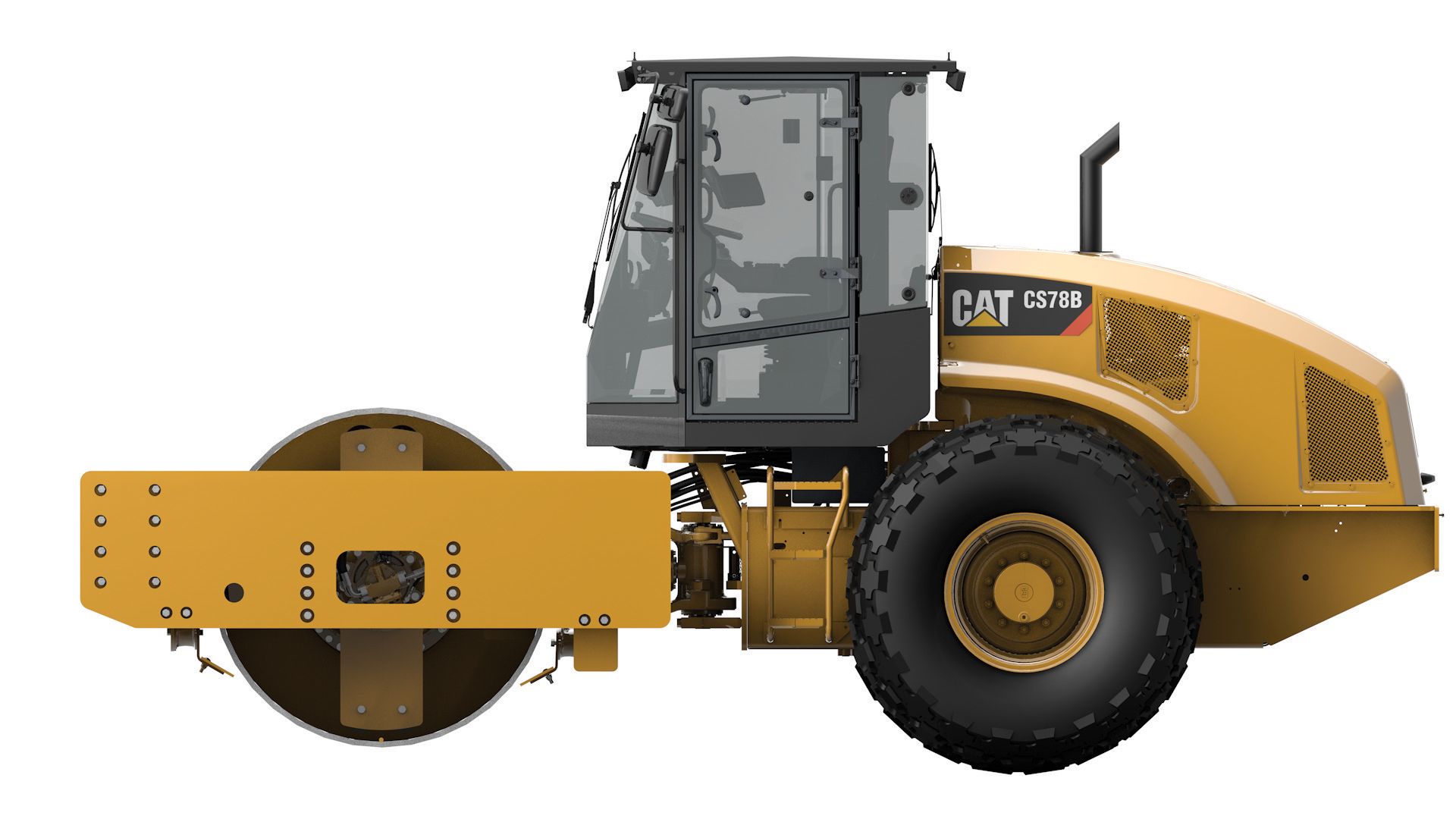

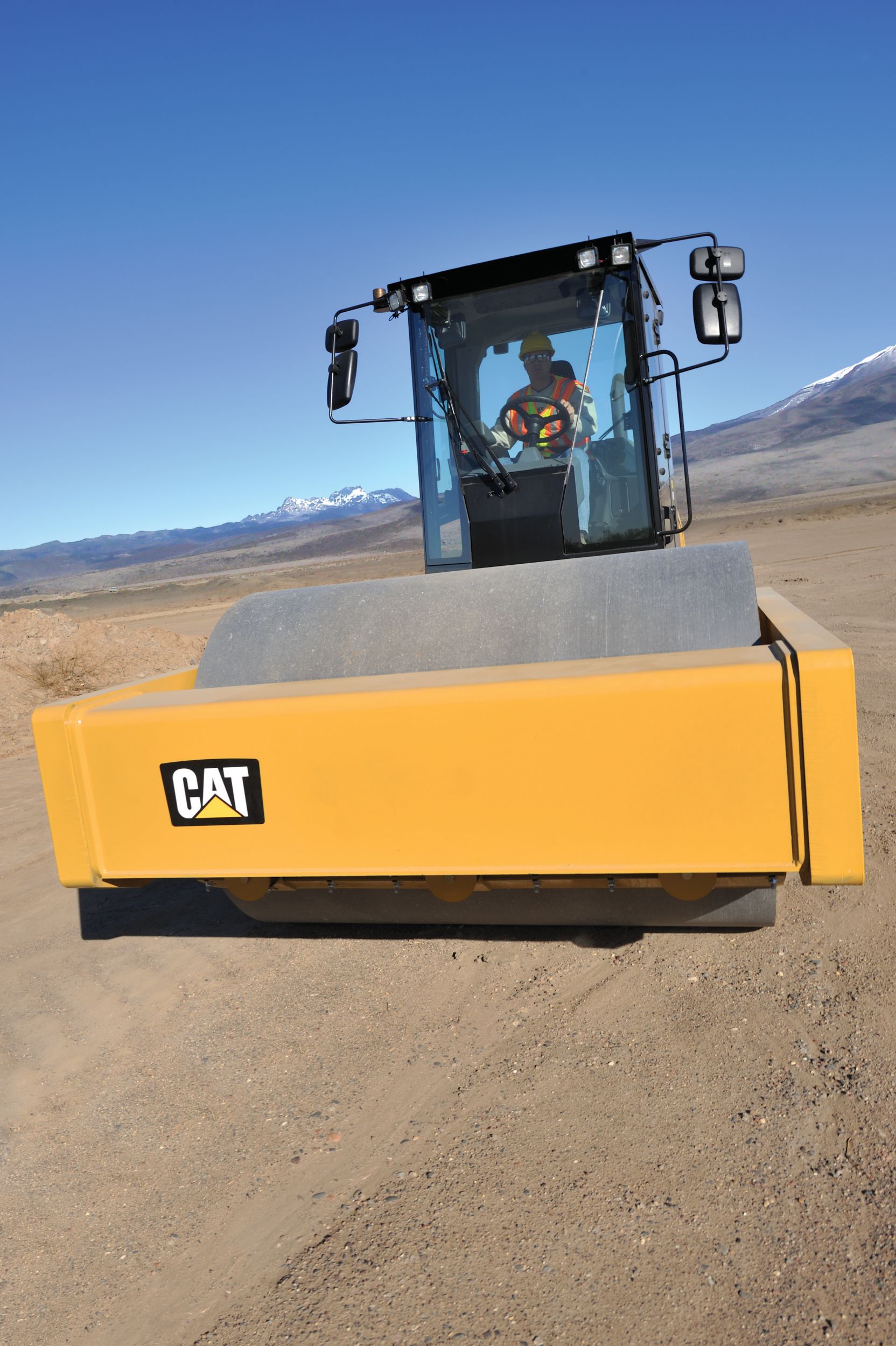

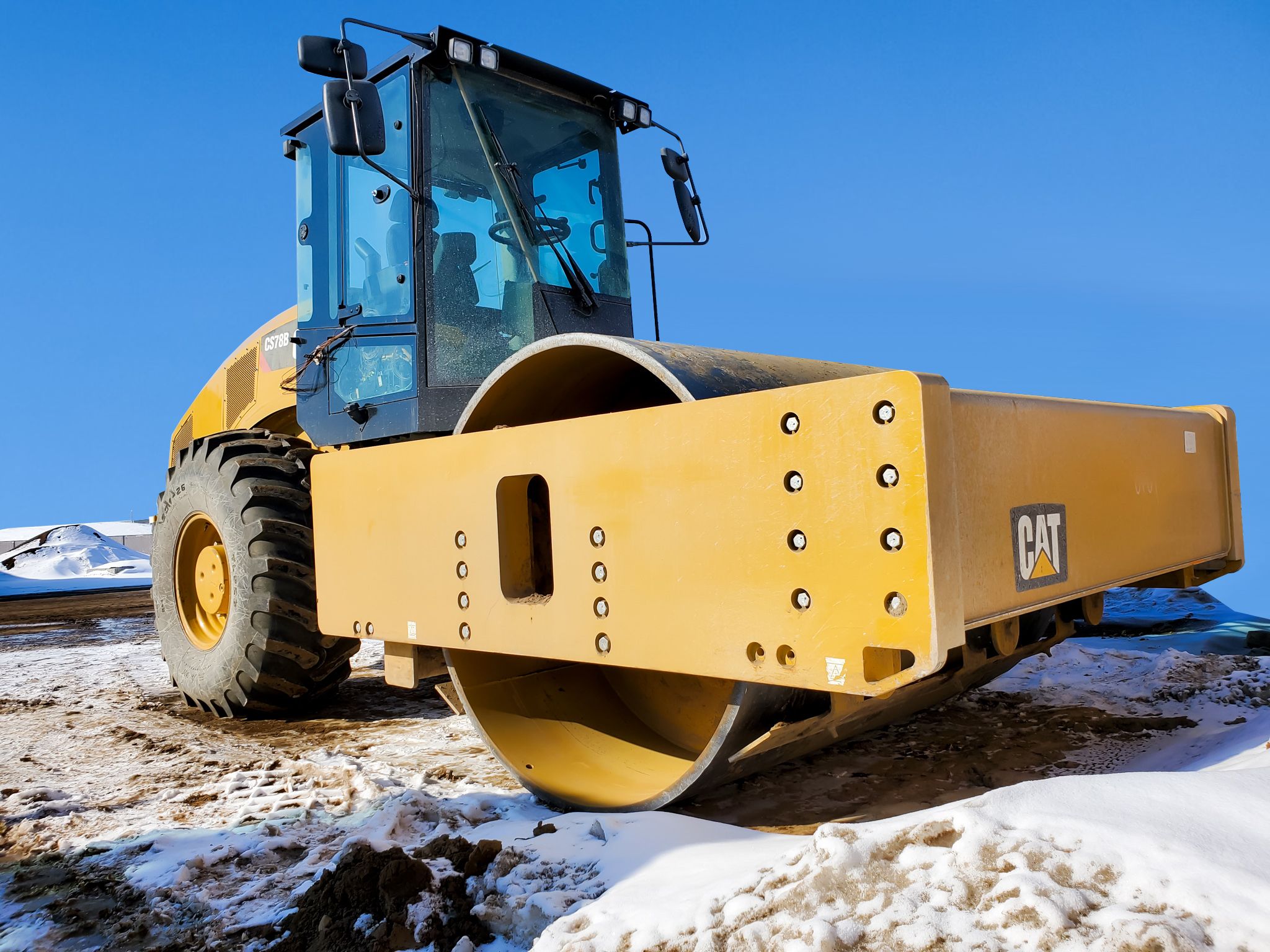

CS78B Vibratory Soil Compactor

CALCULATE FINANCE

Enhanced Vibratory System

Reliable Power Train

Comfortable Operator’s Environment

Cat Compaction Control Option

Easy to Service

Weights
Operating Weight - With Cab 18700 kg (41214 lb)
Weight - Drum with Cab 13440 kg (29626 lb)
Operating Specifications
Compaction Width 2134 mm (84 in)
Travel Speed - Maximum 11.4 km/h (7 mile/h)
Turning Radius - Inside Drum Edge 3.68 m (12.08 ft)
Ground Clearance 437 mm (17.2 in)
Static Linear Load - With Cab 63 kg/cm (352.7 lb/in)
Engine
Gross Power 129.5 kW (173.7 HP)
Engine Model Cat C4.4 with ACERT
Dimensions
Overall Length 6.13 m (20.08 ft)
Wheel Base 2.9 m (9.58 ft)
Height - With ROPS/FOPS or Cab 3.11 m (10.25 ft)
Drum Width 2134 mm (84 in)
Drum Diameter 1534 mm (60.4 in)
Overall Width 2.36 m (7.75 ft)
Vibratory System
Variable Frequency Option Range 23.3 - 28 Hz (1400-1680 vpm)
Centrifugal Force - Maximum 332 kN (74600 lb)
Centrifugal Force - Minimum 166 kN (37300 lb)
Nominal Amplitude - Low 0.98 mm (0.039 in)
Vibratory Frequency - Standard 28 Hz (1680 vpm)
Nominal Amplitude - High 2.1 mm (0.083 in)
Tires
Tires 23.1 x 26
Service Refill Capacities
Fuel Tank Capacity 332 l (88 gal (US))
