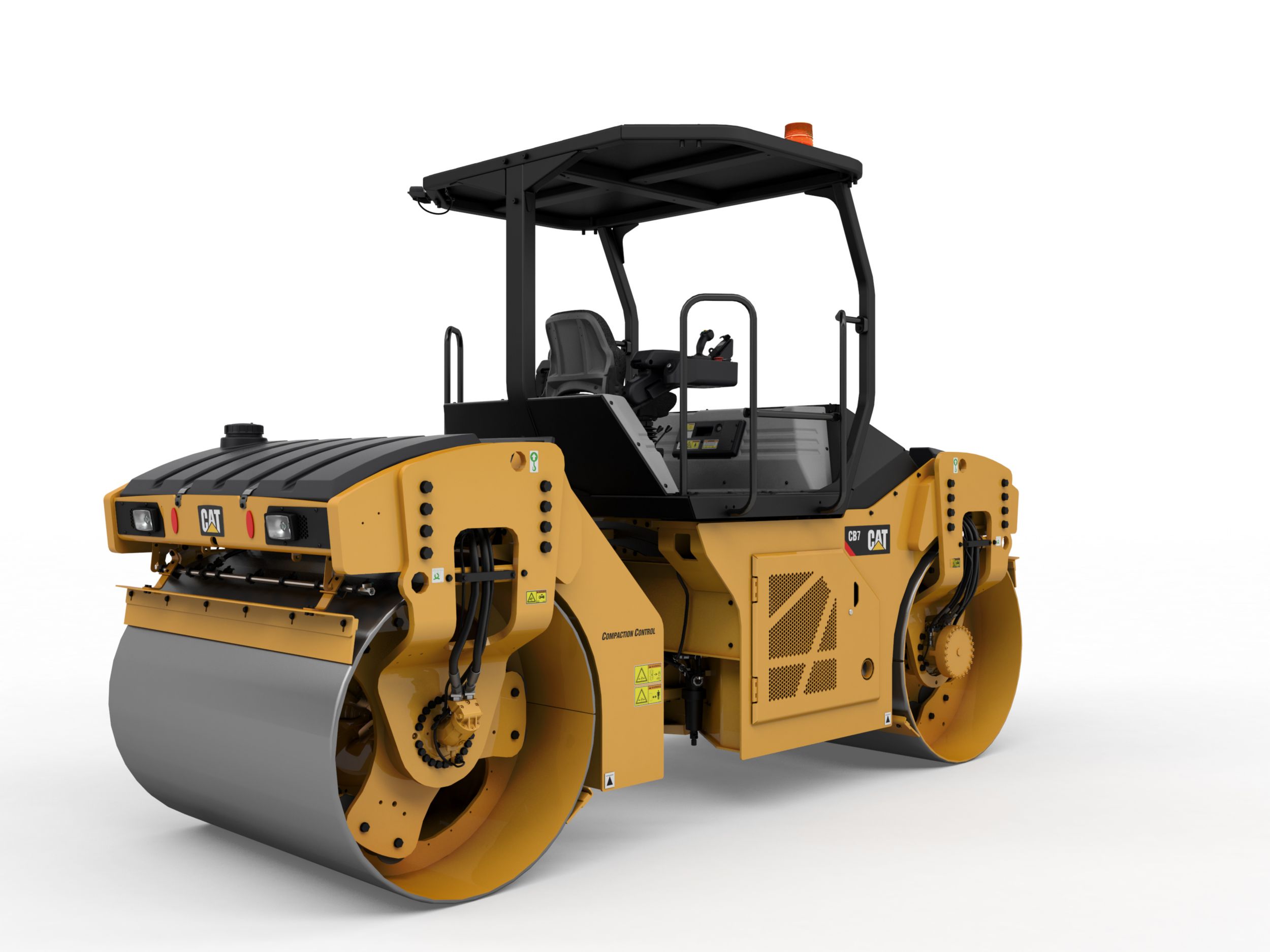

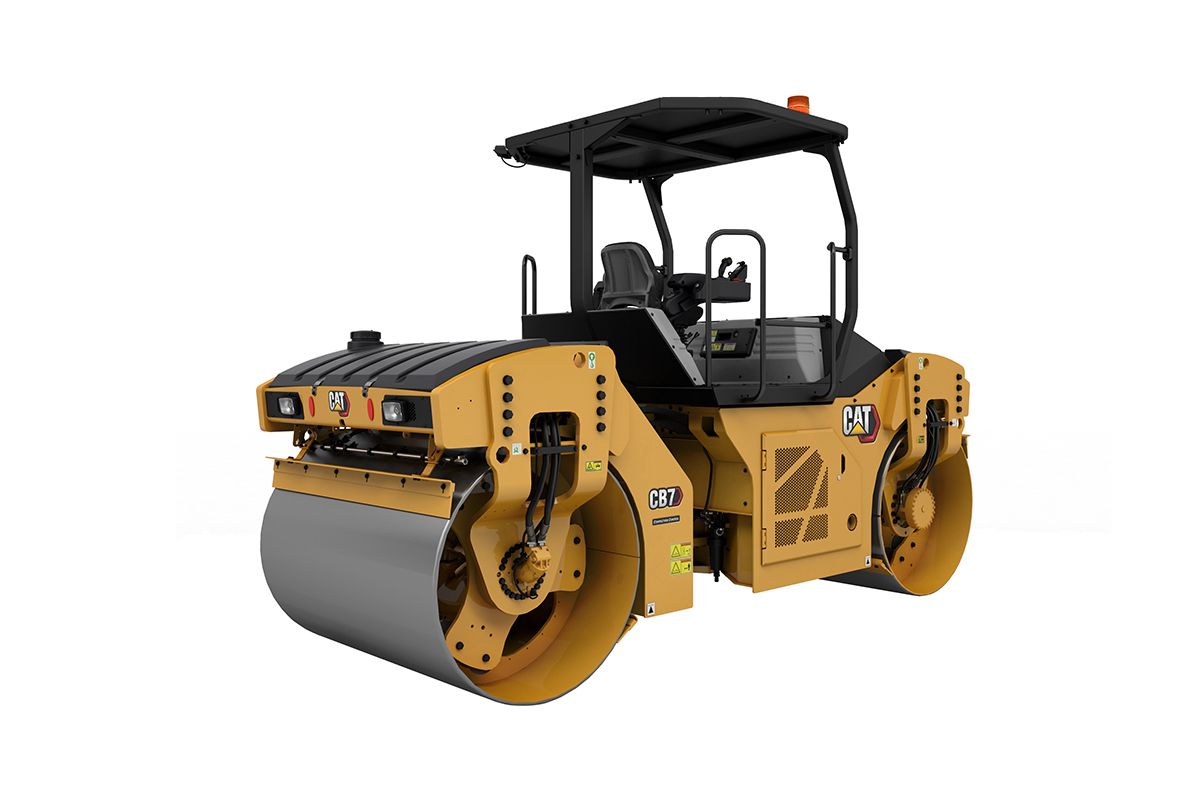

CB7 Tandem Vibratory Roller
- Exceptional Visibility and Control
- Vibratory System Choices
- Cat Compaction Control
- Smooth Operating Powertrain
| Weights | |
|---|---|
| Maximum Operating Weight with ROPS | 8720 kg (19224 lb) |
| Maximum Operating Weight with Cab | 8940 kg (19709 lb) |
| Standard Operating Weight with ROPS | 7990 kg (17615 lb) |
| Standard Operating Weight with Cab | 8190 kg (18056 lb) |
| Operating Specifications | |
|---|---|
| Standard Compaction Width | 1500 mm (59 in) |
| Maximum Compaction Width | 1670 mm (65 in) |
| Travel Speed - Maximum | 12 km/h (7.5 mile/h) |
| Static Linear Load | 26.9 kg/cm (151 lb/in) |
| Engine | |
|---|---|
| Gross Power | 82 kW (111.5 hp) |
| Engine Model | Cat C4.4 with ACERT Technology |
| Dimensions | |
|---|---|
| Overall Length | 4565 mm (179 in) |
| Wheel Base | 3300 mm (130 in) |
| Height - With ROPS/FOPS | 2980 mm (117 in) |
| Overall Width | 1670 mm (65 in) |
| Drum Diameter | 1108 mm (44 in) |
| Vibratory System | |
|---|---|
| Drum Width | 1500 mm (59 in) |
| Vibration Selection | Independent per drum, front only, rear only, both |
| Nominal Amplitude - High | 0.64 mm (0.026 in) |
| Nominal Amplitude - Low | 0.25 mm (0.01 in) |
| Centrifugal Force per Drum - Maximum | 76.9 kN (17288 lb) |
| Centrifugal Force per Drum - Minimum | 30.2 kN (6789 lb) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 208 l (55 gal (US)) |
| Water Spray Tank Capacity | 700 l (185 gal (US)) |
| Weights | |
|---|---|
| Operating Weight | 7990 kg (17615 lb) |
Optional Equipment
- 2-Amplitude, 2-Frequency Vibratory System
- 5-Amplitude Vibratory System
- Air Conditioning
- Air Suspension Seat w/heat
- Bio-Degradeable Oil
- Cat Compaction Control
- Chip Spreader Ready
- Compaction Meter Value
- Edge Cutter
- Freeze Protection Kit
- Halogen Lights
- High Ambient Cooling System
- High Intensity Discharge Lights
- LED Lighting
- Machine to Machine Communication
- Mirrors
- Offset Hitch
- Product Link
- Recording Module
- ROPS/FOPS Cab
- Roading Lights
- Temperature Gauge
- Water Distribution Mats
- Warning Beacon
