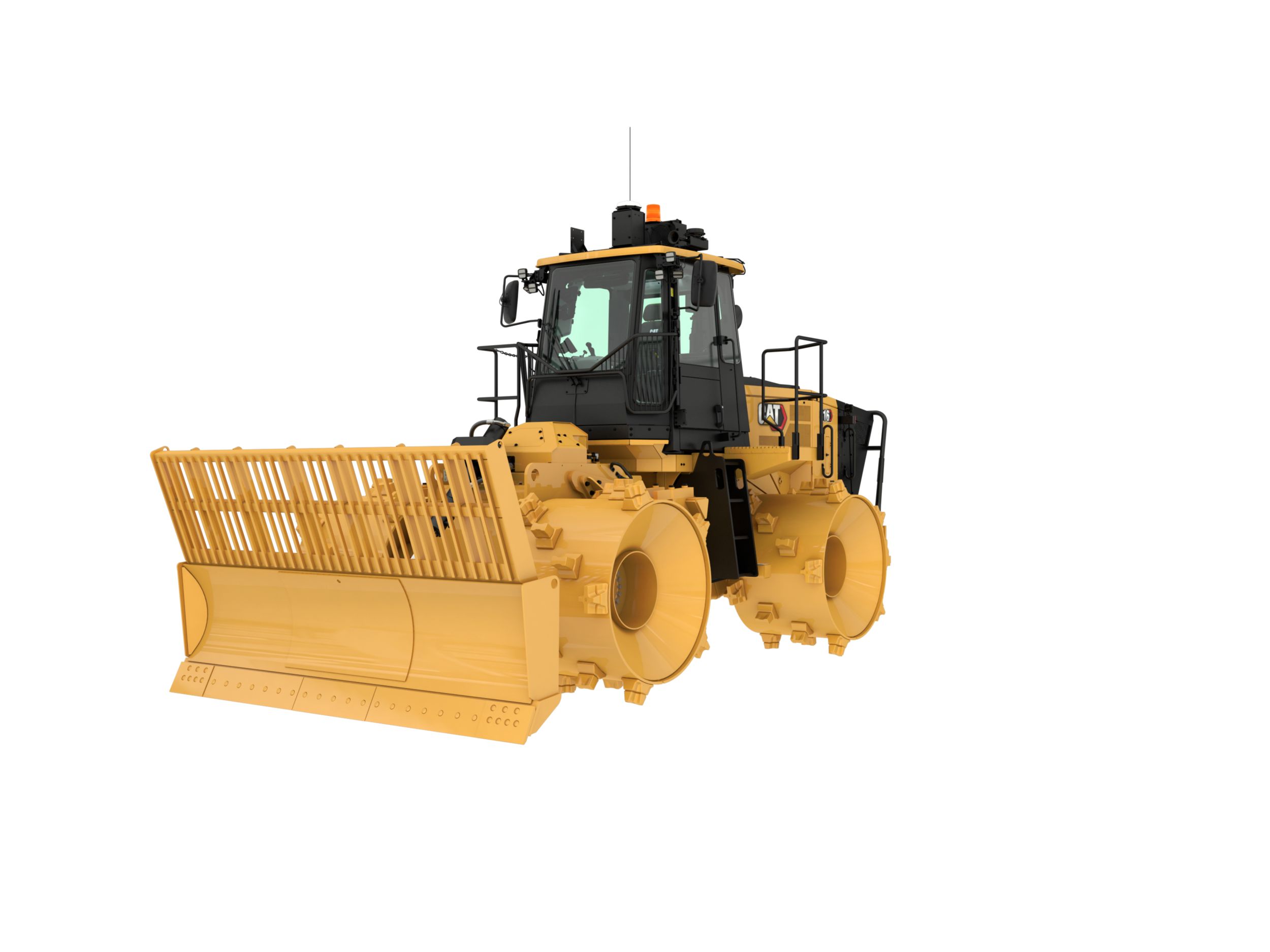

816 Landfill Compactor
Cat Landfill Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Introduced in 1972, the 816 has been the industry leader for over 50 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 816 continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.
OPERATOR COMFORT AND CONTROL
TOP-TIER SERVICE AND SUPPORT
POWERFUL EFFICIENCY
PRODUCTIVITY WITH TECHNOLOGY
WHEEL TIPS BUILT TO PERFORM
| Engine | |
|---|---|
| Gross Power - SAE J1995:2014 | 212 kW (284 hp) |
| Net Power - SAE J1349:2011 | 186 kW (249 hp) |
| Net Power - ISO 9249:2007 | 186 kW (249 hp) |
| Engine Power - ISO 14396:2002 | 205 kW (275 hp) |
| Engine Model | Cat® C7.1 |
| Emissions | Option 1 - U.S. EPA Tier 4 Final/EU Stage V/Korea Stage V and Japan 2014 |
| Rated Speed | 2200 |
| Peak Torque ( 1,400 rpm ) | 1223 N·m (902 lbf·ft) |
| Torque Rise | 52% |
| Note | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, aftertreatment, and alternator. |
| Emissions | Option 2 - Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA |
| Rated Speed | 2200 |
| Net Power - SAE J1349:2011 | 186 kW (249 hp) |
| Net Power - ISO 9249:2007 | 186 kW (249 hp) |
| Gross Power - SAE J1995:2014 | 213 kW (286 hp) |
| Engine Power - ISO 14396:2002 | 205 kW (275 hp) |
| Peak Torque ( 1,400 rpm ) | 1016 N·m (749 lbf·ft) |
| Torque Rise | 26% |
| Note | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, muffler, and alternator. |
| Bore | 105 mm (4.1 in) |
| Stroke | 135 mm (5.3 in) |
| Displacement | 7.01 l (427.8 inu00b3) |
| High Idle Speed | 2270 r/min (2270 r/min) |
| Low Idle Speed | 800 r/min (800 r/min) |
| Maximum Altitude - Without Derating | 3000 m (9842.5 ft) |
| Operating Specifications | |
|---|---|
| Operating Weight (Tier 4 Final/Stage V) | 26052 kg (57345 lb) |
| Operating Weight (Tier 3/Stage IIIA equivalent) | 25761 kg (56793 lb) |
| Transmission | |
|---|---|
| Transmission Type | Cat Planetary Power Shift |
| Travel Speeds - Forward - First | 6.7 km/h (3.4 mile/h) |
| Travel Speeds - Forward - Second | 12 km/h (5.3 mile/h) |
| Travel Speeds - Reverse - First | 7.7 km/h (3.7 mile/h) |
| Travel Speeds - Reverse - Second | 12 km/h (5.5 mile/h) |
| Hydraulic System - Lift/Tilt | |
|---|---|
| Lift/Tilt System - Circuit | Pilot operated LS valve with EH |
| Lift/Tilt System | Variable displacement piston |
| Maximum Flow at 2,200 rpm | 89 l/min (23.5 gal/min) |
| Relief Valve Setting - Lift/Tilt | 22000 kPa (3190 psi) |
| Cylinders, Double Acting: Lift, Bore, Stroke | 120 mm x 915 mm (4.7 in x 36.0) |
| Pilot System | Open center, fixed displacement gear |
| Pilot Relief Valve Setting | 21000 kPa (3046 psi) |
| Hydraulic System - Steering | |
|---|---|
| Steering System - Circuit | Pilot, Load Sensing |
| Steering System - Pump | Piston u2013 Variable Displacement |
| Maximum Flow at 2,200 rpm | 147 l/min (38.8 gal/min) |
| Relief Valve Setting - Steering | 27600 kPa (4003 psi) |
| Total Steering Angle | 84u00b0 |
| Steering Cycle Times - High Idle | 3 s (3 s) |
| Steering Cycle Times - Low Idle | 8.2 s (8.2 s) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 500 l (132.1 gal (US)) |
| Diesel Exhaust Fluid Tank | 16 l (4.2 gal (US)) |
| Cooling Systems - Tier 4 Final/EU Stage V | 81 l (21.4 gal (US)) |
| Cooling System - Tier 3/Stage IIIA Equivalent | 73 l (19.3 gal (US)) |
| Engine Crankcase | 20 l (5.3 gal (US)) |
| Transmission | 56 l (14.8 gal (US)) |
| Differential - Final Drives - Front | 43 l (11.4 gal (US)) |
| Differential - Final Drives - Rear | 43 l (11.4 gal (US)) |
| Hydraulic System - Implement/Steering | 175 l (46.2 gal (US)) |
| Hydraulic Tank Only | 75 l (19.8 gal (US)) |
| Note | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: u2022 20% biodiesel FAME (fatty acid methyl ester) * u2022 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or u201cCaterpillar Machine Fluids Recommendationsu201d (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. u2013 Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. u2013 Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.4 kg (3.1 lb) of refrigerant which has a CO2 equivalent of 2.002 metric tonnes (2.206 tons). |
| Axles | |
|---|---|
| Front | Planetary u2013 Fixed |
| Rear | Planetary u2013 Oscillating |
| Oscillation Angle | u00b16u00b0 |
| Braking System | |
|---|---|
| Service Brakes | Single Disc Wet (Enclosed) 2 WHL |
| Parking Brake | Drum and Shoe, Spring Applied, Hydraulic Released |
| Sound Performance - Tier 4 Final / Stage V | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008) | 111 dB(A) (111 dB(A)) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 70 dB(A) (70 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008)* | 109 dB(A) (109 dB(A)) |
| Note (1) | * Sound suppression equipped |
| Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at maximum engine cooling fan speed. |
| Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at maximum engine cooling fan speed. |
| Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Sound Performance - Tier 3 / Stage IIIA | |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) (72 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008) | 112 dB(A) (112 dB(A)) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 70 dB(A) (70 dB(A)) |
| Machine Sound Power Level (ISO 6395:2008)* | 110 dB(A) (110 dB(A)) |
| Note (1) | * Sound suppression equipped |
| Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at maximum engine cooling fan speed. |
| Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at maximum engine cooling fan speed. |
| Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Straight Blade | |
|---|---|
| Capacity | 10 mu00b3 (13.08 ydu00b3) |
| Overall Width | 3656 mm (12 ft) |
| Height | 1961 mm (6.4 ft) |
| Height of Cutting Edge | 990 mm (3.2 ft) |
| Digging Depth | 362 mm (1.2 ft) |
| Ground Clearance | 1140 mm (3.7 ft) |
| Turning Radius u2013 Outside Corner of Blade | 6473 mm (21.2 ft) |
| Turning Radius - Inside Corner of Blade | 2910 mm (9.5 ft) |
| Weight | 2063 kg (4548 lb) |
| Total Operating Weight | 26052 kg (57345 lb) |
| Wheels | |
|---|---|
| Combination Tips (Weight Group) | 6148 kg (13554 lb) |
| Plus Tips - Weight (Group) | 6342 kg (13982 lb) |
| Paddle Tips - Weight (Group) | 5954 kg (13126 lb) |
| Outside Diameter | 1717 mm (67.6 in) |
| Drum Diameter | 1400 mm (55.1 in) |
| Drum Width | 1016 mm (40 in) |
| Tips per Row | 5 |
| Tips per Wheel | 20 |
| Replaceable | Weld On |
| Width Over Drums | 3338 mm (131.4 in) |
| Tip Height | 159 mm (6.25 in) |
| Dimensions (Approximate) | |
|---|---|
| Height - Top of Beacon | 4368 mm (14.3 ft) |
| Height to Top of Air Conditioning Condenser | 4161 mm (13.7 ft) |
| Height - Cab Roof | 3878 mm (12.7 ft) |
| Height - Top of Exhaust Pipe | 3547 mm (11.6 ft) |
| Height - Top of Hood | 2770 mm (9.1 ft) |
| Height to Top of Rear Compactor Guard | 2499 mm (8.2 ft) |
| Ground Clearance to Hitch | 519 mm (1.7 ft) |
| Ground Clearance to Bottom of Bumper | 818 mm (2.7 ft) |
| Centerline of Rear Axle to Bumper | 1990 mm (6.5 ft) |
| Centerline of Rear Axle to Rear Compactor Guard | 2614 mm (8.6 ft) |
| Hitch to Centerline of Front Axle | 1675 mm (5.5 ft) |
| Wheel Base | 3350 mm (11 ft) |
| Width over Front Striker Bars | 3000 mm (9.8 ft) |
| Width over Rear Striker Bars | 3036 mm (10 ft) |
| Width over Platform | 3140 mm (10.3 ft) |
| Width over Drums | 3338 mm (11 ft) |
| Overall Machine Length with Straight Blade | 7806 mm (25.6 ft) |
| Ground Clearance to Transmission Guard | 516 mm (1.7 ft) |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- POWERTRAIN
- Advanced Productivity Electronic Control Shifting (APECS)
- Air-to-air aftercooler
- Brakes, full hydraulic, enclosed, wet multiple disc service brakes
- Cat clean emission module (U.S. EPA Tier 4 Final/EU Stage V only)
- Electro-hydraulic parking brake
- Electronic Clutch Pressure Control (ECPC)
- Engine, Cat C7.1 (configured for two emissions options): – Tier 4 Final/Stage V or emitting equivalent to Tier 3/Stage IIIA
- Engine driven cooling fan (suction)
- Fuel priming pump (electric)
- Fuel-to-air cooler
- Ground level engine shutdown
- Muffler (under hood) (Tier 3/Stage IIIA equivalent only)
- Radiator, unit core
- Starting aid (ether)
- Throttle lock
- Transmission, planetary with 2F/2R speed range control
- Torque converter
- ELECTRICAL
- Alarm, back-up
- Alternator (150 amp)
- Batteries, maintenance free
- Electrical system (24 volt)
- Ground level lockable master disconnect switch
- Light, warning unswitched (LED strobe)
- Lighting system (front and rear)
- Starter, electric
- Auxiliary start receptacle
- OPERATOR ENVIRONMENT
- 12-volt power port for mobile phone or laptop connection
- Air conditioner with roof-mounted condenser
- Cab, sound-suppressed pressurized
- Camera, rear vision
- Coat and hard hat hooks
- Fingertip shifting controls
- Flip-up armrest
- Heater and defroster
- Electro-hydraulic controls, floor mounted
- Implement hydraulic lockout
- Instrumentation, gauges:
- DEF fluid level (Tier 4 Final/Stage V only)
- engine coolant temperature
- fuel level
- hydraulic oil temperature
- speedometer/tachometer
- torque convertor temperature
- Instrumentation, warning indicators:
- action alert system, three categories
- brake oil pressure
- electrical system, low voltage
- engine failure malfunction alert and action lamp
- parking brake status
- Internal four-post rollover protective structure (ROPS/FOPS)
- Light, (dome) cab
- Lunchbox and beverage holders
- Mirror, internal (panoramic)
- Mirrors, heated rearview (externally mounted)
- Radio, CB (ready)
- Radio ready for entertainment:
- antenna
- speakers
- converter (12-volt 10-15 amp)
- Seat belt with minder, retractable, 76 mm (3″) wide
- Steering and Transmission Integrated Control (STIC™) system with lockout
- Sun visor, front
- Transmission gear (indicator)
- Vital Information Management System (VIMS™):
- graphical information display
- external data port
- customisable operator profiles
- event indicator light on rear grill
- Wet-arm wipers/washers (front and rear):
- intermittent wipers (front and rear)
- Premium plus seat containing forced air heating and cooling, 2-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness adjustment, dynamic end dampening, and leather finish
- Cab glass, laminated and tinted, rubber mounted
- Horn group (trumpet)
- Mirrors – cab: Standard or heated
- Precleaner, cab powered
- Seat – cab: Standard or heated and ventilated
- GUARDS
- Guard, radiator
- Guards, axle (front and rear)
- Guard, cab window
- Guards, crankcase and power train, hinged
- Guard, driveshaft
- FLUIDS
- Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
- OTHER STANDARD EQUIPMENT
- Doors, service access (locking)
- Ecology drains for engine, radiator, transmission, hydraulic tank
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Emergency exit
- Fire suppression ready
- Fuel tank, 500 L (132.1 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, engine, and transmission oil coolers
- Oil change system, high speed
- Oil sampling valves
- Steering, load sensing
- Total hydraulic filtration system
- Vandalism protection caplocks
- Venturi stack
- SPECIAL ARRANGEMENTS
- Engine precleaners: – Turbine or dual stage
- BLADES
- Dozer Arrangement – Standard (No Blade)
- Dozer Arrangement – Straight Blade
- Dozer Arrangement (No Blade)
- TECHNOLOGY PRODUCTS
- Product Link: cellular, satellite
- WHEELS AND CLEANER BARS
- Striker bars
- Wheels and tips:
- Wheel arrangement (6.25″ plus tip)
- Wheel arrangement (6.25″ paddle tip)
- Wheel arrangement (6.25″ combination tips)
- Wheels
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- FLUIDS
- Antifreeze, –50° C (–58° F)
- SPECIAL ARRANGEMENTS
- Engine: Sound suppression
- POWERTRAIN
- Heater, engine coolant, 120V
- Heater, engine coolant, 240V
- Axles, no spin front, rear differential
- Axles, no spin front, open differential rear
- Axles, open differential front, no spin rear
- MISCELLANEOUS
- Film (ANSI) (Tier 4 Final/Stage V only)
- CE/UKCA Certification (standard where regulations require it)
- Plate: year of manufacture
- OPERATOR ENVIRONMENT
- Radio, AM/FM/Aux/USB/Bluetooth®
- Cat Compact RTK Mapping (available throught SITECH only)
- Cat Compact SBAS Mapping (available through SITECH only)
- Lights, standard or LED
- BLADES
- Bulldozer Blades
- WHEELS AND CLEANER BARS
- Bar group: cleaner (cleaner fingers and striker bar)
