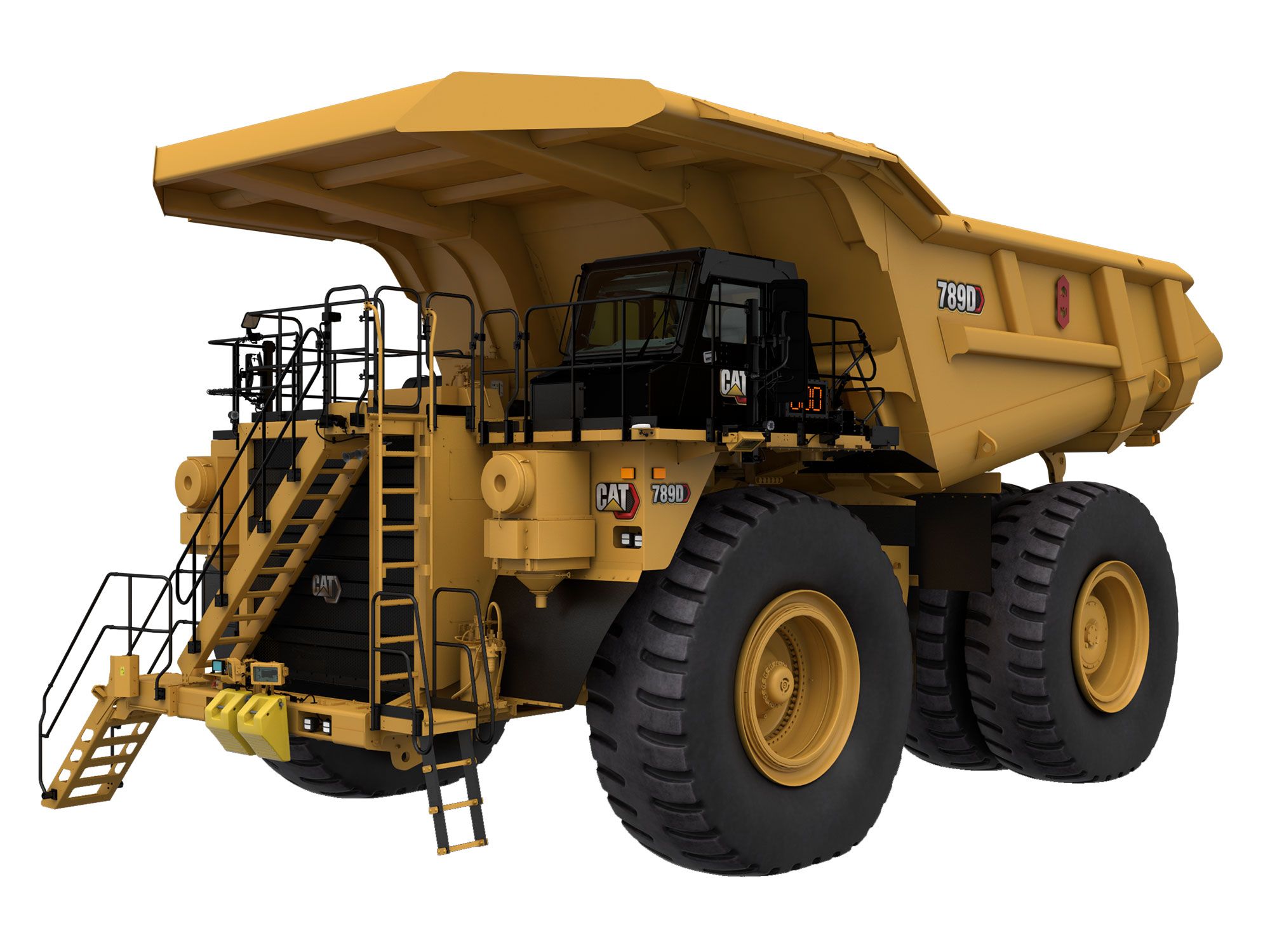

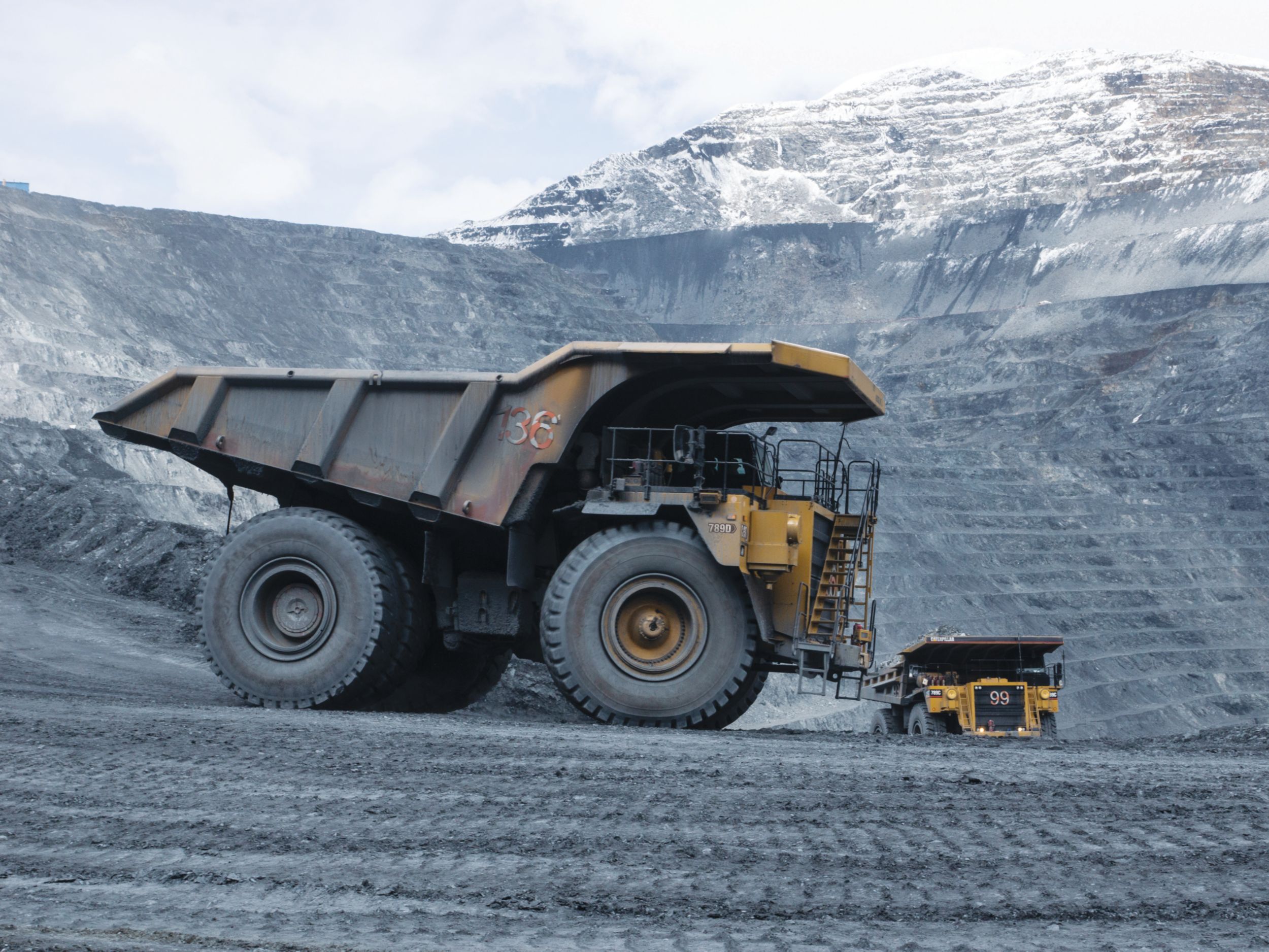

789D Mining Truck

  • Overview
  • Finance With CavPower
  • Optional Services
  • View product Download
CALCULATE FINANCE

Safety

Performance

Integration

Sustainability

Operating Cost

Technology Solutions

Truck Body Systems

Serviceability

Engine
Gross Power - SAE J1995 1566 kW (2100 HP)
Engine Model Cat® 3516C HD
Rated Net Power - ISO 9249 1468 kW (1969 HP)
Bore 170 mm (6.7 in)
Stroke 210 mm (8.3 in)
Displacement 78.1 l (4766 inu00b3)
Net Power 1468 kW (1969 HP)
Gross Power 1566 kW (2100 HP)
Optional Engine
Engine Model Cat® 3516B EUI
Gross Power 1417 kW (1900 HP)
Rated Net Power - ISO 9249 1335 kW (1791 HP)
Bore 170 mm (6.7 in)
Stroke 190 mm (7.5 in)
Displacement 69 l (4211 inu00b3)
Weights - Approximate
Rated Gross Machine Weight 324319 kg (715000 lb)
Body - Dual Slope
Body Weight 27526 kg (60684 lb)
Weights - Approximate
Chassis Weight 99129 kg (218542 lb)
Nominal Rated Payload 194 t (214 ton (US))
Operating Specifications
Standard MSD Body (SAE 2:1) 130 mu00b3 (170 ydu00b3)
Standard X Body (SAE 2:1) 123 mu00b3 (161 ydu00b3)
Standard Dual Slope Body (SAE 2:1) 108 mu00b3 (141 ydu00b3)
Standard Combi Body (SAE 2:1) 153 mu00b3 (200 ydu00b3)
Standard Gateless Coal Body (SAE 2:1) 191 mu00b3 (250 ydu00b3)
Transmission
Forward - 1 12.6 km/h (7.8 mile/h)
Forward - 2 17.1 km/h (10.6 mile/h)
Forward - 3 23.1 km/h (14.4 mile/h)
Forward - 4 31.2 km/h (19.4 mile/h)
Forward - 5 42.3 km/h (26.3 mile/h)
Forward - 6 57.2 km/h (35.5 mile/h)
Reverse 11.8 km/h (7.3 mile/h)
Top Speed - Loaded 57.2 km/h (35.5 mile/h)
Final Drives
Differential Ratio 2.35:1
Planetary Ratio 10.83:1
Total Reduction Ratio 25.46:1
Suspension
Effective Cylinder Stroke - Front 105 mm (4 in)
Effective Cylinder Stroke - Rear 93 mm (3.5 in)
Rear axle - Oscillation u00b15.6u00b0
Brakes
Brake Surface - Front 81693 cmu00b2 (12662 inu00b2)
Brake Surface - Rear 116283 cmu00b2 (18024 inu00b2)
Standards SAE J1473 OCT90 ISO 3450:1996
Body Hoists
Pump Flow - High Idle 731 l/min (193 gal/min)
Relief Valve Setting - Raise 17238 kPa (2500 psi)
Body Raise Time - High Idle 18.9 s (18.9 s)
High Idle Body Lower Time - Float 17.3 s (17.3 s)
High Idle Body Lower Time - Power 15.6 s (15.6 s)
Weight Distributions - Approximate
Front Axle - Empty 46 % (46 %)
Rear Axle - Empty 54 % (54 %)
Front Axle - Loaded 33 % (33 %)
Rear Axle - Loaded 67 % (67 %)
Note Weight distributions optimized with Cat body.
Tires
Standard Tires 37.00-R57
Optional Tires 40.00-R57
Service Refill Capacities
Fuel Tank - Standard 2082 l (550 gal (US))
Fuel Tank - Optional 3785 l (1000 gal (US))
Cooling System 725 l (192 gal (US))
Crankcase 291 l (77 gal (US))
Differential - Final Drives 583 l (154 gal (US))
Steering System 189 l (50 gal (US))
Brake Hoist System 909 l (241 gal (US))
Transmission Tank 76 l (20 gal (US))
ROPS
ROPS Standards Standards
Sound
Sound Standards Standards
Steering
Steering Standards SAE J1511 OCT90 ISO 5010:1992
Steering Angle 36.07 u00b0 (36.07 u00b0)
Turning Diameter -u00a0Front Wheel 27.53 m (90.32 ft)
Vehicle Clearance - Turn Circle 30.23 m (99.18 ft)

Standard Equipment

  • POWER TRAIN
    • Diesel engine/turbocharged/aftercooled:
      –Ground level engine shutdown
      –Ether starting aid (automatic
      – Aftercooler (separate circuit or air to air)
      – Elevated low idle control
      – Automatic starter protection
      – Multi-point all pressure sensing
    • Braking system:
      –Brake release motor (towing)
      – Oil-cooled, multi-disc (front and rear)
      – (service retarding, parking, secondary)
      – Automatic Retarder Control
      – Engine overspeed protection
      – Extended life brake disc material
    • Transmission:
      – 6-speed, automatic powershift with electronic control (TCC)
      – Controlled throttle shifting; Individual clutch modulation
      – Body-up shift inhibitor
      – Directional shift management
      – Downshift/reverse shift inhibitor
      – Oil level sensor
      – Neutral start switch/coast inhibitor
      – Body-up reverse neutralizer
      – Programmable top gear
      – Lock-up torque converter
      – Rear axle continuous lubrication/filtration
  • ELECTRICAL
    • Alarm, backup
    • Alternator, 105 amp
    • Batteries, 12V (2), 93 amp-hour
    • Converter, 12V electrical
    • Electrical system, 24V, 15 amp
    • Lighting system:
      – Backup and hazard lights; Auxiliary work lights (2) rear, (1) RH side, (1) LH side; Directional signals (front and rear LED)
      – Engine compartment lights
      – External payload lights
      – Headlights with lo-hi beam selector
      – Ladder light and service deck lights
      – Left-hand ladder/service deck
      – Stop/tail lights (LED)
      – VIMS, blue light (LED)
  • OPERATOR ENVIRONMENT
    • STANDARD CAB:
      – Operator seat
      –Non-suspension trainer seat
      – Flip down front visor
      – Standard side of cab access
    • DELUXE CAB:
      – Heated and ventilated operator seat
      – Suspension trainer seat
      – Retractable front visor
      – Rear of cab access and standard side of cab access
      – Vacuum, cab clean-out
      – Operator Footrest
    • DELUXE COLD WEATHER CAB:
      – Heated and ventilated operator seat
      – Suspension trainer seat
      – Retractable front visor
      – Rear of cab access and standard side of cab access
      – Vacuum
      –cab clean-out
      –Operator Footrest
      – Deluxe Diffuser
    • Air conditioner
    • Auxiliary power connection/cigarette lighter
    • Diagnostic connection port
    • Dome courtesy light
    • Entertainment Radio Ready:

      5 amp converter, Speakers, Antenna wiring

    • Gauges/indicators:

      Air cleaner service indicator; Quad gauge panel: Air pressure, Brake oil temperature, Engine coolant temperature, Fuel level

    • Electric hour meter
    • Electric engine control fault indicator
    • Engine idle shutdown
    • Mirrors, right and left
    • Speedometer
    • Tachometer
    • Transmission gear indicator
    • VIMS message center with universal gauge
    • VIMS keypad
    • Heater/defroster (11 070 kCal/43,930 BTU)
    • Horn
    • Hoist, body control (electric)
    • Integrated object detection system
    • ROPS cab, insulated/sound suppressed
    • Seatbelt, operator, 75 mm/3″ wide
    • Seatbelt, trainer, two points
    • Stairway and walkway access, 600 mm (24 in)
    • Steering wheel, tilt, padded, telescopic
    • Window, operator, electric powered
    • Windshield wiper, intermittent control and washer
  • FLUIDS
    • Extended Life Coolant to -35° C (-30° F)
  • OTHER STANDARD EQUIPMENT
    • Air line dryer
    • Auto lubrication system
    • Auxiliary “buddy” dumping quick connect
    • Auxiliary steering quick connect (towing)
    • Body mounting group
    • Center mounted rims (6) (29×57) (used for 37.00-R57 tires)
    • Driveline guard (fully enclosed)
    • Fast fill fuel system
    • Ground level VIMS data port
    • Ground level battery disconnect
    • Rock ejectors
    • Supplemental steering (automatic)
    • Tie off points
    • Tow hooks (front)
    • Tow pin (rear)
    • Traction Control System
    • Vital Information Management System

Optional Equipment

  • BODY
    • Dual slope body: Body, dual slope, 109 m3 (142 yd3)
    • Dual slope body attachments:
      – Extensions, 457 mm (18″), side, DS, 123 m3 (161 yd3)
      – Extension, wraparound tail, DS
      – Liner, entire body, DS
      – Liner, wraparound, DS, 450 BHN
      – Rock deflector, rear tire, DS
    • X body: Body, X, 123 m3 (161 yd3)
    • X body attachments:

      Extensions, side, X, 185 mm (7″), 131 m3 (171 yd3); Extensions, side, X, 385 mm (15″), 138 m3 (181 yd3)

    • MSD II body: Body, MSD II, 130 m3 (170 yd3)
    • MSD II body attachments:
      – Extensions, side, MSD II, 141 m3 (185 yd3)
      – Extensions, side, MSD II, 153 m3 (200 yd3)
    • Combination body: Body, combi, 153 m3 (200 yd3)
    • Combination body attachments: Extensions, side, combi, 195 m3 (255 yd3)
    • Gateless coal body: Body, gateless coal, 191 m3 (250 yd3)
    • Gateless coal body attachments:
      Extensions, side, coal, 214 m3 (280 yd3);
      Extensions, side, coal, 237 m3 (310 yd3)
    • Body lighting group – rear:
      – Directional signals (LED)
      – Stop/tail lights (LED)
  • ELECTRICAL
    • Lockout transmission, ground level
    • Auxiliary work lights (1) RH side, (1) LH side
  • POWER TRAIN
    • Prelube, engine
    • Oil renewal system
  • FILTRATION CONFIGURATIONS
    • Rear axle, cooler
  • OTHER ATTACHMENTS
    • Information management: Control, road analysis (RAC)
    • Cold weather:
      Brake oil, recirculating; Cold weather start
    • Service center:
      – Service, 3516B, standard volume
      – Service, 3516B, large volume
      – Service, 3516C, standard volume
      – Service, 3516C, large volume
      – Service, engine oil, standard
    • Miscellaneous:
      – Fire extinguisher, portable
      – Hub odometer, kilometers
      – Wheel chocks
      – Gauge, brake wear indicator
  • ANTIFREEZE
    • Coolant, -50° C (-58° F)
