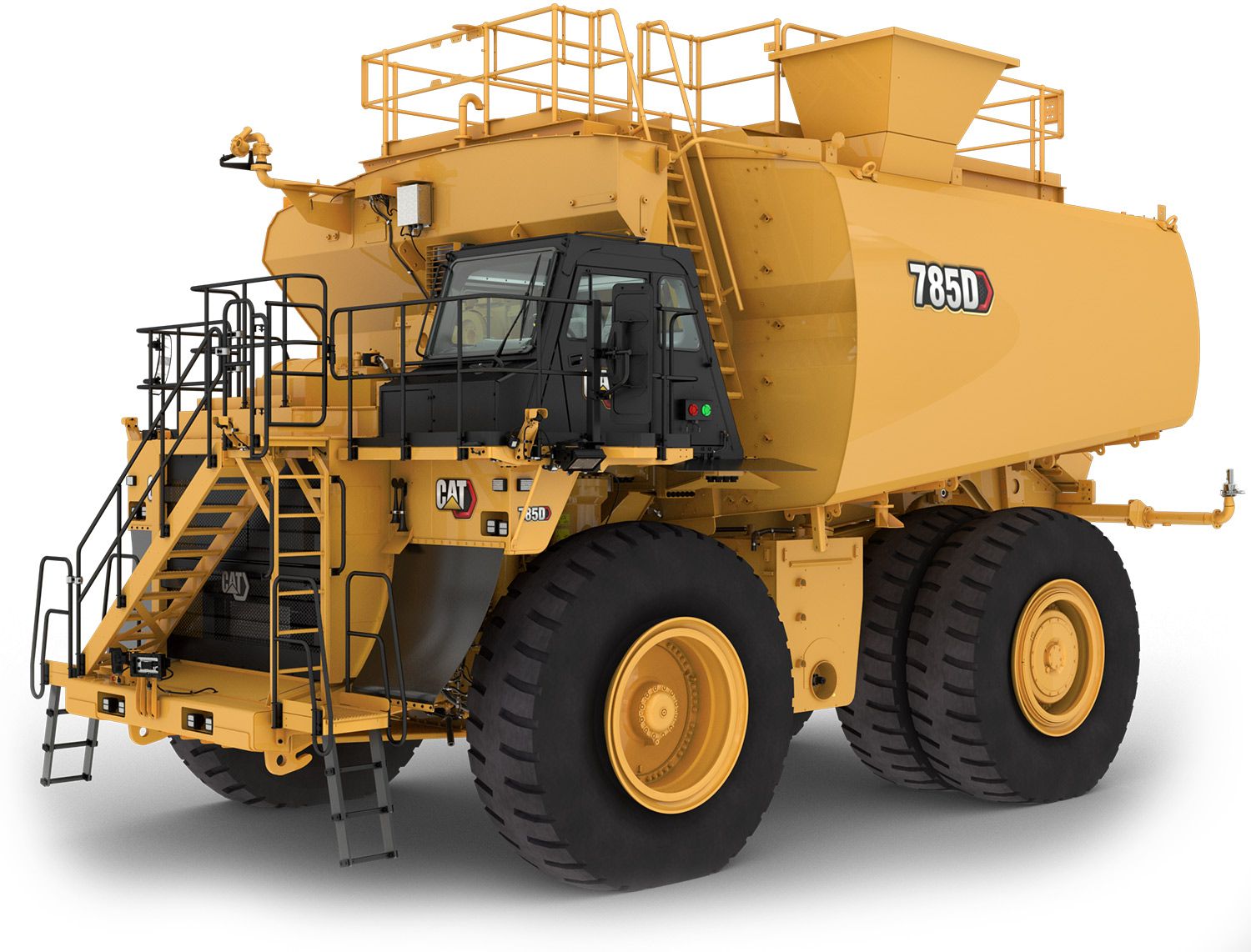

785D Off-Highway Water Truck
ENHANCED SITE SAFETY
COMFORTABLE CAB
OPTIMIZED PRODUCTIVITY
EFFICIENCY & SUSTAINABILITY
DO MORE WITH LESS FUEL
SCALABLE CONNECTIVITY
SERVICEABILITY
INTEGRATION & SUPPORT
| Engine | |
|---|---|
| Engine Model | Cat® 3512C HD-EUI |
| Gross Power - SAE J1995:2014 | 1082 kW (1450 hp) |
| Emissions | Fuel Optimized |
| Bore | 170 mm (6.7 in) |
| Stroke | 215 mm (8.4 in) |
| Displacement | 58.56 l (3573.6 inu00b3) |
| Note (1) | Net Power advertised is the power available at the flywheel whennthe engine is equipped with fan, air cleaner, muffler, and alternatornwith engine speed at 1,800 rpm. |
| Cat Water Delivery System (WDS) | |
|---|---|
| Maximum water flow | 6814 L/min (1800 gal(US)/min) |
| Water per spray head (minimum) | 132.5 L/min (35 gal(US)/min) |
| Water per spray head (maximum) | 2270 L/min (600 gal(US)/min) |
| Spray head opening range (minimum) | 1 mm (0.04 in) |
| Spray head opening range (maximum) | 19 mm (0.75 in) |
| Maximum size debris flushed through spray head | 19 mm (0.75 in) |
| Spray system hydraulic tank capacity | 27.5 l (7.25 gal (US)) |
| Maximum number of rear spray heads | 5 |
| Minimum number of rear spray heads (recommended 3) | 2 |
| Minimum number of front/side spray heads | 2 |
| Maximum number of front/side spray heads | 0 |
| Maximum water from cannon (idle) | 2271 L/min (600 gal(US)/min) |
| Maximum water from cannon (high idle) | 6246 L/min (1650 gal(US)/min) |
| Maximum cannon spray distance | 61 m (200 ft) |
| Type | Wet water pump/hydraulic motor coupling |
| Note | Operator selectable coverage: 0.2 - 0.8 L/mu00b2 (4 kph - 40 kph) / 0.05 - 0.2 gal/ftu00b2 (3 mph - 25 mph). Coverage rates above 0.6 L/mu00b2 may not be available at higher speeds depending on head count and configuration. |
| Note (1) | Spray head opening is automatically controlled by the system to achieve Auto Mode Coverage or manual mode flow rate. |
| Note (2) | The Auto Mode setting controls water coverage and automatically adjusts to the number of spray heads being used u2014 independent of ground speed. This is an exclusive feature designed into the Cat WDS software to help water more efficiently. Water flow is continually adjusted during operation to conserve water and achieve desired coverage and flow rate. |
| Note (3) | Alternatively, manual mode allows the operator to set a water flow rate that is constant regardless of ground speed. This mode is not recommended for daily operation and will reduce watering efficiency and may increase fuel usage. |
| Note (4) | Spray heads on competitive water distribution systems require tools and maintenance to change flow and spray pattern. Caterpillar is the only company to have variable active spray heads to regulate water spray. |
| Note (5) | Cannon performance depends on nozzle orifice and pipe size. |
| Tank Configurations | |
|---|---|
| Water Tank Capacity | up to 121 133 L (32,000 gal) |
| Note | Multiple tank configurations are offered based on customer preference and regional locations. Water Tank Capacity Range: 110 000 - 121 133 L (29,059 - 32,000 gal) |
| Operating Specifications | |
|---|---|
| Note | Water Tank Capacity Range: 110 000 - 121 133 L (29,059 - 32,000 gal) |
| Tank Configurations | |
|---|---|
| Machine Weight (with water tank full) | 480,655 lb - 520,237 lb / 218 022 kg - 235 976 kg |
| Empty Machine Operating Weight (without water / with fuel) | 241,647 lb - 251,098 lb / 109 610 kg - 113 896 kg |
| Water Tank - Max Empty Weight (no WDS) | 57,320 lb - 66,769 lb / 26 000 kg - 30 286 kg |
| Note (1) | Water tanks are offered by local 3rd party providers with customization based on water application and regional customer requirements. Hoist cylinder mounting on all tank offerings enhances serviceability. |
| Note (2) | Number of spray heads can be customized based on customer needs and preferred watering techniques. Option for 3 - 5 spray heads mounted on the back of the water tank. Additional option for spray heads on each side of the water tank. |
| Operating Specifications | |
|---|---|
| Note (2) | Operator selectable coverage: 0.2 - 0.8 L/mu00b2 (4 kph - 40 kph) / 0.05 - 0.2 gal/ftu00b2 (3 mph - 25 mph) |
| Weights - Approximate | |
|---|---|
| Target Gross Machine Weight | 249476 kg (550000 lb) |
| Chassis Weight | 82022 kg (180827 lb) |
| Transmission | |
|---|---|
| Forward - 1 | 12.1 km/h (7.5 mile/h) |
| Forward - 2 | 16.3 km/h (10.2 mile/h) |
| Forward - 3 | 22.2 km/h (13.8 mile/h) |
| Forward - 4 | 29.9 km/h (18.6 mile/h) |
| Forward - 5 | 40.6 km/h (25.2 mile/h) |
| Forward - 6 | 54.8 km/h (34 mile/h) |
| Reverse | 11 km/h (6.8 mile/h) |
| Note | Maximum travel speeds with standard 33.00-R51 tires. |
| Final Drives | |
|---|---|
| Differential Ratio | 2.10:1 |
| Planetary Ratio | 10.83:1 |
| Total Reduction Ratio | 22.75:1 |
| Braking System | |
|---|---|
| Brake Surface - Front | 61269 cmu00b2 (9497 inu00b2) |
| Brake Surface - Rear | 89681 cmu00b2 (13900 inu00b2) |
| Brake Standards | ISO 3450:2011 |
| Body Hoists | |
|---|---|
| Pump Flow - High Idle | 750 L/min (198 gpm) |
| Relief Valve Setting - Raise | 17238 kPa (2500 psi) |
| Body Raise Time - High Idle | 15.2 s (15.2 s) |
| Body Lower Time - Float | 16.2 s (16.2 s) |
| Body Lower Time - High Idle | 15.9 s (15.9 s) |
| Weight Distributions - Approximate | |
|---|---|
| Front Axle - Empty | 46 % (46 %) |
| Front Axle - Loaded | 33 % (33 %) |
| Rear Axle - Empty | 54 % (54 %) |
| Rear Axle - Loaded | 67 % (67 %) |
| Suspension | |
|---|---|
| Rear axle - Oscillation | 5.4 u00b0 (5.4 u00b0) |
| Steering | |
|---|---|
| Steering Standards | ISO 5010:2019 |
| Steer Angle | 31.34 u00b0 (31.34 u00b0) |
| Turning Diameter - Front | 29.8 m (97.7 ft) |
| Tires | |
|---|---|
| Standard Tire | 33.00-R51 (E3 & E4) |
| Note (1) | Productive capabilities of the 785 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 1893 l (500 gal (US)) |
| Cooling System | 490 l (129 gal (US)) |
| Crankcase | 204 l (54 gal (US)) |
| Differential - Final Drives | 650 l (171 gal (US)) |
| Steering Tank | 94 l (25 gal (US)) |
| Steering System - Including Tank | 117 l (31 gal (US)) |
| Brake Hoist System - Includes Tank | 641 l (169 gal (US)) |
| Torque Converter - Transmission System - Including Sump | 248 l (65.5 gal (US)) |
| Cab | |
|---|---|
| Air Conditioning | 42780 Btu/kWh (18390 Btu/lb) |
| Heater / Defroster | 11070 kJ/kg (43930 Btu) |
| ROPS Standards (1) | The ROPS (Rollover Protective Structure) for the cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. |
| FOPS Standards | The FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria. |
| Note (1) | The operator sound exposure Leq (equivalent sound pressure level) measured according to work cycle procedures specified in ANSI/SAE J1166 MAY90 is 80 dB(A) for cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed. |
| Note (2) | The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88 APR95, mid-gear moving operation is 89 dB(A). |
| Note (3) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
| Tank Configurations | |
|---|---|
| Note (3) | Water cannon arrangement typically mounts to the front of the water tank. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- ELECTRICAL
- Back up alarm
- VIMS, blue light
- Payload indicator lights
- Led lighting system: Backup and hazard lights, Directional signals (front and rear), Engine compartment lights, External payload lights, Headlights and fog lights, Lo-hi beam selector, Ladder light and service deck lights, Left-hand ladder/service deck, Stop/tail lights
- Alternator 105 amp
- Batteries, 12V (2), 93 amp-hour
- Converter, 12V electrical
- Electrical system, 24V, 15 amp
- Vehicle Information Management Systems (VIMS)
- TRANSMISSION
- 6-speed, automatic powershift with electronic Transmission Chassis Control (TCC)
- Individual clutch modulation
- Body-up shift inhibitor
- Directional shift management
- Downshift/reverse shift inhibitor
- Oil level sensor
- Neutral start switch/coast inhibitor
- Body-up reverse neutralizer
- Programmable top gear
- Lock-up torque converter
- Rear axle continuous lubrication/ filtration
- Controlled throttle shifting
- POWERTRAIN
- Aftercooler
- Automatic starter protection
- Cat Engine, 3512C, 1450 hp, Fuel optimized
- Diesel engine/turbocharged/aftercooled
- Electric start
- Elevated low idle control
- Engine idle shutdown
- Ether starting aid (automatic)
- Fan, conventional drive
- Ground level engine shutdown
- Muffler
- Multi-point oil pressure sensing
- Transmission
- BRAKING SYSTEM
- Automatic resistive braking control
- Engine overspeed protection
- Extended life brake disc material
- Brake release motor (towing)
- Oil-cooled, wet multi-disc (front and rear) (service, resistive braking, parking, secondary)
- FLUIDS
- Antifreeze protection to —50° C (—58° F)
- OPERATOR ENVIRONMENT
- Air cleaner service indicator
- Air conditioning
- Auxiliary power connection/cigarette lighter
- Coat hook
- Diagnostic connection port
- Dome courtesy light
- Electric engine control fault indicator
- Electric hour meter
- Entertainment radio ready: 5-amp converter, speakers, antenna, and wiring
- Gauge panel: Air pressure, Brake oil temperature, Engine coolant temperature, Fuel level
- Heater/defroster (11 070 kCal/43,930 BTU)
- Hoist, body control (electric)
- Horn
- Mirrors, right and left
- Prohibit access handrail – rear cab
- ROPS cab, insulated/sound suppressed
- Seatbelt for operator, park brake safety; two-point seatbelt for trainer/passenger
- Speedometer and Tachometer
- Stairway and walkway access, 600 mm (24 in)
- Steering wheel, tilt, padded, telescopic
- Supplemental steering (automatic)
- Traction control system
- Transmission gear indicator
- VIMS message center with universal gauge & keypad
- Vital Info Management System (VIMS)
- WDS Deluxe cab: Water controls (monitor, joystick, keypad), Payload indicator lamps, Retractable windshield visor, Premium plus operator seat, Deluxe companion seat, Cab cleanout vacuum, Operator footrest
- Window, operator, electric powered
- Windshield, wiper, intermittent control, and washer
- CAT TECHNOLOGY PRODUCTS
- Object detection (Radar and camera)
- Product link cellular
- Cat Water Delivery System software
- SAFETY AND SECURITY
- Ground level VIMS data port
- Ground level battery disconnect
- FUEL SYSTEMS
- 1893 L (500 gallon) capacity fuel tank and fast fill system
- Fast fill fuel system
- Fuel filter basic screen
- ACCESS
- Fixed ladder
- RIMS AND WHEELS
- Rims Mounting Group
- CHASSIS
- Driveline guard
- Mirror heated
- CAT WATER DELIVERY SYSTEM (WDS)
- Controls: Factory installed and integrated into cab
- Water System Monitor: integrated into cab, programmable spray configurations, automatic diagnostic messages
- Variable Hydraulic Pump Drive: 6814 L/min (1,800 gal/min) at speeds of 4 kph to 40 kph (3 to 25 mph) with auto shut-off and soft startup
- Stainless Steel Spray Heads: maintenance free, patented design resists corrosion
- Independent Hydraulic Cooling System: minimizes overheating
- Water Cannon: hydraulically controlled, integrated joystick with cab controls, optional nozzles
- Parts and service available through global Cat dealer network
- SERVICE
- Quick connect fitting for engine oil
- Grease injector
- Dual [LM2] [TS3] dryer for compressed air system
- Auto lube
- Auxiliary steering quick connect (towing)
- Auxiliary “buddy” dump quick connect
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- COLD WEATHER
- 240V engine coolant and oil heater
- POWERTRAIN
- Air start
- Fan, variable speed, rockford for use in freezing weather operations
- Filtration with oil cooler
- Muffler, extended exhaust
- Oil renewal system
- Pre-lube
- SAFETY AND SECURITY
- Working at heights handrail
- Working at heights package
- Working at heights service
- Fire extinguisher, portable
- CAT TECHNOLOGY PRODUCTS
- Object detection (Radar and camera, alternate )
- Object detection (Camera only, radar ready)
- Object detection (Camera, alternate)
- Object detection (Omission, camera and radar)
- Product link satellite
- Cat MineStar™: Level 1 – Basic (Equipment Tracking)*
- Cat MineStar™: Level 2 – Premium (Equipment Tracking + Production Recording)
- *Basic connectivity package comes standard on all Cat Water Solutions trucks with a 6-month complimentary service-based offering
- MUD GUARDS
- Mud guards for standard hydraulic / large fuel tank
- Mud guards for standard hydraulic and fuel tank
- FUEL SYSTEMS
- 2498 L (660 gallon) capacity fuel tank and fast fill system
- Fuel filter with separator
- Fuel heater
- ACCESS
- Powered staircase
- RIMS AND WHEELS
- 33R51 quick change rim
- Rim diffuser
- Hub odometer
- Wheel chocks
- Brake wear indicator
- 33R51 standard rim
- CHASSIS
- Mirror wide and heated
- CAT WATER DELIVERY SYSTEM (WDS)
- Optional WDS Camera System includes a camera to view spray bar on back of water tank and two cameras on top of tank for water fill positioning.
- Water Tank Offerings with Options
- Tanks are offered by local 3rd party providers with customization based on water application and regional customer requirements. Tie offs, ladders, splash guards, fill chute, rock ejectors, cannon selection, and additional options are available. Cat dealer or local tank manufacturer installation. Contact your local Cat dealer or Caterpillar OEM Solutions for recommendations on local tank providers and available options.
- SERVICE
- Service center
