Off-Highway Trucks Bare Chassis

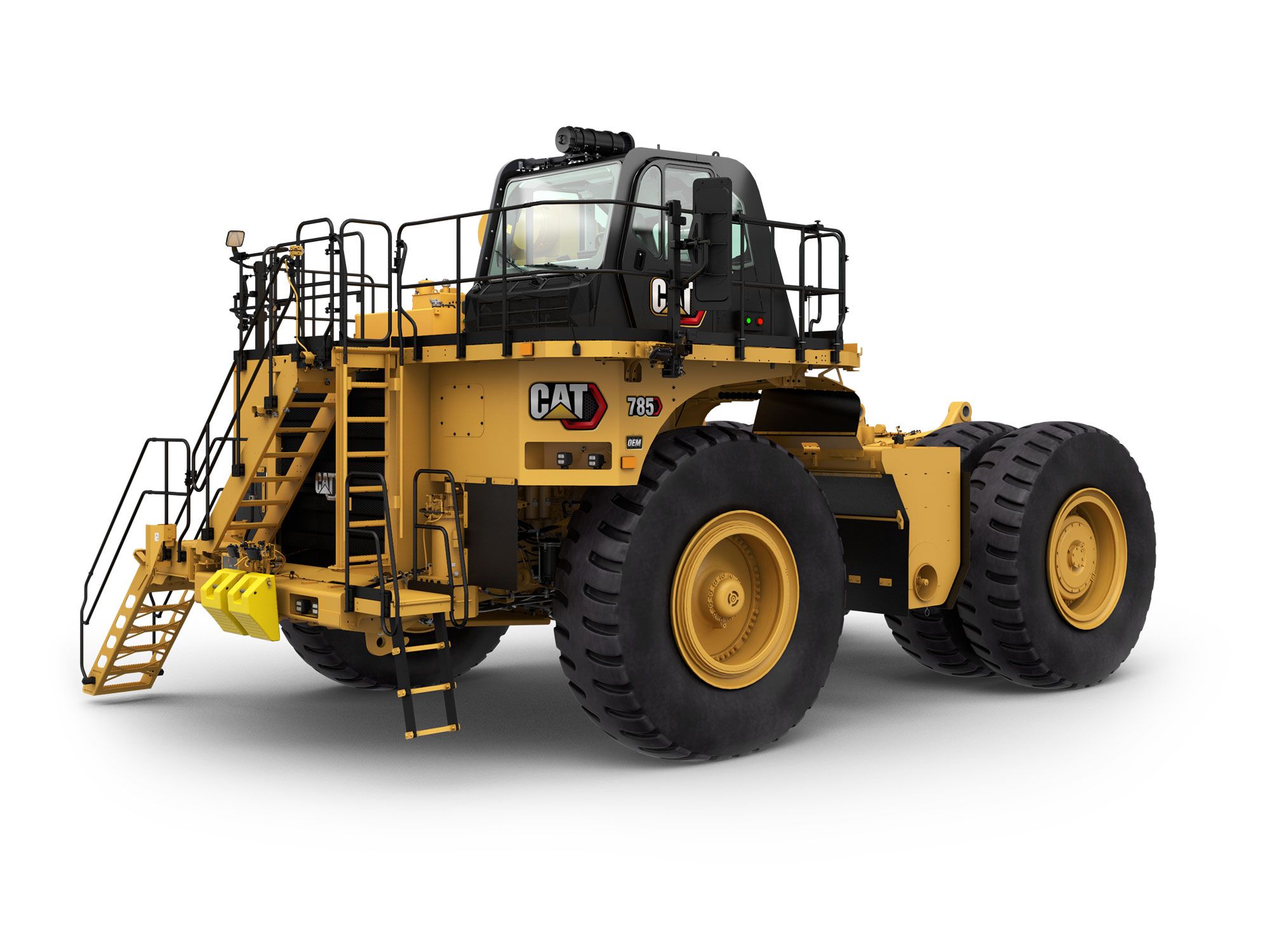

785 Off-highway Truck Bare Chassis
Tractor ROPS Rating
- Cat® Off-Highway Truck Bare Chassis ROPS is certified to ISO 3471 Tractor criteria, to provide a higher level of protection for towing applications.

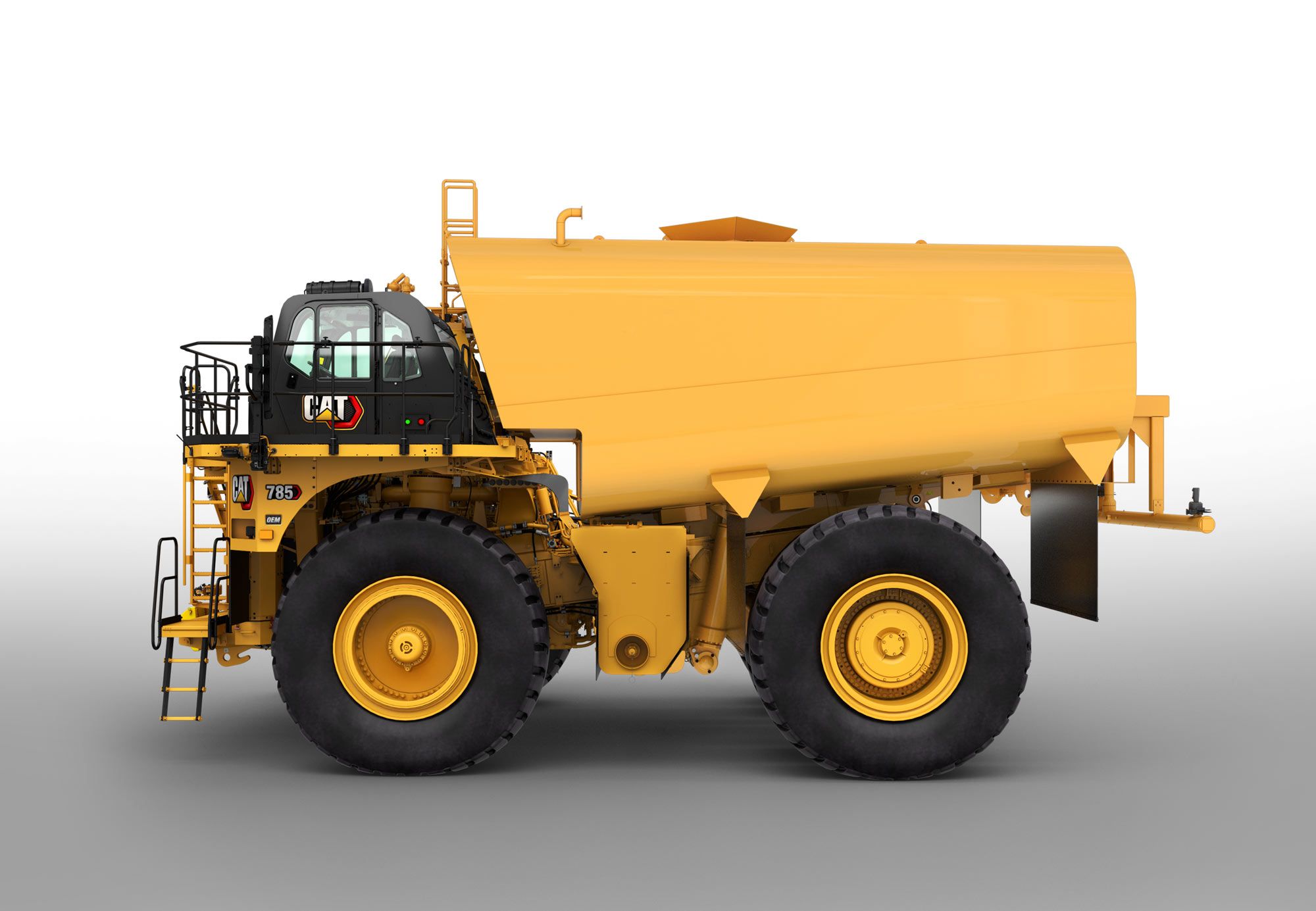

Water Truck Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for dust suppression, road construction, fire protection, and other applications.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the water truck application, all through your local Cat dealer, to provide the best solution for your business.

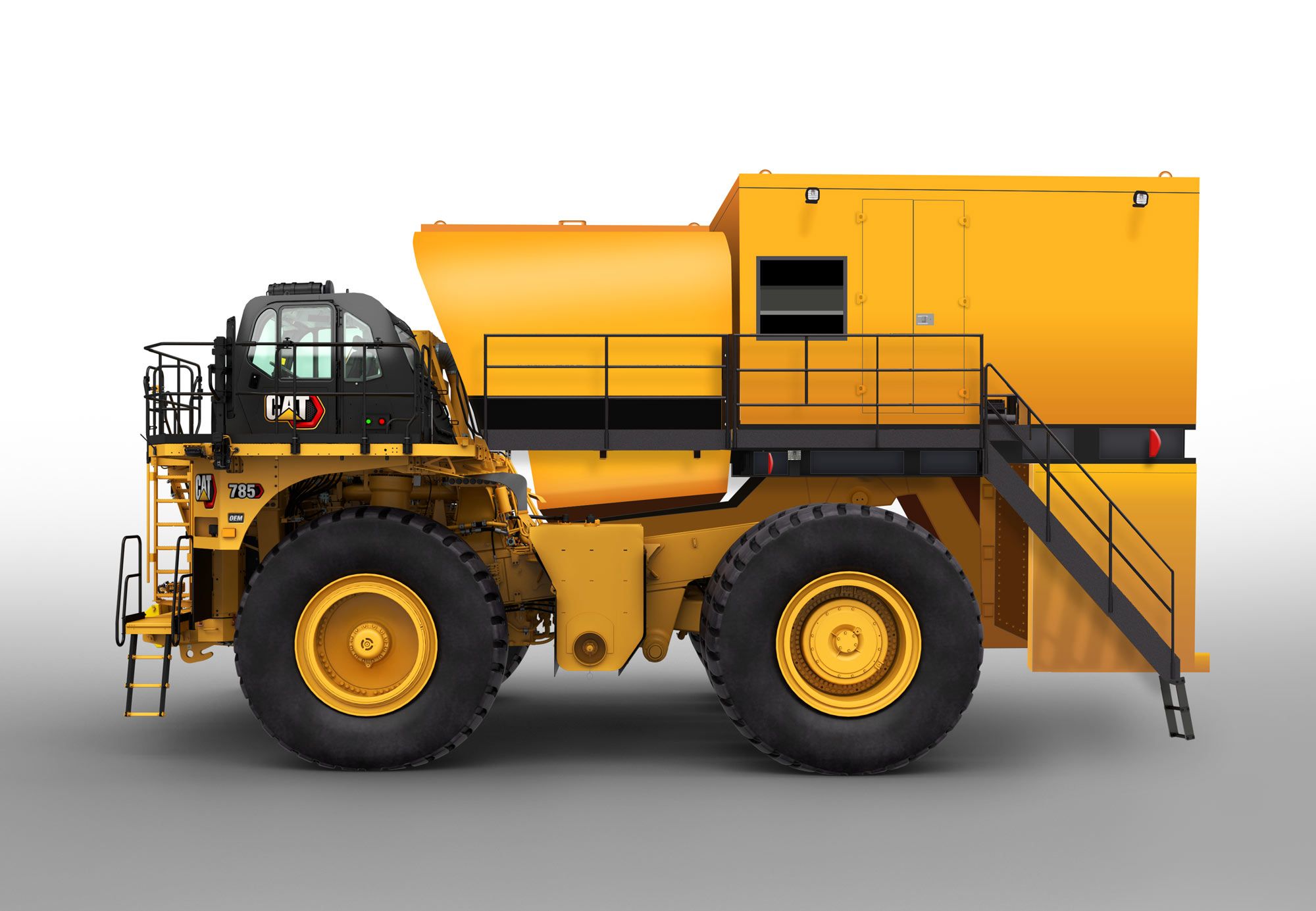

Service Truck Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for delivering fuel and preventive maintenance lubrication to your site’s machine fleet.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the service truck application, all through your local Cat dealer, to provide the best solution for your business.
Tow Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for tow applications.
- Using an off-highway truck bare chassis provides a solution that is ideal for equipment trailers and bottom dump trailers.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the tow application, all through your local Cat dealer, to provide the best solution for your business.
| Engine | |
|---|---|
| Engine Model | Cat® 3512E |
| Gross Power - SAE J1995 | 1193 kW (1600 hp) |
| Rated Net Power - SAE J1349 | 1125 kW (1509 hp) |
| Bore | 3573 inu00b3 (6.7 in) |
| Stroke | 215 mm (8.5 in) |
| Displacement | 58.56 l (3573 inu00b3) |
| Rated Engine Speed | 1650 r/min (1650 r/min) |
| Note | Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets. |
| Weights | |
|---|---|
| LRC Bare Chassis Weight without Hoist | 83725 kg (184582 lb) |
| LRC Bare Chassis Weight with Hoist | 85623 kg (188766 lb) |
| LRC Gross Vehicle Weight (Target) without Hoist | 249476 kg (550000 lb) |
| LRC Gross Vehicle Weight (Target) with Hoist | 249476 kg (550000 lb) |
| HRC Bare Chassis Weight without Hoist | 84853 kg (187068 lb) |
| HRC Bare Chassis Weight with Hoist | 86751 kg (191253 lb) |
| HRC Gross Vehicle Weight (Target) without Hoist | 249476 kg (550000 lb) |
| HRC Gross Vehicle Weight (Target) with Hoist | 249476 kg (550000 lb) |
| Note | LRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets. |
| Operating Specifications | |
|---|---|
| Nominal Water Tank Capacity | 113500 l (30000 gal (US)) |
| ROPS | |
|---|---|
| Tractor ROPS | 105000 kg (231485 lb) |
| Transmission | |
|---|---|
| Forward - 1 | 12 km/h (7.4 mile/h) |
| Forward - 2 | 16.2 km/h (10 mile/h) |
| Forward - 3 | 22.1 km/h (13.7 mile/h) |
| Forward - 4 | 29.8 km/h (18.5 mile/h) |
| Forward - 5 | 40.2 km/h (25 mile/h) |
| Forward - 6 | 57.2 km/h (35.6 mile/h) |
| Reverse | 11.6 km/h (7.2 mile/h) |
| Brakes | |
|---|---|
| Brake Surface - Front | 61270 cmu00b2 (9487 inu00b2) |
| Brake Surface - Rear | 89728 cmu00b2 (13908 inu00b2) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 1552 l (410 gal (US)) |
| Cooling System | 476 l (126 gal (US)) |
| Crankcase | 204 l (54 gal (US)) |
| Differential - Final Drives | 527 l (139 gal (US)) |
| Steering System - Including Tank | 117 l (31 gal (US)) |
| Brake/Hoist Hydraulic Tank | 511 l (135 gal (US)) |
| Brake Hoist System | 541 l (143 gal (US)) |
| Torque Converter - Transmission System | 175 l (46 gal (US)) |
| Steering | |
|---|---|
| Steering Standards | ISO 5010:2007 |
| Steer Angle | 25.1 u00b0 (25.1 u00b0) |
| Turning Diameter | 29.8 m (97.75 in) |
Standard Equipment
- For more information on 785 Bare Chassis options, please contact Caterpillar OEM Solutions at oem_solutions@cat.com.
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- ELECTRICAL
- 24V electrical system, low maintenance batteries (2) 93 amp-hour
- Alarm, backup
- Brushless alternator, 225 amp
- Ground accessible power control box: Ethernet VIMS™ port and VIMS lamp; Engine starter; transmission and battery lockouts
- Jump start/battery charge receptacle
- LED Lighting system: Back-up and hazard lights, Curb lights, (one) RH side, (one) LH side, Turn signals (front and rear), Engine compartment lights, Headlights with low-high beam selector, Ladder light and service deck lights, Stop/tail lights
- LED payload indicator lamps
- FLUIDS
- Extended Life Coolant to — 35° C (— 30° F)
- OTHER EQUIPMENT
- Auxiliary “buddy” dumping quick connect
- Auxiliary connection ‘user defined shutdown’
- Auxiliary steering quick connect (towing)
- Fast fill fuel and DEF remote fill system
- Guards for rotating components
- Hill Start Assist/Anti Roll Back
- Hydraulic Filters, 1,000 hours
- Remote flash software and troubleshooting
- Secondary steering (automatic)
- S•O•S℠ ports
- Sight glasses for hydraulic oils
- Tie off points
- Tow hooks (front) and tow pin (rear)
- Vital Information Management System (VIMS)
- POWERTRAIN
- Powertrain for size 33R51 tires
- Cat 3512E engine: Automatic engine and DEF thermal management (if applicable); Automatic low voltage idle management; Air cleaner with precleaner (two); Turbocharging (four) with air-to-air aftercooler; Mechanical Electronic Unit Injector (MEUI™-A) fuel system; Automatic starter protection; Automatic ether starting aid
- Hydraulic braking system: Automatic Resistive Braking control, adjustable and automatic; Brake release motor (towing); Engine over speed protection; Extended life brake disc material; Hill start assist/Anti roll back strategy; Oil-cooled, multi-disc (front and rear) — Service, retarding, parking, secondary; Park brake integrated with gear selector
- Transmission :Six-speed, automatic power shift with Electronic Clutch Pressure Control (ECPC); Advanced Productivity Electronic Control Strategy (APECS); Body-up reverse neutralizer; Body-up shift inhibitor; Downshift/reverse shift inhibitor; Directional shift management; Enhanced Traction Control System; Programmable top gear; Oil level sensor; Neutral coast inhibitor; Neutral start switch; Lock-up torque converter; Rear axle continuous lubrication/filtration
- Cat Technology Products
- Cyber security
- Integrated object detection system with touchscreen display
- Product Link™ Elite
- Ground Control Standard Package
- Electronic Operations and Maintenance Manual
- Remote Troubleshoot
- OPERATOR ENVIRONMENT
- 12V auxiliary power connection
- 5V USB charging port
- Cup holders
- Delayed Engine Shutdown
- Diagnostic connection port COM3 and Ethernet
- Dome courtesy light and map lights
- Entertainment radio ready: Speakers, Optional Antenna (AM/FM/WB/satellite radio), Radio mounting provisions and 12V power supply
- Fire suppression ready
- Floor mat, multi-piece & replaceable
- Gauges and indicators panel: Critical oil and coolant temperatures; Fuel and DEF level (if applicable); Engine system, brake and transmission fault indicators; Operator selectable max. machine speed by rotary dial; Speedometer, Tachometer
- Heated mirrors, right and left
- Hoist, body control
- Interactive touchscreen vehicle information display: Day/night mode; Action alarm; Quad gauge display
- Operator air suspension seat
- Operator Door Power Window
- Provision for customer accessory mounting
- Push button secure start
- Retractable front visor
- ROPS cab, insulated/sound suppressed
- Self-filling to windshield washer fluid from AC condensate
- Stairway and walkway access, 600 mm (24 in)
- Steering wheel, tiltable, telescopic
- Storage locations for operator gear
- Three point seat belt for operator seat
- Ventilated operator seat
- Unitized hydraulic powered HVAC with automatic temperature control
- Windshield wiper, intermittent control / washer
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- ELECTRICAL
- Auxiliary rear work lights, (one) Left Hand (LH) side
- LED Lighting system: Additional lighting package, Auxiliary VIMS, Body rear, Seat & park brake
- Workshop horn
- OPERATOR ENVIRONMENT
- Deluxe Cab: Advanced cabin filtration system; Catwalk and handrails for rear cab access; Heated, cooled and ventilated front seat; Power right side window; Suspended companion seat; Storage tray
- Emergency stop
- Trainer air suspension seat
- FLUIDS
- Antifreeze/coolant protects to — 50° C (— 58° F)
- OTHER EQUIPMENT
- 2560 L (676 gal) fuel tank (non-Tier 4)
- Bumper towing – center pin kit
- Cold weather start (block heater)
- Communication Ar – MineStar™ radio
- Fire extinguisher, portable
- Five piece crankcase guards
- Fuel heater, fuel water separator
- Fuel tank mud guard
- Gauge, brake wear indicator
- Ground accessible fluid service center, hydraulic and coolant
- Hub odometer, kilometers
- Powered access stairway
- Rim Diffuser
- Wheel chocks
- Working at heights protection
- Cat Technology Products
- 360 degree surround view camera
- 4G cellular/satellite dual mode
- Connectivity bundle (includes: wireless operator ID, bluetooth key FOB to start)
- Cruise control
- Driver Safety System (DSS) 4.0 Ready
- MineStar communication group (enables MineStar Fleet, Auxiliary)
- MineStar GPS
- MineStar Command Autonomous-ready
- Oil Renewal System (ORS) (non-Tier 4)
- Ground Control Advanced with Anti-lock Braking System (ABS) and Dynamic Stability Control (DSC)
- Road Analysis Control (RAC)
- POWERTRAIN
- Powertrain for size 36R51 tires
- Engine pre-lubrication system
- No air – electric starter with 93-amp hour batteries (four), electric horn and automatic lubrication system
- Rear axle continuous lubrication/ filtration with cooler
- Variable speed fan drive
- Turbine air starter with air tank, air horn and automatic lubrication system
