Off-Highway Trucks Bare Chassis

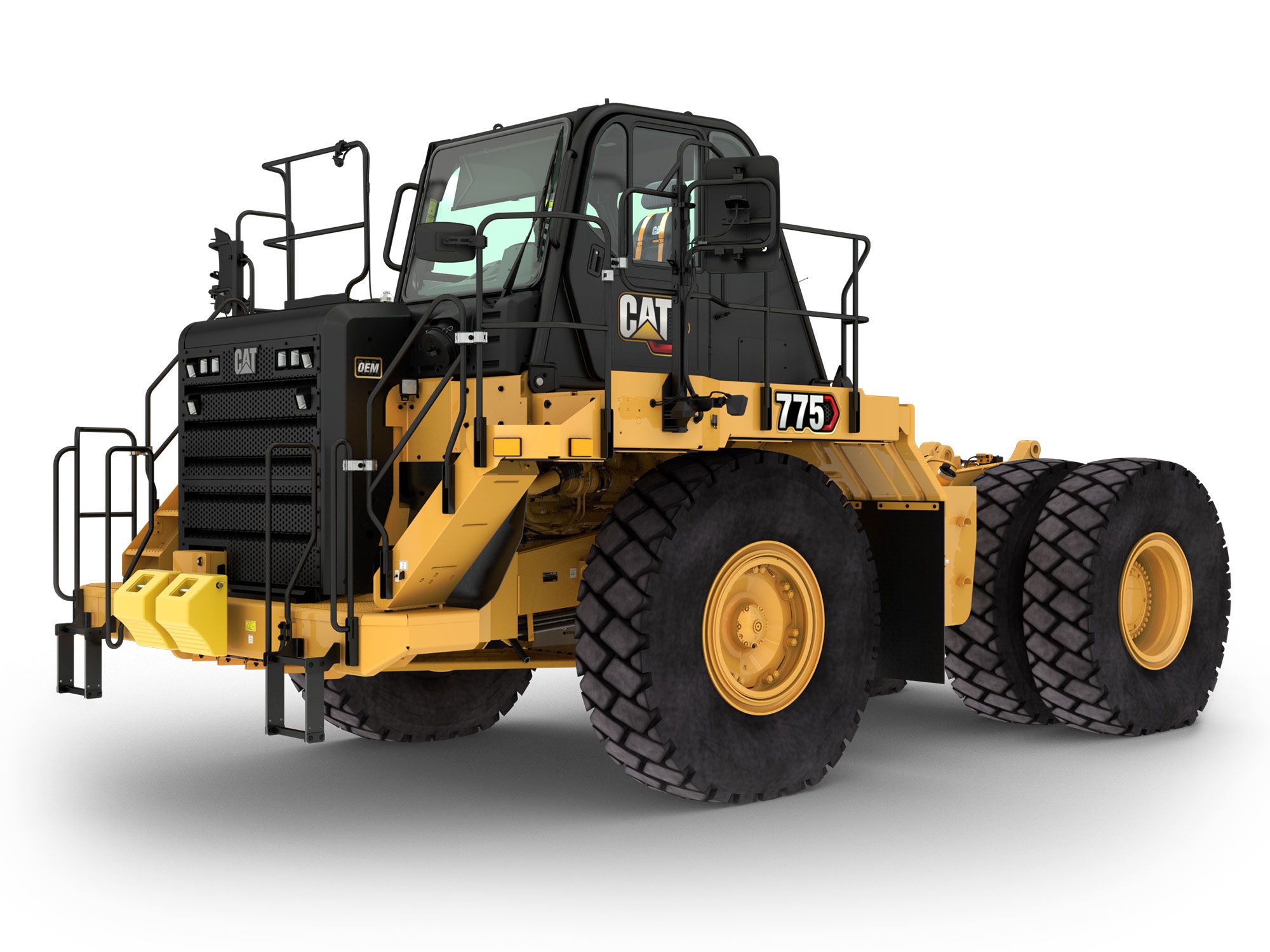

775 Off-Highway Truck Bare Chassis
Tractor ROPS Rating
- Cat® Off-Highway Truck Bare Chassis ROPS is certified to ISO 3471 Tractor criteria, to provide a higher level of protection for towing applications.
Water Truck Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for dust suppression, road construction, fire protection, and other applications.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the water truck application, all through your local Cat dealer, to provide the best solution for your business.
Service Truck Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for delivering fuel and preventive maintenance lubrication to your site’s machine fleet.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the service truck application, all through your local Cat dealer, to provide the best solution for your business.
Tow Applications
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for tow applications.
- Using an off-highway truck bare chassis provides a solution that is ideal for equipment trailers and bottom dump trailers.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the tow application, all through your local Cat dealer, to provide the best solution for your business.
| Engine | |
|---|---|
| Engine Model | Cat® C27 |
| Gross Power - SAE J1995 | 615 kW (825 hp) |
| Rated Net Power - SAE J1349 | 553 kW (742 hp) |
| Bore | 137 mm (5.4 in) |
| Stroke | 152 mm (6 in) |
| Displacement | 27 l (1648 inu00b3) |
| Note | Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. Specifications shown are for HRC model. |
| Weights | |
|---|---|
| LRC Bare Chassis Weight without Hoist | 34073 kg (75118 lb) |
| LRC Bare Chassis Weight with Hoist | 34621 kg (76326 lb) |
| LRC Gross Vehicle Weight (Target) without Hoist | 111812 kg (246503 lb) |
| LRC Gross Vehicle Weight (Target) with Hoist | 111812 kg (246503 lb) |
| HRC Bare Chassis Weight without Hoist | 34733 kg (76573 lb) |
| HRC Bare Chassis Weight with Hoist | 35281 kg (77781 lb) |
| HRC Gross Vehicle Weight (Target) without Hoist | 111812 kg (246503 lb) |
| HRC Gross Vehicle Weight (Target) with Hoist | 111812 kg (246503 lb) |
| Note | LRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets. |
| Operating Specifications | |
|---|---|
| Nominal Water Tank Capacity | 56775 l (15000 gal (US)) |
| ROPS | |
|---|---|
| Tractor ROPS | 38686 kg (85288 lb) |
| Transmission | |
|---|---|
| Forward - 1 | 10.7 km/h (6.6 mile/h) |
| Forward - 2 | 14.9 km/h (9.3 mile/h) |
| Forward - 3 | 20.2 km/h (12.6 mile/h) |
| Forward - 4 | 27.1 km/h (16.9 mile/h) |
| Forward - 5 | 36.7 km/h (22.8 mile/h) |
| Forward - 6 | 49.4 km/h (30.8 mile/h) |
| Forward - 7 | 67 km/h (41.6 mile/h) |
| Reverse | 14 km/h (8.7 mile/h) |
| Note | Maximum travel speeds with standard 24.00R35 (E4) tires |
| Brakes | |
|---|---|
| Brake Surface - Front | 655 cmu00b2 (25.7 inu00b2) |
| Brake Surface - Rear | 61269 cmu00b2 (9497 inu00b2) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 795 l (210 gal (US)) |
| Cooling System | 192 l (50.7 gal (US)) |
| Crankcase | 90 l (23.8 gal (US)) |
| Steering System - Including Tank | 54 l (14.3 gal (US)) |
| Brake/Hoist Hydraulic Tank | 322 l (85.1 gal (US)) |
| Torque Converter - Transmission System | 70 l (18.5 gal (US)) |
| Steering | |
|---|---|
| Steering Standards | ISO 5010:2019 |
| Steer Angle | 36 u00b0 (36 u00b0) |
| Turning Diameter | 17.7 m (58 ft) |
| Turning Circle - Clearance Diameter | 20.2 m (66 ft) |
Standard Equipment
- For more information on 775 Bare Chassis options, please contact Caterpillar OEM Solutions at oem_solutions@cat.com.
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Air cleaner service indicator, fluid level monitoring, fuel level monitoring, display languages
(market based) - Air conditioning/heat
- Ashtray and cigarette lighter
- Automatic temperature control
- Coat hook
- Combined shift and hoist lever
- Cup holders (4)
- Diagnostic connection port, 24V
- eOMM and real-time grade display
- Entertainment radio ready: 5 amp converter, speakers, antenna, wiring harness
- Foot rest
- Gauges/indicators: brake oil temperature gauge, coolant temperature gauge, engine overspeed indicator, fuel level, hour meter, speedometer with odometer, tachometer, transmission gear indicator, and preventative maintenance reminder
- Horn
- Light: courtesy, dome
- Mirrors (heated)
- Power port, 24V and 12V
- Rear Camera
- Rollover protection (ROPS)/ Falling object protection (FOPS)
- ROPS certification ISO tractor
- Seatbelt, 4-point seat belt with shoulder harness
- Seat, deluxe full air suspension
- Seat, training with lap belt
- Steering wheel, padded, tilt and telescopic
- Storage compartment
- Sun visor
- Throttle lock
- Window, powered, left side
- Window, hinged, right side (emergency exit)
- Windshield wiper (intermittent) and washer
- Air cleaner service indicator, fluid level monitoring, fuel level monitoring, display languages
- POWERTRAIN
- Aftertreatment system – NOx reduction system (NRS), diesel oxidation catalyst (DOC); demand fan; Mechanically Actuated Electronic Unit Injection (MEUI) -C fuel system (Tier 4 Final/Stage V only.)
- Braking system: extended life brakes, automatic retarder control (ARC), manual retarder (utilizes rear oil-cooled, multiple disc brakes), brake release motor (towing), dry disc brakes (front), brake disconnect switch (front), oil-cooled multiple disc brakes (rear), brake wear indicator (rear), parking brake, secondary brake, service brake
- Cat C27 U.S. EPA Tier 4 Final/EU Stage V or
noncertified and U.S. EPA Tier 2 equivalent
diesel engine: air filters with precleaner (2),
air-to-air aftercooler (ATAAC), electric start,
engine idle shutdown, ether starting aid,
exhaust muffler, next generation modular
radiator (NGMR) - Transmission: 7-speed automatic powershift
with electronic clutch pressure control (ECPC), advanced productivity electronic control strategy (APECS); automatic neutral idle, autostall, second gear start
- ELECTRICAL
- Alarm backup
- Alternator, 150 amp
- Autolube power supply ready
- Batteries, maintenance-free, 12V (2), 1400 CCA combined
- Electrical system, 25 amp, 24V to 12V converter
- Lighting system: all LED backup lights,
directional signals/hazard warning, engine
compartment light, headlights with dimmer,
operator access courtesy lights, side profile
lights, stop/tail lights - Service center containing: battery jump start,breakers with spare fuses, lockout switch, ports – electronic technician (ET) and Vital Information Management System (VIMS), service lockout switch (power without engine start)
- CAT TECHNOLOGY PRODUCTS
- Advanced health
- Cat MSS with Operator Code
- Economy modes, standard and adaptive
- Fire Suppression Ready
- Overload speed limiter
- Product Link radio
- Remote flash/Remote Troubleshooting
- Seat Belt Reminder System: Seat Belt Alert, Seat Belt Inhibit
- OTHER EQUIPMENT
- Antifreeze
- Auto Lube
- Body down indicator
- Center mounted rims
- Cold weather packages
- Driveline guards
- Driveshaft catch loop guard
- Engine crankcase guards
- Extended life coolant to -34° C (-30° F)
- Fan guards
- Fuel tank, 795 L (210 gal)
- Ground level battery disconnect
- Ground level engine shutdown
- Grouped ground-level filters
- Clustered grease fittings
- Operator Maintenance Manual (OMM)
- Rims 17 x 35
- Secondary steering (electric)
- Suspension, front and rear (EU compliant)
- Tie down eyes
- Tow hooks, front/tow pin, rear
- Vandalism protection locks
Optional Equipment
- POWERTRAIN
- Cat engine brake
- CAT TECHNOLOGY PRODUCTS
- Fire Suppression
- Hill Assist with anti-roll-back
- Product Link Dual Mode
- Traction Control System (TCS)
- OPERATOR ENVIRONMENT
- Cab precleaner
- Mirror, convex cab, left-side
- Seat, premium leather, heated and cooled
- Surround vision
- Surround vision with Cat Detect
- OTHER EQUIPMENT
- Camera and Radar
- Engine Bay Mud Coverage
- Fluid fill service center
- Spare rim
- Wheel chocks
