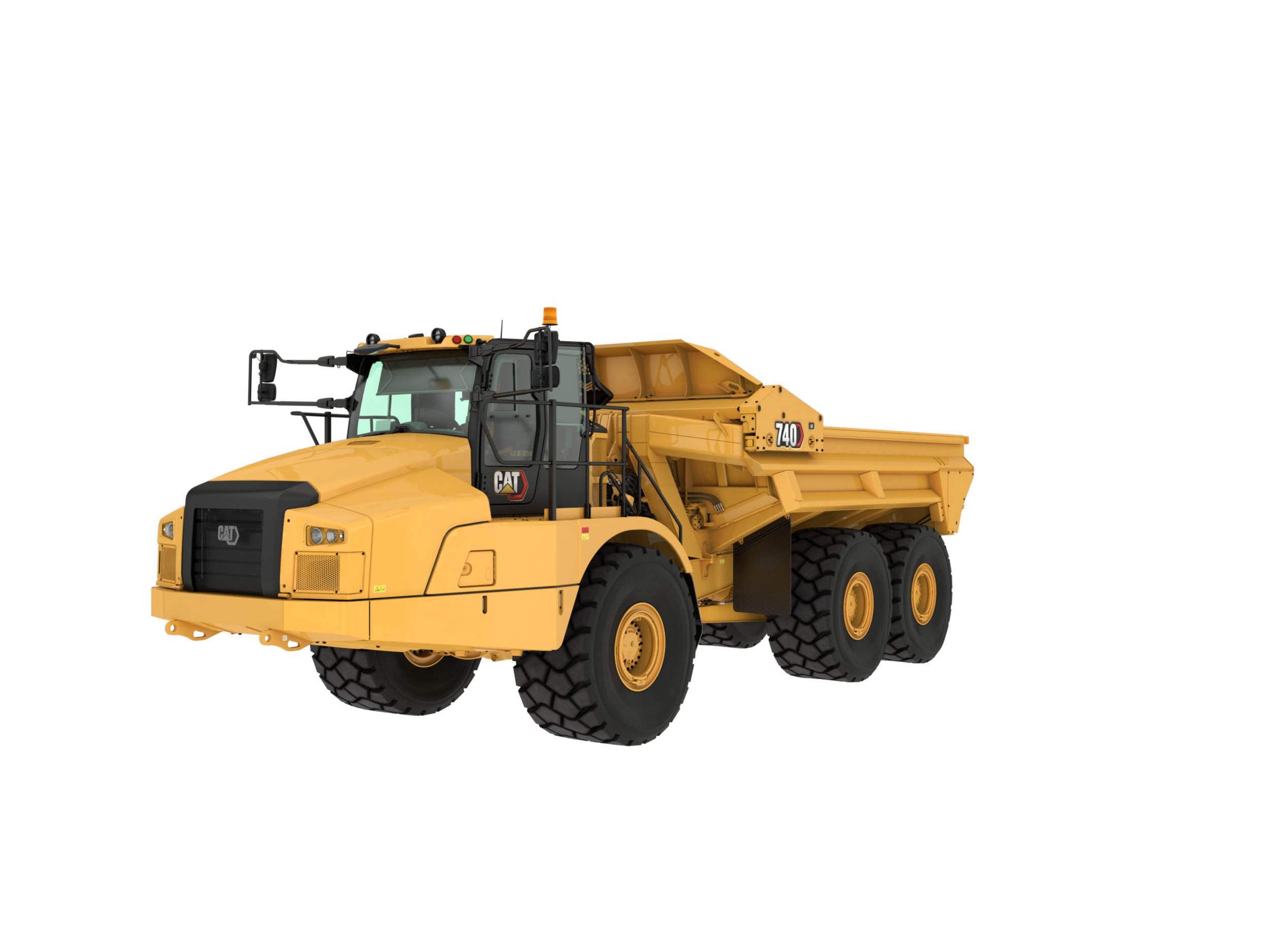

740 EJ Articulated Truck
MAXIMIZE PERFORMANCE
AUTOMATIC CONTROLS
HEAVY DUTY CONSTRUCTION
OPERATOR COMFORT AND CONTROL
BUILT TO PERFORM
TECHNOLOGY THAT GETS WORK DONE
BECAUSE UPTIME COUNTS
MORE SUSTAINABLE FUTURE
BUILT-IN SAFETY FEATURES
| Engine | |
|---|---|
| Engine Model | Cat® C18 |
| Gross Power (SAE J1995) | 381 kW (511 hp) |
| Net Power (SAE J1349) | 370 kW (496 hp) |
| Engine Power (ISO 14396) | 376 kW (504 hp) |
| Bore | 145 mm (5.7 in) |
| Stroke | 183 mm (7.2 in) |
| Displacement | 18.1 l (1106 inu00b3) |
| Note (1) | Advertised power is tested at 1,700 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 370 kW (496 hp) per the SAE reference conditions. |
| Note (5) | Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. |
| No Engine De-rating Required Below | 3050 m (10000 ft) |
| Peak Engine Torque Gross (SAE J1995) | 2618 N·m (1931 lbf·ft) |
| Peak Engine Torque Net (SAE J1349) | 2558 N·m (1887 lbf·ft) |
| Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
| Weights | |
|---|---|
| Rated Payload | 38 t (42 ton (US)) |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 23 mu00b3 (30.1 ydu00b3) |
| Struck | 18 mu00b3 (23.5 ydu00b3) |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. u2022 If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). |
| Transmission | |
|---|---|
| Forward - 1 | 6.1 km/h (3.8 mile/h) |
| Forward - 2 | 8.1 km/h (5 mile/h) |
| Forward - 3 | 11.2 km/h (7 mile/h) |
| Forward - 4 | 14.1 km/h (8.8 mile/h) |
| Forward - 5 | 18.7 km/h (11.6 mile/h) |
| Forward - 6 | 22.9 km/h (14.2 mile/h) |
| Forward - 7 | 31.5 km/h (19.6 mile/h) |
| Forward - 8 | 37.9 km/h (23.5 mile/h) |
| Forward - 9 | 54.8 km/h (34 mile/h) |
| Reverse - 1 | 6.4 km/h (4 mile/h) |
| Reverse - 2 | 14.6 km/h (9.1 mile/h) |
| Sound Levels | |
|---|---|
| Interior Cab | 72 dB(A) (72 dB(A)) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fanu2019s speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/ windows open for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 19970 kg (44026 lb) |
| Center Axle - Empty | 7790 kg (17174 lb) |
| Rear Axle - Empty | 7530 kg (16601 lb) |
| Total - Empty | 35290 kg (77801 lb) |
| Front Axle - Rated Load | 1603 kg (3534 lb) |
| Center Axle - Rated Load | 18198 kg (40120 lb) |
| Rear Axle - Rated Load | 18198 kg (40120 lb) |
| Total - Rated Load | 37999 kg (83776 lb) |
| Front Axle - Loaded | 21444 kg (47276 lb) |
| Center Axle - Loaded | 26030 kg (57386 lb) |
| Rear Axle - Loaded | 25768 kg (56809 lb) |
| Total - Loaded | 73290 kg (161577 lb) |
| Body Plate | |
|---|---|
| Type | High Strength Brinell HB450 Wear Resistant Steel |
| Front | 7 mm (0.28 in) |
| Chute | 14 mm (0.55 in) |
| Side | 11 mm (0.43 in) |
| Base | 14 mm (0.55 in) |
| Blade Eject/Retract | |
|---|---|
| Eject (manual) | 17 s (17 s) |
| Eject (automatic) | 16 s (16 s) |
| Retract (manual) | 21 s (21 s) |
| Retract (automatic) | 21 s (21 s) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 550 l (145.3 gal (US)) |
| Cooling System | 90 l (23.7 gal (US)) |
| Brake Cooling Tank | 67 l (17.7 gal (US)) |
| Steering/Hoist Hydraulic System | 140 l (36.9 gal (US)) |
| Engine Crankcase | 52 l (13.7 gal (US)) |
| Transmission - OTG | 75 l (19.8 gal (US)) |
| Final Drive - Each | 5 l (1.3 gal (US)) |
| Axles - Each | 60 l (15.8 gal (US)) |
| Standards | |
|---|---|
| Brakes | ISO 3450 u2013 2011 |
| Cab - FOPS | ISO 3449 Level II u2013 2005 |
| Cab - ROPS | ISO 3471 u2013 2008 |
| Steering | ISO 5010 u2013 2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45u00b0 |
| Turning Dimensions - SAE Turning Radius | 8624 mm (339 in) |
| Turning Dimensions - Clearance Radius | 9045 mm (356 in) |
| Turning Dimensions - Inside Radius | 4413 mm (173 in) |
| Turning Dimensions - Aisle Width | 5925 mm (233 in) |
| Note | Dimensions are for machines equipped with 29.5R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.8 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavator: 390 - Passes | 4 |
| Hydraulic Excavator: 374 - Passes | 5 |
| Wheel Loader: 982 - Passes | 4 |
| Wheel Loader: 980 - Passes | 4-5 |
| Wheel Loader: 972 - Passes | 4-5 |
| Note | An optimum system match gives you a major productivity advantage. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Combined gear selection and eject control lever
- Windshield wiper and washer, two speed, intermittent (front)
- Heater and defroster with variable speed fan
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Glass windows: laminated and tinted-front toughened and tinted-sides and rear
- Adjustable air vents
- Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind seat storage
– Coat hook - Windows opening side, tinted
- Mirrors: exterior
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure
– Seat belt warning
– Secondary steering failure
– DPF regeneration filter
–Secondary steering energy source engaged
– Hour meter
– Retarder active - Sun visor
- Two seat belts, operator’s retractable
- Secondary steering – electro hydraulic
- Tilt and telescopic steering wheel
- Air conditioning
- Touchscreen display incorporating the rearview camera video feed
- Seats:
– Fully adjustable, air suspension
– Padded trainer with lap belt
- TECHNOLOGY
- Product Link Cellular PLE643
- Cat Detect with Stability Assist
- ELECTRICAL AND LIGHTING
- Batteries (two) maintenance free
- Electrical system: 24 volt, 5A 24- to 12-volt converter
- Horn
- Lighting Systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- Remote starting receptacle (cables not included)
- POWERTRAIN
- Auto shift nine-speed forward and two reverse transmission
- Cat C18 engine
- Differentials: standard with automatic clutched inter and cross-axle differential locks
- Dual circuit oil immersed, enclosed brakes – all wheels
- Retarder: engine compression brake
- Three axle, six-wheel drive
- SAFETY
- Reverse alarm
- Rearview camera
- Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab
- GUARDS
- Rear window
- Radiator
- Crankcase
- Front dump body spill guard, integral part of fabricated body
- OTHER STANDARD EQUIPMENT
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Hydraulic Tailgate
- S·O·S sampling valves
- Tires, six 29.5 R25, radial
- Vandalism protection: lockable caps for fuel tank and hydraulic oil tank
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Mirrors, heated motorized
- Operator seat belt, four-point
- Radio, Bluetooth® stereo system
- Seat, heated/cooled
- Window blinds
- Windshield wiper and washer, two speed (rear)
- TECHNOLOGY
- Machine Security System (MSS)
- Cat® Payload monitoring system
- Product Link Dual PLE683
- ELECTRICAL AND LIGHTING
- Cold weather start attachment
- Engine block heater
- Ether start
- Flashing LED beacon
- Roof mounted LED work lights
- OPTIONAL EQUIPMENT
- Auto lube installation for automatic greasing of bearings
- Body liners
- Cold weather coolant –51° C (–60° F)
- Exhaust heated body
- Fast fuel fill
- Fender extension
- Fuel additive – anti-waxing
- Wheel Chocks
- 875/65 R29 wide tires
