Articulated Truck Bare Chassis

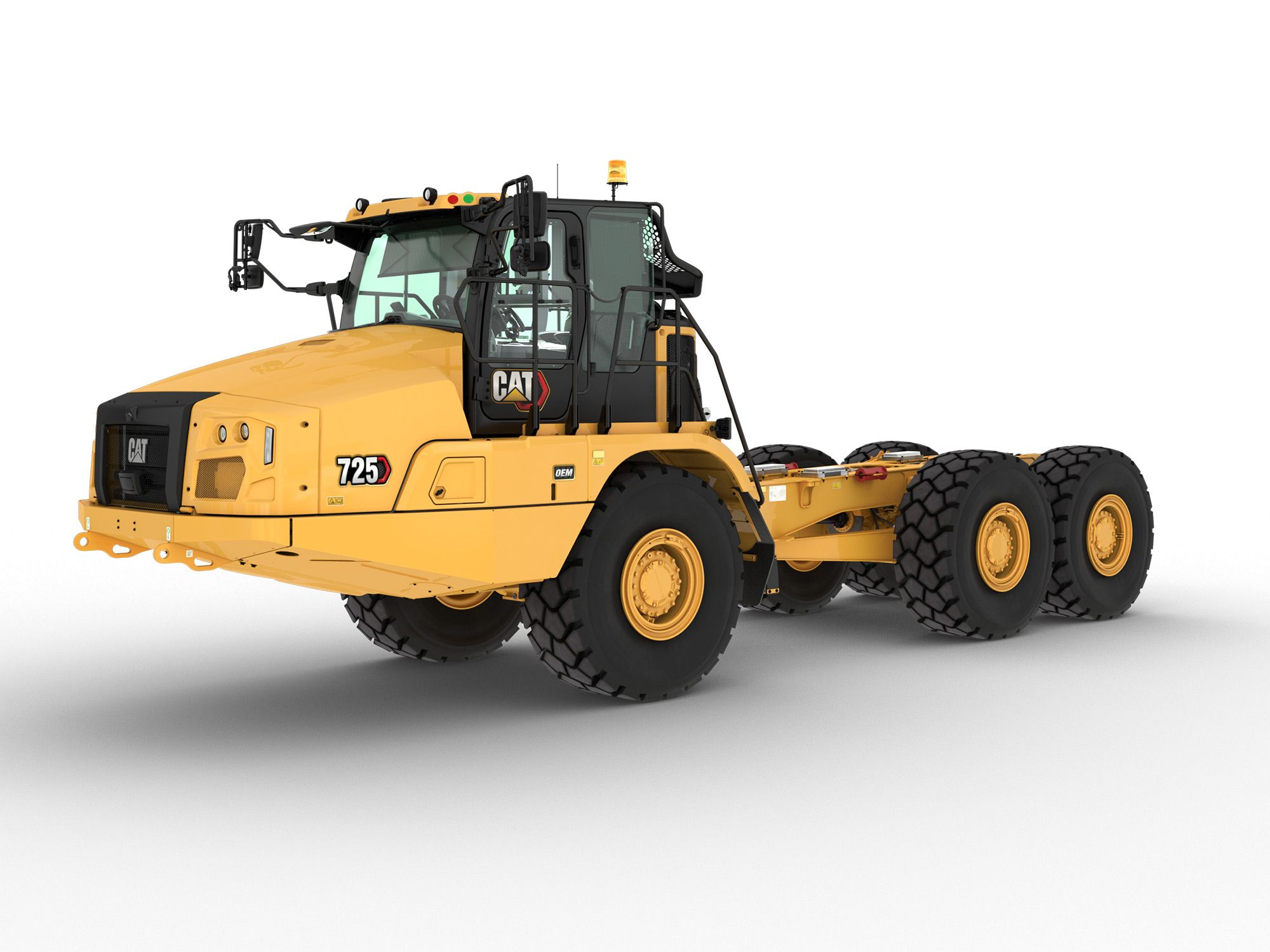

725 Articulated Truck Bare Chassis
Water Truck Applications
- Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
- Using an articulated truck bare chassis provides a flexible solution that is ideal for dust suppression, road construction, fire protection, and other applications.
- Caterpillar works with OEMs worldwide to match various size water tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
Service Truck Applications
- Cat Articulated Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
- Using an articulated truck bare chassis provides a flexible solution that is ideal for delivering fuel and preventive maintenance lubrication to your site’s machine fleet.
- Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
Specialty Body Applications
- Cat Articulated Truck Bare Chassis are rugged and reliable platforms for specialty body applications.
- Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling coal or waste, container trucks or hooklifts, cable reel trucks, and other applications.
- Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
Forestry Applications
- Cat Articulated Truck Bare Chassis are rugged and reliable platforms for forestry applications.
- Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling logs and other applications.
- Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
| Engine | |
|---|---|
| Engine Model | Cat® C13B |
| Gross Power - SAE J1995:2014 | 263 kW (352 hp) |
| Net Power - SAE J1349:2011 | 257 kW (345 hp) |
| Bore | 130 mm (5.12 in) |
| Stroke | 157 mm (6.18 in) |
| Displacement | 12.5 l (763 inu00b3) |
| Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
| Peak Engine Torque Net (SAE J1349) | 1712 N·m (1263 ft·lbf) |
| Peak Engine Torque Gross (SAE J1995) | 1941 N·m (1431 lb/ft) |
| No Engine De-rating Required Below | 3810 m (12500 ft) |
| Wheel Base Length | |
|---|---|
| Standard Wheel Base | 3979 mm (156.7 in) |
| Weights | |
|---|---|
| Rated Payload | 24 t (26.5 ton (US)) |
| Transmission | |
|---|---|
| Forward - 1 | 8 km/h (5 mile/h) |
| Forward - 2 | 15 km/h (9 mile/h) |
| Forward - 3 | 22 km/h (14 mile/h) |
| Forward - 4 | 34 km/h (21 mile/h) |
| Forward - 5 | 47 km/h (29 mile/h) |
| Forward - 6 | 55 km/h (34 mile/h) |
| Reverse - 1 | 9 km/h (6 mile/h) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 400 l (105.7 gal (US)) |
| Cooling System | 83 l (21.9 gal (US)) |
| Hydraulic System | 123 l (32.5 gal (US)) |
| Engine Crankcase | 43 l (11.4 gal (US)) |
| Transmission | 47 l (12.4 gal (US)) |
| Output Transfer Gear Box | 25 l (6.6 gal (US)) |
| Final Drive - Each | 125 l (33 gal (US)) |
| DEF Tank | 34 l (9 gal (US)) |
| Standards | |
|---|---|
| Brakes | ISO 3450:2011 |
| Cab - FOPS | ISO 3449:2005 Level II |
| Cab - ROPS | ISO 3471:2008 |
| Steering | ISO 5010:2019 |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds at 60 rpm |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45 u00b0 (45 u00b0) |
| Turning Dimensions - Aisle Width | 5332 mm (210 in) |
| Turning Dimensions - SAE Turning Radius | 7470 mm (294 in) |
| Turning Dimensions - Clearance Radius | 8075 mm (318 in) |
| Turning Dimensions - Inside Radius | 3879 mm (153 in) |
| Note | Dimensions are for machines equipped with 23.5R25 tires. |
Standard Equipment
- For more information on 725 Bare Chassis options, please contact Caterpillar OEM Solutions at oem_solutions@cat.com.
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Adjustable air vents
- Air conditioning
- Combined gear selection and hoist control lever
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Heater and defroster with four-speed fan
- Liquid Crystal Display (LCD): alert indicator, selected
gear and direction, speed or auto shift, Operation
and Maintenance Manual (OMM), primary steering
failure (warning), seat belt warning, secondary
steering failure, Diesel Particulate Filter (DPF)
regeneration filter, secondary steering energy source
engaged, hour meter, retarder active - Machine operation monitoring system: action lamp,
engine oil pressure, primary steering system, left and
right turn signal, high beam, coolant temperature,
tachometer, parking brake, fuel level, transmission
oil temperature, brake system, transmission hold,
hoist control, hydraulic system, charging system,
transmission fault, traction control system, check
engine lamp - Mirrors: exterior
- Seats: operator – fully adjustable, air suspension, retractable lap belt; trainer – padded with retractable lap belt
- Secondary steering – electro hydraulic
- Storage: cup holder, flask receptacle (under the secondary seat), under seat storage, door pocket, behind seat storage, coat hook
- Sun visor
- Tilt and telescopic steering wheel
- Touchscreen display incorporating the rearview camera video feed
- Windows (tinted) opening both sides
- Windshield wiper and washer, two speed, intermittent (front)
- ELECTRICAL AND LIGHTING
- Batteries (two) maintenance free
- Daylight running lights
- Electrical system: 24-volt, 5A 24- to 12-volt converter
- Horn
- LED Rear Step Lights
- Lighting systems: cab interior, two head lamps, two width marker, two reversing, work light/cab access light, two stop/taillights, front and rear direction indicators
- Main disconnect switch
- Remote starting receptacle (cables not included)
- POWERTRAIN
- Auto shift six-speed forward and single speed reverse transmission
- Automatic Retarding Control: Engine Brake
- Cat C13B engine
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- CX31 transmission
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Dual circuit oil immersed, enclosed brakes – all wheels
- Three axle, six-wheel drive
- GUARDS
- Crankcase
- Radiator
- Rear window
- SAFETY
- Dynamic Rollover Protection
- Machine Speed Limiting
- Rearview camera
- Reverse alarm
- ROPS/FOPS cab
- OTHER EQUIPMENT
- S·O·S sampling valves
- Sound suppression (standard in some countries) *EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye, and UK.
- Tires, six 23.5R25
- Vandalism protection: lockable caps
- CAT TECHNOLOGIES
- Cat Detect with Stability Assist
- Product Link Cellular PLE643
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Infrared glass – high ambient cab
- Mirrors: heated motorized
- Operator seat belt, four-point
- Radio, Bluetooth® stereo system
- Seat, heated/cooled
- Secondary display for multi-view camera
- Single-speed rear wiper
- Window blinds
- ELECTRICAL AND LIGHTING
- Cold weather start attachment (2 additional batteries)
- Engine block heater
- Ether start
- Flashing LED beacon
- LED Rear Work Lights
- Roof mounted LED work lights
- SAFETY
- Multi-view camera with object detection
- OTHER EQUIPMENT
- Auto lube installation for automatic greasing of bearings
- Cold weather coolant –51° C (–60° F)
- Fast fuel fill
- Fuel additive, anti-waxing
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Wheel chocks
- CAT TECHNOLOGIES
- Cat Payload monitoring system
- Product Link Dual PLE683
