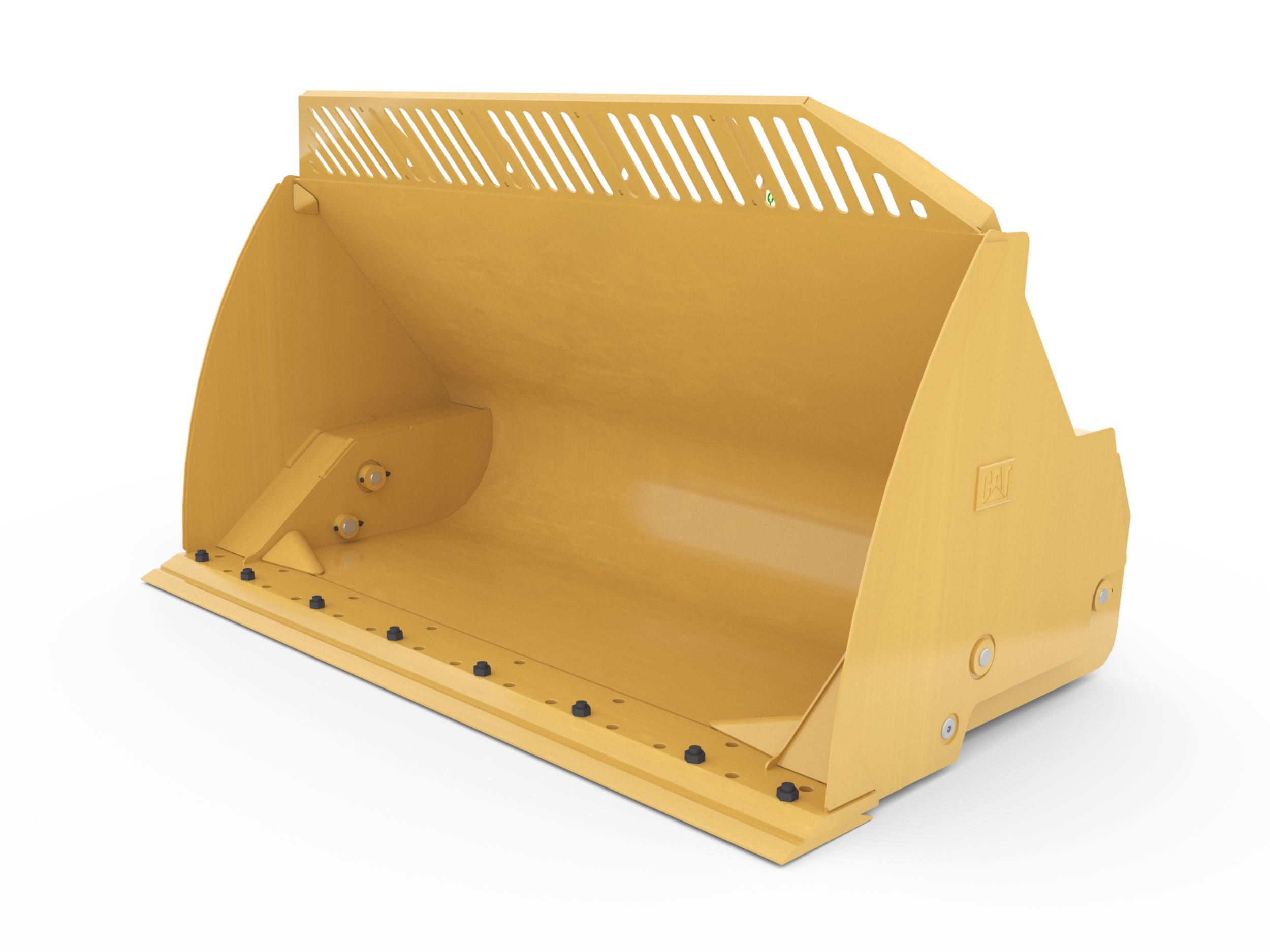

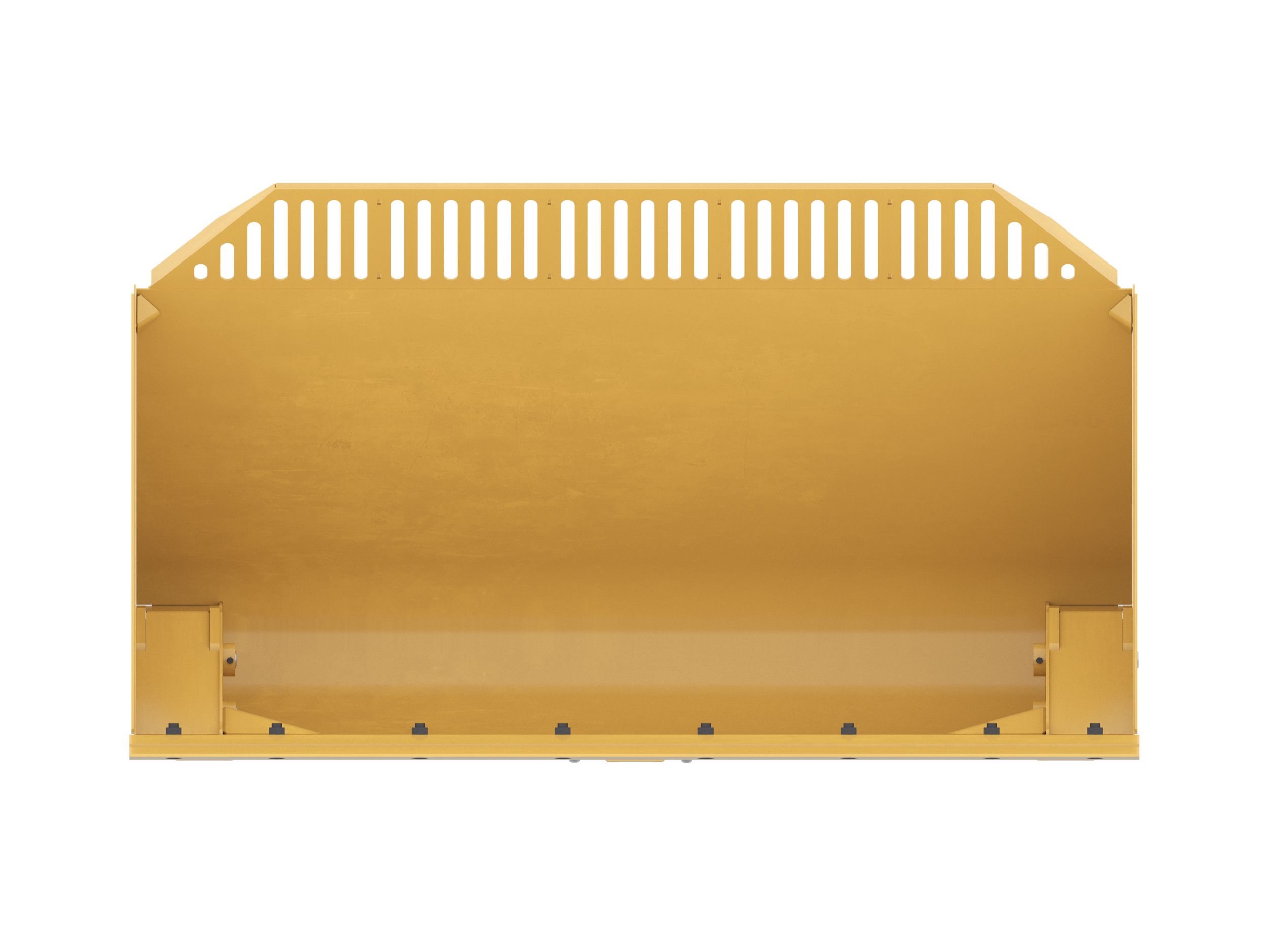

4.1 m3 (5.4 yd3) pin on High Dump Bucket with bolt-on cutting edge

  • Overview
CALCULATE FINANCE

Application

Designed with an increased dump height for better truck loading.

High Performance in Light Material

High Dump buckets are designed for putting light materials right where you want them. Handle coal, fertilizer, grain or woodchips; wherever a little extra clearance is needed.

Product Specifications
Width 3032 mm (119.4 in)
Height 1721 mm (67.8 in)
Weight 2156 kg (4753.2 lb)
Length 1835 mm (72.2 in)
Capacity 4.1 mu00b3 (5.4 ydu00b3)
Base Edge Thickness 35 mm (1.4 in)
Cutting Edge Thickness 30 mm (1.2 in)
Interface Type Pin On
Required Hydraulics 3rd Function
