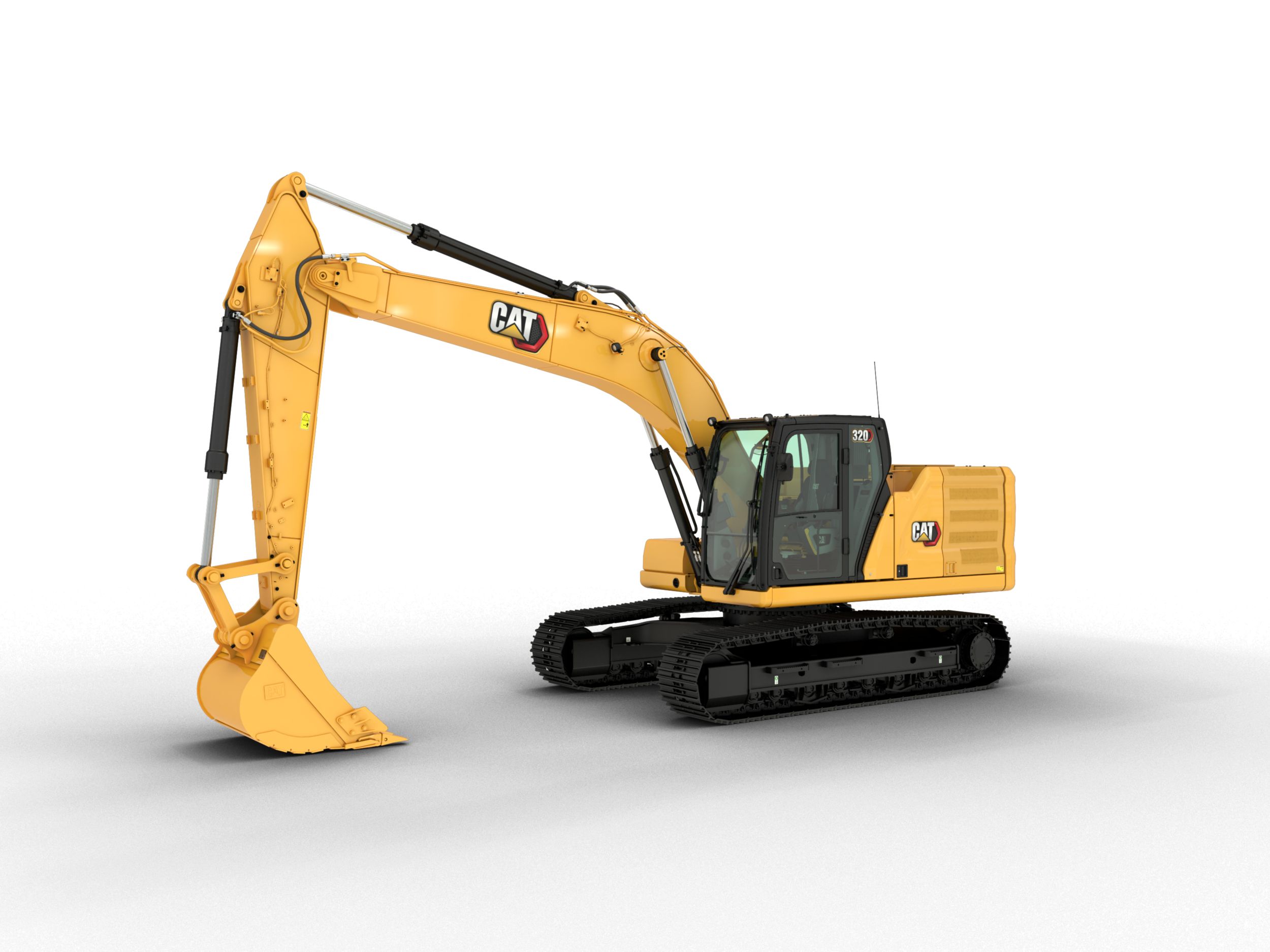

320 Hydraulic Excavator

  • Overview
  • Finance With CavPower
  • Optional Services
  • View product Download

High Performance with Lower Fuel Consumption

  • Use up to 25% less fuel than the 320F excavator.
  • Increase operator efficiency by up to 45% with a suite of Cat Connect technologies that lower operator fatigue and your operating costs, including fuel consumption and daily maintenance
  • Match the excavator to the job using power modes including new Smart mode that automatically matches engine and hydraulic power to your digging conditions.
  • The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for your precise digging requirements.
  • The electronically controlled, twin-turbocharged engine meets U.S. EPA Tier 4 Final and EU Stage IV emission standards using a transparent aftertreatment system that requires no operator input or downtime

  • Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
  • Don’t let the temperature stop you from working. The excavator has a standard high ambient temperature capability of 52º C (125º F) and cold start capability of -18º C (0º F). An optional -32º C (-25º F) cold start package is available.

Boost Efficiency and Boost Productivity with Integrated Cat Connect

  • Boost productivity up to 45% versus traditional grading with the standard Cat GRADE with 2D system — includes indicate-only and laser capability.
    • Dig with real-time guidance on depth, slope, and horizontal distance to grade.
    • The 2D system is upgradable to Cat GRADE with Advanced 2D or Cat GRADE with 3D.
  • Standard Grade Assist:
    • Stay on grade — simply and effortlessly — with single-lever digging.
    • Set your desired bucket angle and let Bucket Assist automatically maintain the angle in sloping, leveling, fine grading, and trenching applications for easy, accurate, and fast jobs.
    • Keep your tracks on the ground in lifting and hard digging with Boom Assist.
    • Automatically stop excavator swing at operator-defined set points in truck loading and trenching applications with Swing Assist, which will help you use less effort and consume less fuel.
  • Standard Cat PAYLOAD on-board weighing system:
    • Achieve precise load targets and increase loading efficiency with on-the-go weighing and real-time estimates of your payload without swinging.
    • Track your daily productivity such as truck target weights and load/cycle counts.
    • Calibration can be performed in a matter of minutes.
    • Combine Payload with VisionLink® and remotely manage your production targets.
  • Upgrade to optional Cat GRADE with Advanced 2D:
    • Create and edit grade designs with ease on a second high-resolution 10 in (254 mm) touchscreen monitor.
  • Upgrade to optional Cat GRADE with 3D:
    • Create and edit designs with ease and see the front linkage’s full range of motion on a second high-resolution 10 in (254 mm) touchscreen monitor.
    • Know the excavator’s exact position relative to GPS and GLONASS systems.
    • The machine automatically compensates for excavator pitch and roll caused by sloping ground conditions.
  • Standard Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through VisionLink® online interface, helping you improve jobsite efficiency with lower operating costs.

Work in Comfort in the All-New Cab

  • Cab options let you choose the level of comfort you need.
  • Enjoy wide spacing between consoles for a more spacious comfortable environment.
  • Sit in new, wide seats that adjust for operators of all sizes (heated and heated/cooled options are available).
  • Get in and out of the cab easier using the tip-up left console (in Deluxe and Premium cabs only).
  • Control the excavator comfortably with easy-to-reach controls located in front of you.
  • Standard automatic climate control keeps you at the right temperature throughout your shift.
  • Improved viscous mounts reduce cab vibration by up to 50% over our previous excavator models.
  • Stow your gear with plenty of in-cab storage behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are included.
  • The standard radio has USB ports and Bluetooth® technology enabled to connect your device and make hands-free calls.

Built for Long Life

  • Protect hydraulic components in cold weather. The auto warm-up feature speeds hydraulic oil warming in cooler temperatures.
  • The fuel system is protected from contamination of fuel by three levels of filtration.
  • Bottom guarding protects engine and hydraulic components from damage while swinging and traveling.
  • The hydraulic tank with a new oval shape designed to improve stress resistance.
  • The strong X-structure lower frame carries loads from the excavator’s upper structure to the track.
  • Travel motor hydraulic lines are routed inside of the frame to protect them from damage.
  • The sloped track frame design prevents mud and debris from accumulating and damaging tracks.
  • The grease lubricated tracks have grease sealed between the pin and bushing to prevent debris from entering and reducing life.
  • The track rollers are rebuild-able and sealed to prevent dirt and debris causing wear of internal components.
  • A bolt-on track guiding guard helps maintain track alignment while traveling or working on slopes.

Simple to Operate

  • You can navigate quickly on the standard, high-resolution 8 in (203 mm) touchscreen monitor or with the optional 10 in (254 m) touchscreen monitor or with the aid of the jog dial control.
  • A second 10 in (254 mm) monitor is available for the advanced grade control.
  • Easy keyless push-to-start engine using your Bluetooth key fob, or your smartphone to enable the pushbutton start feature.
  • Match the excavator’s operation to your digging style by adjusting the joystick response and programming the function of each joystick button.
  • Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor..
  • Easily use the monitor to change the joystick pattern from the cab. You can choose two-way or four-way patterns options. Store your pattern preference and let the machine automatically set the pattern when you log in with your unique Operator ID.

Maintenance

  • Extended maintenance intervals reduce maintenance costs by 15% over the Cat 320F excavator. (15% savings calculated over 12000 machine hours.)
  • Reversing electric cooling fans make it easy to clean radiator, oil coolers, and condensers.
  • An all-new engine air cleaner with integrated pre-cleaner has twice the life of radial seal air cleaners.
  • The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3000 hour replacement interval
     - 50% longer than previous filter designs.
  • Track your excavator’s filter life and maintenance intervals can via the in-cab monitor.
  • Check engine oil level quickly and safely with the new engine oil dip stick located on ground level.
  • S·O·S℠ ports with extended sampling intervals are on ground level, simplifying maintenance and allows for quick easy extraction of samples for fluid analysis.

Safety

  • Work safely under structures or near traffic with the standard 2D E-fence feature integrated right out of the factory, which prevents any part of the excavator from moving outside operator-defined set points, avoiding hazards and jobsite accidents.
  • Access 100% of daily maintenance points from ground level
     - no need for you to climb on top of excavator.
  • The standard ROPS cab meets ISO 12117-2 2008 requirements.
  • Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
  • The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
  • Ground level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
  • A rearview camera is standard and upgradable to an optional 360° visibility camera for visibility all around the excavator, allowing the operator to easily visualize objects and personnel around the excavator in a single view.
  • New right-hand service platform design provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping. The handrails comply with ISO 2867 requirements.

Standard Equipment

  • CAT CONNECT TECHNOLOGY
    • Cat GRADE with 2D (Not available on SLR)
      • Cat Payload (Payload Information, Static Weigh, Auto-Calibration )
      • 2D E-fence
      • Cat Product Link™
    • ENGINE
      • Cat C4.4 ACERT™ electronically-controlled twin turbo charged Tier 4 Final diesel engine
      • Meets U.S. EPA Tier 4 Final and EU Stage IV emission standards.
      • Three selectable power modes
      • One-touch low idle with automatic engine speed control
      • Automatic engine idle shutdown
      • Recommended for use up to 4500 m altitude (14,760 ft) with engine power derate above 3000 m (9,840 ft).
      • 46° C (115° F) high-ambient cooling capacity
        • Double element air filter with integrated pre-cleaner
        • Electric fuel priming pump
        • Reversible electric cooling fans
        • Biodiesel capability up to B20
      • HYDRAULIC SYSTEM
        • Boom and stick regeneration circuits
        • Electronic main control valve
        • Auto warm up
        • Automatic two-speed travel
        • Boom and stick drift reduction valve
        • Element type main hydraulic filter
        • Slider joysticks
        • Electronic main pump
      • STANDARD DELUXE CAB
        • ROPS, standard sound suppression
        • High-resolution 8 ” (203 mm) LCD touchscreen monitor
        • Automatic Bi-level air conditioner
        • Jog dial and shortcut keys for monitor control
        • Keyless push-to-start engine control
        • Height-adjustable console, infinite with no tool
        • Air adjustable seat suspension
        • Seat belt, retractable (51 mm [2″] width)
        • Tilt-up left side console
        • Bluetooth® integrated radio with USB ports
        • 12V DC outlets
        • Document storage
        • Cup and bottle holders
        • Two-piece front window, openable
        • Polycarbonate skylight hatch, openable
        • Upper Radial wiper with 70/30 w/washer
        • LED dome and lower interior lights
          • Beacon ready
          • Washable floor mat
          • Seat Heater
        • UNDERCARRIAGE AND STRUCTURES
          • Tiedown points on base frame (ISO 15818 Compliant)
          • Standard bottom guards
          • Travel motor guards
          • Grease lubricated track links
          • 4200 kg (9,260lb) counterweight for for demolition
          • Semi-HD swing frame
          • Standard swing bearing
          • Base frame with standard track rollers and standard carrier rollers
          • Final drive with standard travel motor
          • Standard Swivel guard
        • ELECTRICAL
          • Machine electronic control module (x2)
          • 1000 CCA maintenance-free batteries (x2)
          • Centralized electrical disconnect switch
          • Programmable time-delay LED working lights
          • LED chassis light, LH & RH boom lights for reach and SLR, cab lights-850 lumens
        • BOOM, STICKS AND LINKAGES
          • 5.7 m (18’8″) reach boom
          • 2.9 m (9’6″) stick
          • Bucket linkage, B1-family with lifting eye, Cat Grade
          • 600 mm (24″) triple grouser track shoes
        • SAFETY & SECURITY
          • Rearview camera and side RH mirror
          • Neutral lever (lock out) for all controls
          • Anti-skid plate and countersunk bolts on service platform
          • Ground-level accessible secondary engine shutoff switch in cab
          • Bluetooth receiver
          • RH hand rail and hand hold (ISO 2867 compliant)
          • Signaling/warning horn
        • SERVICE & MAINTENANCE
          • Sampling ports for Scheduled Oil Sampling (S·O·S℠)
            • Ground level 2nd dipstick for engine oil
            • Remote flash

          Optional Equipment

          • CAT CONNECT TECHNOLOGY
            • Cat GRADE with Advanced 2D (Not available on SLR)
            • Cat GRADE with 3D (Not available on SLR)
          • ENGINE
            • 52° C(125° F) high-ambient cooling capacity
          • HYDRAULIC SYSTEM
            • Hammer return filter circuit
            • Combined flow/high pressure aux circuit
              • Quick coupler circuit for Cat Pin Grabber
              • Boom /Stick lowering check valves (BLCV/SLCV)
              • Electric refueling pump (Europe only)
            • UNDERCARRIAGE AND GUARDS
              • Segmented track guiding guard for super long reach
              • Heavy-Duty bottom guard for demolition
              • Heavy-Duty travel motor guards for demolition
              • 3700 kg (8,160 lb) counterweight
              • 4700 kg (10,360 lb) counterweight for super long reach
              • Standard swing frame
              • Base frame with HD track rollers and standard carrier rollers for demolition and super long reach
              • Final drive with bio oil capable travel motor( Europe only)
            • BOOM,STICKS & LINKAGES
              • 700 mm (28″) triple grouser track shoes
              • 790 mm (31″) triple grouser shoes
              • 900mm (35″) triple grouser HD track shoes
              • 5.7 m (18’8″) HD reach boom for demolition
              • 2.9 m (9’6″) HD stick for demolition
              • VA boom (2.8m (9’2″) stub + 3.3m (10’10”) fore) ( Eurorpe only)
                • Super Long Reach 6.28 m (20’7″) stick
                • Bucket linkage, B1-family without lifting eye
                • Bucket linkage, A-family with/without lifting eye, SLR
              • ELECTRICAL SYSTEM
                • LED chassis light, LH & RH boom lights for VAB, cab lights w/ cover and rain protector – 850 lumens, for use with 360° visibility
                • LED chassis light, LH & RH boom lights for VAB, cab lights – 850 lumens
                • LED chassis light, LH & RH boom lights for reach and SLR, cab lights w/ cover and rain protector – 850 lumens, for use with 360° visibility
              • SERVICE&MAINTENANCE
                • Preventative maintenance ready (Quick-Evac)
              • SAFETY & SECURITY
                  • Rearview and right hand side view camera
                  • Radiator screen
                  • Right hand side mirror for use with right hand sideview camera or 360° visibility (EU only)
                • DELUXE CAB UPGRADES, STANDARD PLUS
                  • High-resolution 8 in (203 mm) LCD touchscreen monitor + additional monitor (Only for use with Cat Grade with advanced 2D or Cat Grade with 3D).
                  • High resolution 10 in (254 mm) LCD touch screen monitor (Only for use with 360° visibility).
                  • High resolution 10 in (254 mm) LCD touch screen monitor + additional monitor (Only for use with 360° visibility and Cat Grade with advanced 2D or Cat Grade with 3D).
                  • Roller rear sunscreen
                  • Rain protector and cab light covers (Only for use with 360° visibility.).
                • BUCKET
                  • General duty buckets from 0.55 m3 (0.72 yd3) to 1.59 m3 (2.08 yd3)
                  • Heavy duty buckets from 0.46m3 (0.61 yd3) to 1.38m3 (1.81 yd3)
                  • Ditch cleaning 1.01 m3 (1.32yd3) for super long reach arrangement
                • Note: Not all features available in all regions. Consult your Cat dealer for specific configurations available in your region.
