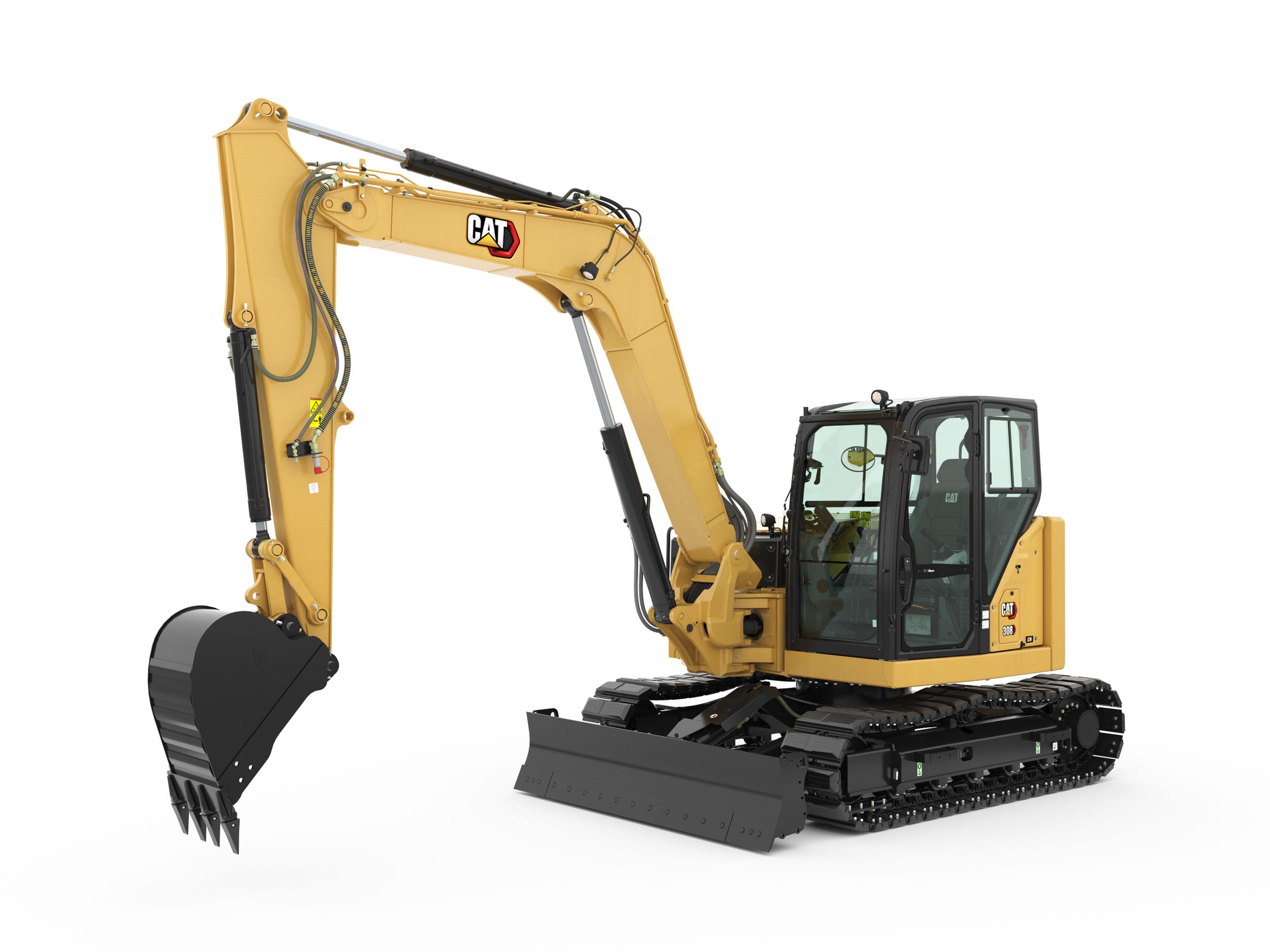

308 CR Mini Hydraulic Excavator

  • Overview
  • Finance With CavPower
  • Optional Services
  • View product Download
CALCULATE FINANCE

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and blade float allows for easy clean up.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we‚Äôve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

Standard Equipment

  • ENGINE
    • Cat C3.3B Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)
    • Automatic Engine Idle
    • Automatic Engine Shutdown
    • Automatic Swing Brake
    • Automatic Two Speed Travel
    • Fuel Water Separator with Indicator
    • Radial Seal – Double Element Air Filter
    • Extended Life Coolant, –37° C (–35° F)
  • HYDRAULICS
    • Electronic Variable Displacement Piston Pump
    • Load Sensing/Flow Sharing Hydraulics
    • Power On Demand
    • Hydraulic Temperature Monitoring
    • Certified Accumulator
    • HYDO Advanced Hydraulic Oil
  • OPERATOR ENVIRONMENT
    • Top Guard ISO 10262 1998 Level I
    • ROPS ISO 12117-2:2008
    • Stick Steer Mode
    • Travel Cruise Control
    • Control Pattern Changer
    • Adjustable Wrist Rests
    • Molded Footrests
    • Removable, Washable Floor Mat
    • Travel Pedals and Hand Levers
    • Cat Key with Passcode Option
    • HVAC with Automatic Temperature Control
    • Hydraulic Lockout Controls
    • Integrated Lower Front Window
    • Assisted Front Window Overhead Storage
    • Rear Window Emergency Exit
    • Fabric, High Back, Suspension Seat
    • Retractable Seat Belt (75 mm/3 in)
    • Coat Hook
    • Cup Holder
    • LED Interior Light
    • Literature Holder
    • Mounting Bosses for Top and Front Guards
    • 12V Power Socket
    • Radio – Bluetooth, Auxiliary, Microphone, USB (charging only)
    • Skylight
    • Signaling/Warning Horn
    • Cab and (left side) Boom Work Lights
    • Utility Space for Mobile Phone
    • Next Generation Color LCD Monitor (IP66)
      – Jog Dial Interface
      – Fuel Level and Coolant Temperature Gauges
      – Maintenance and Machine Monitoring
      – Performance and Machine Adjustments
      – Numeric Security Code
      – Multiple Languages
      – Camera Ready (IP68 & IP69K)
      – Hour Meter with Wake Up Switch
  • UNDERCARRIAGE
    • Greased and Lubricated Track
    • Tie Down Eyes on Track Frame
    • Dozer Blade
    • Dozer Float
    • Bolt-on, Reversible Wear Edge
  • BOOM, STICK AND LINKAGES
    • One Piece Boom (3400 mm/133.9 in)
    • Standard Stick (1820 mm/71.7 in)
    • Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler (not available in all regions)
    • Thumb Ready (not available in all regions)
  • ELECTRICAL
    • 12 Volt Electrical System
    • 60 Ampere Alternator
    • Circuit Breaker
    • 900 CCA Maintenance Free Battery
    • Battery Disconnect
    • Ignition Key Stop Switch
  • OTHER
    • Locks on External Enclosure Doors
    • Lockable Fuel Cap
    • Beacon Socket
    • Rear Reflectors

Optional Equipment

  • OPERATOR ENVIRONMENT
    • Push to Start with Bluetooth® Key
    • Air Suspension Heated Seat
    • Rain Visor
    • Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option)
      – Touch Screen
      – Site Reference System
      – High Definition Camera Capable (IP68 & IP69K)
      – Numeric Security Code
  • UNDERCARRIAGE
    • Wide Dozer Blade
    • Steel Tracks (450 mm/17.7 in wide)
    • Wide Steel Tracks (600 mm/23.6 in)
    • Steel Track with Rubber Pads
    • Track Guides
  • BOOM, STICK AND LINKAGES
    • Long Stick (2360 mm/92.9 in)
    • Attachments including Buckets, Augers and Hammers
    • 2nd Auxiliary Hydraulic Lines
    • Boom Lowering Check Valve
    • Stick Lowering Check Valve
    • Certified Lifting Eye
  • ELECTRICAL
    • Product Link™ Elite (regulations apply)
    • Travel Alarm
    • Rearview Camera
    • Rotating Beacon
  • GUARDING
    • Mesh Front Guard ISO 10262 1998 Level I
    • Heavy Duty Front Guard ISO 10262 1998 Level II
    • Overhead Cab Guard ISO 10262 1998 Level II
    • Polycarbonate Front Window EN356 P5A
    • Track Guards
  • OTHER
    • Additional Counterweight
    • Water Jacket Heater
    • Refueling Pump
    • Variable Angle Boom (refer to 308 CR VAB brochure for VAB specs and additional information)
