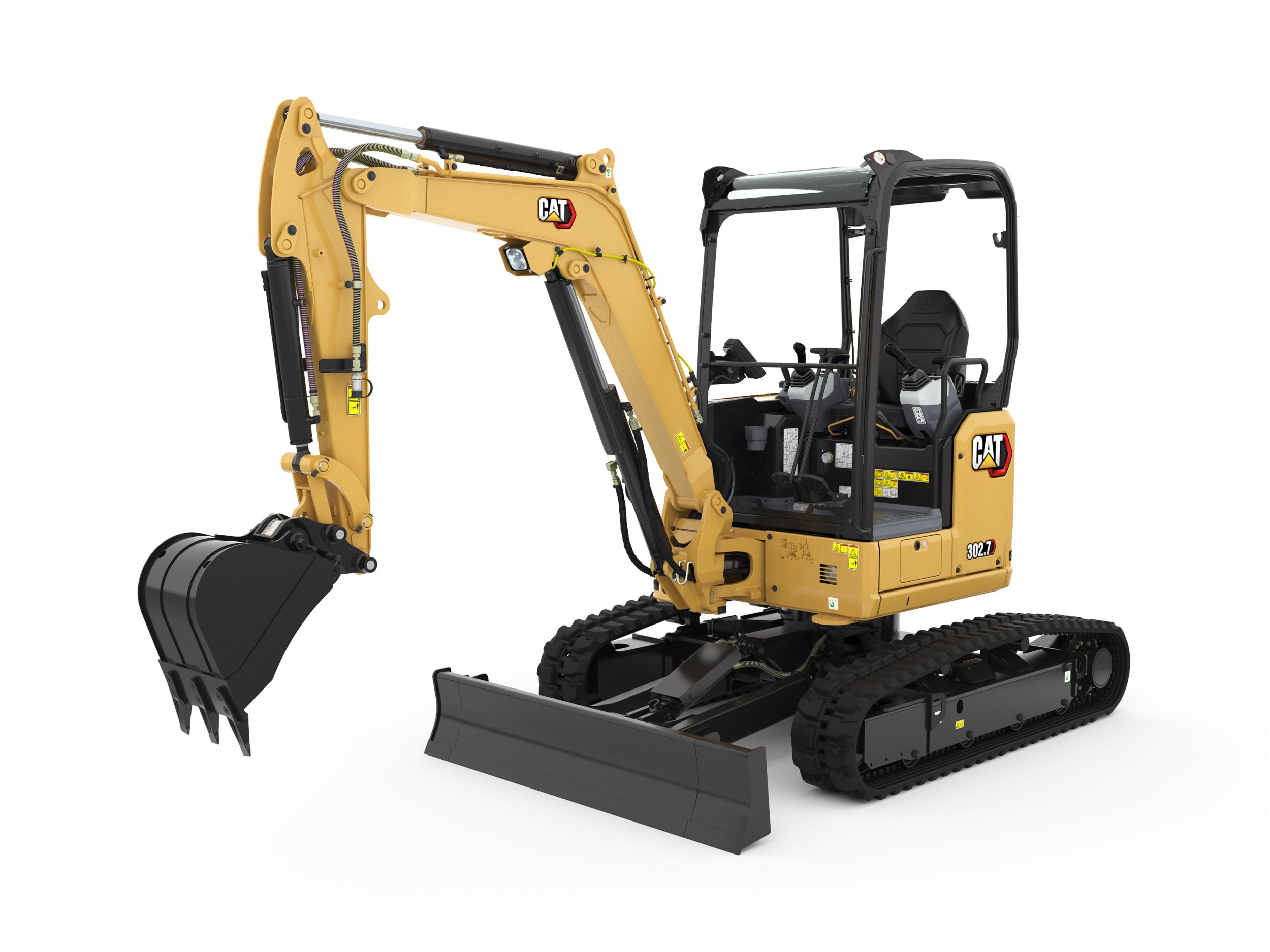

302.7 CR Mini Hydraulic Excavator



  • Choose either a canopy or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.


  • Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped.


  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!


  • Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage let you access and work in the tightest areas. Dozer float allows for easy clean up.


  • Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.


  • Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab or canopy lets you reach additional service areas when needed.


  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.


  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.


  • The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Net Power 17.6 kW (23.6 HP)
Engine Model C1.1 Turbo
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC 17.6 kW (23.6 HP)
Bore 77 mm (3 in)
Displacement 1.1 l (69 inu00b3)
Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Stroke 81 mm (3.2 in)
Gross Power - 2,400 rpm - SAE J1995:2014 18.4 kW (24.7 HP)
Operating Weight 3050 kg (6725 lb)
Minimum Operating Weight with Canopy* 2560 kg (5645 lb)
Maximum Operating Weight with Canopy** 2925 kg (6450 lb)
Minimum Operating Weight with Cab* 2680 kg (5909 lb)
EU: CE Plate Weight with Canopy*** 2695 kg (5942 lb)
EU: CE Plate Weight with Cab*** 2800 kg (6174 lb)
Note (2) **Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.
Note (1) *Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.
Maximum Operating Weight with Cab** 3050 kg (6725 lb)
Note (3) ***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
Weight Increase from Minimum Configuration
Long Stick 15 kg (33 lb)
Steel Tracks 100 kg (221 lb)
Cab 125 kg (276 lb)
Counterweight (extra) 250 kg (551 lb)
Counterweight (light) 100 kg (221 lb)
Travel System
Ground Pressure - Maximum Weight 29 kPa (4.2 psi)
Ground Pressure - Minimum Weight 24.2 kPa (3.5 psi)
Travel Speed - Low 2.6 km/h (1.6 mile/h)
Gradeability - Maximum 30 degrees
Maximum Traction Force - High Speed 15.6 kN (3507 lbf)
Travel Speed - High 4.5 km/h (2.8 mile/h)
Maximum Traction Force - Low Speed 26.8 kN (6025 lbf)
Service Refill Capacities
Hydraulic System 35 l (9.2 gal (US))
Hydraulic Tank 18 l (4.8 gal (US))
Fuel Tank 45 l (11.9 gal (US))
Engine Oil 4 l (1.1 gal (US))
Cooling System 4 l (1.1 gal (US))
Hydraulic System
Digging Force - Stick - Standard 13.8 kN (3102 lbf)
Auxiliary Circuit - Primary - Pressure 245 bar (3553 psi)
Operating Pressure - Swing 176 bar (2553 psi)
Auxiliary Circuit - Secondary - Flow 25 l/min (7 gal/min)
Auxiliary Circuit - Primary - Flow 65 l/min (17 gal/min)
Auxiliary Circuit - Secondary - Pressure 245 bar (3553 psi)
Operating Pressure - Equipment 245 bar (3553 psi)
Digging Force - Stick - Long 12.3 kN (2765 lbf)
Digging Force - Bucket 23.3 kN (5238 lbf)
Operating Pressure - Travel 245 bar (3553 psi)
Pump Flow at 2,400 rpm 100 l/min (26 gal/min)
Type Load Sensing Hydraulics with Variable Displacement Piston Pump
Note Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Swing System
Machine Swing Speed 9 r/min (9 r/min)
Boom Swing - Left 75 Degrees
Boom Swing - Right 50 Degrees
Height 320 mm (12.6 in)
Width 1570 mm (61.8 in)
Certification - Cab and Canopy
Top Guard ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS) ISO 12117:1997
Roll Over Protective Structure (ROPS) ISO 12117-2:2008
Operator Sound Pressure (ISO 6396:2008) 78 dB(A) (78 dB(A))
Average Exterior Sound Pressure (ISO 6395:2008) 94 dB(A) (94 dB(A))
Note European Union Directive u201c2000/14/ECu201d
Dimensions - Standard Stick
Overall Shipping Length* 4240 mm (166.9 in)
Boom In Reach 1710 mm (67.3 in)
O/A Shipping Height 2480 mm (97.6 in)
Swing Bearing - Height 560 mm (22 in)
Stick Length 1060 mm (41.7 in)
Maximum Reach 4660 mm (183.5 in)
Maximum Dump Clearance 2950 mm (116.1 in)
Maximum Dig Height 4270 mm (168.1 in)
Tail Swing without Counterweight 775 mm (30.5 in)
Tail Swing with Extra Counterweight 890 mm (35 in)
Boom Swing - Right 830 mm (32.7 in)
O/A Undercarriage Length 2010 mm (79.1 in)
Vertical Wall 1870 mm (73.6 in)
Note *Overall Shipping Length depends on blade position during shipment.
Maximum Reach - Ground Level 4510 mm (177.6 in)
Dig Depth 2510 mm (98.8 in)
Track Belt/Shoe Width 300 mm (11.8 in)
Maximum Blade Height 395 mm (15.6 in)
Maximum Blade Depth 515 mm (20.3 in)
Boom Swing - Left 605 mm (23.8 in)
Ground Clearance 310 mm (12.2 in)
Boom Height - Shipping Position 1560 mm (61.4 in)
Tail Swing - with Light Counterweight 845 mm (33.3 in)
Dimensions - Long Stick
Dig Depth 2710 mm (106.7 in)
Boom Height - Shipping Position 1650 mm (65 in)
Boom Swing - Right 830 mm (32.7 in)
Maximum Reach - Ground Level 4710 mm (185.4 in)
Maximum Blade Height 395 mm (15.6 in)
Maximum Reach 4850 mm (190.9 in)
Boom Swing - Left 605 mm (23.8 in)
Maximum Blade Depth 515 mm (20.3 in)
O/A Shipping Height 2480 mm (97.6 in)
Maximum Dig Height 4390 mm (172.8 in)
Stick Length 1260 mm (49.6 in)
Tail Swing without Counterweight 775 mm (30.5 in)
Boom In Reach 1730 mm (68.1 in)
Maximum Dump Clearance 3070 mm (120.9 in)
Swing Bearing - Height 560 mm (22 in)
Vertical Wall 2050 mm (80.7 in)
O/A Undercarriage Length 2010 mm (79.1 in)
Ground Clearance 310 mm (12.2 in)
Track Belt/Shoe Width 300 mm (11.8 in)
Overall Shipping Length* 4280 mm (168.5 in)
Note *Overall Shipping Length depends on blade position during shipment.
Tail Swing - with Extra Counterweight 890 mm (35 in)
Track Width 1570 mm (61.8 in)
Tail Swing - with Light Counterweight 845 mm (33.3 in)
Recyclability 95%

Standard Equipment

    • Cat® C1.1 Turbo Engine (U.S. EPA Tier 4 Final/EU Stage V)
    • Automatic Engine Idle
    • Automatic Engine Shutdown
    • Automatic Two Speed Travel
    • Fuel Water Separator
    • Power on Demand (not available in all regions)
    • Variable Displacement Piston Pump
    • Load Sensing/Flow Sharing Hydraulics
    • Smart Tech Electronic Pump
    • Accumulator
    • Automatic Swing Brake
    • Auxiliary Hydraulic Lines
    • One and Two Way Auxiliary Flow
    • Continuous Auxiliary Flow
    • Auxiliary Line Quick Disconnects
    • Tilt-up Canopy or Tilt-Up Cab
    • Top Guard ISO 10262:1998 Level I
    • ROPS – ISO 12117-2:2008
    • TOPS – ISO 12117:1997
    • Stick Steer Mode
    • Travel Cruise Control
    • Control Pattern Changer (optional in some regions)
    • Adjustable Wrist Rests
    • Washable Floor Mat
    • Travel Pedals and Hand Levers
    • Machine Security
    • Standard Key with Pass Code
    • Fabric Suspension Seat (Cab only)
    • Vinyl Suspension Seat (Canopy only)
    • Hydraulic Lockout – All Controls
    • Retractable High Visibility Seat Belt (75 mm/3 in)
    • Coat Hook
    • Cup Holder
    • Storage Pocket
    • Skylight
    • Mounting Bosses for Front
    • Signaling/Warning Horn
    • Interior Light (Cab only)
    • Boom Light, Halogen (not available in all regions)
    • Utility Space for Mobile Phone
    • Next Generation Color LCD Monitor (IP66)
      – Fuel Level and Coolant Temperature Gauges
      – Maintenance and Machine Monitoring
      – Performance and Machine Adjustments
      – Numeric Security Code
      – Multiple Languages
      – Hour Meter with Wake Up Switch
      – Jog Dial (Cab only)
    • Rubber Belt (300 mm/11.8 in wide)
    • Dozer Blade
    • Dozer Blade Float
    • Tie Downs on Track Frame
    • One Piece Boom (2085 mm/82.1 in)
    • Standard Stick (1060 mm/41.7 in)
    • Front Shovel Capable
    • Front Shovel Capable – Pin-On
    • Thumb Ready (not available in all regions)
    • Certified Lifting Eye (optional in some regions)
    • 12 Volt Battery
    • Software (machine and monitor)
    • Maintenance Free Battery
    • Battery Disconnect
    • Signaling/Warning Horn
    • 12 Volt Power Socket

Optional Equipment

    • Cab with Air Conditioning
    • Cab with Heater
    • No Travel Pedals and Hand Levers (optional in some regions)
    • Push to Start with Key Fob/Pass Code
    • Vinyl Non-Suspension Seat (Canopy only) (not available in all regions)
    • LED Front Lights
    • LED Front and Rear Lights
    • LED Boom Light
    • Mirrors Left and Right
    • Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
    • Next Generation Advanced Monitor
      – Touchscreen
      – Site Reference System
      – High Definition Camera Capable (IP68 and IP69K)
      – Numeric Security Code
    • Steel Track (300 mm/11.8 in wide)
    • Long Stick (1260 mm/49.6 in)
    • Front Shovel Capable – Dual Lock Manual Coupler
    • Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
    • 2nd Auxiliary Hydraulic Lines
    • Bucket Divert Lines
    • Boom Lowering Check Valve
    • Stick Lowering Check Valve
    • Hydraulic Quick Coupler Lines (not available in all regions)
    • Product Link PL243 (regulations apply)
    • Product Link PLE643 (regulations apply)
    • Travel Alarm (standard in some regions)
    • Polycarbonate Half Height Front Guard (Canopy only)
    • Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 P5A)
    • Bio Oil Capable
    • Eco Drain
    • Water Jacket Heater
    • Light Counterweight (100 kg/221 lb)
    • Extra Counterweight (250 kg/551 lb)
