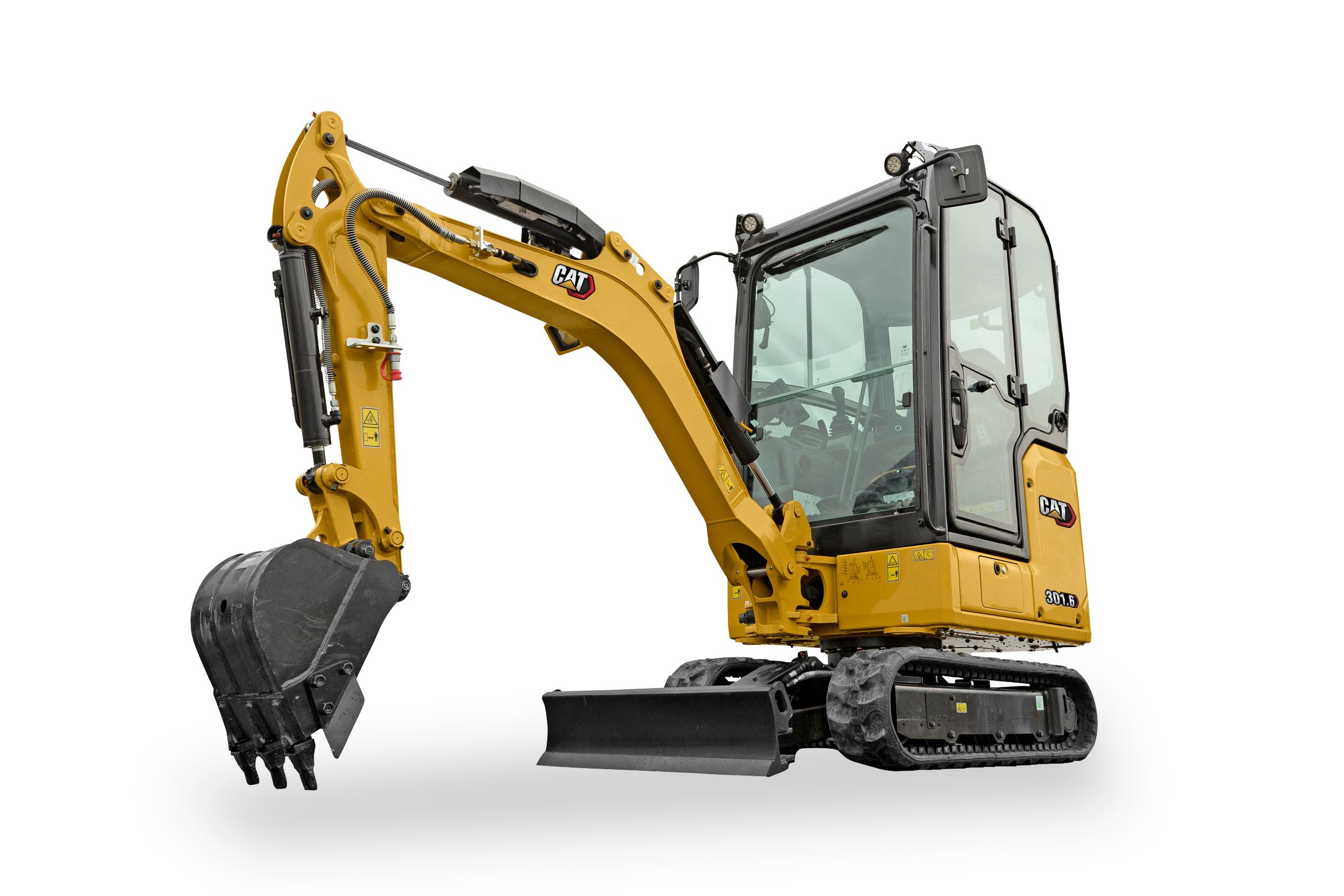

301.6 Mini Hydraulic Excavator
ALL DAY COMFORT
A sealed and pressurised cab equipped with air conditioning, adjustable wrist rests and a suspension seat option help keep you working comfortably all day long.
EASY TO OPERATE
Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
STICK STEER TRAVEL MODE
Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
BIG PERFORMANCE IN A COMPACT DESIGN
Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
SAFETY ON THE JOB SITE
Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.
SIMPLE SERVICE FOR LESS DOWNTIME
Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab lets you reach additional service areas when needed.
LOWER OPERATING COSTS
Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.
SUSTAINABILITY
- The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
- The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Remote Flash minimises downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite (if equipped)
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)
| Engine | |
|---|---|
| Net Power | 15.7 kW (21 hp) |
| Weights | |
|---|---|
| Operating Weight | 1958 kg (4317 lb) |
| Dimensions - Long Stick | |
|---|---|
| Dig Depth | 2540 mm (100 in) |
| Engine | |
|---|---|
| Engine Model | C1.1 |
| Blade | |
|---|---|
| Height | 225 mm (8.9 in) |
| Width* | 990 mm (39 in) |
| Dimensions - Standard Stick | |
|---|---|
| Boom Swing - Right | 50 u00b0 (50 u00b0) |
| Dimensions - Long Stick | |
|---|---|
| Boom Swing - Left | 65 u00b0 (65 u00b0) |
| Service Refill Capacities | |
|---|---|
| Cooling System | 3.9 l (1 gal (US)) |
| Weights | |
|---|---|
| Note (2) | **Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. |
| Certification - Cab | |
|---|---|
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Hydraulic System | |
|---|---|
| Auxiliary Circuit - Primary - Flow | 33 l/min (8.7 gal/min) |
| Dimensions - Standard Stick | |
|---|---|
| Minimum Ground Clearance Below Undercarriage | 155 mm (6.1 in) |
| Travel System | |
|---|---|
| Travel Speed - Low | 2.9 km/h (1.8 mile/h) |
| Dimensions - Long Stick | |
|---|---|
| Boom Height - Shipping Position | 1040 mm (40.9 in) |
| Dimensions - Standard Stick | |
|---|---|
| Maximum Reach - Ground Level | 3730 mm (146.9 in) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Blade Depth | 260 mm (10.2 in) |
| Dimensions - Standard Stick | |
|---|---|
| Maximum Dump Clearance | 2450 mm (96.5 in) |
| Travel System | |
|---|---|
| Maximum Traction Force - Low Speed | 15.9 kN (3574.5 lbf) |
| Service Refill Capacities | |
|---|---|
| Hydraulic Tank | 18 l (4.8 gal (US)) |
| Dimensions - Long Stick | |
|---|---|
| Stick Length | 1160 mm (45.7 in) |
| Weight Increase from Minimum Configuration | |
|---|---|
| Steel Tracks | 57 kg (126 lb) |
| Dimensions - Standard Stick | |
|---|---|
| Dig Depth | 2340 mm (92.1 in) |
| Travel System | |
|---|---|
| Maximum Traction Force - High Speed | 10.2 kN (2293.1 lbf) |
| Service Refill Capacities | |
|---|---|
| Hydraulic System | 26 l (6.9 gal (US)) |
| Hydraulic System | |
|---|---|
| Auxiliary Circuit - Secondary - Pressure | 213 bar (3089.3 psi) |
| Dimensions - Standard Stick | |
|---|---|
| O/A Undercarriage Length | 1460 mm (57.5 in) |
| Track Width - Expanded | 1300 mm (51.18 in) |
| Dimensions - Long Stick | |
|---|---|
| Track Belt/Shoe Width | 230 mm (9.1 in) |
| Weight Increase from Minimum Configuration | |
|---|---|
| Long Stick | 8 kg (18 lb) |
| Engine | |
|---|---|
| Bore | 77 mm (3 in) |
| Weights | |
|---|---|
| Maximum Operating Weight with Cab** | 1958 kg (4317 lb) |
| Dimensions - Long Stick | |
|---|---|
| Tail Swing | 995 mm (39.2 in) |
| Dimensions - Standard Stick | |
|---|---|
| Tail Swing | 995 mm (39.2 in) |
| Dimensions - Long Stick | |
|---|---|
| Track Width - Expanded | 1300 mm (51.18 in) |
| Sound | |
|---|---|
| Note | European Union Directive u201c2000/14/ECu201d |
| Service Refill Capacities | |
|---|---|
| Engine Oil | 4.4 l (1.2 gal (US)) |
| Hydraulic System | |
|---|---|
| Auxiliary Circuit - Primary - Pressure | 213 bar (3089.3 psi) |
| Dimensions - Standard Stick | |
|---|---|
| Overall Shipping Length* | 3620 mm (142.5 in) |
| Maximum Blade Depth | 260 mm (10.2 in) |
| Hydraulic System | |
|---|---|
| Auxiliary Circuit - Secondary - Flow | 14 l/min (3.7 gal/min) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Blade Height | 275 mm (10.8 in) |
| Certification - Cab | |
|---|---|
| Tip Over Protective Structure (TOPS) | ISO 12117:1997 |
| Sound | |
|---|---|
| Average Exterior Sound Pressure (ISO 6395:2008) | 93 dB(A) (93 dB(A)) |
| Dimensions - Standard Stick | |
|---|---|
| Swing Bearing - Height | 445 mm (17.5 in) |
| Hydraulic System | |
|---|---|
| Digging Force - Stick - Long | 7.2 kN (1616.4 lbf) |
| Dimensions - Standard Stick | |
|---|---|
| Maximum Reach | 3800 mm (149.6 in) |
| Dimensions - Long Stick | |
|---|---|
| Boom Swing - Right | 50 u00b0 (50 u00b0) |
| Hydraulic System | |
|---|---|
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Dimensions - Long Stick | |
|---|---|
| Vertical Wall | 1890 mm (74.4 in) |
| Swing System | |
|---|---|
| Machine Swing Speed | 9.8 r/min (9.8 r/min) |
| Hydraulic System | |
|---|---|
| Operating Pressure - Travel | 213 bar (3089.3 psi) |
| Engine | |
|---|---|
| Note (2) | Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. |
| Travel System | |
|---|---|
| Travel Speed - High | 4.4 km/h (2.7 mile/h) |
| Weights | |
|---|---|
| Minimum Operating Weight with Cab* | 1765 kg (3891 lb) |
| Blade | |
|---|---|
| Note | *Expanded u2013 1300 mm (51 in) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Reach | 3960 mm (155.9 in) |
| Dimensions - Standard Stick | |
|---|---|
| O/A Shipping Height | 2310 mm (90.9 in) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Dump Clearance | 2510 mm (98.8 in) |
| Dimensions - Standard Stick | |
|---|---|
| Track Belt/Shoe Width | 230 mm (9.1 in) |
| Certification - Cab | |
|---|---|
| Top Guard | ISO 10262:1998 (Level I) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Reach - Ground Level | 3890 mm (153.1 in) |
| Dimensions - Standard Stick | |
|---|---|
| Note | *Overall Shipping Length depends on blade position during shipment. |
| Dimensions - Long Stick | |
|---|---|
| Track Width - Retracted | 990 mm (39 in) |
| Travel System | |
|---|---|
| Gradeability - Maximum | 30 degrees |
| Engine | |
|---|---|
| Stroke | 81 mm (3.2 in) |
| Hydraulic System | |
|---|---|
| Operating Pressure - Equipment | 213 bar (3089.3 psi) |
| Operating Pressure - Swing | 103 bar (1493.9 psi) |
| Travel System | |
|---|---|
| Ground Pressure - Minimum Weight | 30.5 kPa (4.4 psi) |
| Dimensions - Long Stick | |
|---|---|
| Boom In Reach | 1450 mm (57.1 in) |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 22 l (5.8 gal (US)) |
| Hydraulic System | |
|---|---|
| Digging Force - Stick - Standard | 8.2 kN (1843.4 lbf) |
| Travel System | |
|---|---|
| Ground Pressure - Maximum Weight | 34 kPa (4.9 psi) |
| Dimensions - Standard Stick | |
|---|---|
| Track Width - Retracted | 990 mm (39 in) |
| Stick Length | 960 mm (37.8 in) |
| Hydraulic System | |
|---|---|
| Digging Force - Bucket | 14.1 kN (3169.8 lbf) |
| Dimensions - Standard Stick | |
|---|---|
| Boom Height - Shipping Position | 1090 mm (42.9 in) |
| Dimensions - Long Stick | |
|---|---|
| Overall Shipping Length* | 3860 mm (152 in) |
| Engine | |
|---|---|
| Displacement | 1.1 l (69 inu00b3) |
| Dimensions - Standard Stick | |
|---|---|
| Maximum Dig Height | 3430 mm (135 in) |
| Dimensions - Long Stick | |
|---|---|
| Maximum Dig Height | 3490 mm (137.4 in) |
| Dimensions - Standard Stick | |
|---|---|
| Vertical Wall | 1800 mm (70.9 in) |
| Sound | |
|---|---|
| Operator Sound Pressure (ISO 6396:2008) | 73 dB(A) (73 dB(A)) |
| Engine | |
|---|---|
| Note (1) | Engine power is tested per ISO 14396:2002. |
| Dimensions - Long Stick | |
|---|---|
| O/A Shipping Height | 2310 mm (90.9 in) |
| Dimensions - Standard Stick | |
|---|---|
| Boom Swing - Left | 65 u00b0 (65 u00b0) |
| Engine | |
|---|---|
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
| Dimensions - Standard Stick | |
|---|---|
| Boom In Reach | 1460 mm (57.5 in) |
| Maximum Blade Height | 275 mm (10.8 in) |
| Dimensions - Long Stick | |
|---|---|
| Swing Bearing - Height | 445 mm (17.5 in) |
| Minimum Ground Clearance Below Undercarriage | 155 mm (6.1 in) |
| O/A Undercarriage Length | 1460 mm (57.5 in) |
| Weights | |
|---|---|
| Note (1) | *Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank. |
| Hydraulic System | |
|---|---|
| Pump Flow at 2,400 rpm | 66 l/min (17.4 gal/min) |
| Engine | |
|---|---|
| Note | Net power is tested per ISO 9249:2007 and 80/1269/EEC. |
| Dimensions - Long Stick | |
|---|---|
| Note | *Overall Shipping Length depends on blade position during shipment. |
| Weight Increase from Minimum Configuration | |
|---|---|
| Expandable Undercarriage | 128 kg (282 lb) |
| Weights | |
|---|---|
| EU: CE Plate Weight*** | 1925 kg (4244 lb) |
| Note (3) | ***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. |
| Engine | |
|---|---|
| Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC | 15.7 kW (21 hp) |
| Gross Power - SAE J1995:2014 | 16.1 kW (21.6 hp) |
| Sustainability | |
|---|---|
| Recyclability | 95% |
Standard Equipment
- ENGINE
- Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
- Automatic Engine Idle
- Automatic Engine Shutdown
- Automatic Two Speed Travel
- Fuel Water Separator
- Power on Demand (not available in all regions)
- Variable Displacement Piston Pump
- Load Sensing/Flow Sharing Hydraulics
- HYDRAULICS
- Smart Tech Electronic Pump
- Accumulator
- Automatic Swing Brake
- Auxiliary Hydraulic Lines
- One and Two Way Auxiliary Flow
- Continuous Auxiliary Flow
- Auxiliary Line Quick Disconnects
- OPERATOR ENVIRONMENT
- Tilt-up Canopy or Tilt-Up Cab
- Top Guard ISO 10262:1998 Level I
- ROPS – ISO 12117-2:2008
- TOPS – ISO 12117:1997
- Machine 2-Point Lifting
- Stick Steer Mode
- Travel Cruise Control
- Control Pattern Changer (optional in some regions)
- Adjustable Wrist Rests
- Washable Floor Mat
- Travel Pedals and Hand Levers
- Machine Security
- Machine Security – Standard Key with Pass Code
- Fabric Suspension Seat (Cab only)
- Hydraulic Lockout: All Controls
- Retractable High Visibility Seat Belt (75 mm/3 in)
- Coat Hook
- Cup Holder
- Storage Pocket
- Skylight
- Mounting Bosses for Front
- Signaling/Warning Horn
- Interior Light (Cab only)
- Boom Light, Halogen
- Utility Space for Mobile Phone
- Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch
- UNDERCARRIAGE
- Expandable Undercarriage
- Rubber Belt (230 mm/9 in wide)
- Dozer Blade
- Dozer Blade Float
- Hydraulic Track Adjusters
- Tie Downs on Track Frame
- BOOM, STICK AND LINKAGES
- One Piece Boom (1850 mm/73 in)
- Standard Stick (960 mm/37.8 in)
- Front Shovel Capable
- Front Shovel Capable – Pin-On
- Thumb Ready (not available in all regions)
- Certified Lifting Eye (optional in some regions)
- ELECTRICAL
- 12 Volt Battery
- Software (machine and monitor)
- Maintenance Free Battery
- Signaling/Warning Horn
- 12 Volt Power Socket
Optional Equipment
- OPERATOR ENVIRONMENT
- Cab with Air Conditioning
- Cab with Heater
- Control Pattern Changer (optional in some regions)
- No Travel Pedals and Hand Levers
- Machine Security: Push to Start with Key Fob/Pass Code
- LED Front Lights
- LED Front and Rear Lights
- LED Boom Light
- Mirrors Left and Right
- Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
- UNDERCARRIAGE
- Steel Track (230 mm/9 in wide)
- BOOM, STICK AND LINKAGES
- Long Stick (1160 mm/45.7 in)
- Front Shovel Capable – Dual Lock Manual Coupler
- Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
- 2nd Auxiliary Hydraulic Lines
- Boom Lowering Check Valve
- Stick Lowering Check Valve
- Hydraulic Quick Coupler Lines (not available in all regions)
- ELECTRICAL
- Battery Disconnect
- Product Link PL243 (regulations apply)
- Product Link PLE643 (regulations apply)
- Travel Alarm (standard in some regions)
- GUARDING
- Guard, Canopy
- Guard, Mesh
- OTHER
- Bio Oil Capable
- Eco Drain
- Water Jacket Heater
