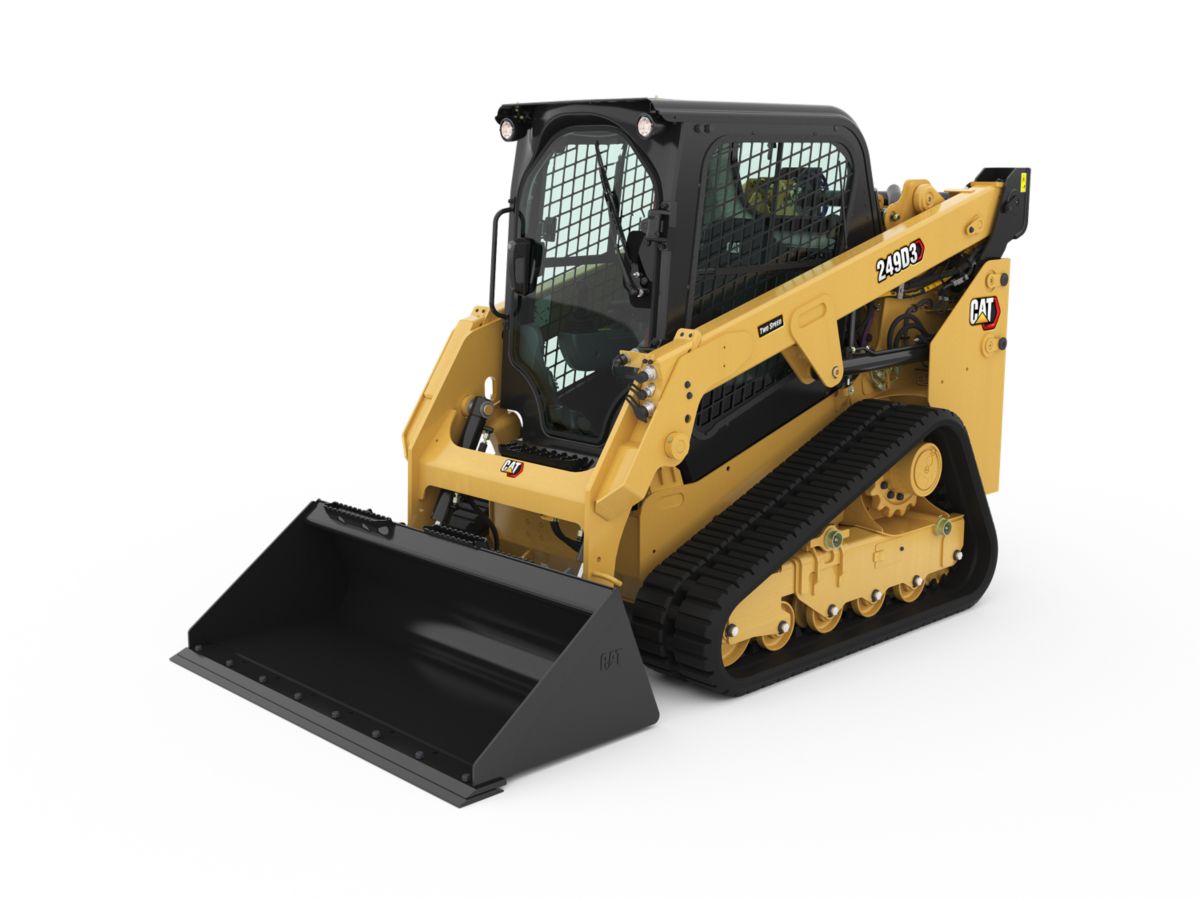

249D3 Compact Track Loader

CALCULATE FINANCE

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

A Smooth Ride

A standard, fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

Sustainability

  • The Cat® C2.2 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
  • Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.

Engine
Gross Power - SAE J1995 50.1 kW (67.1 HP)
Operating Specifications
Rated Operating Capacities - 35% Tipping Load 790 kg (1740 lb)
Weights
Operating Weight 3552 kg (7831 lb)
Operating Specifications
Tipping Load 2260 kg (4970 lb)
Dimensions
Length - Track on Ground 1384 mm (54.5 in)
Overall Length - Track 1808 mm (71.2 in)
Height - Top of Cab 2039 mm (80.3 in)
Ground Clearance 194 mm (7.6 in)
Departure Angle 34.5u00b0
Maximum Dump Angle 48u00b0
Vehicle Width (400 mm/15.7 in tracks) 1756 mm (69.1 in)
Length - With Bucket on Ground 3233 mm (127.3 in)
Operating Specifications
Ground Contact Area - With 320 mm/12.6 in Track 0.89 mu00b2 (1373 inu00b2)
Dimensions
Maximum Overall Height 3831 mm (150.8 in)
Bucket Pin Height - Carry Position 219 mm (8.6 in)
Maximum Reach - With Arms Parallel to Ground 1317 mm (51.8 in)
Length - Without Bucket 2523 mm (99.3 in)
Turning Radius from Center - Machine Rear 1458 mm (57.4 in)
Operating Specifications
Ground Pressure - With 320 mm/12.6 in Track 39.3 kPa (5.7 psi)
Dimensions
Bucket Pin Height - Maximum Lift 3002 mm (118.2 in)
Clearance at Maximum Lift and Dump 2253 mm (88.7 in)
Vehicle Width (320 mm/12.6 in tracks) 1676 mm (66 in)
Turning Radius from Center - Coupler 1160 mm (45.7 in)
Reach - Maximum Lift/Dump 727 mm (28.6 in)
Rack Back Angle - Maximum Height 87.5u00b0
Turning Radius from Center - Bucket 2060 mm (81.1 in)
Hydraulic System
Hydraulic Flow - Standard - Loader Hydraulic Pressure 23000 kPa (3336 psi)
Hydraulic Flow - High Flow - Loader Hydraulic Flow 99 l/min (26 gal/min)
Hydraulic Flow - High Flow - Loader Hydraulic Pressure 23000 kPa (3336 psi)
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 38 kW (50.9 HP)
Hydraulic Flow - Standard - Loader Hydraulic Flow 69 l/min (18 gal/min)
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 26.5 kW (35.5 HP)
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
Power Train
Travel Speed - Forward or Reverse - One Speed 8.1 km/h (5 mile/h)
Travel Speed - Forward or Reverse - Two Speed 12.2 km/h (7.6 mile/h)
Service Refill Capacities
Engine Crankcase 10 l (2.6 gal (US))
Fuel Tank 57 l (15.1 gal (US))
Hydraulic System 45 l (11.9 gal (US))
Cooling System 12 l (3.2 gal (US))
Hydraulic Tank 34 l (9 gal (US))
Engine
Displacement 2.2 l (134.3 inu00b3)
Bore 84 mm (3.3 in)
Stroke 100 mm (3.9 in)
Net Power - ISO 9249 49.6 kW (66.5 HP)
Net Power 49.1 kW (65.8 HP)
Net Power - SAE 1349 49.1 kW (65.8 HP)
Operating Specifications
Breakout Force - Tilt Cylinder 1772 kg (3907 lb)
Dimensions
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Engine
Peak Torque - 1,500 rpm - SAE J1995 208 N·m (153 ft·lbf)
Dimensions
Bucket Pin Reach - Maximum Lift 311 mm (12.2 in)
Operating Specifications
Ground Contact Area - With 400 mm/15.7 in Track 1.11 mu00b2 (1716 inu00b2)
Engine
Engine Model Cat C2.2 CRDI
Noise Level
Outside Cab*** 103 dB(A) (103 dB(A))
Inside Cab** 83 dB(A) (83 dB(A))
Weights
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Operating Specifications
Ground Pressure - With 400 mm/15.7 in Track 32.2 kPa (4.7 psi)
Noise Level
Note (3) ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Operating Specifications
Rated Operating Capacities - 50% Tipping Load 1130 kg (2485 lb)
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Noise Level
Note (2) **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Operating Specifications
Rated Operating Capacity with Optional Counterweight 1225 kg (2700 lb)
Noise Level
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Air Conditioning System (if equipped)
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Standard Equipment

  • ELECTRICAL
    • 12 volt Electrical System
    • 80 ampere Alternator
    • Ignition Key Start/Stop Switch
    • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
    • Backup Alarm
    • Heavy Duty Battery, 850 CCA
  • OPERATOR ENVIRONMENT
    • Gauges: Fuel Level, Hour Meter
    • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged
    • Adjustable Vinyl Seat
    • Fold In Ergonomic Contoured Armrest
    • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
    • ROPS Cab, Open, Tilt Up
    • FOPS, Level I
    • Top and Rear Windows
    • Floor Mat
    • Interior Rearview Mirror
    • 12 volt Electric Socket
    • Horn
    • Hand (Dial) Throttle, Electronic
    • Adjustable Joystick Controls
    • Anti-theft Security System with 6-button Keypad
    • Storage Compartment with Netting
  • POWER TRAIN
    • Cat C2.2, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V emission standards
    • Air Cleaner, Dual Element, Radial Seal
    • S·O·SSM Sampling Valve, Hydraulic Oil
    • Filters, Cartridge-type, Hydraulic
    • Filters, Canister-type, Fuel and Water Separator
    • ATAAC/Radiator/Hydraulic Oil Cooler (side-by-side)
    • Spring Applied, Hydraulically Released Parking Brakes
    • Hydrostatic Transmission, Two Speed Travel
    • Suspension – Independent Torsion Axles (4)
  • OTHER
    • Engine Enclosure, Lockable
    • Extended Life Antifreeze, –36° C (–33° F)
    • Machine Tie Down Points (6)
    • Support, Lift Arm
    • Hydraulic Oil Level Sight Gauge
    • Radiator Coolant Level Sight Gauge
    • Radiator, Expansion Bottle
    • Cat ToughGuard™ Hose
    • Auxiliary, Hydraulics, Continuous Flow
    • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
    • Electrical Outlet, Beacon
    • Belly Pan Cleanout
    • Variable Speed Demand Fan
    • Product Link™ PL240, Cellular
  • MANDATORY EQUIPMENT
    • Hydraulics, Standard or High Flow
    • Quick Coupler, Mechanical or Powered
    • High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
    • EU Preparation Package (Europe only)
    • Steel Imbed Rubber Track – 320 mm (12.6 in) Block Tread or 400 mm (15.7 in) Bar Tread
    • Dual Flange Front Idler/Single Flange Rear Idler
    • PERFORMANCE PACKAGES:
      – Performance Package H1: Standard Flow Hydraulics (No Self Level)
      – Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
      – Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    • COMFORT PACKAGES
      – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
      – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
      – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
      – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

  • OPTIONAL EQUIPMENT
    • Hand-Foot Style Controls
    • External Counterweights
    • Beacon, Rotating
    • Engine Block Heater – 120V
    • Oil, Hydraulic, Cold Operation
    • Paint, Custom
    • Product Link PL641, Cellular
    • Ride Control
    • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response, and Creep Control. (Standard Equipment in Europe Only)
    • Work Tool Return to Dig and Work Tool Positioner
    • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
