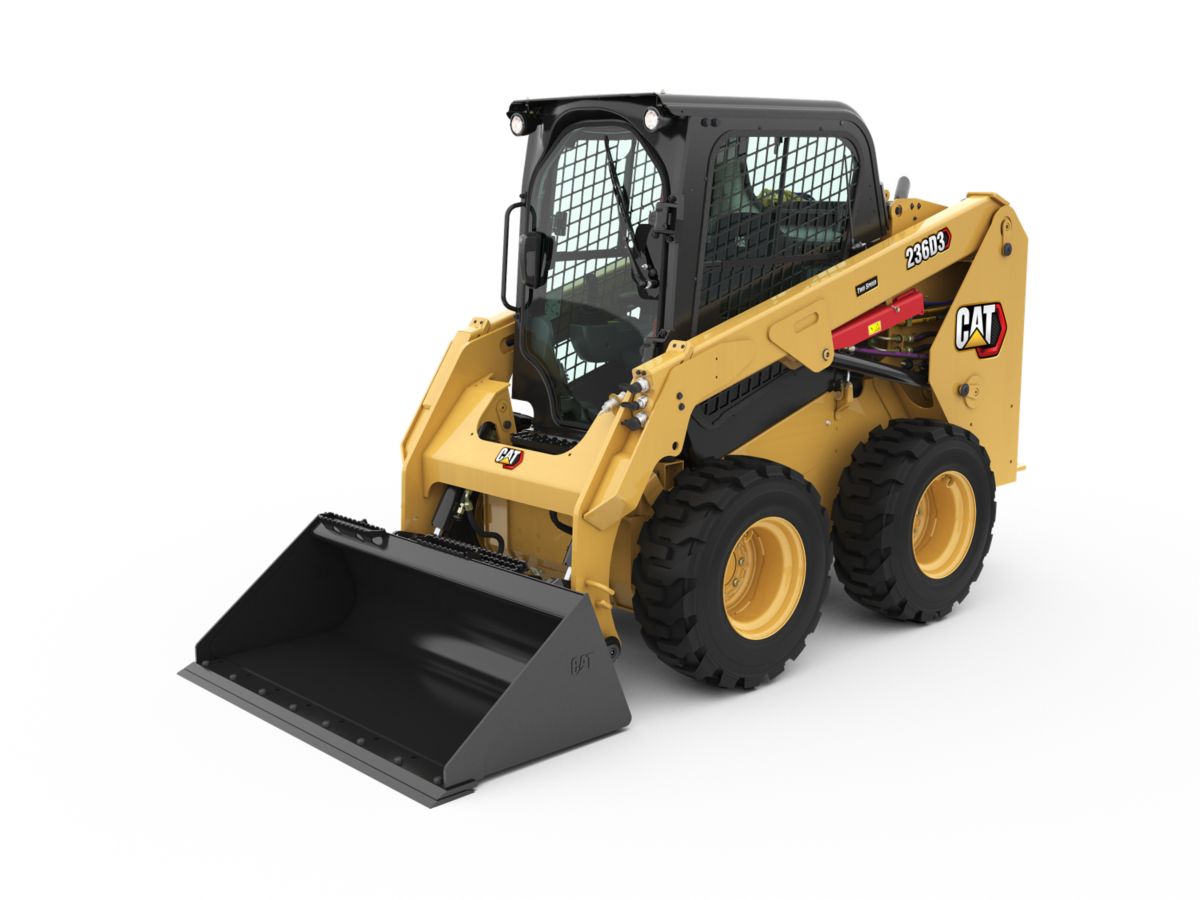

236D3 Skid Steer Loader

CALCULATE FINANCE

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

A Smooth Ride

A standard, Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. (Photo shown may vary from machine referenced.)

Sustainability

  • The Cat® C3.3B engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 7% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
  • Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.

Engine
Gross Power - SAE J1995 55.4 kW (74.3 HP)
Operating Specifications
Rated Operating Capacity 820 kg (1800 lb)
Weights
Operating Weight 2979 kg (6567 lb)
Dimensions
Wheel Base 1105 mm (43.5 in)
Height - Top of Cab 2082 mm (82 in)
Vehicle Width over Tires 1676 mm (66 in)
Ground Clearance 195 mm (7.7 in)
Departure Angle 26u00b0
Maximum Dump Angle 48u00b0
Maximum Reach - With Arms Parallel to Ground 1353 mm (53.3 in)
Turning Radius from Center - Machine Rear 1639 mm (64.5 in)
Bucket Pin Height - Maximum Lift 3122 mm (122.9 in)
Length - Without Bucket 2767 mm (108.9 in)
Rack Back Angle - Maximum Height 91u00b0
Turning Radius from Center - Bucket 2107 mm (83 in)
Turning Radius from Center - Coupler 1314 mm (51.8 in)
Clearance at Maximum Lift and Dump 2359 mm (92.9 in)
Reach - Maximum Lift/Dump 408 mm (16 in)
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 u00d7 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Bumper Overhang - Behind Rear Axle 1021 mm (40.2 in)
Maximum Overall Height 3977 mm (156.6 in)
Length - With Bucket on Ground 3487 mm (137.3 in)
Bucket Pin Height - Carry Position 190 mm (7.5 in)
Hydraulic System
Hydraulic Flow - Standard - Loader Hydraulic Flow 76 l/min (20 gal/min)
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure 23000 kPa (3335 psi)
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 29 kW (39 HP)
Hydraulic Flow - Standard - Loader Hydraulic Pressure 23000 kPa (3335 psi)
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow 112 l/min (30 gal/min)
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 43 kW (58 HP)
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
Power Train
Travel Speed - Forward or Reverse - Two Speed Option 17.1 km/h (10.6 mile/h)
Travel Speed - Forward or Reverse - One Speed 11.2 km/h (7 mile/h)
Service Refill Capacities
Chain Box - Each Side 8.8 l (2.3 gal (US))
Cooling System 14 l (3.7 gal (US))
Engine Crankcase 11 l (3 gal (US))
Fuel Tank 94 l (24.8 gal (US))
Hydraulic System 50 l (13.2 gal (US))
Hydraulic Tank 39 l (10.3 gal (US))
Engine
Net Power - SAE 1349 54.6 kW (73.2 HP)
Displacement 3.3 l (203 inu00b3)
Stroke 120 mm (4.7 in)
Bore 94 mm (3.7 in)
Net Flywheel Power 54.6 kW (73.2 HP)
Engine Model Cat 3.3B DIT (turbo)
Peak Torque - 1,500 rpm - SAE J1995 265 N·m (195 ft·lbf)
Net Power - ISO 9249 55.1 kW (73.9 HP)
Operating Specifications
Tipping Load 1635 kg (3600 lb)
Breakout Force - Tilt Cylinder 2269 kg (5003 lb)
Rated Operating Capacity with Optional Counterweight 910 kg (2000 lb)
Noise Level
Outside Cab** 101 dB(A)
Note (2) *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Weights
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 u00d7 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Noise Level
Note (3) **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab* 83 dB(A)
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Operating Specifications
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 u00d7 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Air Conditioning System (if equipped)
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Standard Equipment

  • ELECTRICAL
    • 12 volt Electrical System
    • 80 ampere Alternator
    • Ignition Key Start/Stop Switch
    • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
    • Backup Alarm
    • Heavy Duty Battery, 850 CCA
  • OPERATOR ENVIRONMENT
    • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
    • Gauges: Fuel Level, Hour Meter
    • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged, Engine Emission System
    • Adjustable Vinyl Seat
    • Fold In Ergonomic Contoured Armrest
    • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
    • ROPS Cab, Open, Tilt Up
    • FOPS, Level I
    • Top and Rear Windows
    • Floor Mat
    • Interior Rearview Mirror
    • 12 volt Electric Socket
    • Horn
    • Hand (Dial) Throttle, Electronic
    • Adjustable Joystick Controls
    • Anti-theft Security System with 6-button Keypad
    • Storage Compartment with Netting
  • POWER TRAIN
    • Cat C3.3B, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
    • Air Cleaner, Dual Element, Radial Seal
    • S·O·SSM Sampling Valve, Hydraulic Oil
    • Filters, Cartridge-type, Hydraulic
    • Filters, Canister-type, Fuel and Water Separator
    • Radiator/Hydraulic Oil Cooler (side-by-side)
    • Spring Applied, Hydraulically Released Parking Brakes
    • Hydrostatic Transmission
    • Four Wheel Chain Drive
  • OTHER
    • Engine Enclosure, Lockable
    • Extended Life Antifreeze, –36° C (–33° F)
    • Machine Tie Down Points (6)
    • Support, Lift Arm
    • Hydraulic Oil Level Sight Gauge
    • Radiator Coolant Level Sight Gauge
    • Radiator, Expansion Bottle
    • Cat ToughGuard™ Hose
    • Auxiliary, Hydraulics, Continuous Flow
    • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
    • Electrical Outlet, Beacon
    • Belly Pan Cleanout
    • Variable Speed Demand Fan
    • Product Link™ PL240, Cellular
  • MANDATORY EQUIPMENT
    • Hydraulics, Standard or High Flow
    • Quick Coupler, Mechanical or Powered
    • Highly Visible Seat Belt, 50 mm (2 in) or 75 mm (3 in)
    • EU Preparation Package
    • Power Train: One Speed, One Speed with Speed Sensitive Ride Control, Two Speed or Two Speed with Speed Sensitive Ride Control
    • Tires, 10 × 16.5 or 12 × 16.5
    • PERFORMANCE PACKAGES:
      – Performance Package H1: Standard Flow Hydraulics (No Self Level)
      – Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
      – Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    • COMFORT PACKAGES:
      – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
      – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
      – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
      – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

  • OPTIONAL EQUIPMENT
    • Hand-Foot Style Controls
    • External Counterweights
    • Beacon, Rotating
    • Engine Block Heater – 120V
    • Oil, Hydraulic, Cold Operation
    • Paint, Custom
    • Product Link PL641, Cellular
    • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
