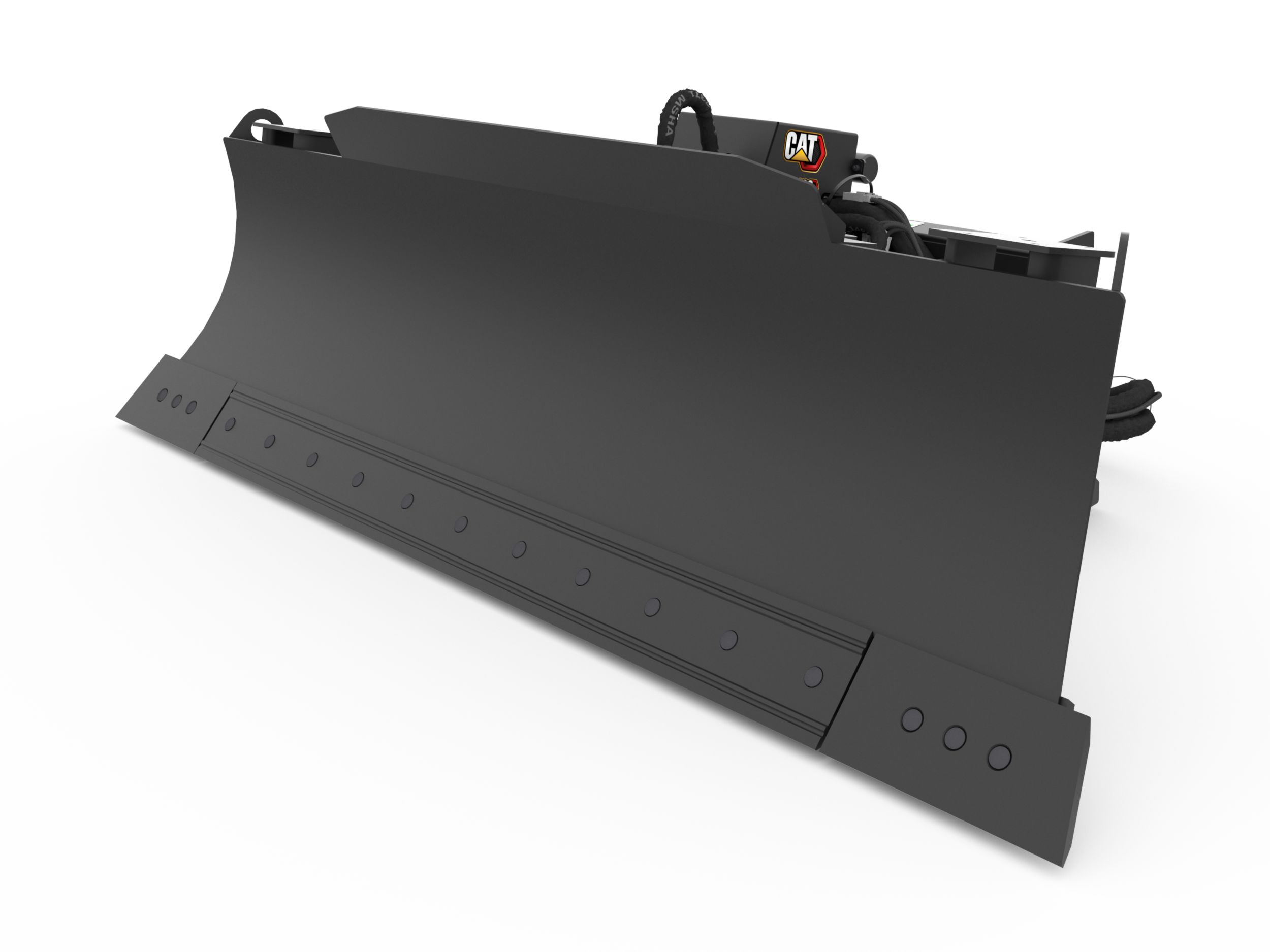

2337 mm (92 in) Dozer Blade

CALCULATE FINANCE

Application

Designed for rough and finish grading in dirt and gravel as well as for light dozing.

VPAT Design

Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.

Replaceable Cutting Edge

Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.

Spill Guard

An integrated spill guard prevents material from spilling over the top of the blade in full blade scenarios.

Angled Blade Ends

Modeled after track-type tractor blades, this allows flush cutting against a vertical surface when the blade is fully tilted.

Mast Mounting Points

To accept external reference masts for use by GPS, Laser, or other leveling systems.

Removable Shims

Allows for adjustment of trunnion due to interface wear during normal usage.

OMM Container

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

Product Specifications
Blade Width 2337 mm (92 in)
Width - Fully Angled 2049 mm (80.7 in)
Maximum Blade Angle - Right/Left of Center 30 degrees
Tilt Angle Range +/- 10 degrees
Blade Height 619 mm (24.4 in)
Overall Height 637 mm (25.1 in)
Length 1028 mm (40.5 in)
Weight 492 kg (1085 lb)
Cutting Edge Thickness 16 mm (0.6 in)
Required Hydraulics Standard Flow
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
Interface Type Skid Steer Coupler
