Angle Blades - Compact Products

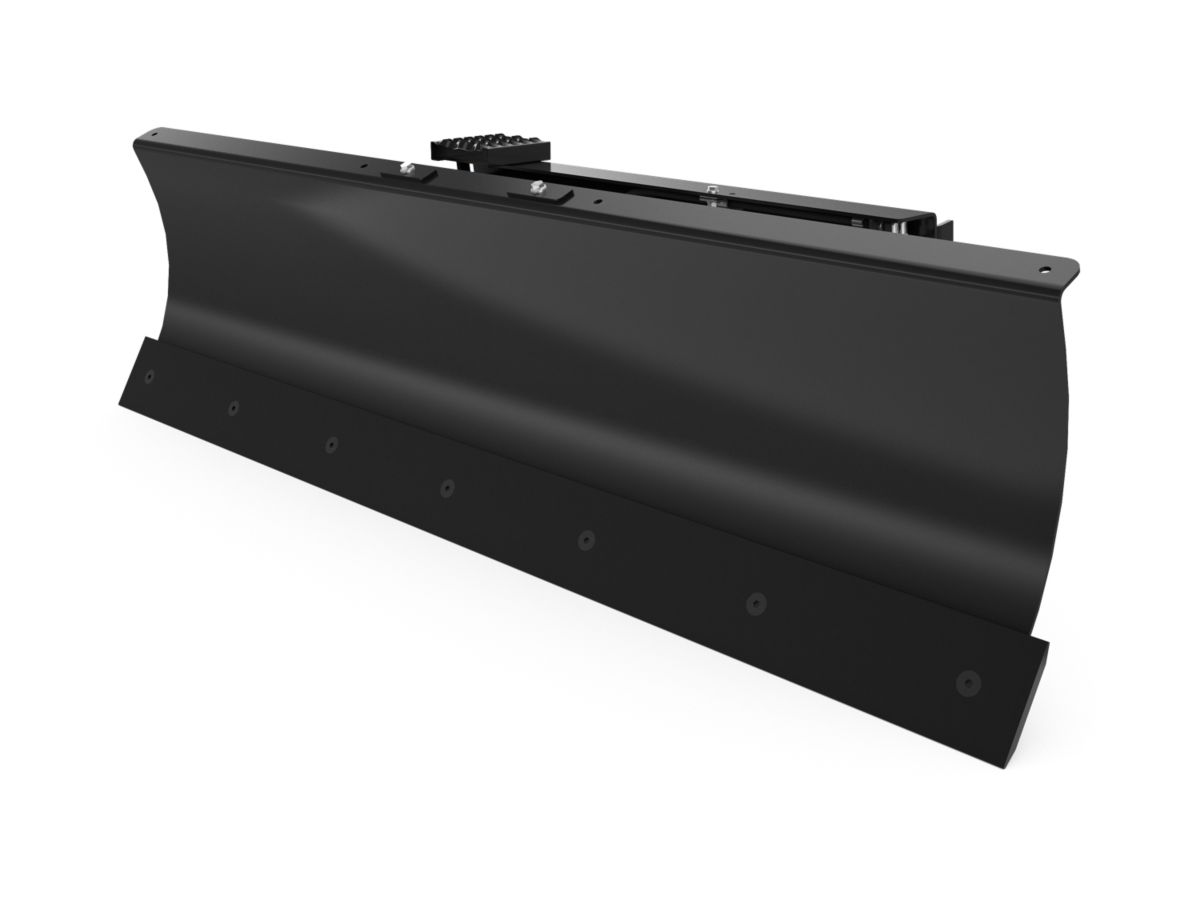

2134 mm (84 in) Angle Blade
Designed for moving dirt, gravel, livestock waste and snow. Also ideal for finish grade work in construction and landscaping applications.
Two-way blade can be operated with the blade locked for aggressive dozing or with spring-loaded trip engaged for pushing snow or livestock waste.
Blade angles +/
- 30 degrees to assist in various tasks.
Curved moldboard with standard reversible/replaceable bolt-on, hardened DH-2 steel cutting edge delivers long life and high performance.
Adjustable Skid Shoes
Adjustable skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting-edge depth.

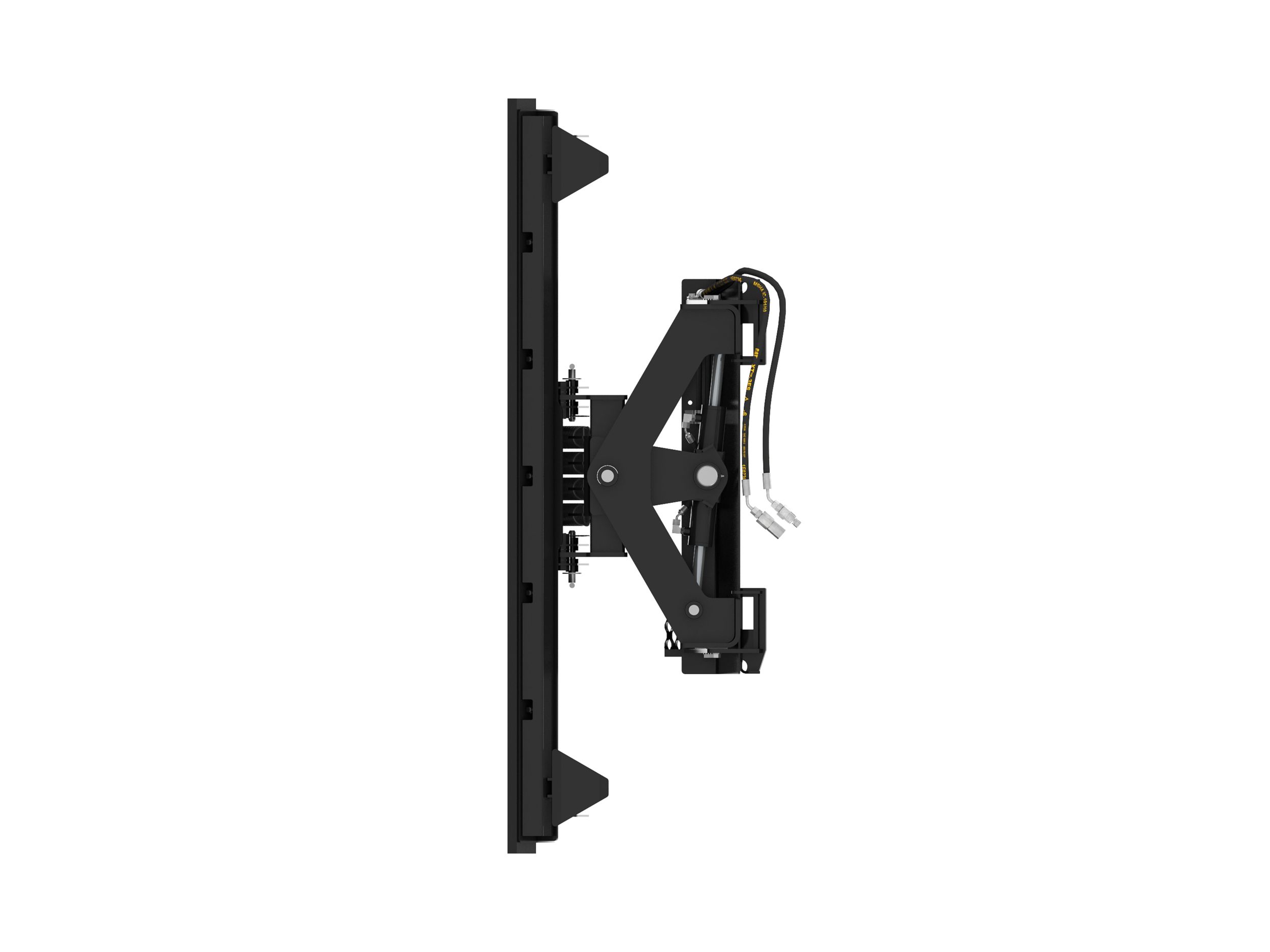

Spherical Rod Eye Cylinder
Spherical rod eye cylinder adds another degree of movement to jointed section for better impact protection.
Four Pre-loaded Springs
Four pre-loaded springs provide appropriate force with spring-loaded trip engaged. Springs can be removed individually to accommodate a lighter trip.
Allows for proper ground interface with different hinge pin heights on compact wheel loaders, skid steer and compact track loaders.
Optional Snow Kit
Optional snow kit with heavy-duty guard assembly, two edge markers and mounting hardware.
Optional Non-Metallic Blade
Optional bolt-on, non-metallic edge reduces surface scratches or marring of concrete and asphalt surfaces.
|Blade Width||2134 mm (84 in)|
|Width - Fully Angled||1949 mm (76.7 in)|
|Maximum Blade Angle - Right/Left of Center||30 degrees|
|Blade Height||614 mm (24.2 in)|
|Cutting Edge Width||2198 mm (86.5 in)|
|Length||753 mm (29.6 in)|
|Weight||331 kg (729.7 lb)|
|Cutting Edge Thickness||16 mm (0.6 in)|
|Optimal Hydraulic Flow||42-86 L/min (11-23 gpm)|
|Optimal Hydraulic Pressure||145-235 bar (2100-3400 psi)|
|Required Hydraulics||Standard Flow|
|Interface Type||Skid Steer Coupler|
