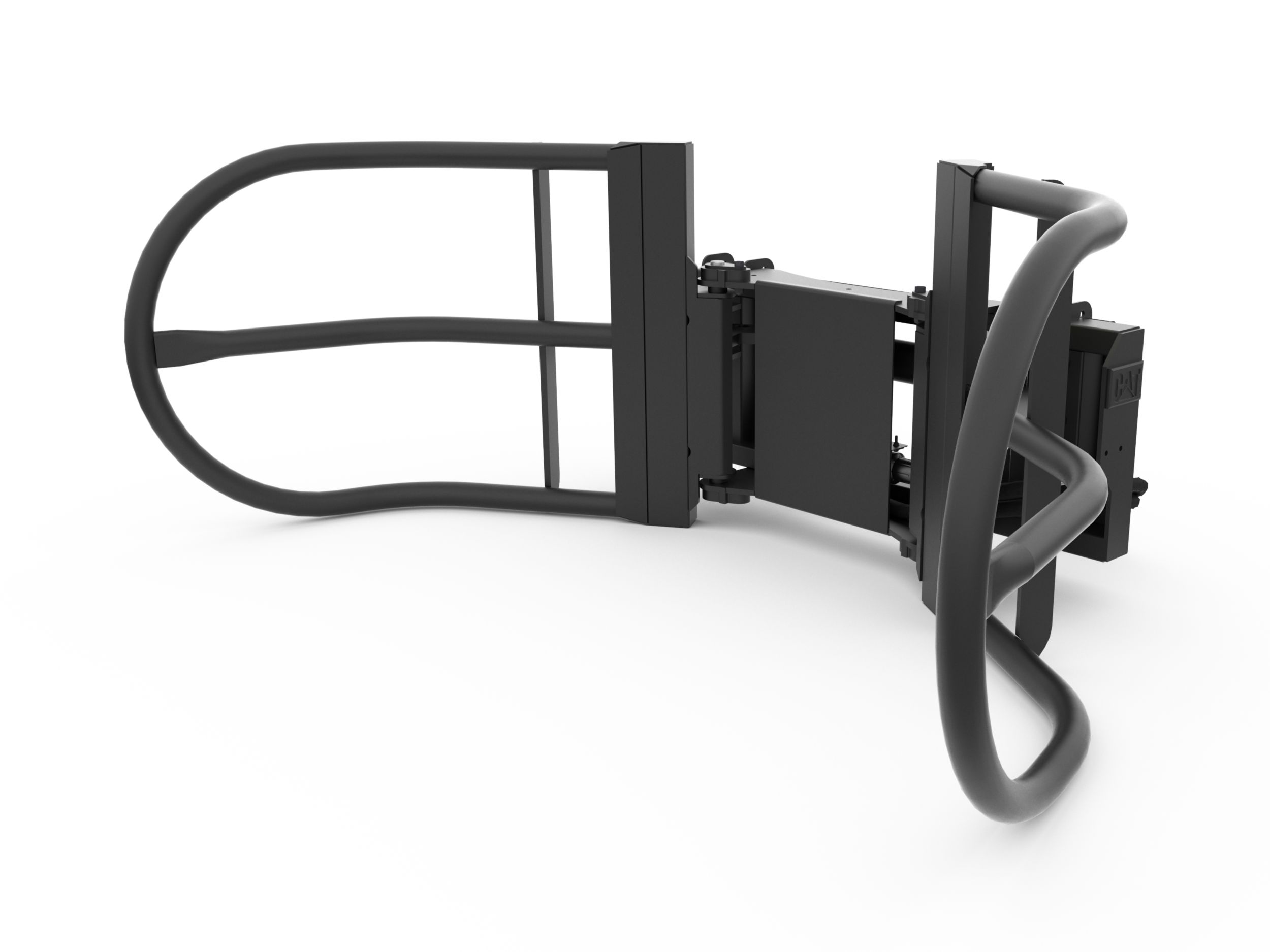

2060 mm (81 in) Bale Grab
Large Capacity Opening
Opening is wide enough to grasp 1803 mm (71 in) or 2133 mm (84 in) bales of hay.
Tubular Arms
Tubular constructed arms eliminate damage to wrapped bales.
Bolt-On Serrated Step
Bolt-On serrated step allows safe and ergonomic access to machine cab and is easily replaceable if damaged.
High Strength Rigid Frame
High strength steel frame ensures durability. Hardened pins and easily accessible grease points lead to extended life and productivity.
Lockable Arms
One arm can be locked in a fixed position using locking pins, allowing all motion to occur exclusively through the second arm. This configuration is especially useful for stacking operations, where consistent reach and repeatable alignment are required.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
| Product Specifications | |
|---|---|
| Overall Width | 1400 mm (55.1 in) |
| Overall Height | 873 mm (34.4 in) |
| Maximum Opening Width | 2060 mm (81.1 in) |
| Capacity | 820 kg (1807.8 lb) |
| Overall Depth | 1550 mm (61 in) |
| Weight | 272 kg (599.7 lb) |
| Working Pressure | 21000 kPa (3045.8 psi) |
| Required Hydraulics | Standard Flow |
