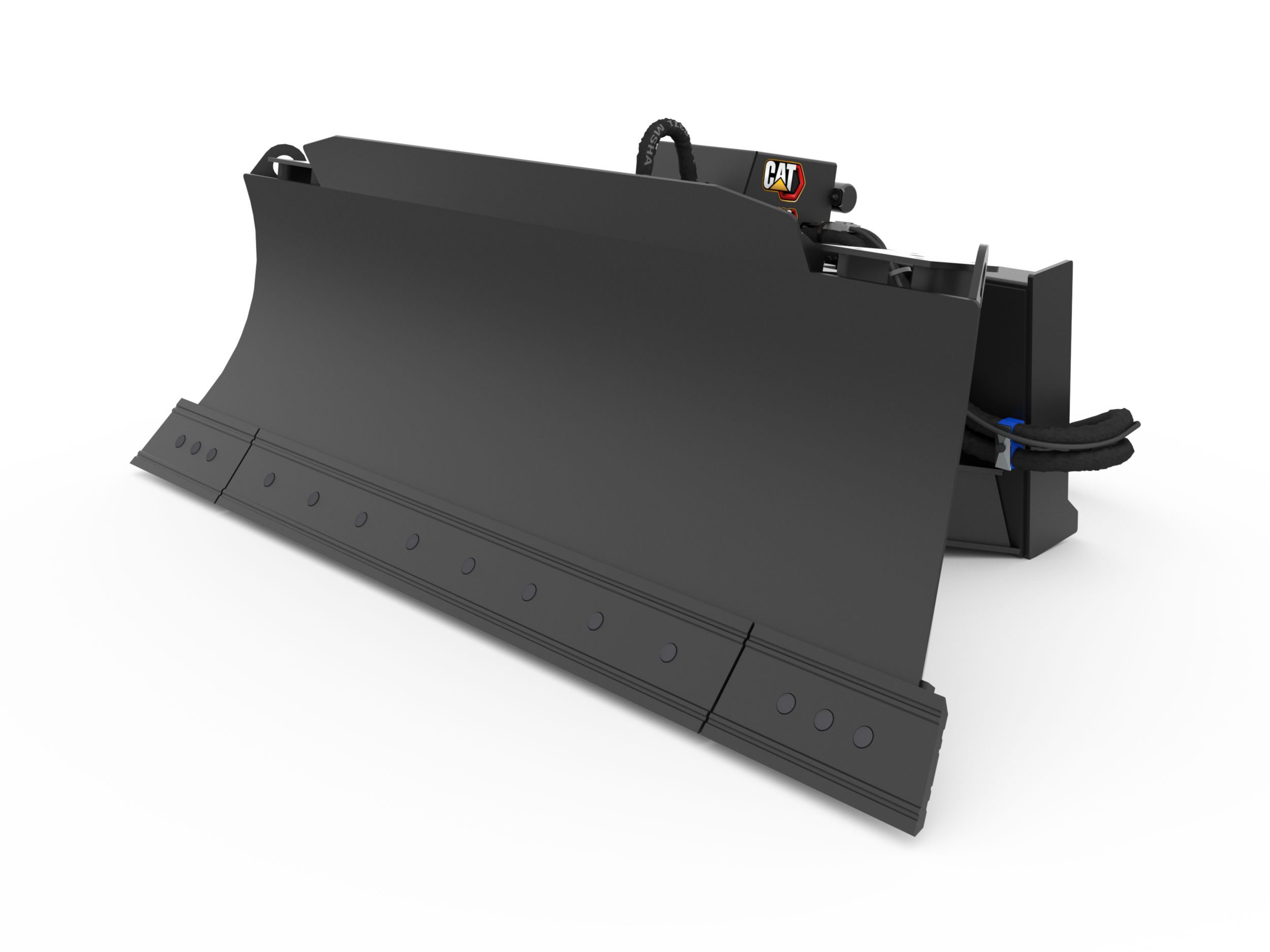

Enquire about "2007 mm (79 in) Dozer Blade" Now
Designed for rough and finish grading in dirt and gravel as well as for light dozing.
SMART Attachment Ready
Attachment recognition makes the SMART Dozer Blade, SMART. Cat® Compact Track Loaders equipped with SMART technology recognizes the SMART Dozer attached to the machine, thus unlocking additional dedicated machine display screens allowing the operator to interface with the machine and how the attachment is controlled. As a SMART attachment, the existing joysticks on the machine equipped with SMART technology allow for mode select and pattern change to perform functions on the attachment.
Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.
Replaceable Cutting Edge
Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.
An integrated spill guard prevents material from spilling over the top of the blade in full blade scenarios.
Angled Blade Ends
Modeled after track-type tractor blades, this allows flush cutting against a vertical surface when the blade is fully tilted.
Mast Mounting Points
To accept external reference masts for use by GPS, Laser, or other leveling systems.
Allows for adjustment of trunnion due to interface wear during normal usage.
Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.
|Blade Width||2007 mm (79 in)|
|Width - Fully Angled||1750 mm (68.9 in)|
|Maximum Blade Angle - Right/Left of Center||30 degrees|
|Tilt Angle Range +/-||10 degrees|
|Blade Height||619 mm (24.4 in)|
|Overall Height||637 mm (25.1 in)|
|Length||1028 mm (40.5 in)|
|Weight||460 kg (1014 lb)|
|Cutting Edge Thickness||16 mm (0.6 in)|
|Required Hydraulics||Standard Flow|
|Optimal Hydraulic Flow||42-86 L/min (11-23 gpm)|
|Optimal Hydraulic Pressure||145-235 bar (2100-3400 psi)|
|Interface Type||Skid Steer Coupler|
