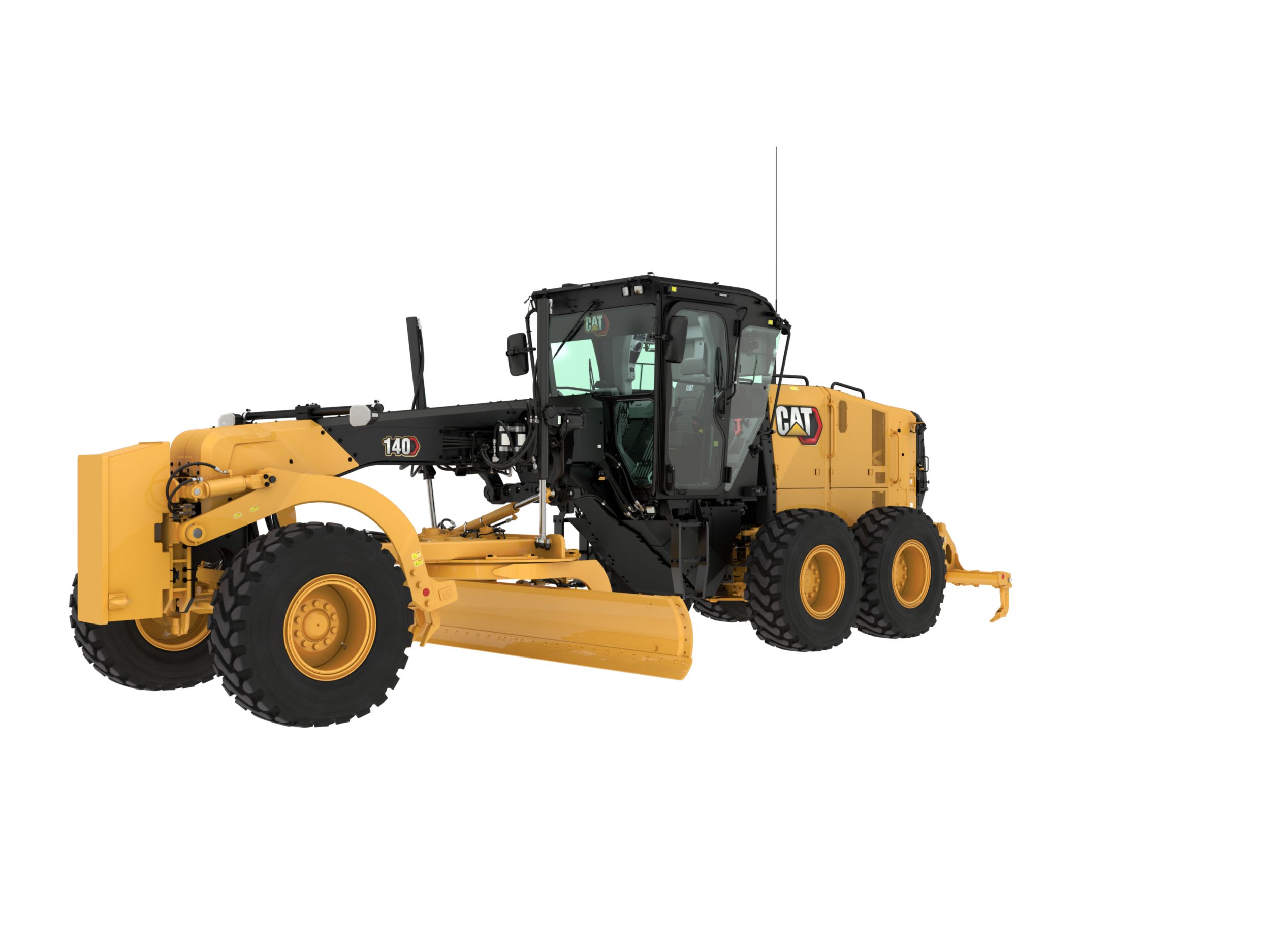

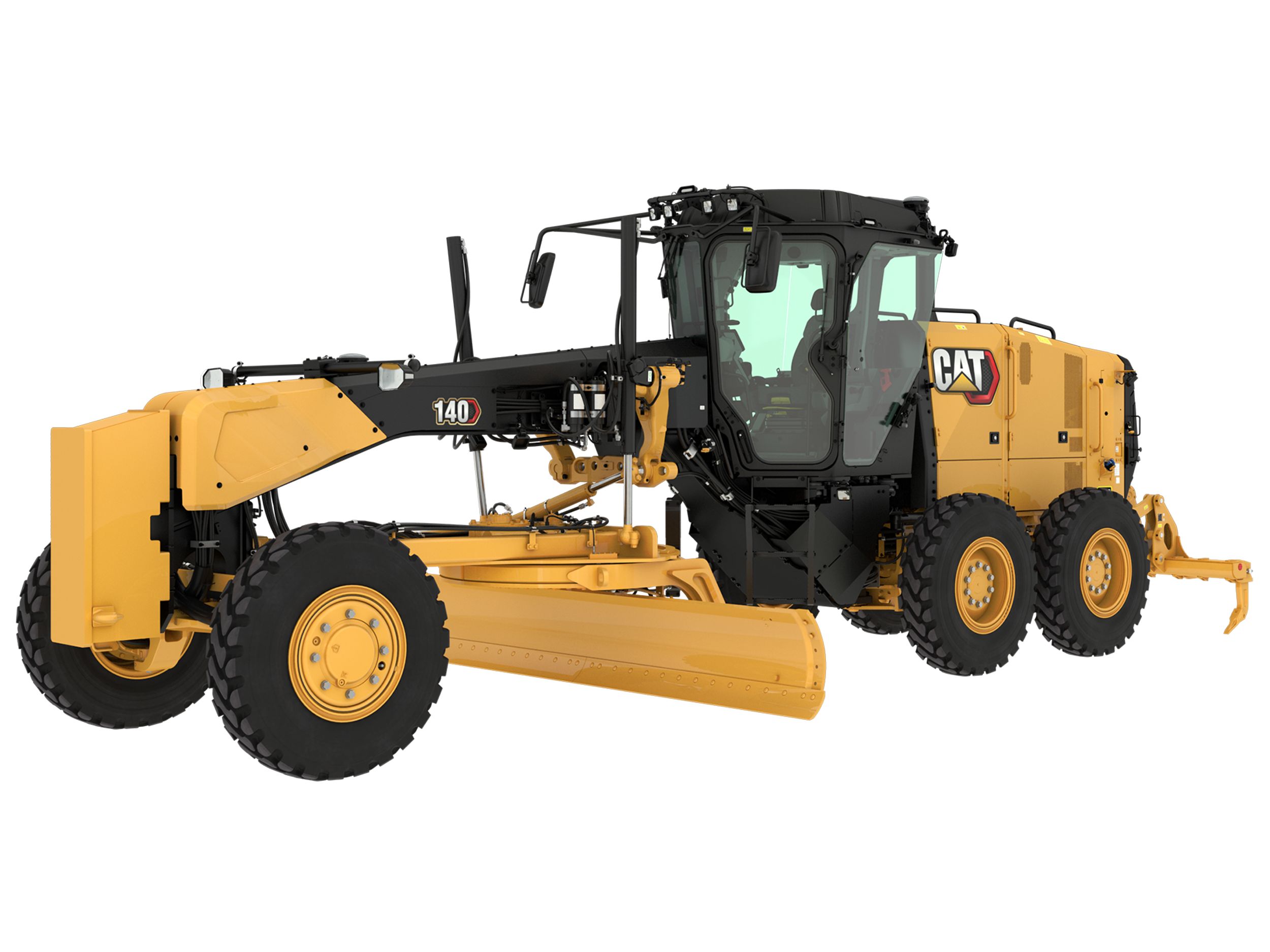

140 Motor Grader
Redesigned Cab
Safety
Technology
Lower Maintenance Costs
Circle Options
Sustainability
| Engine | |
|---|---|
| Net Power - ISO 9249/SAE J1349 | 174 kW (248 hp) |
| Engine Model | Cat® C7.1 |
| VHP Plus - Gear - Net Power - Forward 1st | 126 kW (169 hp) |
| Bore | 15 mm (4.1 in) |
| Stroke | 135 mm (5.3 in) |
| Displacement | 7.01 l (1.9 Gal) |
| Number of Cylinders | 6 |
| Weights | |
|---|---|
| Operating Weight - Typically Equipped | 18748 kg (41332.3 lb) |
| Operating Weight - Typically Equipped - Front Axle | 5238 kg (11547.8 lb) |
| Operating Weight - Typically Equipped - Rear Axle | 13510 kg (29784.5 lb) |
| Machine Weight | |
|---|---|
| Note (1) | * Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, transmission guard, rear ripper/scarifier, 14.0R24 tires on multi-piece rims, and other equipment. |
| Moldboard | |
|---|---|
| Blade Width | 4267 mm (12 ft) |
| Power Train | |
|---|---|
| Forward/Reverse Gears | 9 Forward / 6 Reverse |
| Transmission | Countershaft Torque Converter Powershift |
| Brakes - Service | Dual Circuit Hydraulic |
| Brakes - Secondary | Dual Circuit Hydraulic |
| Brakes - Parking | Spring Applied Hydraulic Release |
| Hydraulic System | |
|---|---|
| Circuit Type | Parallel |
| Pump Type | Variable Piston |
| Pump Output* | 24150 Pa (3503 psi) |
| Maximum System Pressure | 25500 Pa (3698 psi) |
| Reservoir Tank Capacity | 60 l (15.9 Gal) |
| Note | *Pump output measured at 2000 RPM rated speed |
| Service Refill Capacities | |
|---|---|
| Engine Crankcase | 20 l (5.3 Gal) |
| Fuel Tank | 371 l (98 Gal) |
| Transmission and Differential | 68 l (18 Gal) |
| Dimensions | |
|---|---|
| Height - Top of Cab | 3454 mm (136 in) |
| Height - Front Axle Center | 612 mm (24.1 in) |
| Height - Top of Cylinders | 3044 mm (119.8 in) |
| Height - Exhaust Stack | 3313 mm (130.4 in) |
| Length - Push Plate to Ripper | 9963 mm (392.2 in) |
| Length - Front Tire to Rear of Machine | 8911 mm (350.8 in) |
| Length - Between Tandem Axles | 1498 mm (59 in) |
| Width - Tire Center Lines | 2087 mm (82.2 in) |
| Ground Clearance - Rear Axle | 333 mm (13.1 in) |
| Note | All dimensions are approximate unless otherwise noted. |
| Standards | |
|---|---|
| Steering | ISO 3449:2005, Level II |
| Brakes | ISO 3450:2011; AIS-143:2018 |
| Sound | ISO 6396: ISO 6395 |
| Air Conditioning System | |
|---|---|
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.n- If equipped with R134a (Global Warming Potential = 1430), the system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.288 metric tonnes (2.521 tons). |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Adjustable steering wheel/lever controls
- Seat belt
- Electric throttle control
- Fully redesigned cab with sound suppression and integrated Roll Over Protective Structure (ROPS) and Falling Object Protection System (FOPS)
- Full color ten-inch (254 mm) liquid crystal touch screen display
- Added storage areas
- Information display screen
- Entertainment radio ready
- Cup holder
- Cell phone holder
- Dome interior light
- Coat hook
- Front wipers
- SAFETY
- Back-up alarm
- Grab rails
- Hydraulic brakes
- Hydraulic system – integrated dead engine implement lower
- Hydraulic system – integrated work port pressure relief
- Parking brake
- Rearview mirror
- Side view mirrors
- Signaling/warning horn
- POWERTRAIN
- Cat C7.1 diesel engine
- Eco mode
- On-demand fan
- 43° C (109° F) standard capacity
- DRAWBAR CIRCLE MOLDBOARD
- Standard drawbar circle moldboard
- ELECTRICAL
- Sealed alternator
- Reversing lights
- Breaker panel
- 900 CCA standard duty batteries
- Electric starter
- Rear lights with LED lighting
- Halogen lighting
- SERVICE AND MAINTENANCE
- Ground Level DEF and Fuel Fill
- Grouped location for engine oil and fuel filters
- Extended life coolant
- Next Generation Filters for Fuel and Engine Oil
- GUARDS
- Transmission
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Lower front wipers
- Mechanical suspension seat
- Heated / cooled air suspension seat
- Heating/cooling cab system
- Defrost fans
- Rear wiper
- Cab plus
- Rear window screen
- Digital blade slope meter
- Product Link®
- SAFETY
- Four-point safety harness seat belt
- Operator Presence System
- Rearview camera
- Secondary steering system
- Walkways
- Warning beacon
- POWERTRAIN
- Heavy duty starter
- Transmission with Autoshift
- DRAWBAR CIRCLE MOLDBOARD
- Top Adjust Drawbar
- High Performance Circle
- Circle drive slip clutch
- Circle saver
- Remote Pinion Lube
- 4.9 m (16 foot) Moldboard
- ELECTRICAL
- 145A Brushed Alternator
- 1,400 CCA heavy duty batteries
- SERVICE AND MAINTENANCE
- Fast fuel fill ready
- Underhood Lighting
- GUARDS
- Fender
- Cover, under cab platform
- Steering Cylinder Guards
- VERSATILITY
- Towing hitch
- L3 tires
- Sy-Klone pre-cleaner
- ATTACHMENTS AVAILABLE FROM FACTORY
- Lift Groups
- High Performance Circle
- Counterweight
- Push block
- Mid-Machine Scarifier (MMS)
- Rear Ripper/Scarifier
- Moldboards
- Front Blade
- ATTACHMENTS
- Lift Groups
- High Performance Circle
- Counterweight
- Push block
- Mid-Machine Scarifier (MMS)
- Rear Ripper/Scarifier
- Moldboards
- Front Blade
- Snow Wings
- V-Plow
- Straight Plow
- Brooms
