General Purpose Buckets - Performance Series

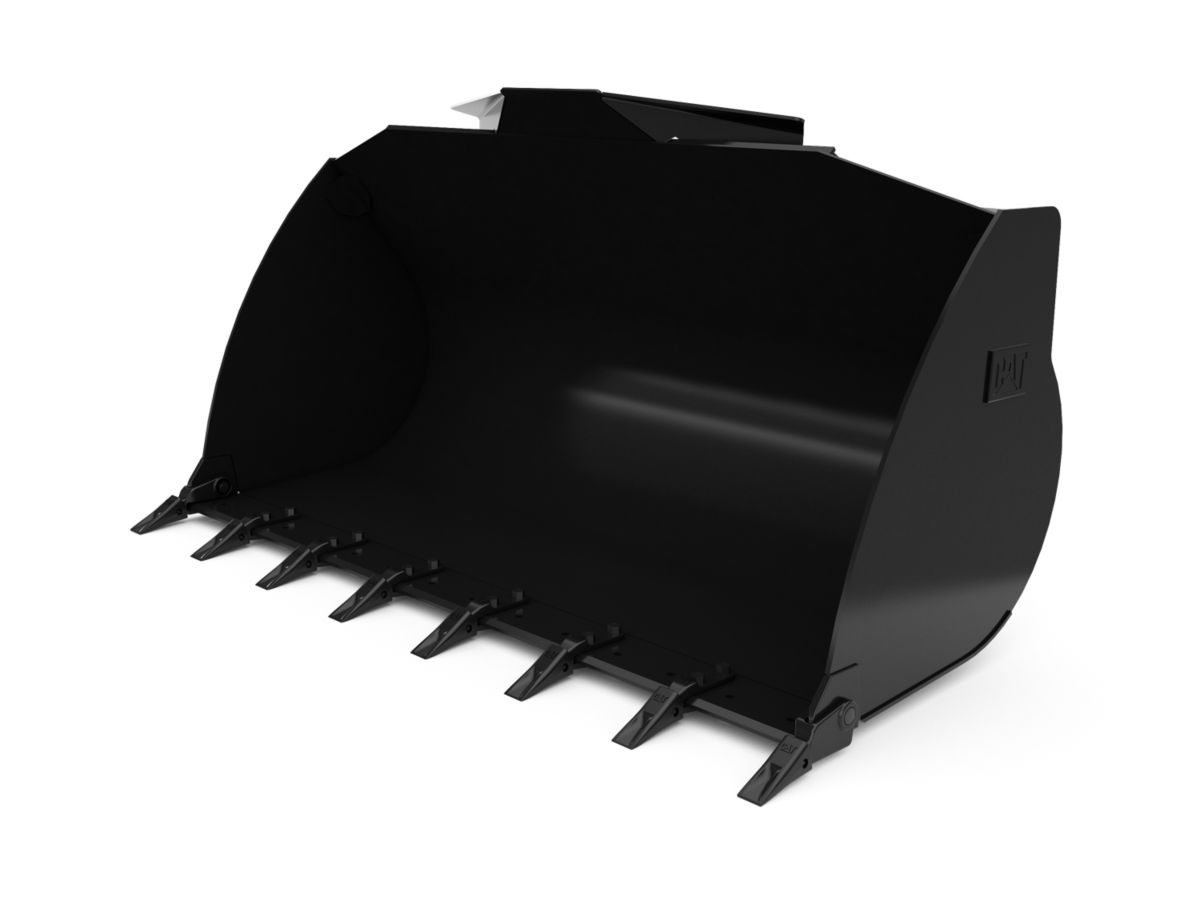

1.9 m3 (2.5 yd3) Fusion™ Coupler General Purpose Bucket – Performance Series with bolt-on teeth
Performance Series buckets improve productivity, increase material retention and reduce fuel burn with easier pile work in a wide variety of applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
Performance Series profile for easy loading and maximum carry load.
Penetrating rounded sidebars help funnel material into the bucket, holding more material with less spillage.
Improved strike plane leads to better sight lines for faster load cycles.
Open Throat Design
Open throat design improves heap size and fill factor.
|Width||2435 mm (95.9 in)|
|Weight||734 kg (1618.2 lb)|
|Height||1331 mm (52.4 in)|
|Length||1302 mm (51.3 in)|
|Capacity||1.9 mu00b3 (2.5 ydu00b3)|
|Base Edge Thickness||19 mm (0.7 in)|
|Cutting Edge Thickness||19 mm (0.7 in)|
|Interface Type||Fusion Coupler|
