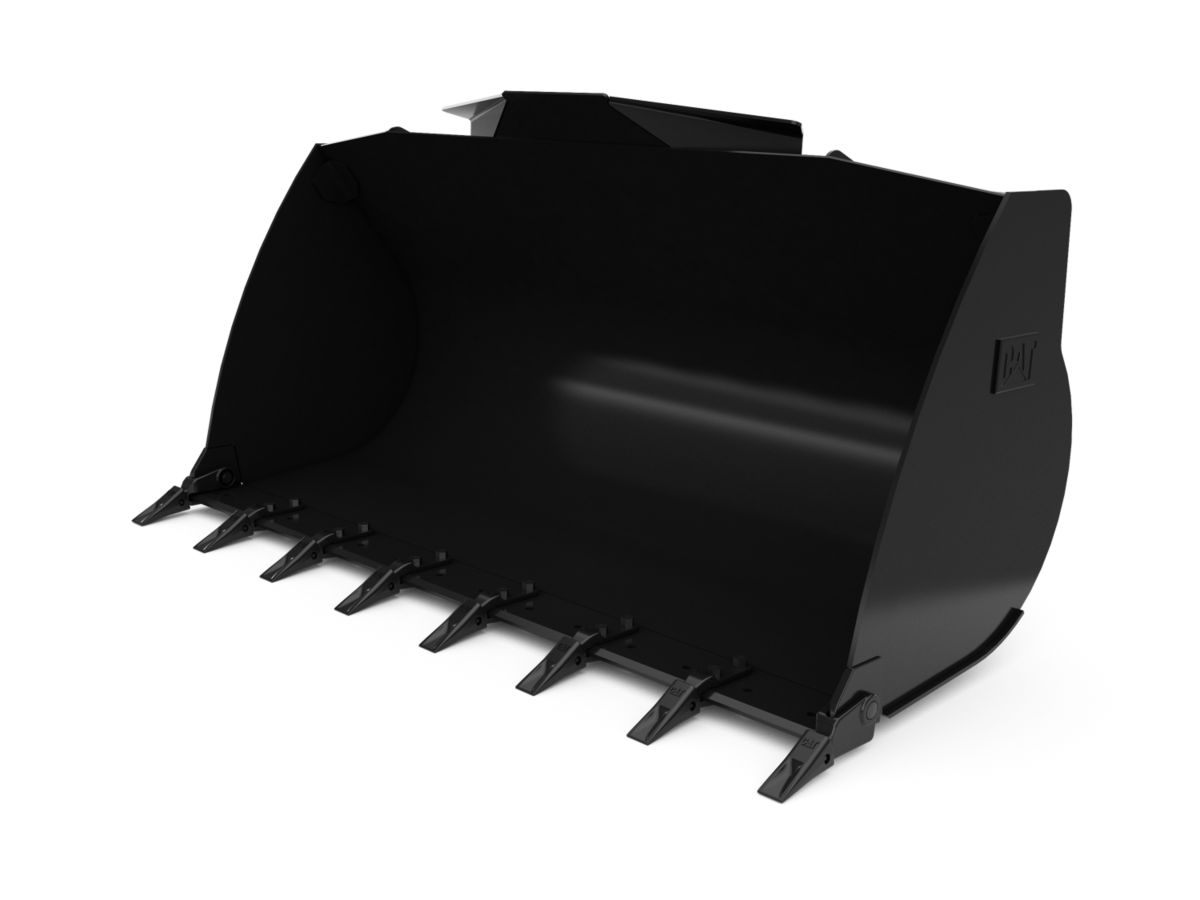

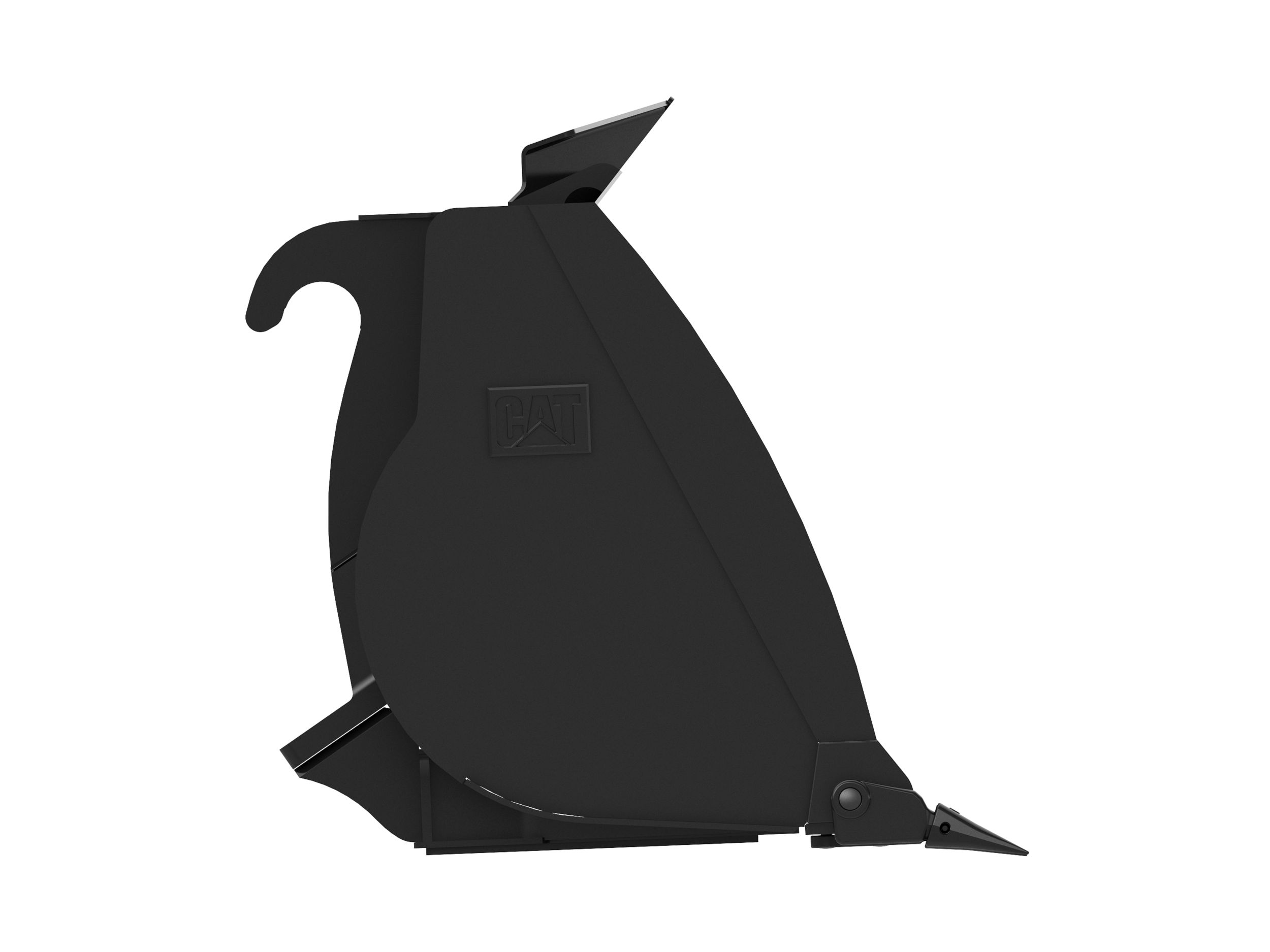

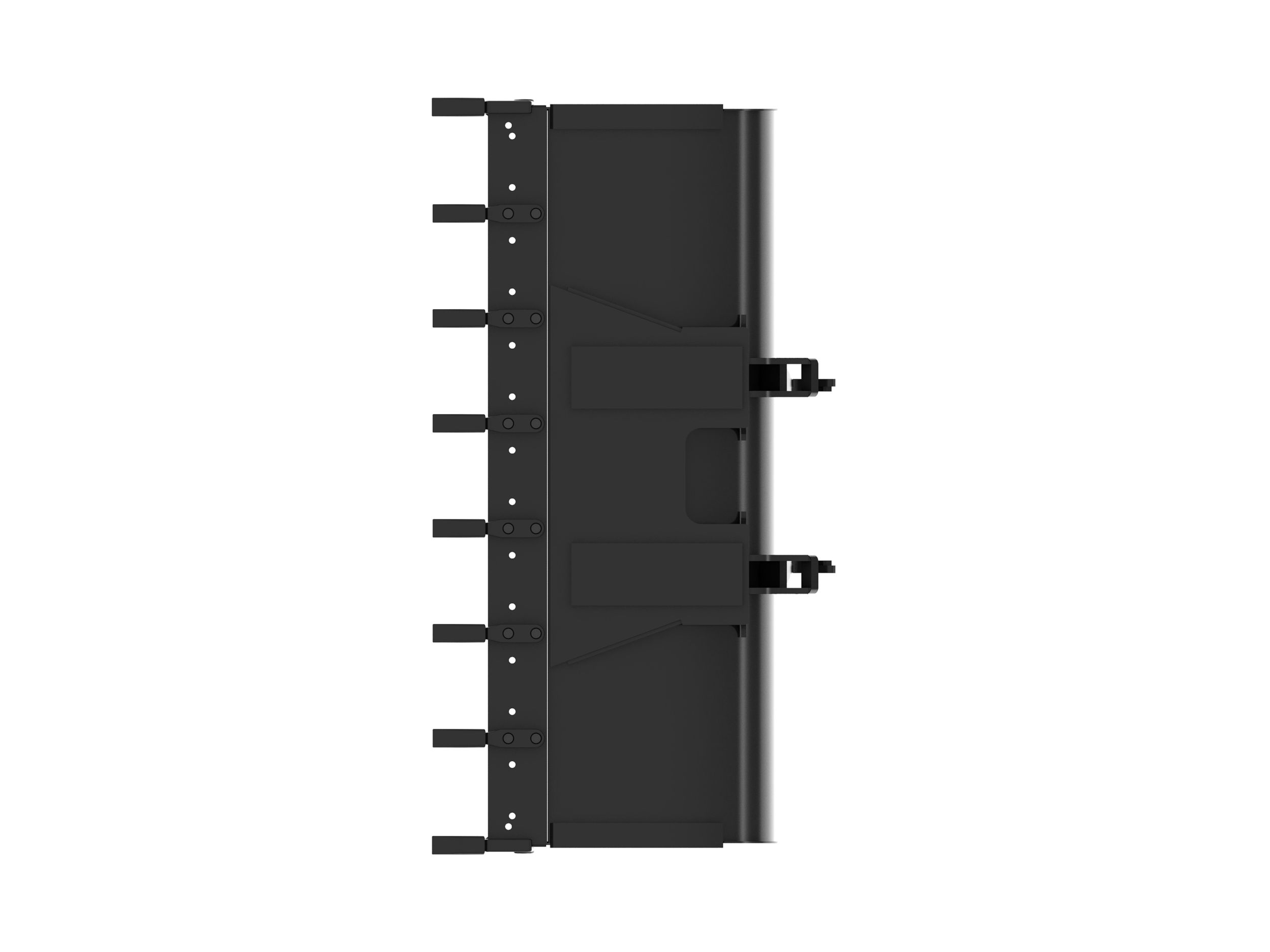

1.6 m3 (2.1 yd3) Fusion™ Coupler General Purpose Bucket – Performance Series with bolt-on teeth

  • Overview

Application

Performance Series buckets improve productivity, increase material retention and reduce fuel burn with easier pile work in a wide variety of applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Profile Shape

Performance Series profile for easy loading and maximum carry load.

Rounded Sidebars

Penetrating rounded sidebars help funnel material into the bucket, holding more material with less spillage.

Strike Plane

Improved strike plane leads to better sight lines for faster load cycles.

Open Throat Design

Open throat design improves heap size and fill factor.

Product Specifications
Width 2435 mm (95.9 in)
Weight 647 kg (1426.4 lb)
Height 1277 mm (50.3 in)
Length 1230 mm (48.4 in)
Capacity 1.6 mu00b3 (2.1 ydu00b3)
Base Edge Thickness 19 mm (0.7 in)
Interface Type Fusion™ Coupler
