Most Versatile Reclaimer Drum
- The Universal rotor is designed to produce maximum breakout force in deep asphalt cuts and on existing soil cement. It also performs well in soil stabilization applications.
- The Universal 16 rotor may also be used in soil stabilization applications; however, the 200 bit design may result in gradation that is finer than desirable.
- The large number of bits, along with the kicker paddles, will also cause this rotor to consume the most power for soil applications.
Excellent Asphalt Sizing

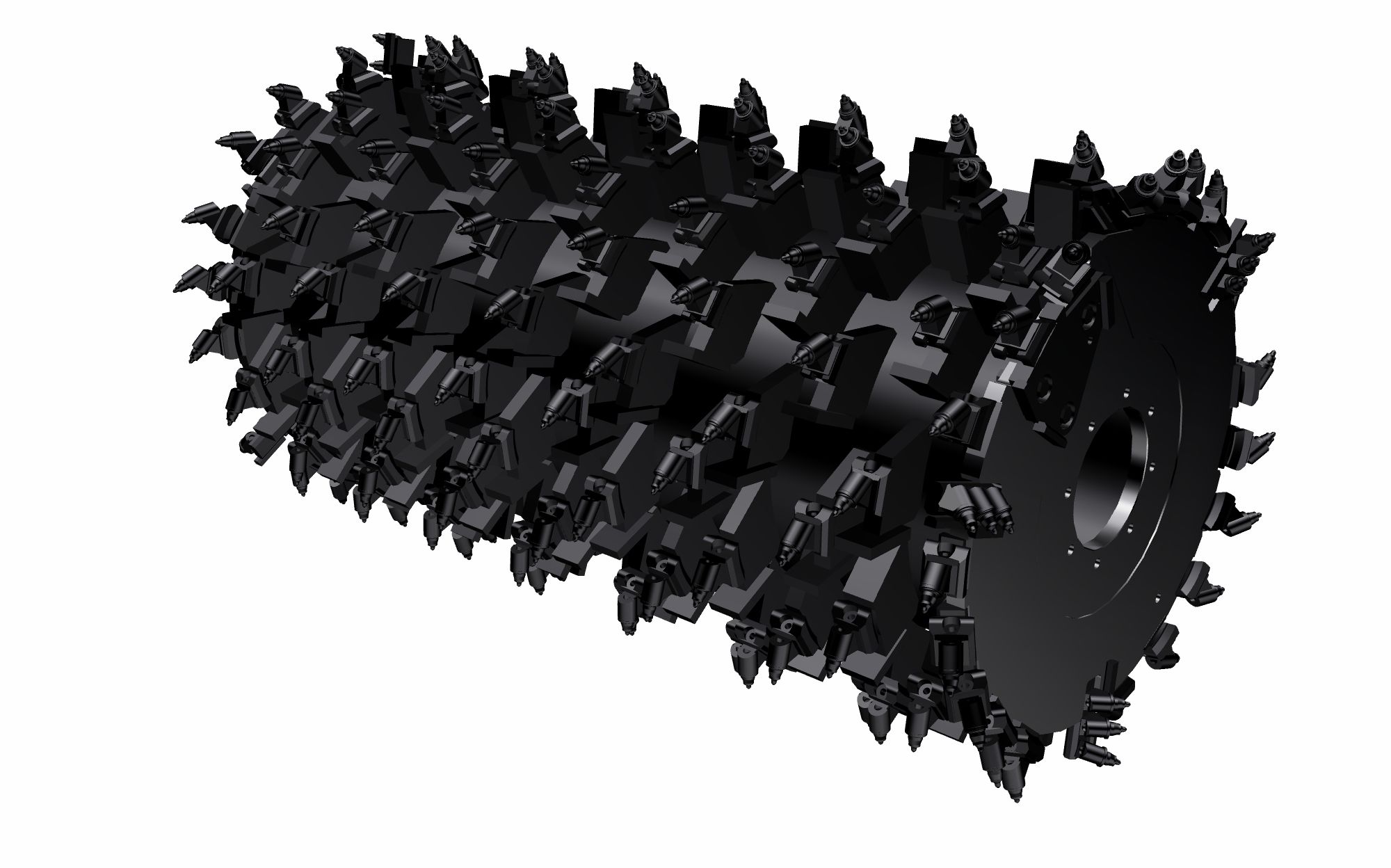

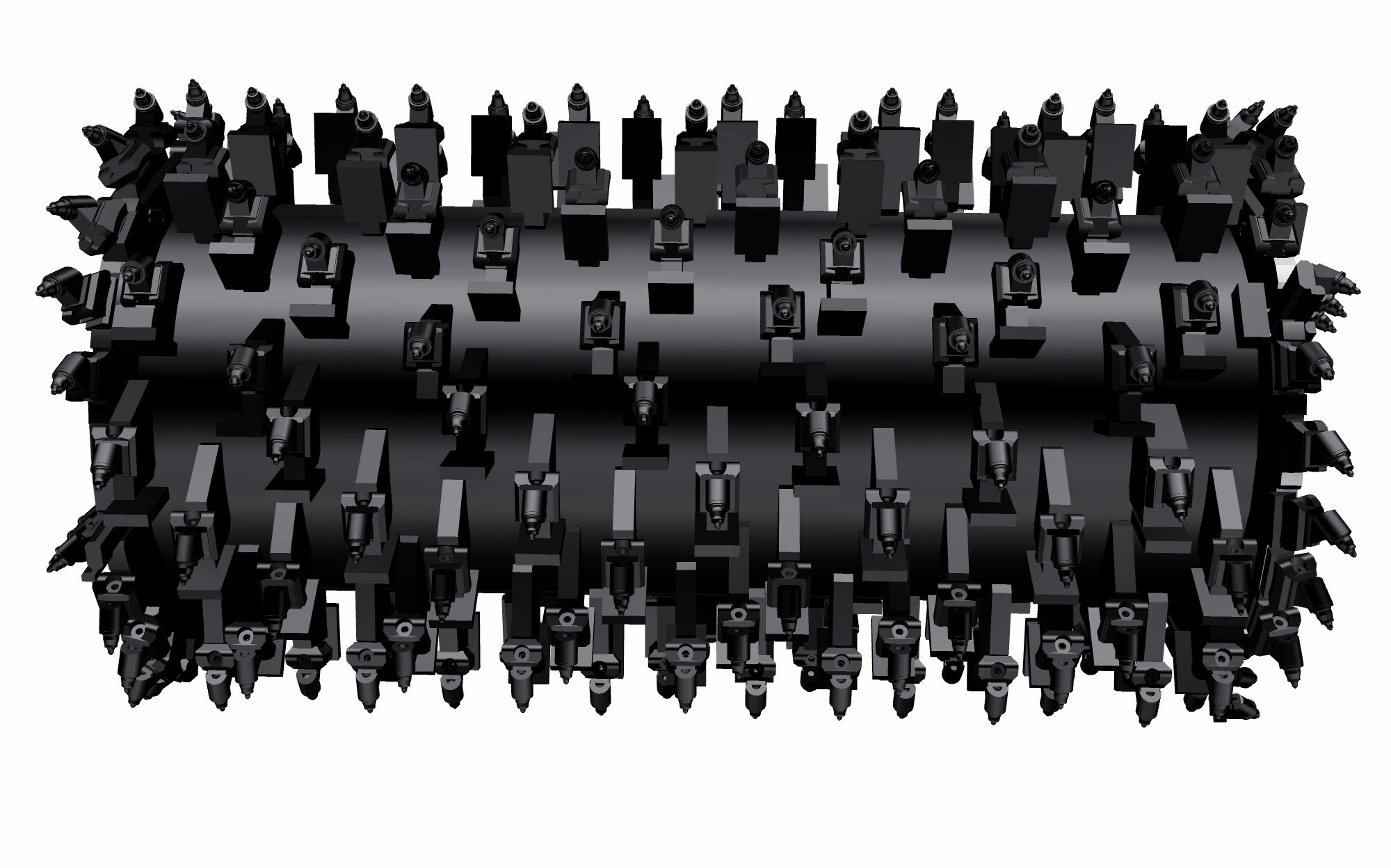

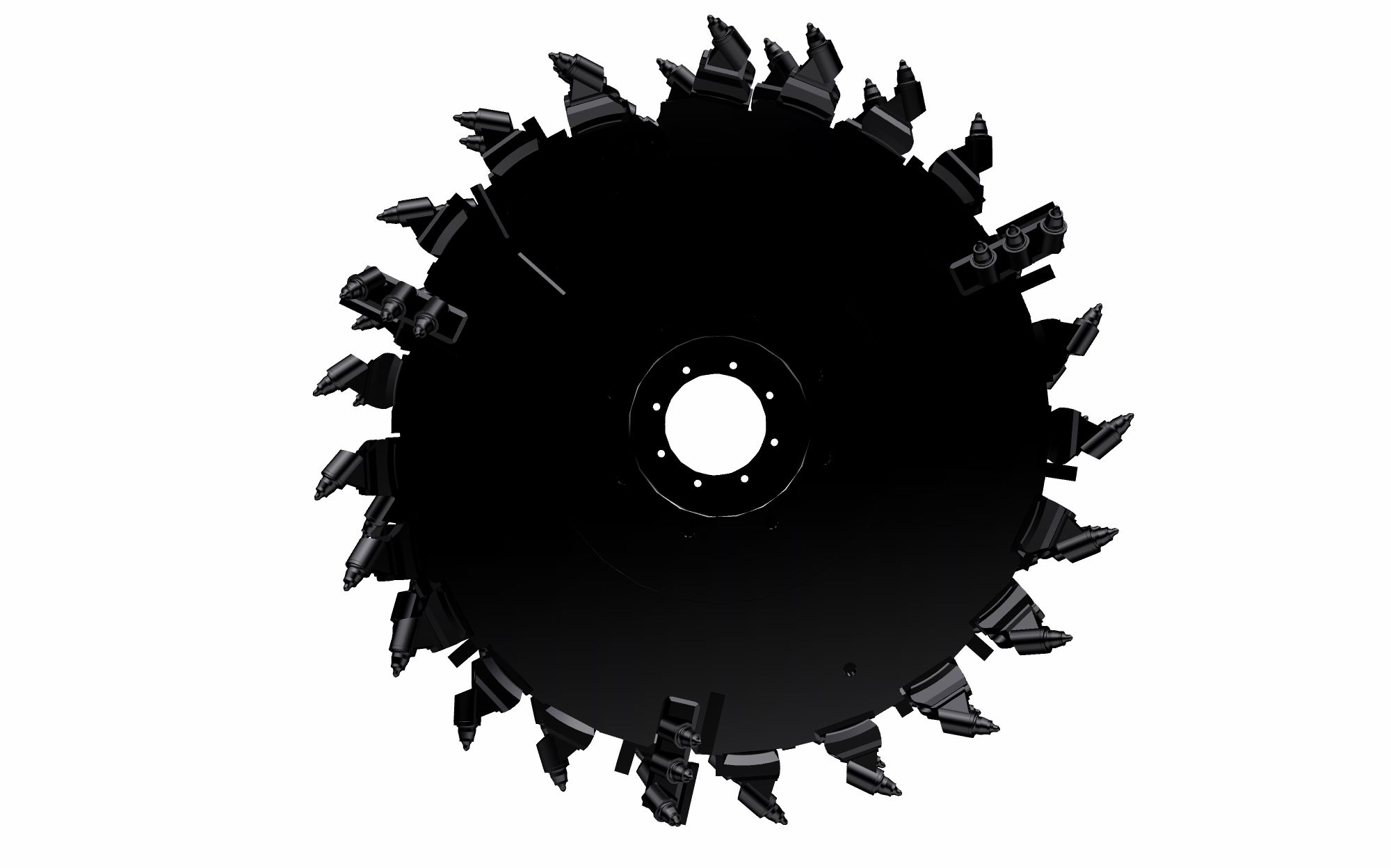

- The Universal 16 is a 406 mm) 16 in) reclaimer drum that delivers excellent asphalt sizing.
- The kicker paddle design provides material movement and suspension in the mixing chamber and includes a breaker bar for excellent gradation in full-depth reclamation and soil stabilization applications.
- Triple-tree tool placement on the rotor edges improves side cutting when maneuvering.
| Product Specifications | |
|---|---|
| Milling Width | 2438 mm (96 in) |
| Tool Spacing | 15.9 mm (0.63 in) |
| Drum Diameter at Tips | 1375 mm (54 in) |
| Milling Depth (max) | 406 mm (16 in) |
| Number of Bits | 200 |
| PN# of Rotor Gp with Coolant and Tools (Factory Installed) | NA |
| PN# of Rotor Gp with Bits (Field installed) | 287-1724 |
